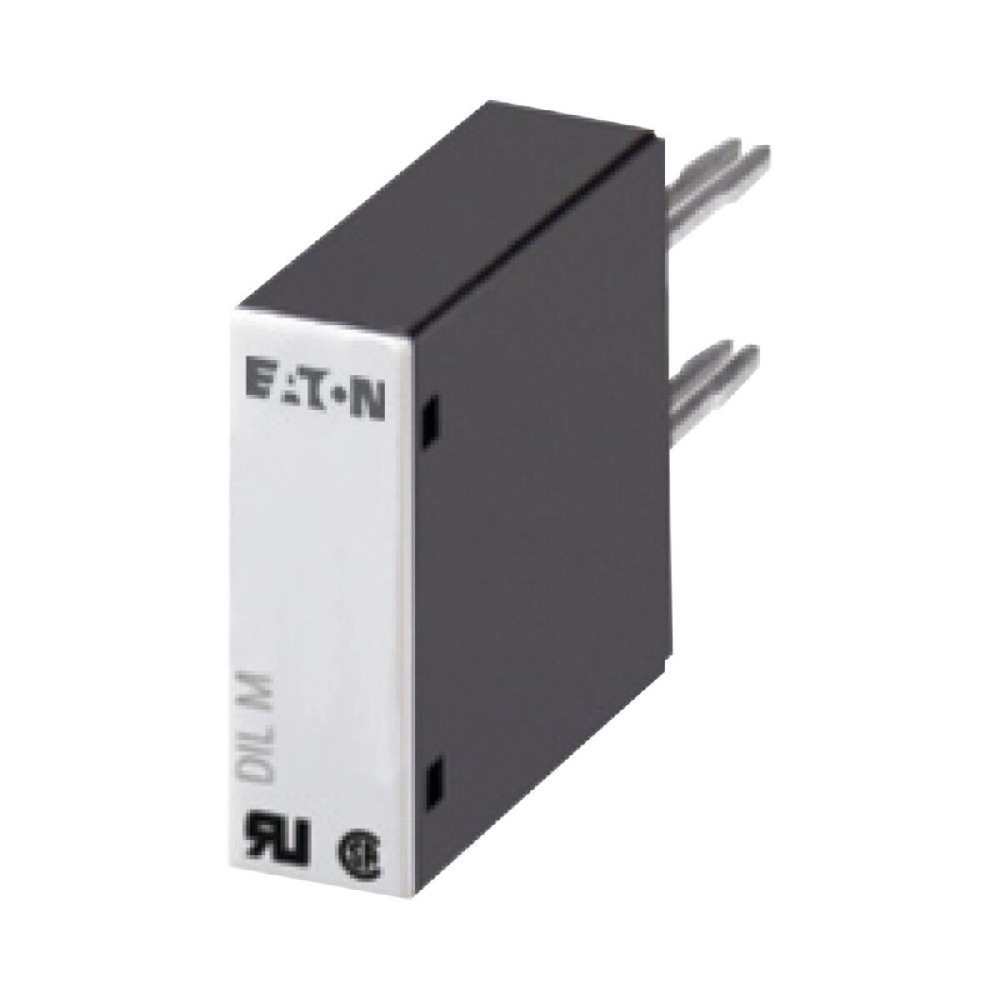

Eaton DILM95-XSPV240 240V Varistor Contactor Surge Protector Absorber

　　The Eaton DILM95-XSPV240 is a specialized Contactor Surge Protector engineered to safeguard sensitive control components from damaging voltage transients.This device employs a robust Varistor Surge Absorber mechanism,designed to protect contactor coils and other inductive loads from voltage spikes that commonly occur during switching operations.By effectively clamping transient over-voltages and diverting surge currents away from critical components,this protector ensures operational stability and significantly extends the service life of electrical equipment.Its specific design for integration with Eaton's DILM contactor series makes it an essential component for enhancing system reliability in industrial automation,motor control centers,and power distribution systems.

　　1.Product Overview and Core Technology Fundamentals

　　The Eaton DILM95-XSPV240 functions as a vital protective accessory within motor control and power switching circuits.This Contactor Surge Protector operates on the principle of variable resistance,a characteristic central to its Varistor Surge Absorber technology.The core component is a metal-oxide varistor(MOV)that possesses a nonlinear voltage-current relationship.Under normal operating conditions,with voltage levels below its threshold,the varistor maintains a high-impedance state,effectively acting as an open circuit and drawing minimal leakage current.This allows the contactor coil to function without any interference.However,when a voltage surge occurs and exceeds the varistor's clamping voltage,the device instantaneously switches to a very low-impedance state,creating a controlled short-circuit path that diverts the harmful transient energy away from the contactor coil and safely into the ground path.

　　This specific model is designed as a plug-in accessory for Eaton's DILM series contactors,particularly compatible with DILM40 through DILM95 models,ensuring seamless integration without requiring complex wiring modifications.The plug-on design simplifies installation and maintenance procedures while guaranteeing perfect electrical and mechanical compatibility.The unit is rated for continuous operation on systems with control voltages ranging from 130 to 240 volts AC,covering common industrial control circuit voltages.The construction incorporates durable materials capable of withstanding the electrical stresses and environmental conditions typically found in industrial settings,including manufacturing plants and process control systems where contactors are extensively utilized.

　　2.Technical Specifications and Performance Parameters

　　The DILM95-XSPV240 Varistor Surge Absorber is characterized by a well-defined set of electrical and operational parameters that dictate its application boundaries.The device is rated for a nominal operating voltage range of 130 to 240 volts AC,making it suitable for single-phase control circuits commonly found in industrial environments.Its voltage clamping performance is precisely calibrated to activate at a threshold slightly above the peak of the nominal supply voltage,ensuring it remains inactive during normal operation while providing rapid response to overvoltage events.

　　The thermal operating range of this Contactor Surge Protector spans from-25 degrees Celsius to+60 degrees Celsius,guaranteeing reliable performance in both cold startup conditions and warm electrical cabinet environments.This wide temperature tolerance is critical for applications subject to seasonal ambient variations or internal heat generation from closely packed electrical components.The device's physical design is compact,with a slender form factor that allows for installation without consuming additional DIN rail space,an important consideration in densely populated control panels.The specific dimensions facilitate side-by-side mounting with contactors without interfering with adjacent components or wiring ducts.Electrically,the suppressor exhibits a fast response time,transitioning from high to low impedance within nanoseconds,thereby limiting the voltage peak seen by the protected contactor coil to a safe level.

　　3.Design Features and Construction Details

　　Advanced Varistor Technology and Material Composition

　　The heart of the DILM95-XSPV240's protective capability lies in its advanced Varistor Surge Absorber element.The metal-oxide varistor is formulated from a ceramic composition of zinc oxide grains with precise additive dopants,creating a multi-junction semiconductor device that exhibits predictable breakdown characteristics.This composition allows the device to handle high surge current ratings while maintaining stable clamping performance over its operational lifespan.The housing is constructed from high-grade,self-extinguishing thermoplastic material that provides excellent dielectric strength,impact resistance,and protection against the ingress of dust and moisture.The internal electrical connections are designed to ensure low-inductance paths,which is crucial for effectively handling fast-rising voltage transients without impedance-related performance limitations.

　　Plug-On Connectivity and System Integration

　　A standout feature of this Contactor Surge Protector is its dedicated plug-on connection system designed specifically for Eaton DILM series contactors.This interface eliminates the need for additional wiring between the suppressor and the contactor coil terminals,reducing installation time and potential connection errors.The plug-on design ensures correct polarization and secure mechanical attachment,maintaining reliable operation even in high-vibration environments.The compact form factor is engineered to fit precisely with the contactor's profile,maintaining the overall dimensions of the combined unit and preserving the original mounting footprint.The design also incorporates visual indicators or mechanical flags in some variants to provide quick confirmation of proper installation,enhancing maintenance and troubleshooting efficiency.

　　4.Application Spectrum and Industry Implementation

　　The primary application for the Eaton DILM95-XSPV240 Varistor Surge Protector is in circuits controlling inductive loads where switching surges pose a significant threat to equipment longevity.In industrial automation systems,these devices protect contactor coils in motor control centers,programmable logic controller(PLC)output modules,and control relays from voltage spikes generated when de-energizing inductive loads.By preventing insulation breakdown and coil burnout,they reduce unplanned downtime and maintenance costs in manufacturing facilities,conveyor systems,and processing plants.

　　The device finds extensive use in commercial and industrial building management systems,particularly in HVAC control circuits where contactors manage compressor motors,fan motors,and pump motors.The Varistor Surge Absorber technology protects these systems from voltage transients originating from both switching operations and external sources,enhancing overall system reliability.Additional applications include elevator control systems,crane and hoist controls,industrial lighting control,and power distribution systems—essentially any environment where electromechanical contactors are employed for switching operations.The compatibility with specific Eaton contactor models(DILM40 to DILM95)makes it particularly relevant for original equipment manufacturers(OEMs)and system integrators working with standardized Eaton components.

　　5.Operational Advantages and Economic Benefits

　　Enhanced Equipment Longevity and Reduced Downtime

　　The implementation of the DILM95-XSPV240 Contactor Surge Protector delivers substantial economic benefits by significantly extending the operational life of contactors and other control components.Voltage transients,if left unchecked,cause progressive degradation of coil insulation through a phenomenon known as partial discharge,eventually leading to insulation failure and coil burnout.By clamping these transients to safe levels,the Varistor Surge Absorber prevents this cumulative damage,potentially extending the contactor's service life by several times.This directly translates to reduced replacement part costs,lower maintenance labor expenses,and minimized production interruptions due to equipment failure.

　　Improved System Reliability and Noise Suppression

　　Beyond protecting against catastrophic failure,this surge suppression device enhances overall system reliability by preventing maloperation of control circuits caused by electrical noise.Voltage spikes can sometimes be misinterpreted as control signals by sensitive electronic components,leading to erratic behavior or false triggering.The DILM95-XSPV240 suppresses these spikes at their source,ensuring cleaner power to the control coils and reducing electromagnetic interference(EMI)emissions from the switching contacts.This noise suppression capability is particularly valuable in facilities employing sensitive electronic equipment such as sensors,communication systems,and computer-based control systems,where electrical noise can compromise data integrity and signal accuracy.

　　Frequently Asked Questions(FAQs)

　　What is the fundamental operating principle behind the varistor technology used in this surge absorber?

　　The DILM95-XSPV240 utilizes a metal-oxide varistor(MOV)as its core protective element.This component exhibits a nonlinear voltage-current characteristic,maintaining a high resistance under normal operating conditions but rapidly switching to a very low resistance when subjected to voltages exceeding its threshold.This instantaneous transition(occurring within nanoseconds)creates a short-circuit path that diverts the surge energy away from the protected contactor coil,effectively clamping the voltage to a safe level.Once the surge subsides,the varistor automatically returns to its high-impedance state,requiring no resetting or intervention.

　　How does this contactor surge protector differ from a standard RC snubber circuit?

　　While both devices provide surge suppression,the Varistor Surge Absorber in the DILM95-XSPV240 operates on a voltage-clamping principle,whereas an RC snubber works by absorbing energy through capacitive storage and resistive dissipation.The varistor-based protector typically offers faster response times and better performance for short-duration,high-amplitude voltage spikes.In contrast,RC snubbers may be more effective for controlling the rate of voltage rise(dv/dt)and reducing contact arcing.The plug-on design of the Eaton unit provides specific compatibility with DILM series contactors,eliminating wiring connections required for discrete RC components.

　　What are the key considerations for selecting this specific model for an application?

　　The primary selection criteria include compatibility with the specific Eaton DILM contactor model(ensuring physical and electrical matching),the operating voltage of the control circuit(which must fall within the 130-240V AC range of this device),and the environmental conditions(particularly temperature extremes).Additionally,the severity of the surge environment should be considered;applications with frequent or high-energy transients might benefit from supplemental protection despite the presence of this device.The physical space constraints around the contactor should also be verified to ensure the suppressor module can be installed without interference.

　　Does this surge protection device require periodic testing or replacement?

　　Varistor-based surge protectors have a finite lifespan determined by the number and energy content of the surges they have absorbed.While no regular testing is typically specified,it is recommended to replace the unit after it has been subjected to a known major surge event or as part of preventative maintenance during major system overhauls.Some advanced versions may incorporate wear indicators,but the standard DILM95-XSPV240 does not feature such visual indicators.In critical applications,periodic measurement of the varistor's leakage current can provide insight into its degradation state,though this requires specialized equipment.

　　Can this suppressor be used with contactors from other manufacturers or different Eaton product lines?

　　The DILM95-XSPV240 is specifically designed as a plug-on accessory for Eaton's DILM series contactors,particularly models DILM40 through DILM95.Its physical connection interface is tailored to these specific contactor types,making direct physical and electrical compatibility with non-DILM contactors or products from other manufacturers unlikely.For protecting other devices or contactor brands,alternative surge suppression solutions with appropriate connection methods would be required.However,the fundamental Varistor Surge Absorber technology could be implemented in different form factors suitable for those applications.
