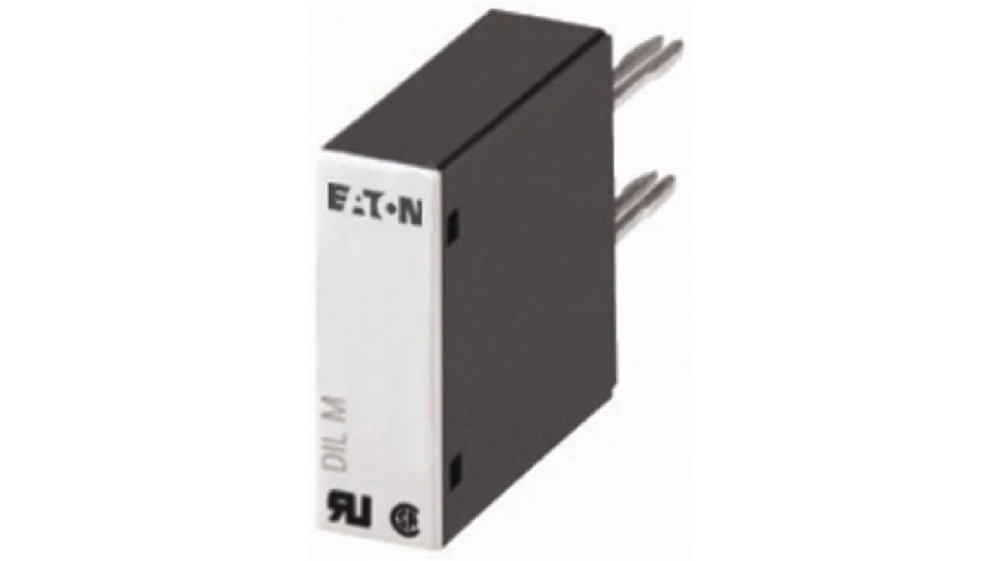

Eaton DILM12-XSPV240 Contactors Surge Protector Varistor Suppressor

　　The Eaton DILM12-XSPV240 represents a critical integration of robust contactor technology and sophisticated surge protector functionality,specifically engineered to safeguard sensitive control circuits from damaging voltage transients.This innovative device combines a DILM12 contactor with a built-in varistor suppressor,creating a comprehensive solution for applications where electrical noise and voltage spikes are a constant threat to operational reliability.By seamlessly integrating a Metal Oxide Varistor directly into the contactor's coil circuit,this unit actively clamps transient overvoltages,thereby protecting the contactor coil from insulation degradation and premature failure.This dual-purpose design not only enhances the longevity of the contactor itself but also contributes to the overall stability and noise immunity of the entire control system,making it an indispensable component in industrial automation,HVAC systems,and motor control centers.

　　1.Product Overview and Operational Principle

　　The Eaton DILM12-XSPV240 is a specialized version of the proven DILM contactor series,augmented with an integrated voltage suppression module.At its core,the device functions as a standard electromechanical contactor,utilizing an electromagnetic coil to mechanically open and close power contacts for controlling electrical loads.The defining feature of this model is its integrated varistor suppressor,a voltage-dependent resistor that protects the contactor's operating coil.Under normal voltage conditions,the varistor exhibits a very high resistance,effectively acting as an open circuit and remaining passive within the system.However,when a voltage surge or transient spike occurs and exceeds the varistor's clamping voltage,its resistance drops instantaneously to a very low value.This action creates a short-duration low-impedance path that diverts the harmful surge current away from the delicate coil windings,safely dissipating the energy as heat and limiting the voltage across the coil to a safe level.

　　This operational principle is crucial for mitigating two primary failure modes in contactors:coil burnout and contact welding.The surge protector element specifically addresses the former by preventing the high-current pulses that can overheat and degrade coil insulation.The integrated nature of this solution eliminates the need for external suppression modules,which are often subject to being forgotten during installation or maintenance,or incorrectly wired,thereby ensuring guaranteed protection and simplifying the entire design and installation process for control panels.

　　2.Technical Specifications and Performance Characteristics

　　The DILM12-XSPV240 is characterized by a set of precise electrical and mechanical parameters that define its application scope.The device is designed for a standard coil voltage of 240V AC,which is the nominal operating voltage for the electromagnetic actuator.The integrated varistor suppressor is calibrated with a specific maximum continuous operating voltage and a clamping voltage that dictates the threshold at which it begins to conduct.Key performance metrics include a high impulse current rating,which defines the maximum single surge current the suppressor can handle without degradation,and a robust energy absorption capacity measured in joules,indicating its ability to dissipate the heat generated from transient events.

　　The contactor component itself is rated for a specific operational current,typically aligning with the DILM12 series specifications for power switching applications.The mechanical endurance is rated for millions of operations,a figure that is significantly supported by the presence of the surge protection,which prevents the mechanical shock and insulation stress caused by voltage spikes during coil energization and de-energization.The device complies with relevant international standards for both contactors and surge protective devices,including IEC/EN 60947-4-1 and IEC 61643-11,ensuring a verified level of safety and performance.The compact,modular design allows for straightforward mounting on standard DIN rails,and the unit is engineered for a wide range of ambient temperatures,making it suitable for demanding industrial environments.

　　3.Design Features and Construction Details

　　Integrated Circuit Protection Architecture

　　The most significant design feature of the DILM12-XSPV240 is the monolithic integration of the varistor suppressor directly across the terminals of the operating coil.This architecture is far superior to external suppression methods because it provides a guaranteed,zero-wiring solution.The varistor,typically a sintered metal oxide ceramic disk,is housed securely within the contactor's overall casing,protecting it from physical damage and environmental contaminants.This design ensures that the protective component is always in the correct electrical configuration—parallel to the coil—without relying on the panel builder or maintenance technician to install it correctly.

　　Robust Electromechanical Construction

　　The contactor base is built for long-term reliability in harsh conditions.The electromagnetic system uses a precision-molded coil former and high-grade copper windings.The core is made from low-loss laminated steel to ensure efficient and quiet operation.The main contacts are often made of silver-cadmium oxide or other arc-resistant materials,housed in a arc chute designed to quench the arc quickly and efficiently.The entire assembly is enclosed in a self-extinguishing plastic material that provides high dielectric strength and resistance to common industrial chemicals,oils,and dust.This robust construction,combined with the integrated surge protector,creates a device that is exceptionally resilient to the electrical and mechanical stresses of daily operation.

　　4.Primary Application Areas and Industry Solutions

　　The Eaton DILM12-XSPV240 finds its critical role in a vast array of applications where control circuit reliability is paramount.In industrial motor control centers,it is used to start and stop motors for pumps,fans,and compressors.In these environments,voltage transients are common due to the switching of large inductive loads or utility-side events.The integrated varistor suppressor ensures that the contactor coil does not become a casualty of these electrical disturbances,thereby preventing unexpected motor shutdowns and production downtime.

　　Another major application is in Heating,Ventilation,and Air Conditioning systems for commercial buildings.These systems often have contactors controlling compressor units and large fan motors.The constant cycling of these loads,coupled with the long wire runs between control panels and field devices,makes the control circuits highly susceptible to induced voltage spikes.The DILM12-XSPV240 provides a robust defense,enhancing the mean time between failures for the entire HVAC control system.Furthermore,it is extensively used in automated material handling systems,packaging machinery,and industrial process control,where a single contactor failure can halt a complex and costly production line,underscoring its value in maintaining overall equipment effectiveness.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Reliability and Uptime

　　The primary operational advantage of incorporating a surge protector directly into the contactor is the dramatic increase in control circuit reliability.By eliminating coil failures caused by voltage transients,the DILM12-XSPV240 directly reduces unplanned downtime.This is a critical economic factor in continuous process industries and high-volume manufacturing,where production losses per hour of downtime can be substantial.The device ensures that the contactor,a fundamental component of the power switching circuit,remains operational over its intended service life.

　　Reduced Total Cost of Ownership and Simplified Design

　　From an economic perspective,this integrated solution lowers the total cost of ownership in several ways.It eliminates the need to procure,inventory,and wire separate suppression modules,saving on component costs,storage space,and installation labor.It also reduces the engineering time required for control panel design,as the surge protection is pre-engineered into a standard component.From a maintenance standpoint,it simplifies troubleshooting and spare parts management,as technicians only need to stock and replace a single,unified component instead of multiple parts.The extended service life of the contactor,a direct result of the protected coil,further reduces long-term replacement costs and contributes to a more sustainable operation by generating less electronic waste.

　　Frequently Asked Questions(FAQs)

　　How does the integrated varistor suppressor differ from using an external RC circuit or diode?

　　An external RC(Resistor-Capacitor)snubber or a free-wheeling diode are common methods for suppressing voltage transients across an inductive load like a contactor coil.A diode is highly effective at suppressing the inductive kickback from DC coils but drastically slows down the drop-out time of the contactor,which can be undesirable.An RC snubber works for both AC and DC but requires correct sizing and adds extra wiring.The integrated varistor suppressor in the DILM12-XSPV240 offers a balanced solution.It provides robust protection for AC coils without significantly delaying the contactor's release time,and its integrated nature guarantees correct installation and consistent performance without any additional engineering or wiring.

　　What is the typical lifespan of the integrated varistor,and how does it affect the contactor's maintenance?

　　The varistor suppressor is a solid-state device with a finite lifespan that is consumed by transient events.Each surge it clamps slightly degrades the component.However,high-quality varistors,like those used by Eaton,are designed to withstand a very high number of typical industrial transients over many years of service.The varistor's end-of-life mode is typically a short circuit,which would permanently engage the coil if it occurred.To prevent this,the device is designed to fail safely.The maintenance cycle for the contactor itself is generally not affected;it remains based on mechanical wear and contact erosion.The varistor requires no routine maintenance,and its status is typically monitored indirectly by the continued reliable operation of the contactor.

　　Can this contactor with integrated surge protection be used in both AC and DC coil applications?

　　The Eaton DILM12-XSPV240 is specifically configured for a 240V AC coil,as denoted in its model number.The varistor suppressor technology is inherently suitable for AC circuits.For applications requiring a DC coil,a different suppression method,such as an integrated diode or a separate DC-rated suppressor module,would be more appropriate.It is crucial to select a contactor model with a coil voltage and suppression type that precisely matches the control circuit's power supply to ensure proper operation and effective protection.

　　What are the consequences of not using a surge-protected contactor in a noisy electrical environment?

　　Operating a standard contactor without a surge protector in an environment with significant voltage transients can lead to several negative outcomes.The most common is the gradual degradation and eventual failure of the contactor's coil.The insulation on the fine copper wire of the coil can break down under repeated high-voltage stress,leading to shorted turns.This increases the coil current,generates excessive heat,and causes a complete coil burnout,rendering the contactor inoperative.This results in unplanned downtime,costly emergency repairs,and the need for replacement parts.Furthermore,electrical noise from the coil can be coupled back into the control wiring,potentially causing malfunctions in sensitive devices like Programmable Logic Controllers or sensors.
