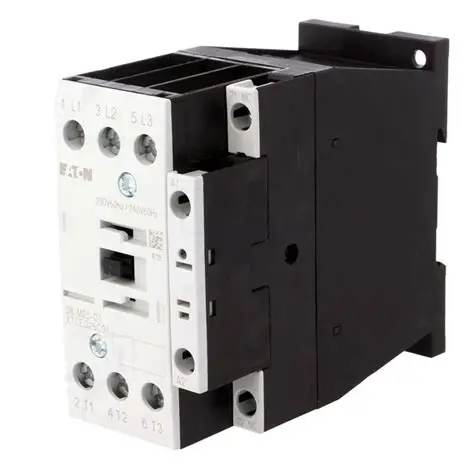

DILM25-01 Heavy Duty 3 Pole Motor Control Contactor 230V50Hz,240V60Hz

　　The Eaton DILM25-01 stands as a cornerstone component in industrial electrical systems,precisely engineered as a versatile 3 pole contactor for reliable switching and control of electrical motors.As a quintessential motor control contactor,it is designed to handle the demanding conditions of frequent make-and-break operations,inrush currents,and continuous heavy-duty service.This compact yet powerful device serves as a remotely operated switch,enabling the safe start,stop,and protection of three-phase AC motors,which are the workhorses of modern automation,HVAC systems,and industrial machinery.Its robust construction,adherence to international standards,and flexible integration capabilities make it a preferred choice for engineers and panel builders seeking to enhance system safety,automate control sequences,and ensure operational longevity.

　　1.Product Overview and Functional Principle

　　The Eaton DILM25-01 is a member of the renowned DILM contactor series,designed for controlling three-phase AC loads.At its core,a motor control contactor is an electrically operated switch.The DILM25-01 functions by using a low-power control signal,typically from a PLC,programmable relay,or a simple push-button station,to energize an electromagnetic coil.When this coil is energized,it creates a magnetic field that pulls in a movable armature,thereby closing multiple sets of power contacts.In the case of this 3 pole contactor,three main power contacts close simultaneously to connect the three phases of the AC supply to the motor.Auxiliary contacts,which are mechanically linked but electrically isolated,also change state to provide feedback for the control circuit,signaling whether the contactor is energized or not.De-energizing the coil causes a spring to return the contacts to their normally open state,safely interrupting the power to the motor.

　　2.Technical Specifications and Performance Data

　　The DILM25-01 is characterized by a set of precise electrical and mechanical ratings that define its application scope.It is rated for a nominal operational current of 25 Amperes at 400V AC,making it suitable for controlling motors with a power rating up to 11 kW at 400V.The 3 pole contactor is designed for a wide range of supply voltages,with the main power circuit capable of handling up to 690V AC.The control coil is available in a variety of standard AC and DC voltages,such as 24V,110V,230V,and 400V,providing flexibility for integration into diverse control voltage systems.Its electrical durability is rated for millions of mechanical operations,with a high number of make-and-break cycles under full load,showcasing its reliability for frequent switching applications.The device also features a high breaking capacity,allowing it to safely interrupt overload currents,and is designed for minimal power consumption in the energized state,contributing to overall system energy efficiency.

　　3.Design Features and Construction Details

　　Robust Enclosure and Safety Design

　　The Eaton DILM25-01 is housed in a self-extinguishing plastic enclosure that provides a high degree of protection against accidental contact with live parts,typically meeting IP20 finger-safe standards.This is a critical safety feature for any motor control contactor installed in industrial control panels.The terminals are designed for secure and reliable connections,often accommodating both cage-clamp and screw-type wire terminations to suit different installation preferences and standards.The overall construction is robust,capable of withstanding the mechanical stresses of industrial environments,including vibration.

　　Contact System and Magnetic Circuit

　　The heart of this 3 pole contactor is its silver-cadmium oxide(AgCdO)or equivalent silver-based alloy contacts.These materials offer excellent resistance to welding and erosion,ensuring a long electrical service life.The magnetic system,comprising the coil,core,and armature,is optimized for low noise operation and low power consumption.Many versions feature a built-in transient suppression circuit,which protects the control electronics from voltage spikes generated by the collapsing magnetic field when the coil is de-energized.Furthermore,the contactor is designed for easy mounting on standard DIN rails(TS35),and some models offer optional mechanical interlocks to prevent the simultaneous energization of two contactors in reversing or redundant schemes.

　　4.Primary Application Areas and Industry Solutions

　　The primary role of the Eaton DILM25-01 is as a motor control contactor for three-phase asynchronous motors.It is ubiquitously used in motor starter combinations,often paired with thermal overload relays or circuit breakers to form a complete motor starter solution that provides switching,isolation,and overload protection.These assemblies are fundamental in industries such as manufacturing,where they control conveyor belts,pumps,fans,and machine tools.

　　Beyond direct motor starting,this 3 pole contactor is extensively used in automation systems for controlling other three-phase loads like heating elements,transformer banks,and power capacitors for compensation.Its reliability makes it a key component in building management systems for operating air handling units,water pumps,and cooling towers.The device's versatility also extends to specialized applications such as compressor control,crane and hoist systems,and as a power-controlling element in complex control circuits managed by PLCs.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Safety and Reliability

　　The DILM25-01 significantly enhances operational safety by allowing low-voltage control circuits to remotely switch high-power motor circuits.This eliminates the need for operators to manually interact with high-voltage equipment.Its robust design ensures consistent performance over millions of cycles,minimizing the risk of unexpected failure and the associated production downtime.The clear marking of terminals and the standardized color-coding of auxiliary contacts reduce wiring errors during installation and maintenance.

　　Cost-Effectiveness and Simplified Maintenance

　　As a globally recognized and widely available component,the Eaton DILM25-01 offers a compelling total cost of ownership.Its long service life reduces replacement frequency and inventory costs.The modular design and DIN-rail mounting simplify installation and panel layout,saving valuable time and labor during the build phase.Should maintenance be required,the contactor can be easily replaced without disturbing the entire control circuit,thanks to its standardized form factor and connection system,thereby reducing machine downtime and maintenance expenses.

　　6.Integration and Compliance Standards

　　The Eaton DILM25-01 is engineered for global compliance,carrying certifications from major international standards bodies such as UL,CSA,CE,and CCC.It conforms to relevant IEC and EN standards,including IEC 60947-4-1,which governs low-voltage contactors and motor-starters.This ensures its performance,safety,and reliability are verified and consistent across different markets.The contactor's design also facilitates seamless integration with other components in the Eaton portfolio,such as overload relays and circuit breakers,allowing for the creation of cohesive and fully coordinated motor control and protection systems.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a contactor and a relay?

　　While both are electromagnetically operated switches,a motor control contactor like the DILM25-01 is specifically designed to handle high-current loads,typically from 9A to over 1000A,and is used for controlling power circuits such as motors and heaters.A general-purpose relay is designed for lower currents,usually up to 10-16A,and is primarily used in control and signal circuits.Contactors like the DILM25-01 have a robust construction with arc chutes to extinguish the powerful arcs generated when interrupting motor currents,a feature not typically found in standard relays.

　　Can the DILM25-01 be used for both AC and DC motor control?

　　The Eaton DILM25-01 is primarily designed as a 3 pole contactor for switching three-phase AC power and is optimized for this purpose.While its coil can be specified for either AC or DC control voltage,its main power contacts are rated for AC loads.Using a standard AC contactor for a DC motor load is generally not recommended.DC motors present a different challenge for arc interruption due to the absence of a natural current zero-crossing,which can lead to rapid contact erosion and failure.For DC motor control,a contactor specifically rated for DC operation should be selected.

　　How do I select the correct coil voltage for my application?

　　The coil voltage is a critical selection parameter and must match the available control circuit voltage in your system.The DILM25-01 is available with coils for a wide range of standard voltages,including 24V AC/DC,110V AC,230V AC,and 400V AC.You must first identify the voltage of your control power source,which is often a separate,lower-voltage transformer or power supply for safety.Choosing the correct coil voltage ensures reliable pickup and holding of the contactor without overheating or failing to operate.

　　What is the purpose of the auxiliary contacts on this contactor?

　　The auxiliary contacts on a motor control contactor like the DILM25-01 are mechanically linked to the main contact movement but are separate,low-current rated contacts.Their primary function is to provide a signal to the control circuit about the status of the contactor.For example,one normally open(NO)auxiliary contact can be used in a sealing circuit to maintain the coil circuit after the start button is released,while a normally closed(NC)contact can be used to interlock with another contactor or to provide a"stop"signal to a monitoring system.

　　What maintenance is required for a contactor like the DILM25-01?

　　Eaton contactors are designed for minimal maintenance.The primary tasks involve periodic visual inspection for signs of physical damage or overheating(discoloration)and checking for loose terminal connections.It is also advisable to periodically check the contactor's operation to ensure it picks up and drops out crisply.The contacts themselves are not designed for user cleaning or filing;if significant contact erosion or welding is suspected,the contactor block should be replaced to ensure safety and reliability.Keeping the device clean and free from excessive dust and moisture also contributes to its longevity.
