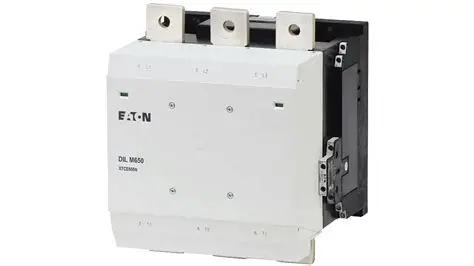

Eaton DILM650/22(RA250) Heavy Duty AC Industrial Control Contactor 3 Pole

　　The Eaton DILM650/22(RA250)stands as a paramount example of a robust and reliable industrial grade contactor,engineered to meet the rigorous demands of modern industrial control systems.As a specific model within Eaton's esteemed DILM series,this device is fundamentally an AC contactor designed for the frequent switching of three-phase electrical loads.Its primary role is to establish or interrupt power to heavy-duty equipment such as large motors,heating elements,and transformer banks,ensuring operational safety and control automation.Rated for a substantial operational current and built to endure millions of switching cycles,the DILM650/22(RA250)incorporates advanced materials and a precision-engineered electromagnetic system to deliver consistent performance in the most challenging environments,including those with high humidity,corrosive elements,and significant vibrational stress.

　　1.Product Overview and Operational Principle

　　At its core,the Eaton DILM650/22(RA250)is an electromechanically operated switch.Its operation begins when a control voltage is applied to its electromagnetic coil.This energization generates a magnetic field that pulls in a movable armature,which is mechanically linked to a set of robust main power contacts.This action closes the circuit,allowing current to flow to the connected load.Upon de-energization of the coil,a return spring mechanism forcefully and rapidly drives the contacts apart,safely interrupting the circuit.This fundamental make-and-break action is the cornerstone of its function as an AC contactor.The"22"in its model designation typically refers to the configuration of its auxiliary contacts,which in this case indicates a specific arrangement of normally open and normally closed contacts used for control circuit signaling and interlocking within a larger automated system.

　　2.Technical Specifications and Performance Characteristics

　　The DILM650/22(RA250)is defined by a comprehensive set of technical parameters that underscore its capability as a heavy-duty component.It is rated for a thermal current of 650 amperes,signifying its capacity to handle continuous load under specified conditions.Its operational voltage spans standard industrial three-phase AC systems,typically up to 690V,50/60 Hz.A key performance metric is its utilization category,which for this model is likely AC-3,indicating its suitability for controlling squirrel-cage motors with frequent starting and stopping,and potentially AC-4 for inching and plugging duty.The control coil is available for a wide range of standard AC and DC voltages,ensuring compatibility with various control circuit designs.Electromechanical endurance is a hallmark of this industrial grade contactor,often rated for several million mechanical operations and hundreds of thousands of electrical operations at full load,a testament to its durable construction.

　　3.Design Features and Construction Details

　　Robust Electromagnetic System and Contact Technology

　　The longevity and reliability of the DILM650/22(RA250)are rooted in its meticulously designed electromagnetic system.The coil is vacuum-encapsulated to protect against moisture,dust,and corrosive atmospheres,ensuring stable performance and preventing degradation over time.The magnetic circuit is optimized for low power consumption in the pulled-in state and minimal impact from supply voltage fluctuations.The main contacts are crafted from silver-cadmium oxide or similar advanced contact materials that offer excellent resistance to electrical erosion and welding,even under high inrush currents such as those encountered when starting large motors.This robust contact technology is fundamental to its role as a dependable AC contactor.

　　Auxiliary Contact Module and Safety Architecture

　　An integral feature of this industrial grade contactor is its modular auxiliary contact block.The DILM650/22(RA250)comes equipped with a defined number of convertible auxiliary contacts,allowing them to be configured as either normally open or normally closed to suit the specific logic of the control circuit.These contacts are physically linked to the main contactor's movement,providing reliable feedback for system status and interlocking.Furthermore,the contactor's design often incorporates a transparent,impact-resistant cover for the main contacts,allowing for visual inspection without dismantling,and features like a manual operating button for functional testing and safe maintenance procedures.

　　Advanced Arc Quenching and Thermal Management

　　To safely interrupt high-power AC circuits,the DILM650/22(RA250)is equipped with a highly efficient arc quenching system.This system consists of deion arc chutes that use metallic plates to split,cool,and extinguish the electric arc that forms when the contacts open.This rapid arc suppression is critical for minimizing contact wear and preventing phase-to-phase faults.The entire assembly is housed in a heat-resistant and self-extinguishing plastic enclosure that provides high dielectric strength and effective heat dissipation,ensuring stable performance and contributing to the overall safety and longevity of the device.

　　4.Primary Application Areas and Industry Solutions

　　The Eaton DILM650/22(RA250)finds its place in a vast array of industrial sectors where reliable power switching is non-negotiable.In heavy industries,it is a cornerstone for controlling the main power to large pumps,high-capacity compressors,industrial fans,and conveyor belt systems that form the backbone of manufacturing and processing plants.Its high electrical endurance makes it ideal for applications involving frequent starts and stops.Within the infrastructure sector,this AC contactor is employed in water and wastewater treatment plants for controlling sludge pumps and aeration systems,and in commercial HVAC systems for switching large compressor and chiller loads.It is also a critical component in motor control centers,automated material handling systems,and even in specialized applications like crane control and shipboard power management,demonstrating its exceptional versatility and reliability.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Reliability and Reduced Downtime

　　The primary advantage offered by the DILM650/22(RA250)is its exceptional reliability.Its rugged construction and high-quality materials are engineered to withstand millions of operations,directly translating to reduced unplanned downtime in critical industrial processes.This reliability ensures continuous production and minimizes the costly interruptions associated with component failure.The clear design for inspection and the modular nature of auxiliary contacts also streamline troubleshooting and maintenance,further enhancing operational availability.

　　Energy Efficiency and Lifecycle Cost Savings

　　As an energy-efficient industrial grade contactor,its electromagnetic system is designed for low holding power consumption.After the initial pull-in,the power required to keep the contactor closed is minimal,leading to lower operational costs over its lifetime,especially in applications where multiple contactors are used.Furthermore,the long service life and minimal maintenance requirements contribute to a lower total cost of ownership.By reducing the frequency of replacements and associated labor,this contactor provides significant economic benefits compared to less robust alternatives,making it a prudent long-term investment for any industrial operation.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a general-purpose contactor and an industrial grade contactor like the DILM650?

　　The key differences lie in durability,electrical ratings,and construction.An industrial grade contactor like the Eaton DILM650/22(RA250)is built to handle significantly higher currents,typically from hundreds to thousands of amperes,and is rated for millions of mechanical operations.It features a more robust arc quenching system,materials resistant to harsh environments,and is designed to withstand high levels of vibration and thermal stress commonly found in industrial settings.General-purpose contactors have lower ratings,shorter operational lifespans,and are intended for lighter-duty applications.

　　How do I select the correct control coil voltage for this AC contactor?

　　The control coil voltage is a critical selection parameter and must match the available control circuit voltage in your system.The DILM650/22(RA250)is typically offered with a variety of coil voltage options,covering common AC voltages and DC voltages.You must specify the required voltage when ordering.Using an incorrect coil voltage can result in the contactor failing to operate,chattering,or sustaining damage.Always consult the manufacturer's datasheet to confirm the available coil variants and their technical specifications.

　　What do the designations like"22"and"RA250"in the model number signify?

　　In Eaton's nomenclature,the"22"typically indicates the configuration of the built-in auxiliary contacts.In this case,it often means two normally open and two normally closed contacts.The"RA250"is a catalog number suffix that specifies a particular product variant,which may include specific features like a special coil,modified terminal types,or packaging.For precise interpretation,it is always recommended to refer to the official Eaton product selection guide or data sheet for the exact configuration and optional features.

　　Can this contactor be used for switching DC loads?

　　No,the Eaton DILM650/22(RA250)is specifically designed and rated as an AC contactor.The arc quenching system and the magnetic circuit are optimized for the zero-crossing behavior of alternating current,which naturally aids in arc extinction.Using an AC contactor to interrupt a DC load can be extremely dangerous,as a DC arc is much more stable and difficult to extinguish,leading to severe contact damage,welding,and potential fire hazards.For DC loads,a contactor specifically rated for DC operation must be used.

　　What are the critical maintenance checks for ensuring the long life of this contactor?

　　Regular maintenance is crucial for optimal performance.Key checks include a visual inspection for any signs of physical damage,contamination,or discoloration.The main and auxiliary contacts should be inspected for excessive pitting,erosion,or signs of welding;this may require the removal of the arc chute.The contactor should be operated manually to ensure free mechanical movement.It is also vital to keep the mounting surface clean and tight,and to verify that the coil voltage remains within the specified tolerance.Always perform maintenance with the power securely disconnected and locked out.
