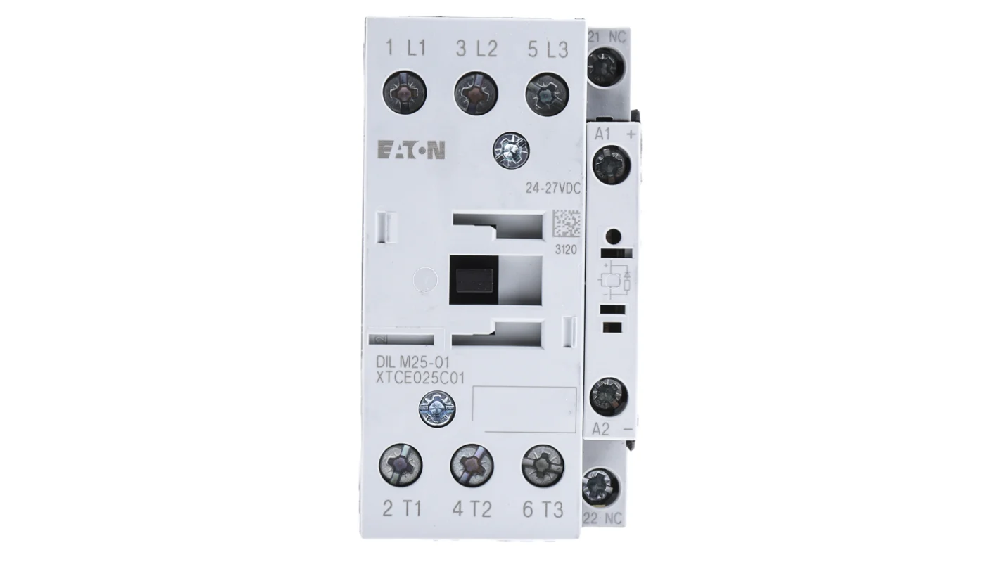

DILM25-01(RDC24) 24V DC Compact Industrial Control Contactor

　　The DILM25-01(RDC24)is a highly specialized motor control contactor engineered for reliable circuit switching in DC-controlled environments.As a DC control contactor,it distinguishes itself by utilizing a low-power,24V DC coil to electromagnetically actuate its main contacts,which are capable of handling higher voltage and current loads for AC or DC motor circuits.This design provides a crucial interface between sensitive control electronics and powerful motor loads,enabling safe and efficient start/stop operations.Manufactured to exacting international standards,this contactor is renowned for its compact dimensions,exceptional electrical longevity,and robust performance,making it an indispensable component in industrial control panels,HVAC systems,and automated machinery where precise and isolated motor control is paramount.Its design prioritizes both operational safety and seamless integration into complex control architectures.

　　1.Product Overview and Operational Principle

　　The DILM25-01(RDC24)belongs to a class of electromechanical switching devices designed specifically for controlling electrical power circuits.The core of its operation lies in electromagnetism.When the designated DC control voltage(24V DC)is applied to its coil terminals,it generates a magnetic field.This field pulls in a movable armature,which is mechanically linked to the main power contacts,forcing them to close and complete the circuit to the load,such as a motor.Upon de-energization of the coil,a spring mechanism returns the armature to its original position,opening the contacts and interrupting the power circuit.This fundamental on/off action provides a critical isolation and control function.

　　This model is part of a standardized series,where the"25"typically denotes a specific frame size and current-carrying capacity.The"(RDC24)"suffix explicitly specifies that the operating coil is rated for 24V DC.This low-voltage DC control offers significant advantages,including enhanced safety for operators,reduced wiring costs for control circuits,and excellent compatibility with modern solid-state controllers like Programmable Logic Controllers(PLCs)and DC output modules,which commonly provide 24V DC control signals.The contactor's design ensures a physical isolation between the low-voltage DC control circuit and the potentially high-voltage power circuit it switches.

　　2.Technical Specifications and Performance Characteristics

　　The DILM25-01(RDC24)is defined by a comprehensive set of technical parameters that dictate its application range.Its coil is optimized for 24V DC,a standard control voltage in industrial settings.The main contacts are rated for a specific thermal current,typically up to 25 Amps,and are designed to manage various supply voltages,including common three-phase AC voltages like 400V/50Hz or 480V/60Hz,as well as DC power systems.A key performance metric is its electrical durability,often rated for hundreds of thousands of operational cycles under rated load,and an even higher mechanical lifespan,often in the millions of cycles.

　　The device is engineered to withstand high inrush currents,which are common when starting motors,without the contacts welding together.It features a compact footprint that saves valuable space in control panel layouts and is designed for easy mounting on a standard DIN rail.The contactor also exhibits a low power consumption hold-in feature;after the initial pull-in,it requires less current to maintain the contactor in the closed state,which minimizes heat generation within the coil and improves energy efficiency.

　　3.Design Features and Construction Details

　　Robust Construction and Arc Management

　　The physical construction of the DILM25-01(RDC24)is geared towards longevity and reliability.The enclosure is made from high-grade,self-extinguishing thermoplastic material that provides excellent isolation and resistance to impact.The main current-carrying paths and contacts are often made of silver-based alloys,such as silver-cadmium oxide(AgCdO)or more modern alternatives like silver-tin oxide(AgSnO2),which offer superior resistance to electrical erosion and welding.A critical aspect of its design is the arc quenching system.When contacts open under load,an electric arc is formed.The contactor incorporates a deion arc chamber,which uses splitter plates to cool,stretch,and extinguish the arc rapidly,minimizing contact wear and preventing damage to the device.

　　Modularity and Auxiliary Contact Integration

　　A significant feature of this DC control contactor is its support for modular auxiliary contact blocks.These accessory blocks can be easily snapped onto the front or sides of the main contactor unit.They provide normally open(NO)or normally closed(NC)contact signals that are mechanically linked to the main contactor's position.These auxiliary contacts are indispensable for control logic,providing feedback to the PLC to confirm the contactor's status(on or off),enabling interlocking circuits to prevent conflicting operations,and activating indicator lights on the control panel.This modularity allows for customizing the contactor to the precise needs of the control circuit without altering the main device.

　　4.Primary Application Areas and Industry Solutions

　　The DILM25-01(RDC24)finds its purpose in a vast array of applications where reliable motor control is non-negotiable.In industrial automation,it is ubiquitously used to control the main power for three-phase induction motors driving conveyor belts,pumps,fans,and machine tool spindles.Its DC coil makes it a perfect match for the output cards of PLCs,forming the final execution element in an automated control sequence.

　　In building management systems,this motor control contactor is employed to start and stop large HVAC compressor motors,blower fans,and pump motors.The use of a 24V DC control circuit enhances safety in these often-accessible locations.Furthermore,it is a key component in specialized equipment such as industrial elevators and hoists,packaging machinery,and water treatment control panels.Its reliability ensures minimal downtime and safe operation in these critical processes.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Safety and Control Reliability

　　The primary advantage of using a DC control contactor like the DILM25-01 is the enhanced safety it provides.By separating the low-voltage DC control circuit(24V DC)from the high-voltage motor power circuit,it protects operators and control equipment from potential high-voltage hazards.The electromechanical action provides a definitive,physical break in the circuit,ensuring complete isolation when off,which is a crucial safety feature for maintenance.

　　Reduced Lifetime Costs and Simplified Integration

　　The long electrical and mechanical service life of this contactor directly translates to reduced maintenance and replacement costs over the lifetime of the machinery.Its modular design and DIN rail mounting capability drastically reduce installation time and labor costs.The compatibility with 24V DC PLC systems simplifies the overall control system design,eliminates the need for intermediate relays in many cases,and reduces wiring complexity.This leads to a more robust,cost-effective,and easier-to-maintain control panel,offering significant economic benefits from installation through the entire operational lifecycle.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a contactor and a relay,and why is the DILM25-01 a contactor?

　　While both are electromechanical switches,contactors like the DILM25-01 are specifically designed to handle high-current loads,typically associated with motors,heating elements,or powerful lighting circuits.They feature robust construction,built-in arc quenching systems,and are rated for a high number of operations.Relays are generally smaller,designed for lower currents in control circuits,and lack the heavy-duty arc extinction features.The DILM25-01 is classified as a motor control contactor due to its design,which is optimized for the high inrush currents and continuous power demands of motor loads.

　　Why is the 24V DC coil specification important for system design?

　　The 24V DC coil is a critical feature for modern industrial control systems.It is considered a"safety extra-low voltage"(SELV),which significantly reduces the risk of electric shock to personnel during wiring and troubleshooting.Furthermore,this voltage level is the standard output for most Programmable Logic Controllers(PLCs),sensors,and automation controllers.Using a DC control contactor with a 24V coil ensures direct compatibility,simplifying the control architecture,reducing the need for additional interface components,and enhancing overall system safety and reliability.

　　Can auxiliary contacts be added to this contactor,and what is their purpose?

　　Yes,the DILM25-01(RDC24)is designed to accept modular auxiliary contact blocks.These are essential for the control logic of the system.They provide electrically isolated signals that mirror the state of the main power contacts.For example,an auxiliary contact can be used to send a signal back to the PLC to confirm that the contactor has indeed closed and the motor is running,a function known as"sealing"or"hold-in"in a control circuit,or to activate a"motor running"indicator light on a human-machine interface(HMI).

　　What are the critical factors to consider when installing this contactor?

　　Proper installation is paramount for reliable operation.Key considerations include ensuring the control voltage matches the coil rating(24V DC)precisely.The load current should not exceed the contactor's thermal current rating,and the system voltage(AC or DC)must be within its specified limits.The contactor must be mounted on a standard DIN rail in a vertical position as per manufacturer guidelines to ensure proper heat dissipation and arc chute efficiency.Finally,all electrical connections must be tightened to the specified torque to prevent overheating.

　　How can the lifespan of this contactor be maximized in demanding applications?

　　The operational lifespan of a contactor is heavily influenced by the electrical load it switches.Using it within its specified ratings is the most important factor.For particularly inductive loads like motors,employing external protective devices such as overload relays is essential to protect the contactor from sustained overcurrent conditions.Ensuring a clean operating environment,free from excessive dust,moisture,and corrosive vapors,will prevent premature deterioration.Finally,periodic inspection for signs of physical damage or contact erosion can help plan maintenance before a failure occurs.
