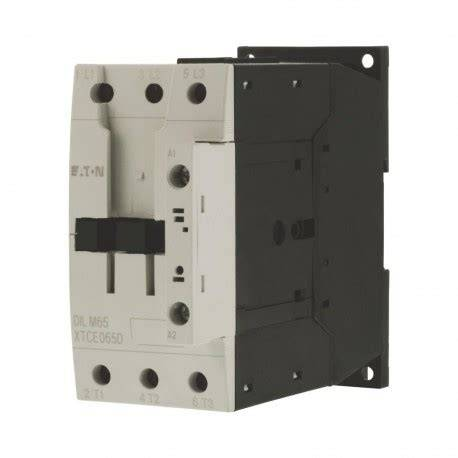

Eaton DILM65 240V50Hz Industrial Heavy Duty AC Power Contactor

　　The Eaton DILM65(240V50Hz)is a high-performance,three-pole AC power contactor from the established xStart series,engineered to deliver reliable switching capacity in the most demanding environments.As a genuine heavy duty contactor,it is designed to manage substantial electrical loads,with a rated operational current of 65 A and a rated power of 30 kW at 400 V.This model operates with a 240V 50Hz AC coil,making it suitable for a wide array of industrial and commercial electrical systems.Its core function is to provide remote control for powerful three-phase motors,lighting systems,and other high-current loads,offering exceptional durability with a mechanical lifespan of up to 10 million operations.The DILM65 series is renowned for its modular design,which simplifies system integration and allows for seamless expansion with a range of accessories,solidifying its position as a versatile and dependable component in automation and control panels.

　　1.Technical Specifications and Performance Data

　　The Eaton DILM65(240V50Hz)is defined by a set of robust technical parameters that underscore its heavy duty classification.The key electrical ratings include a rated operational current(Ie)of 65 A and a rated operational power of 30 kW for three-phase AC systems at 400V.Its main contacts are configured as 3-pole normally open(3NO)and can handle a maximum utilization category of AC-3,which is standard for squirrel-cage motor starting and stopping.The control coil is optimized for a voltage of 240 volts at a frequency of 50 Hz.Physically,this AC power contactor is designed for efficient use of space,with compact dimensions and a weight that facilitates easy mounting on standard DIN rails or panels.It is engineered to perform reliably across a broad ambient temperature range from-25°C to+60°C,ensuring stability in challenging environmental conditions.

　　2.Design Features and Construction Quality

　　The construction of the DILM65(240V50Hz)incorporates several design innovations that contribute to its long service life and operational safety.It utilizes a screw terminal connection system,which provides a secure and reliable interface for power and control wiring,ensuring high connection integrity even when dealing with conductors of different cross-sections.A significant feature of this heavy duty contactor is its exceptionally low power dissipation,which minimizes heat generation within the control cabinet.This characteristic allows for higher installation densities without compromising performance or requiring extensive cooling measures.The electromagnetic system is optimized for low noise operation and high efficiency,contributing to the overall energy-saving profile of the device.The materials selected for critical components,such as the contact material and the housing,are chosen for their durability and resistance to wear and electrical erosion.

　　3.Primary Application Areas and Use Cases

　　The versatility of the Eaton DILM65(240V50Hz)makes it a preferred AC power contactor across numerous industries.Its most common application is in the control and switching of three-phase motors found in industrial machinery,such as pumps,compressors,fans,and conveyor systems.It is particularly suited for demanding duties like jogging(inching)and frequent start-stop cycles(AC-4 duty).Beyond motor control,this heavy duty contactor is also employed in power distribution systems for controlling resistive heating loads,transformer switching,and automatic power factor correction capacitors.Industries like factory automation,material handling,water treatment,and building management systems frequently leverage the reliability of the DILM65 series for their critical operations.

　　4.Compatibility,Accessories,and System Integration

　　A key strength of the DILM65 platform is its modularity and extensive range of compatible accessories,which greatly enhance its functionality and ease of integration.The contactor can be easily expanded with auxiliary contact blocks that snap onto the main unit,allowing for the addition of normally open or normally closed signaling contacts for control circuit feedback.Other available accessories include mechanical interlocks(to safely couple two contactors for applications like reversible motor control),surge suppressors for coil protection,and terminal covers.This AC power contactor is also designed for compatibility with modern industrial communication systems like SmartWire-DT,facilitating seamless connection to higher-level control networks and simplifying wiring.Furthermore,its design is future-proof,with identical dimensions for both AC and DC operated versions,which simplifies panel layout and design.

　　5.Competitive Advantages and Value Proposition

　　Choosing the Eaton DILM65(240V50Hz)provides several distinct advantages that translate into long-term value.Its high electrical and mechanical endurance of up to 10 million operations significantly reduces the total cost of ownership by minimizing maintenance needs and replacement frequency.The contactor's compliance with IE3 motor efficiency standards ensures that it is ready for use with the latest high-efficiency motor designs,supporting global energy conservation efforts.The ability to be directly controlled by a PLC for certain ratings eliminates the need for an intermediate relay,reducing component count,saving panel space,and simplifying the control circuit design.These features,combined with its global certifications and the strong reputation of the Eaton brand(formerly Moeller),make this heavy duty contactor a trusted and intelligent investment for system integrators and OEMs worldwide.

　　Frequently Asked Questions(FAQs)

　　1.What is the key difference between the DILM65(240V50Hz)and a standard relay?

　　The primary difference lies in their capacity and design purpose.While both are electrically operated switches,a relay is typically used for lower current control circuits(usually below 15-20A).The Eaton DILM65(240V50Hz)is a dedicated heavy duty contactor built to handle much higher currents,up to 65 A,for switching main power to loads like large motors,heaters,or transformers.It is physically larger,more robust,and has features like arc chutes to safely interrupt high-power circuits.

　　2.Can this contactor be used for both star-delta motor starting and direct-on-line(DOL)starting?

　　Yes,the Eaton DILM65 is versatile enough to be deployed in various motor starting applications.For Direct-On-Line(DOL)starting,a single contactor is used.In more complex star-delta starting configurations,which require three contactors,multiple DILM65 units can be employed together.The availability of mechanical interlocks is a key feature here,as they can be used to ensure the safe and mutually exclusive operation of the main and delta contactors.

　　3.What are the recommended maintenance practices for ensuring the long service life of this contactor?

　　While the Eaton DILM65(240V50Hz)is designed for minimal maintenance,periodic inspection is recommended for critical applications.This includes checking for any signs of physical damage,ensuring that terminal connections are tight to prevent overheating,and keeping the unit clean and free from excessive dust or contamination.The contactor's built-in durability and high number of anticipated mechanical operations mean that under normal conditions,it will provide years of reliable service with very little intervention.

　　4.Is this specific 240V 50Hz model suitable for use in regions with 230V or 220V power systems?

　　The Eaton DILM65(240V50Hz)is designed to operate within a specified voltage tolerance.While the nominal coil voltage is 240V AC at 50Hz,it can typically function correctly within a range around this value,which often includes 230V systems.However,for optimal performance and to avoid issues like excessive hum or chatter,it is crucial to consult the official manufacturer's datasheet for the exact allowable voltage tolerance for the coil.Using a coil voltage outside the specified range can affect the contactor's pull-in and drop-out characteristics.

　　5.What accessories are essential for a basic installation of this contactor?

　　For a basic installation,the Eaton DILM65(240V50Hz)often requires no additional accessories to perform its primary switching function.However,in most control panel applications,it is highly recommended to use a surge suppression module across the coil terminals.This accessory protects sensitive control devices like PLC outputs from voltage spikes generated by the coil's inductance when it is de-energized.Additionally,an auxiliary contact block is frequently added to provide a signal for the control circuit to indicate the contactor's status(on or off).
