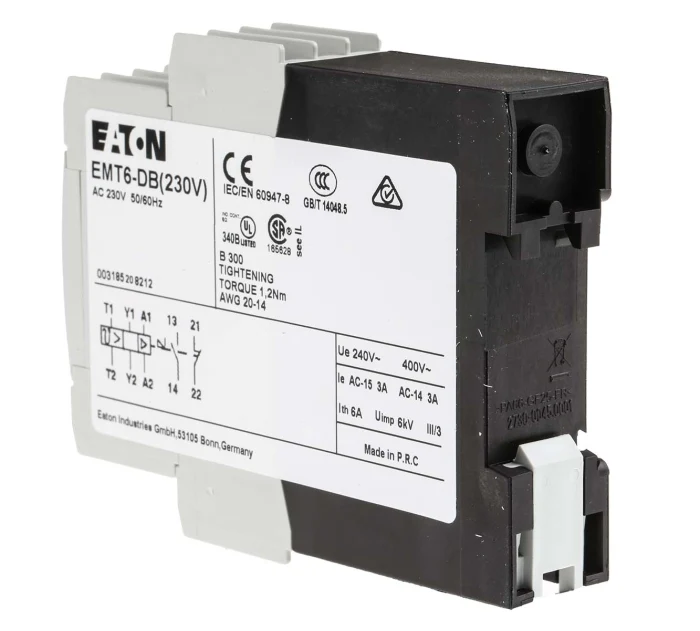

Eaton EMT6-DB(230V) Motor Overload Protection Relay with PTC Thermistor

　　The Eaton EMT6-DB(230V)is a sophisticated motor overload relay that integrates PTC thermistor relay technology to provide comprehensive protection for electric motors and associated machinery in demanding industrial environments.This device is specifically engineered to safeguard equipment against overheating caused by strenuous starting duties,braking,voltage irregularities,and high switching frequencies.By continuously monitoring temperature through directly embedded PTC thermistor sensors in motor windings,this PTC thermistor relay offers a critical layer of defense,preventing costly downtime and extending the operational lifespan of motors in applications ranging from industrial automation to complex machinery control systems.Its flexible reset functionalities and broad certification portfolio make it a versatile and reliable choice for global applications.

　　1.Product Overview and Core Operational Principles

　　The Eaton EMT6-DB(230V)functions as a dedicated motor overload relay,a critical component in any motor control center.Its primary role is to disconnect the motor circuit when it detects abnormal operating conditions that could lead to overheating and damage.Unlike traditional thermal overload relays that rely solely on bimetallic strips and current measurement,this device enhances protection by directly responding to actual temperature conditions within the motor via PTC(Positive Temperature Coefficient)thermistors.

　　These PTC thermistors are temperature-sensitive resistors placed directly in the motor's windings,bearings,or gearbox.Under normal temperatures,the thermistors exhibit low resistance.However,once a predetermined temperature threshold is exceeded,their resistance increases dramatically.The EMT6-DB(230V)PTC thermistor relay monitors this resistance change.When a fault condition is detected,the relay trips,signaling the associated contactor to break the circuit and thus prevent motor damage.This direct temperature monitoring provides a more accurate and reliable protection method compared to indirect calculation-based systems.

　　2.Technical Specifications and Design Attributes

　　The EMT6-DB(230V)is designed for a control voltage of 230 V AC.Its auxiliary contacts are rated for 400 V AC and 3 A,making it suitable for various control circuit configurations.The device features a compact,space-saving design with dimensions of approximately 102mm x 78mm x 22.5mm,facilitating easy integration into control panels.It is designed for standard DIN rail mounting,with an option for screw mounting using an adapter,offering flexibility during installation.

　　This motor overload relay is built to operate reliably in a wide ambient temperature range from-25°C to+45°C.It consumes a rated power of 2W,indicating its energy-efficient operation.The relay is equipped with a manual/remote reset selector switch,a test button for functional checks,and clear LED indicators for power and fault status,which aid in quick diagnostics and troubleshooting.Furthermore,the EMT6-DB(230V)model includes a fault memory and offers zero-voltage safety,ensuring secure operation even in the event of a power voltage fault.

　　3.Key Features and Functional Advantages

　　Dual-Sensor Circuit Capability for Enhanced Monitoring

　　A standout feature of this PTC thermistor relay series is its ability to support two sensor circuits.This allows a single device to monitor temperatures at two separate points,such as simultaneously monitoring the motor windings and the bearing temperature or the gearbox oil temperature.This dual-monitoring capability provides a more comprehensive protection scheme,can be used to implement an early warning system,and offers a cost-effective,space-efficient solution compared to installing two separate monitoring devices.

　　Flexible Reset and Diagnostic Functions

　　The EMT6-DB(230V)provides operators with multiple reset options via a selector switch,including manual,automatic,and remote reset.This flexibility is crucial for different operational and safety protocols.The integrated test button allows for safe and regular functional testing of the relay without the need to simulate a fault condition on the actual motor.The clear LED indicators for power and fault status enable rapid visual diagnostics,reducing mean time to repair(MTTR)during an outage.

　　Robust Safety and Compliance for Global Use

　　This motor overload relay is designed to meet stringent international standards,holding UL,CSA,and CE certifications.Its sensor circuits are isolated from the control power voltage,enhancing operational safety for personnel.The inclusion of zero-voltage safety ensures that fault indications are retained and the system remains in a safe state even during power voltage failures,preventing unexpected restarts and potential hazards.

　　4.Application Scope and Industry Solutions

　　The Eaton EMT6-DB(230V)is indispensable in industrial settings where motor reliability is paramount.It is ideally suited for protecting motors in machines prone to demanding operations like frequent starts and stops,heavy loads,and braking.Its direct temperature monitoring makes it particularly effective for safeguarding explosion-protected motors(EEx e).

　　Applications extend beyond just motor winding protection.This PTC thermistor relay is also used to monitor temperatures in motor bearings,gearboxes,and cooling systems,providing a holistic approach to machine health.This makes it a critical component in industries such as manufacturing,process automation,water treatment,and material handling,where it helps to enhance overall system safety,reduce maintenance costs,and prevent production losses due to motor failure.

　　Expanded Perspective:The Role of PTC Thermistor Relays in Modern Motor Protection

　　Understanding the technological shift from traditional overload relays to advanced PTC thermistor relay systems is key to appreciating the value of the EMT6-DB(230V).

　　1.Traditional Thermal vs.Advanced PTC Thermistor Protection

　　Traditional thermal overload relays protect motors by simulating the motor's thermal characteristics using a bimetallic strip heated by the motor current.While effective against general overloads,they cannot account for factors like poor ventilation,high ambient temperature,or unbalanced cooling,which also lead to dangerous overheating.

　　In contrast,a PTC thermistor relay like the EMT6-DB(230V)offers direct and precise protection.Since the PTC sensors are physically embedded in the motor windings,they measure the actual operational temperature of the motor's most critical part,regardless of the cause of heating.This provides a more accurate and reliable reflection of the motor's thermal state,protecting it from overloads,locked rotor conditions,and insufficient cooling with higher precision.This direct temperature sensing method is a significant evolutionary step in motor protection technology.

　　2.System Integration and Selection Guidelines

　　Integrating the EMT6-DB(230V)into a motor control system requires pairing it with a compatible motor contactor.The PTC thermistors embedded in the motor must be connected to the relay's sensor terminals.It is crucial to verify that the motor is equipped with these PTC sensors and that their characteristic(trip temperature)is compatible with the relay's specifications.

　　When selecting a motor overload relay for a specific application,engineers must consider the EMT6 series variants.The standard EMT6 offers automatic reset.The EMT6-DB model,discussed here,adds a manual/remote reset selector,a test button,and a fault memory.The EMT6-DBK variant further includes protection against sensor cable shorts and zero-voltage safety.Choosing the correct model depends on the required safety functions,the desired reset method,and the criticality of the application.

　　Frequently Asked Questions(FAQs)

　　What are the operational advantages of the manual/remote reset selector on the EMT6-DB(230V)?

　　The manual/remote reset selector provides operational flexibility and enhances safety.In"Manual"mode,the relay must be physically reset on-site at the device after a trip,allowing personnel to inspect the equipment before restarting.The"Remote"reset option enables the relay to be reset from a control panel,which is useful for automated or hard-to-reach installations.This flexibility allows the reset strategy to be tailored to the specific safety and operational procedures of the facility.

　　How does the PTC thermistor-based protection in this relay differ from a conventional bi-metallic thermal overload relay?

　　A conventional bi-metallic relay provides inverse-time protection based solely on the current flowing through the motor circuit.It mimics the motor's heating curve but does not measure actual temperature.The PTC thermistor relay offers direct temperature monitoring inside the motor windings via sensors.This means it responds to the true thermal state of the motor,offering protection not just from overcurrent,but also from other overheating causes like high ambient temperature,blocked ventilation,or frequent starts,resulting in more comprehensive and accurate motor protection.

　　Can the dual-sensor circuit capability be used for creating a pre-alarm system?

　　Yes,the availability of two independent sensor inputs is a key feature that can be leveraged for a pre-alarm or warning system.One sensor circuit can be set to a lower temperature threshold to provide an early warning before a critical temperature is reached,allowing operators to investigate and intervene before a full shutdown occurs.The second sensor circuit can be set to the critical trip temperature.This enables predictive maintenance and can help prevent unnecessary production stoppages.

　　Is this relay suitable for protecting motors in potentially explosive atmospheres?

　　The EMT6-DB(230V)PTC thermistor relay is designed for use in protecting motors in various demanding environments.It is noted that the EMT6 series,with its direct temperature monitoring via PTC thermistors,is suitable for protecting EEx e explosion-protected motors.However,for any specific application in a potentially explosive atmosphere,it is essential to verify the current and complete certifications and ensure that the entire system,including the motor,sensors,and relay,is approved for use in that specific hazardous area classification.

　　What is the significance of the'zero-voltage safety'feature in the EMT6-DBK variant?

　　The'zero-voltage safety'feature,found in the higher-end EMT6-DBK variant,is a critical safety function.It ensures that if a power voltage failure occurs,the relay's fault indication is retained.This prevents the machine from automatically restarting once power is restored if a fault was present before the power loss.This feature is vital for protecting both personnel and equipment from unexpected startups,aligning with modern machine safety standards.
