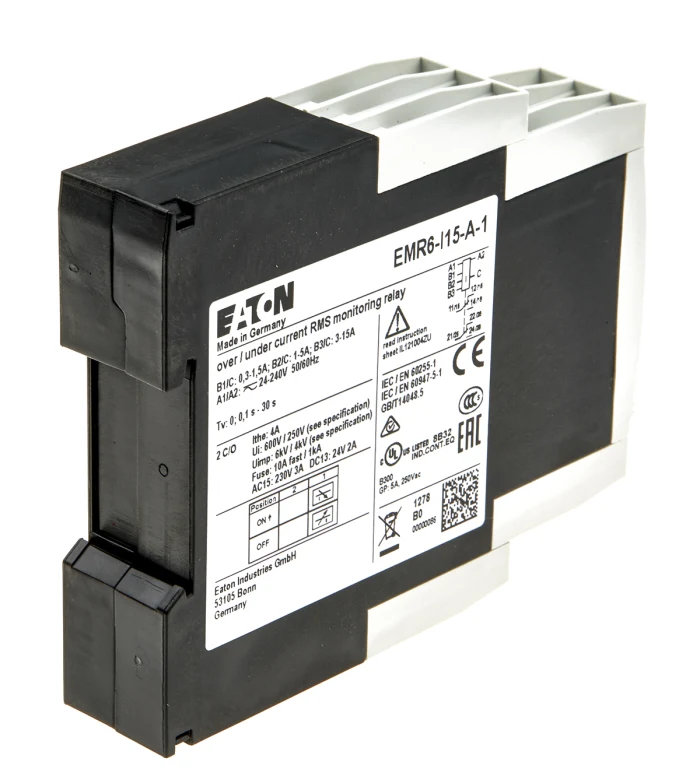

Eaton EMR6-I15-A-1 24-240V AC/DC Current Monitoring Relay 3-15A

　　The Eaton EMR6-I15-A-1 is a sophisticated current monitoring relay engineered to provide reliable protection and control for a wide spectrum of electrical applications.This versatile device is designed to monitor both AC DC current within an extensive range,making it an indispensable component for system integrators and engineers seeking to safeguard equipment and optimize operational efficiency.By continuously tracking current flow,this relay helps prevent costly damage caused by overcurrent and undercurrent conditions,phase failures,and other electrical anomalies.Its robust design supports a broad power supply voltage from 24 to 240V AC/DC,ensuring compatibility with various industrial power systems.The EMR6-I15-A-1 is part of Eaton's advanced EMR6 series,which is developed to upgrade and replace previous generations like EMR4 and EMR5,bringing enhanced functionality and a unified design to modern control panels.

　　1 Technical Specifications and Operating Principles

　　The EMR6-I15-A-1 is defined by a set of precise technical parameters that underpin its reliable performance.It operates within a wide control parameters range,offering three adjustable bands:300mA to 1.5A,1A to 5A,and 3A to 15A,allowing for fine-tuned protection of different loads.The relay features a configurable contacts activation delay adjustable from 0.1 to 30 seconds,which is crucial for avoiding false trips during motor start-ups or temporary inrush currents.

　　Its power supply voltage acceptance range of 24 to 240V AC/DC makes it exceptionally adaptable to various control voltage sources found in industrial environments.The device is designed for DIN rail mounting,conforming to standard enclosure installations,and boasts a compact form factor of 22.5x85.6x103.7mm,optimizing panel space utilization.With an operating temperature range from-25°C to 60°C and sealing rated at IP50(IP20 on the terminal side),it is built to perform reliably in challenging conditions where dust and moisture may be present.

　　2 Core Design Features and Functional Characteristics

　　2.1 Advanced Monitoring and Configuration

　　The EMR6-I15-A-1 is equipped with a current window monitoring function,enabling it to supervise both upper and lower current thresholds simultaneously.This dual-level monitoring ensures comprehensive protection by detecting not only excessive current but also undercurrent situations,which can indicate issues like pump run-dry conditions or motor stall.The front-side control knobs and DIP switches facilitate straightforward configuration without requiring additional tools,significantly simplifying the setup process and reducing commissioning time.

　　2.2 Robust Construction and Safety Compliance

　　Constructed with high-grade materials,the relay features screw terminals for secure wiring connections.It carries multiple international certifications,including UL,CSA,and CCC,affirming its compliance with rigorous global safety and performance standards.This comprehensive certification portfolio allows machine builders to deploy the same component across different geographical markets without needing to redesign control systems for regional compliance.

　　2.3 Enhanced Electrical Isolation

　　The EMR6-I15-A-1 incorporates an isolated measurement circuit,which electrically separates the monitoring circuit from the power system.This isolation enhances measurement accuracy and provides superior noise immunity,making the relay more stable in electrically noisy industrial environments.This design also contributes to the overall safety of the control system by preventing potential fault propagation.

　　3 Primary Application Areas and Industry Solutions

　　The versatility of the EMR6-I15-A-1 current monitoring relay makes it suitable for diverse applications across multiple industries.In industrial automation,it is extensively used for motor protection,where it monitors current draw to detect overloads,underloads,and phase loss in three-phase systems,helping to prevent motor burnout and subsequent production downtime.

　　For pump and compressor systems,the relay provides critical protection against run-dry conditions,blockages,and mechanical seal failures by monitoring the operating current.In heating and ventilation systems,it serves to detect fan failures,filter clogging,and abnormal operational states that manifest through current deviations.The AC DC current monitoring capability also makes it ideal for specialized DC applications such as DC motor control in traction systems and monitoring electrochemical processes,where it ensures operational stability and equipment protection.

　　4 Performance Advantages and Operational Benefits

　　4.1 Enhanced System Reliability and Reduced Downtime

　　The EMR6-I15-A-1 significantly improves machine availability by enabling early detection of abnormal electrical conditions before they escalate into major failures.This proactive monitoring approach allows for planned maintenance interventions rather than emergency shutdowns,dramatically reducing unplanned downtime.By preventing motor burnouts and equipment damage,the relay extends the service life of connected assets,delivering substantial long-term cost savings.

　　4.2 Inventory Simplification and Design Flexibility

　　The relay's wide-ranging power supply(24-240V AC/DC)and broad current setting ranges make it a universal solution that can replace multiple specialized devices.This versatility substantially lowers inventory costs for maintenance departments and OEMs,as a single device type can serve numerous applications with different voltage requirements and current ratings.For control panel designers,this flexibility streamlines the specification process and shortens engineering time.

　　4.3 Seamless Integration and Legacy System Upgrades

　　As part of the EMR6 series,the EMR6-I15-A-1 is designed as a direct replacement for earlier EMR4 and EMR5 series relays,offering a straightforward upgrade path for modernizing existing control systems.The consistent DIN rail form factor ensures mechanical compatibility with existing enclosures,while the enhanced functionality provides immediate performance improvements without requiring panel modifications.The relay's compatibility with the EMR6-PH22 accessory further extends its application possibilities.

　　5 Implementation Considerations and Installation Guidelines

　　Successful implementation of the EMR6-I15-A-1 requires attention to several key factors.Proper current transformer selection is crucial when monitoring higher currents than the relay's direct range,ensuring accurate measurement and reliable operation.For optimal performance in electrically noisy environments,the use of shielded cables for signal connections is recommended,with the shield properly grounded at one end.

　　The configurable start delay should be set appropriately for the specific application,considering factors such as motor starting currents to prevent nuisance tripping while maintaining effective protection.Regular functional testing should be incorporated into maintenance schedules to verify the relay's responsiveness,utilizing its built-in test capabilities where available.When installing,ensure adequate clearance around the relay for proper heat dissipation,particularly when operating at the upper end of its temperature rating.

　　6 Comparative Analysis with Alternative Technologies

　　When evaluated against electromechanical relays,the EMR6-I15-A-1 offers superior flexibility,precision,and additional functionality like adjustable delay times and dual threshold monitoring.Compared to more sophisticated power monitoring devices,it provides a cost-effective solution focused specifically on current protection without unnecessary complexity.Within the EMR6 family,the"A"version distinguishes itself with its wide voltage range and AC/DC compatibility,unlike more specialized variants such as the EMR6-I15-B-1,which is designed specifically for 220-240V AC systems.

　　The relay occupies an optimal position in the market,delivering advanced features typically found in higher-priced units while maintaining accessibility for standard industrial applications.Its balanced combination of performance,versatility,and cost-effectiveness makes it particularly suitable for a broad range of uses from basic motor protection to complex system monitoring.

　　Frequently Asked Questions(FAQs)

　　What specific types of electrical faults can the EMR6-I15-A-1 detect?

　　This current monitoring relay is designed to identify several critical electrical fault conditions.It reliably detects overcurrent situations that could lead to equipment damage,as well as undercurrent conditions that often indicate mechanical problems such as pump cavitation or conveyor belt slippage.While it primarily monitors current,its rapid response to abnormal current patterns can indirectly reveal issues like phase imbalance and phase loss in three-phase systems,making it a comprehensive protection device.

　　How does the wide voltage range(24-240V AC/DC)benefit installation and inventory management?

　　The exceptionally broad voltage range provides significant advantages for both installers and maintenance departments.For system integrators,it eliminates the need to specify different relay models for various control voltage standards within a facility,such as 24V DC,110V AC,or 230V AC systems.This universality substantially reduces inventory complexity by allowing a single component to serve multiple applications,cutting both storage costs and the risk of installing an incorrect voltage-rated device.

　　Can this relay directly replace older EMR4 and EMR5 series models?

　　Yes,the EMR6-I15-A-1 is specifically engineered as a direct replacement for earlier generations,particularly the EMR4-I15-1-A model.This backward compatibility provides a straightforward upgrade path,enabling users to enhance their system's monitoring capabilities without redesigning control panels or changing wiring schemes.The EMR6 series represents Eaton's technological evolution,offering improved features while maintaining mechanical and electrical compatibility with existing installations.

　　What certifications does the EMR6-I15-A-1 hold for international use?

　　This relay carries several crucial international certifications that facilitate its deployment across global markets.It has obtained UL listing for the United States,CSA certification for Canada,and the China Compulsory Certification(CCC)mark.These approvals indicate that the device has undergone rigorous testing and meets the safety standards of these major economic regions,providing confidence in its reliability and compliance for equipment destined for multiple international markets.

　　What maintenance practices are recommended for ensuring long-term reliability?

　　While the EMR6-I15-A-1 is designed for maintenance-free operation in normal conditions,several practices can ensure ongoing reliability.Periodic visual inspection for signs of thermal stress or physical damage is recommended.During routine maintenance shutdowns,verification of the setpoints and functional testing of the relay response should be performed to confirm proper operation.Ensuring that terminal connections remain tight prevents heating issues,and keeping the device free from excessive dust in accordance with its IP50 rating helps maintain proper thermal management.
