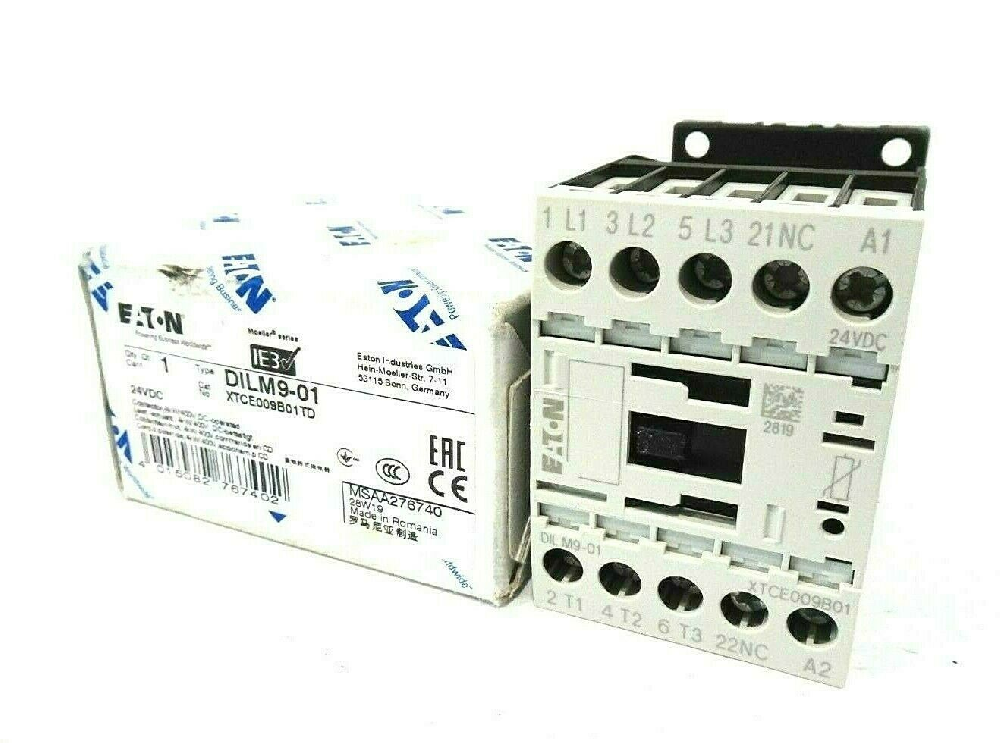

Eaton DILM9-01(24VDC) 24V DC Industrial DC Operated Contactor

　　The Eaton DILM9-01(24VDC)is a quintessential industrial contactor from the renowned xStart DILM series,engineered to deliver reliable performance in demanding automation and control applications.As a DC operated contactor,it utilizes a 24V DC coil to switch three main power contacts,each rated for 9 A at 400 V AC.This device is a cornerstone for motor control systems,particularly where stable and efficient DC control is preferred.Its modular and compact design is a hallmark of the DIL series,ensuring easy integration into various industrial setups while providing the robustness needed for frequent switching operations.

　　1.Product Overview and Core Technology

　　An industrial contactor is an electrically controlled switch used for turning on and off a power circuit,similar to a relay but designed to handle much higher current loads.The primary function of the Eaton DILM9-01(24VDC)is to make and break electrical connections in three-phase systems,such as those powering electric motors,heaters,or other heavy loads.It acts as a high-capacity intermediary,allowing a low-power DC control circuit(the 24V coil)to safely manage a high-power AC load.

　　The operational principle of this DC operated contactor is based on electromagnetism.When the 24V DC supply is applied to the coil,it generates a magnetic field that pulls in an armature.This physical movement is mechanically linked to the main contacts,causing them to close and complete the power circuit.Upon de-energizing the coil,a spring mechanism returns the armature to its original position,opening the contacts and disconnecting the load.This reliable electromechanical operation is suited for the rigorous demands of industrial environments.The DILM9 series is part of Eaton's xStart line,which represents the latest generation of control gear,building upon the proven legacy of the DIL series with advancements in modularity and performance.

　　2.Detailed Technical Specifications

　　Understanding the technical parameters is crucial for proper selection and application.The DILM9-01(24VDC)is defined by a set of key specifications that outline its capabilities and limits.

　　This 3-pole contactor is designed for a maximum continuous operating current of 9 A.Its main contacts are rated for a voltage of 400 V AC,making it suitable for standard three-phase industrial networks.The control circuit is defined by a 24 V DC coil voltage.A key safety and insulation parameter is its 690 V insulation voltage,which indicates the voltage level it can withstand without breakdown.The device also includes one normally closed(NC)integrated auxiliary contact,rated at 10A,which can be used for interlocking,signaling,or control circuit feedback.

　　For installation,it features screw terminals for secure connections.The contactor is designed for mounting on a standard DIN rail and/or panel,with compact physical dimensions of 68 mm in length,45 mm in width,and 117 mm in depth.It is built to operate effectively within a temperature range of-25°C to+40°C,ensuring functionality in a variety of environmental conditions.The unit has a weight of approximately 314.7 grams.

　　3.Key Design Features and Construction

　　The DILM9-01(24VDC)incorporates several design features that contribute to its durability,safety,and ease of use in an industrial context.

　　Modular and Compact Design:As part of the xStart series,this contactor features a modular construction.This design philosophy allows for a unified look and feel across the product range and simplifies the attachment of various accessories,such as auxiliary contact blocks or timing modules.Its compact width of only 45 mm helps save valuable space in control cabinets.

　　Robust Construction for Industrial Environments:The device is built to withstand the electrical and mechanical stresses of daily industrial operation.The use of durable materials ensures high resistance against shock and vibration.The screw terminal connections provide reliable,high-integrity terminations that are resistant to loosening over time.

　　Integrated Auxiliary Contact and Suppression Circuit:The inclusion of a normally closed auxiliary contact allows for flexible integration into control logic without requiring additional external components.Furthermore,DC-operated contactors in the DILM series come with a built-in suppression circuit.This feature is critical for mitigating voltage spikes and electrical noise generated by the coil when it is de-energized,thereby protecting sensitive electronic components like Programmable Logic Controllers(PLCs)in the control circuit.

　　Enhanced Safety and Connection Integrity:The contactor's design includes a double wiring compartment for terminations.This feature enhances safety and reliability by providing two distinct areas for connecting conductors of different cross-sections,reducing the risk of wiring errors and ensuring connection integrity.

　　4.Primary Application Areas and Industry Use-Cases

　　The Eaton DILM9-01(24VDC)finds its purpose in a wide array of automation and control scenarios,serving as a fundamental component for power switching.

　　Motor Control Applications:It is exceptionally well-suited for controlling three-phase induction motors,which are the workhorses of industry.This includes the starting,stopping,and reversing of motors powering conveyor belts,pumps,compressors,fans,and machine tool axes.Its 4 kW power rating at 400V AC makes it a fit for motors of that power level.

　　Industrial Automation Systems:Within automated manufacturing and processing lines,this industrial contactor is often used as an output device commanded by a PLC.The 24V DC control voltage is a standard in industrial control panels,and the built-in suppression circuit makes it ideal for this direct interface with electronic controllers.

　　Modular Motor Starter Assemblies:A common and efficient application is in pre-assembled motor starter combinations.The DILM9-01 is specifically designed to be used with wiring kits that connect it directly to Eaton's PKZM0 series motor protection circuit breakers.This creates a compact,standardized,and error-proof direct-on-line or reversing starter solution for motors up to 5.5 kW,significantly reducing assembly time and wiring errors.

　　5.Installation,Integration,and Maintenance

　　Successfully implementing the DILM9-01(24VDC)involves considerations for its physical installation,electrical integration,and long-term upkeep.

　　Mounting and Electrical Connection:The contactor is mounted on a standard DIN rail(35 mm according to EN 60715)within an enclosure.Power conductors and control wiring are connected to the respective screw terminals,adhering to the specified torque values to ensure a proper connection without damaging the terminals.It is crucial to follow local electrical codes and safety procedures during installation.

　　System Integration and Accessories:Its modular design allows for seamless integration with a full suite of Eaton components.Beyond the motor starter wiring kits,accessories can include additional auxiliary contact blocks(to provide more signaling contacts),mechanical interlocks(for reversible contactor assemblies),and surge suppressors.This interoperability simplifies system design and maintenance.

　　Maintenance and Operational Considerations:For optimal service life,the contactor should be operated within its specified electrical and environmental ratings.Periodic inspection for signs of physical damage,overheating on terminals,or contamination is recommended.The primary maintenance advantage of this DC operated contactor is its long electrical life,rated for hundreds of thousands of cycles,thanks to its robust contact material and arc-chamber design.

　　6.Product Advantages and Value Proposition

　　Choosing the Eaton DILM9-01(24VDC)offers several distinct benefits that contribute to enhanced system performance and lower total cost of ownership.

　　High Reliability and Long Service Life:The contactor is engineered for endurance.The use of high-quality contact materials and a precision-machined magnetic system ensures consistent performance over a long operational life,even in applications with frequent switching.

　　Space-Efficient Design:With a width of just 45 mm,this contactor allows for a very high density of components within a control panel.This space efficiency is a critical advantage in modern machinery where control cabinet real estate is at a premium.

　　PLC Compatibility and Control Stability:The 24V DC coil voltage,combined with the integrated suppression circuit,makes this contactor perfectly suited for direct control by PLC outputs.The suppression circuit prevents electrical noise from interfering with sensitive electronics,ensuring stable control circuit operation and protecting the PLC.

　　Global Certifications and Compliance:The DILM series carries multiple international approvals and is compliant with RoHS directives.These certifications facilitate the use of this component in equipment destined for global markets,simplifying the compliance process for OEMs.

　　Frequently Asked Questions(FAQs)

　　1.What is the key difference between a DC operated contactor and an AC operated one?

　　The core difference lies in the coil and the magnetic system.A DC operated contactor,like the DILM9-01(24VDC),is designed for a steady DC current in its coil.This creates a constant magnetic field,so the core is made of solid steel or iron.An AC contactor,however,must handle alternating current,which creates a changing magnetic field that can cause humming and heat;to counteract this,AC contactors often use a laminated core with a shading ring.DC coils do not have an inrush current phenomenon like AC coils,which can lead to a more stable and energy-efficient operation,especially in frequently switched applications.

　　2.Can this contactor be used for single-phase applications?

　　While the DILM9-01(24VDC)is a 3-pole device,it can certainly be used in single-phase applications.In such a case,only two of the three main poles would be utilized for the live and neutral(or phase and phase)connections of the single-phase circuit.The third pole can be left unused.This offers flexibility,but it is important to note that the current rating still applies per pole.

　　3.What is the purpose of the integrated suppression circuit?

　　The suppression circuit,often a reverse-biased diode or an RC network,is connected across the DC coil.Its primary function is to absorb the high-voltage transient spike that is generated by the coil's magnetic field collapsing when the power is switched off.Without this suppressor,the voltage spike could damage sensitive electronic components in the control circuit,such as PLC output transistors or microprocessor-based controllers.Its inclusion is a key feature for reliable integration into modern electronic control systems.

　　4.How do I select the right contactor for my motor?

　　Selecting the correct contactor involves checking several key parameters.First,the contactor's rated operational current(9A for this model)must be equal to or greater than the motor's full-load current(FLC).Second,the control coil voltage(24V DC here)must match your control supply.Third,consider the duty cycle and the type of load;motors with heavy starting demands may require a contactor rated for such applications.The power rating of the contactor(4 kW for this model at 400V)should also be suitable for the motor's power.Always consult the motor's nameplate data and the application requirements.
