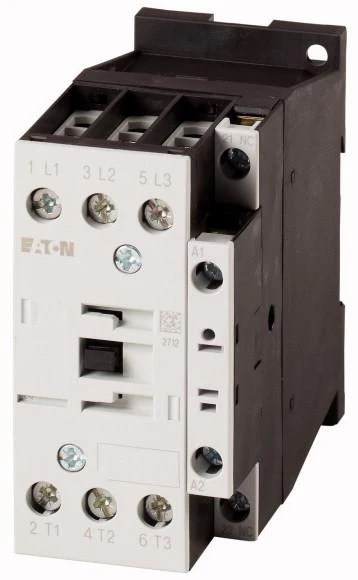

Eaton DILM32-01 3 Pole Industrial Power Contactor 40A Rating

　　The Eaton DILM32-01 stands as a fundamental component in industrial control panels,representing a high-quality 3 pole contactor designed for demanding applications.As a member of Eaton's DILM series,this industrial contactor is engineered to provide dependable and long-lasting performance in controlling three-phase loads,most notably electric motors.Its primary function is to repeatedly make and break electrical circuits,enabling remote control of equipment ranging from simple pumps and fans to complex machinery.With a robust construction that ensures a high mechanical and electrical lifespan,the DILM32-01 is a versatile and essential solution for system designers and panel builders across various industries,from manufacturing and process control to infrastructure and building management.

　　1.Product Overview and Operational Principle

　　The Eaton DILM32-01 is an electromechanically operated 3 pole contactor,meaning it uses an electromagnetic coil to open or close three sets of main power contacts simultaneously.The core of its operation is straightforward:when the control voltage is applied to the coil terminals(typically designated A1 and A2),it generates a magnetic field that pulls in a movable armature.This physical movement is transferred to the main contacts,closing them and allowing current to flow to the load.When the coil is de-energized,a spring mechanism returns the armature to its original position,forcing the main contacts to open and interrupt the circuit.This reliable and proven electromechanical principle provides excellent electrical isolation between the control circuit and the high-power main circuit.

　　This specific model is designed for standard AC-3 duty applications,which is the category for starting and stopping squirrel-cage motors.The"32"in its designation refers to its current rating,indicating it is suitable for motors up to 15 kW(20 HP)at 400V.The DILM32-01 is part of a modular system,allowing for the straightforward attachment of auxiliary contact blocks,mechanical interlocks,and other accessories,which enhances its functionality and adaptability to complex control schemes.

　　2.Technical Specifications and Performance Characteristics

　　The DILM32-01 is characterized by a set of precise technical parameters that define its application scope.It is rated for a operational voltage of up to 690V AC and a rated insulation voltage of 1000V.Its thermal current rating,Ith,is 32 A,and for the standard AC-3 utilization category,it is rated for 15 kW at 400V.The coil control voltage is available in a wide range of standard AC and DC voltages,allowing for integration into virtually any control system architecture.

　　The performance metrics of this industrial contactor are impressive.It is designed for a high number of electrical operations,often in the range of millions of mechanical operations,showcasing its durability.The device features a low power consumption hold coil,which reduces energy usage and heat generation in the control panel after the initial pull-in surge.Furthermore,it is designed to withstand high inrush currents,which are common when starting inductive loads like motors,ensuring reliable operation over its entire service life.

　　3.Design Features and Construction Details

　　Robust Construction and Material Selection

　　The physical construction of the DILM32-01 is focused on durability and safety.The housing is made from high-grade,self-extinguishing engineering plastics that provide excellent resistance to impact,chemicals,and heat.This ensures safe operation and protects against the spread of fire.The main contacts are typically made of silver-based alloys like silver-cadmium oxide(AgCdO)or silver-tin oxide(AgSnO2),which offer superior arc-quenching properties,resistance to welding,and low contact erosion,all of which contribute to the long electrical life of the contactor.

　　Modularity and Accessory Integration

　　A key feature of this 3 pole contactor is its modular design.The base unit can be easily expanded with snap-on auxiliary contact blocks,which can provide either normally open(NO)or normally closed(NC)contacts for use in control and signaling circuits.This allows a single contactor to provide feedback to a Programmable Logic Controller(PLC)about its status.Additionally,a mechanical interlock accessory can be mounted between two DILM32-01 contactors to prevent them from closing simultaneously,a critical safety feature for applications like motor reversing controls.Pneumatic timers can also be attached to introduce delayed operation.

　　Safety and Environmental Compliance

　　The DILM32-01 is designed and tested to meet major international standards,including IEC/EN 60947-4-1,which governs low-voltage contactors and motor-starters.Compliance with these standards guarantees a certain level of performance,safety,and quality.The contactor typically features clear terminal markings,finger guards for operator safety,and a transparent dust cover for the coil terminals.Many variants also come with standardized mounting footprints,allowing for easy replacement and installation on standard DIN rails.

　　4.Primary Application Areas and Industry Solutions

　　The primary application for the Eaton DILM32-01 industrial contactor is the control of three-phase electric motors.This makes it ubiquitous in industrial environments.You will find it in control panels for conveyor systems,where it starts and stops drive motors.It is used in machine tools to control spindle and coolant pump motors.In HVAC systems,it is employed to operate compressors and large fan motors in commercial air handling units.

　　Beyond motor control,this 3 pole contactor is also perfectly suited for switching other resistive and inductive three-phase loads.This includes industrial heating elements,transformer banks,and capacitor banks for power factor correction.Its reliability makes it a component of choice for critical infrastructure applications,such as water treatment plants,pumping stations,and power distribution systems,where failure is not an option.Its versatility ensures it is a fundamental building block in automation panels across the manufacturing,food and beverage,and automotive sectors.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Reliability and Uptime

　　The high mechanical and electrical durability of the DILM32-01 translates directly into reduced unplanned downtime for machinery and processes.Its robust design is resistant to the electrical stresses of arc interruption and the mechanical wear of frequent operation.This reliability ensures that production lines keep running and critical processes remain operational,which is a significant economic benefit in terms of productivity and maintenance cost avoidance.

　　Simplified Maintenance and Inventory Management

　　The modular nature of the DILM32-01 system simplifies maintenance and reduces inventory costs.Instead of stocking complete contactor assemblies for different functions,a facility can stock standard base units and a selection of common accessory modules.If an auxiliary contact fails,only that specific block needs replacement,not the entire contactor.This modularity,combined with the product's long service life,results in a lower total cost of ownership over the lifespan of the control panel.

　　Flexibility and Ease of Integration

　　For panel builders and system integrators,the DILM32-01 offers exceptional flexibility.The availability of multiple coil voltages allows for design standardization across different control voltage systems.The straightforward mounting and wiring save valuable time during panel assembly.The ability to add accessories means the same base contactor can be configured for a simple start/stop function or a more complex interlocked and monitored control scheme,providing a future-proof solution that can adapt to evolving system requirements.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a contactor and a relay?

　　While both are electromechanical switches,a 3 pole contactor like the DILM32-01 is specifically designed to handle high-current loads,typically motors,and features power contacts for the main three-phase circuit along with the potential for auxiliary contacts.A general-purpose relay is typically smaller,has a lower current rating,and is used for control and signaling circuits.Contactors are built with more robust arc-chamber and contact materials to manage the high-power switching arcs that motors generate.

　　How do I select the correct coil voltage for the DILM32-01?

　　The coil voltage is a critical selection parameter and must match the available control voltage in your system.This voltage is entirely separate from the main power voltage being switched.The DILM32-01 is available with coils for common AC voltages(e.g.,24V,110V,230V,400V)and DC voltages(e.g.,24V,110V).You must check the manufacturer's datasheet for the specific article number corresponding to your required coil voltage to ensure proper operation.

　　What is the purpose of adding auxiliary contacts to this contactor?

　　Auxiliary contacts are low-current contacts that are mechanically linked to the main contactor's movement.They are used to provide status feedback to the control system.For example,a normally open auxiliary contact can be wired to a pilot light to indicate when the motor is running,or into a PLC input to confirm that the contactor has successfully pulled in.A normally closed auxiliary contact might be used in a safety interlock circuit.

　　Can the DILM32-01 be used for reversing a three-phase motor?

　　Yes,but it requires two DILM32-01 contactors and a mechanical interlock accessory.Reversing a three-phase motor involves swapping two of the three phases.The two contactors are wired to provide these different phase sequences.The mechanical interlock is physically mounted between them to prevent both from being energized at the same time,which would cause a severe phase-to-phase short circuit.

　　What are the typical signs that a contactor like the DILM32-01 needs replacement?

　　Visible signs include contact erosion or welding that can be seen upon inspection,a chattering or humming noise from a failing coil,or signs of overheating on the terminals or body.Operational signs include the contactor failing to pull in consistently,the connected motor not starting,or the contactor dropping out unexpectedly under load.Regular thermographic inspections can also detect overheating issues before they lead to failure.
