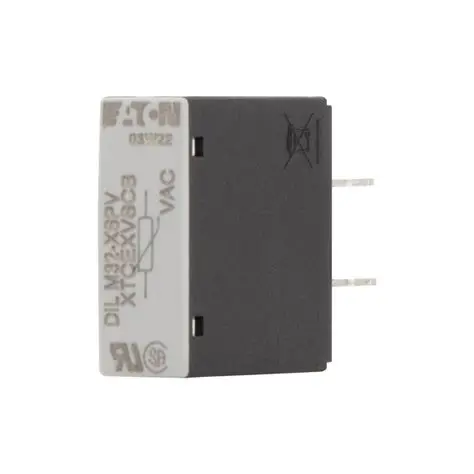

Eaton DILM32-XSPV240 240V AC Industrial Contactor Surge Protector

　　The Eaton DILM32-XSPV240 represents a critical fusion of robust power switching and advanced protective electronics,forming a complete solution for controlling AC motors in demanding industrial environments.This device is an Eaton DIL32 contactor pre-equipped with an integrated surge suppressor,specifically designed to mitigate voltage spikes and electrical transients that routinely threaten the longevity and reliability of control components.Engineered for three-phase systems with a coil voltage of 240V AC,this combination addresses a fundamental challenge in industrial automation:providing reliable switching while proactively protecting the contactor's coil and the broader control circuit from damaging voltage surges.Its integrated design eliminates the need for separate component selection and wiring,offering a streamlined approach to enhancing system uptime and reducing maintenance costs in applications ranging from compressor and pump control to industrial machinery and heavy-duty motor starters.

　　1.Product Overview and Core Operational Principle

　　At its heart,the DILM32-XSPV240 is a high-quality,medium-duty contactor from Eaton's renowned DILM series,known for its reliability and long electrical life.The contactor functions as an electrically operated switch,where a low-power control signal energizes an electromagnetic coil,mechanically closing power contacts to allow current to flow to a load,such as an electric motor.The innovative value of this specific model lies in the surge suppressor module physically and electrically integrated directly onto the contactor.This suppressor is a voltage-clamping circuit,typically employing a Metal-Oxide Varistor(MOV)or a combination of technologies,which acts as a high-speed pressure relief valve for electrical noise.When a voltage transient on the coil supply lines exceeds a safe threshold,the suppressor instantaneously creates a low-impedance path,shunting the dangerous energy away from the delicate coil and preventing the high-voltage spike from breaking down the coil's insulation.This integrated protection is crucial not only for the contactor itself but also for any sensitive control devices in the circuit,such as Programmable Logic Controller(PLC)outputs.

　　The operational principle ensures that the electromagnetic coil,which is highly inductive,is protected from the voltage spikes it inherently generates upon de-energization.According to Lenz's law,the sudden collapse of the magnetic field when the control signal is removed induces a reverse electromotive force(back-EMF)that can reach several thousand volts.Without a surge suppressor,this transient repeatedly stresses the coil insulation and connected switching elements,leading to premature failure.The DILM32-XSPV240's integrated solution handles this phenomenon automatically,ensuring a smooth decay of the magnetic field and clamping the voltage to a safe level,thereby safeguarding the entire control circuit.

　　2.Technical Specifications and Key Characteristics

　　The DILM32-XSPV240 is defined by a set of precise electrical and mechanical specifications that determine its suitability for various applications.The device is rated for a operational voltage of 240 Volts AC at 50/60 Hz for its coil,making it compatible with common industrial control voltages.The main power contacts are typically rated for a substantial current,often up to 32 Amperes at 690V AC for AC-3 utilization category(squirrel cage motor switching),confirming its capacity for controlling medium-power three-phase motors.The integrated surge suppressor is designed to handle surge energies consistent with industrial environments,with a robust clamping response time in the nanosecond range to swiftly neutralize fast-rising transients.

　　Physically,the contactor follows a standardized footprint for easy mounting on a DIN rail or panel,and its design often includes auxiliary contacts that can be added as modules for control and signaling purposes.The materials used in construction,such as the contact material for long arc resistance and the robust thermoplastic housing,are selected for durability and compliance with international safety standards.The device operates effectively within a wide ambient temperature range,typically from-25°C to+60°C,and is designed to withstand the vibration and shock common in industrial settings.Its certifications,such as UL,CE,and CCC,provide assurance of its global compliance and safety.

　　3.Design Features and Construction Details

　　Integrated Protective Architecture and Connectivity

　　The most significant design feature of the DILM32-XSPV240 is its integrated surge suppressor.This is not an external accessory that requires separate wiring and mounting;it is a factory-installed module that becomes a seamless part of the contactor assembly.This integration offers multiple advantages:it reduces the number of individual components in the control panel,minimizes wiring points(which are potential failure locations),and guarantees correct and reliable connection of the suppressor,as it is pre-wired by the manufacturer.The suppressor is specifically tuned to protect the contactor's coil,and its presence is often indicated by a visible module on the top or side of the contactor body.

　　Robust Construction for Industrial Longevity

　　Eaton designs the DILM series contactors for millions of operational cycles.The power contacts are made of silver-based alloys,like silver cadmium oxide(AgCdO)or silver tin oxide(AgSnO2),which provide excellent arc erosion resistance and welding resistance.The magnet system is optimized for low power consumption and quiet operation.The entire assembly is housed in a high-grade,self-extinguishing thermoplastic material that is resistant to chemicals,UV light,and mechanical impact.This robust construction ensures that the contactor,and by extension its integrated surge suppressor,delivers reliable performance over an extended service life,even in harsh environments containing dust,moisture,and corrosive gases.

　　Modularity and Serviceability

　　While the surge suppressor is integrated,the overall design of the DILM contactor range often maintains a degree of modularity.Auxiliary contact blocks,mechanical interlocks,and pneumatic timers can typically be added to the sides of the basic unit,allowing for customization of the control functionality without altering the core power switching or protective capabilities.This design philosophy makes the DILM32-XSPV240 a flexible building block that can be adapted to complex control logic requirements while maintaining its fundamental protective integrity.

　　4.Primary Application Areas and Industry Solutions

　　The DILM32-XSPV240 finds its primary application in any industrial setting where three-phase AC motors are controlled and operational reliability is paramount.It is a cornerstone component in motor control centers(MCCs)for controlling pumps,fans,and compressors in water treatment plants,HVAC systems,and industrial manufacturing facilities.In these applications,the integrated surge suppressor is critical for protecting against transients generated on-site by large motor loads or introduced from the power grid.

　　The device is equally vital in automation and machinery,where it acts as the primary power contactor for machine tools,conveyor systems,packaging machinery,and robotic cells.In these environments,sensitive electronic controls like PLCs and drives are ubiquitous.The surge suppressor ensures that voltage spikes generated by the contactor coil do not feedback into the control wiring and damage these expensive components,thereby preventing costly downtime and repairs.Furthermore,it is an excellent choice for applications involving remote control,where long control wires are more susceptible to picking up lightning-induced surges or noise from adjacent power cables,making the integrated protection a cost-effective insurance policy.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Reliability and Reduced Downtime

　　The most direct operational advantage is the significant increase in system reliability.By proactively suppressing voltage transients,the DILM32-XSPV240 protects not only itself but the entire control circuit.This leads to a drastic reduction in unexplained faults,contactor coil burnouts,and damaged PLC output modules.The result is higher overall equipment effectiveness(OEE)through reduced unplanned production stoppages,which is a critical economic metric for any manufacturing or process operation.

　　Lower Total Cost of Ownership and Simplified Engineering

　　The integrated design of the surge suppressor contributes to a lower total cost of ownership in several ways.It simplifies the engineering and design phase by eliminating the need to specify,source,and wire a separate suppression module.This saves on component costs,inventory costs,and panel assembly time.From a maintenance perspective,having a single,pre-assembled unit reduces troubleshooting complexity and spare parts inventory,as technicians only need to stock one SKU instead of two.The extended service life of the protected contactor further reduces long-term replacement costs,making it a financially sound investment over the lifecycle of the control system.

　　Frequently Asked Questions(FAQs)

　　What types of voltage transients does the integrated surge suppressor protect against?

　　The integrated surge suppressor in the DILM32-XSPV240 is primarily designed to protect against two main types of transients.The first and most common is the inductive switching spike generated by the contactor's own coil when it is de-energized.The second includes externally generated transients from sources like utility grid switching,lightning strikes on distant power lines,or the operation of other large inductive loads(e.g.,large motors or solenoids)within the same facility.The suppressor clamps these short-duration,high-voltage spikes to a safe level,preventing insulation breakdown in the coil and connected control devices.

　　Can this contactor with an integrated suppressor be used with a Variable Frequency Drive(VFD)?

　　A contactor like the DILM32-XSPV240 is typically used on the input side of a VFD to provide a means of disconnecting the drive from the mains supply,a function often required by electrical codes.In this role,its surge suppressor protects the contactor coil and the control circuit that commands it.However,it is not a substitute for a dedicated output contactor on the load side of a VFD,and it does not protect against all types of electrical noise that a VFD might generate or be susceptible to.For protecting the VFD itself from large power line surges,a dedicated surge protection device at the drive's input is usually recommended.

　　What is the key difference between an RC circuit and a Varistor(MOV)used for suppression?

　　Both are common suppression technologies,but they function differently.An RC(Resistor-Capacitor)snubber suppresses transients by absorbing the energy and slowing the voltage rise time,which is very effective for the fast,high-frequency spikes generated by inductive loads.A Varistor(MOV),or Metal-Oxide Varistor,is a voltage-clamping device;it presents a very high resistance under normal voltage but instantaneously becomes a low resistance when a threshold voltage is exceeded,thereby shunting the surge current.The integrated suppressor in devices like the DILM32-XSPV240 may use one or a combination of these technologies to provide comprehensive protection.

　　How does the integrated design benefit installation and maintenance procedures?

　　The integrated design offers significant benefits for both installation and maintenance.For installation,it simplifies the process by reducing the number of components to mount and wire.The installer only needs to connect the power and control wires to the contactor,with no additional wiring required for the suppressor.This saves time and reduces the potential for wiring errors.For maintenance,it streamlines troubleshooting and spare part management.A fault condition is traced to a single unit,and the replacement is a single,pre-assembled device,which minimizes machine downtime during critical repair operations.

　　Are there any specific wiring or installation considerations for this model?

　　While the integration simplifies wiring,standard best practices for contactor installation must still be followed.This includes using correctly sized conductors,ensuring terminal connections are tight to the specified torque,and implementing proper segregation between power and control wiring to minimize electromagnetic interference.It is also crucial to ensure that the coil supply voltage(240V AC in this case)matches the available control voltage precisely.The device should be installed in an appropriate enclosure that provides a defined degree of protection(IP rating)against dust and moisture based on the operating environment.
