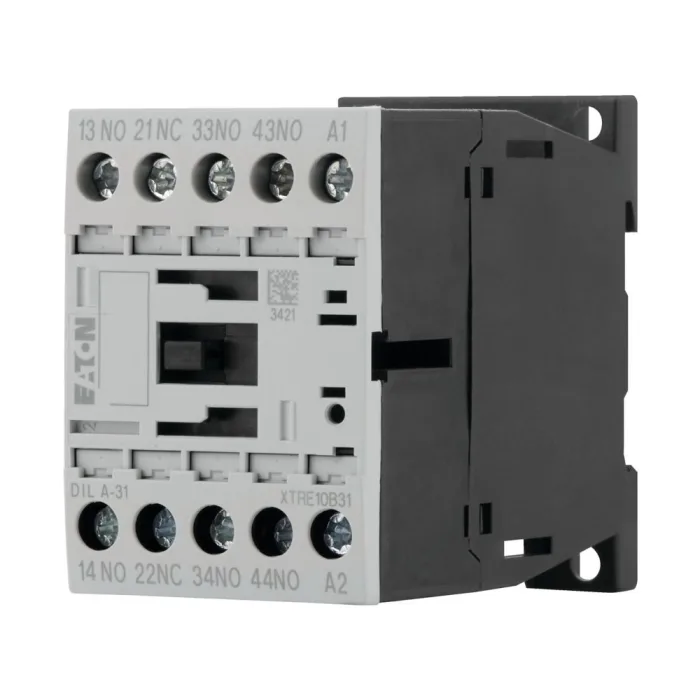

Eaton DILA-31 Compact 4 Pole AC Contactor Relay Module

　　The Eaton DILA-31 is a robust and versatile 4 pole contactor specifically engineered to meet the complex switching requirements of modern industrial control systems.As part of Eaton's renowned Moeller series,this AC contactor relay is designed to provide reliable performance in a compact,modular form factor.Its primary function is to act as a heavy-duty switching interface,often directly controlled by programmable logic controllers(PLCs),to manage higher-power loads such as motors,heating elements,and lighting systems.With a maximum operational current of 4A and a versatile contact configuration,the DILA-31 serves as a critical coupling and interface component,bridging the gap between low-power control circuits and high-power actuator systems with exceptional efficiency and reliability.Its design reflects Eaton's century of experience in motor starting,control,and protection,offering a proven solution for applications demanding both safety and operational durability.

　　1.Product Overview and Operational Principle

　　The Eaton DILA-31 belongs to a family of contactor relays distinguished by their modular,expandable design and four-pole switching capability.At its core,it operates as an electrically actuated switch.When the control voltage(available in AC and DC variants like 230V AC or 24V DC)is applied to its coil,it generates a magnetic field that pulls in an armature.This physical movement opens or closes multiple sets of power contacts simultaneously.The DILA-31 is particularly noted for its flexible contact configuration,which can be specified as a combination of normally open(NO)and normally closed(NC)contacts,with a common arrangement being three normally open and one normally closed(NC+NO x3).This flexibility allows it to perform complex control tasks,such as switching three phases of a motor while simultaneously providing a status feedback signal through the fourth pole.As an AC contactor relay,it is optimized for the alternating current loads commonly found in industrial environments,ensuring stable operation and long electrical life even under frequent switching conditions.

　　2.Technical Specifications and Performance Characteristics

　　The DILA-31 is defined by a set of robust electrical and mechanical specifications that make it suitable for a wide range of industrial environments.Electrically,it is rated for a maximum continuous operational current of 4A per pole.It is available with various control coil voltages,including common industrial standards like 230V AC(50/60 Hz)and 24V DC,providing design flexibility for different control voltage systems.Mechanically,the contactor features a compact,space-saving design with a uniform width of 45mm,a height of 68mm,and a weight of approximately 254 grams for the AC model.This compact 4 pole contactor is designed for easy mounting on standard DIN rails,a ubiquitous feature in industrial control panels,which simplifies installation and maintenance.The electrical connections are made via reliable screw terminals,which ensure secure and high-integrity connections for both power and control circuits.The construction is designed to meet international standards,including RoHS compliance,underscoring its adherence to global environmental and safety regulations.

　　3.Design Features and Construction Details

　　Modular and Expandable Architecture

　　A standout feature of the DILA-31 series is its modular and expandable design.The basic four-pole unit can be expanded with additional auxiliary contact blocks that are top-mounted,allowing the total number of contacts to be increased up to eight.This modularity enables engineers to customize the contactor's functionality to the exact needs of the application without requiring a larger footprint or a completely different device.All contacts within the assembly are interlocked and opposed,ensuring precise mechanical synchronization and safe operation.

　　Robust Construction for Long Service Life

　　The DILA-31 is built for durability in demanding industrial settings.The materials and construction are chosen to ensure a long mechanical and electrical life,capable of withstanding millions of operational cycles.The contact system is designed to manage electrical arcing effectively,and for models equipped with them,the灭弧室should never be removed during operation to prevent short circuits.The use of high-grade materials for contacts,coils,and the insulating housing ensures consistent performance and resistance to wear,corrosion,and electrical breakdown.

　　Integrated Safety and Reliability Features

　　Safety is paramount in the design of this AC contactor relay.The positively guided contacts are a critical safety feature,meaning that the NC and NO contacts can never be closed simultaneously,which is essential for ensuring safe machine states and reliable interlocking.This mechanical forced guidance prevents the failure modes that could lead to dangerous situations,making it a key component in safety-related control circuits.

　　4.Primary Application Areas and Industry Solutions

　　The versatility of the Eaton DILA-31 makes it a cornerstone in numerous industrial automation and control scenarios.

　　Industrial Automation and Motor Control

　　Its primary application is in industrial automation,where it acts as an interface relay.It is commonly used to control larger contactors or motor starters directly from the output of a PLC.This setup allows the low-current PLC output to safely and reliably switch the higher currents required by motor starter coils.In complex machinery,multiple DILA-31 contactors can be used to manage multi-speed motors,star-delta starters,or to control auxiliary motors for fans,pumps,and compressors.

　　Power Management and Distribution Systems

　　As a 4 pole contactor,it is perfectly suited for three-phase power applications.It can be used to switch all three phases and the neutral line of a motor or a heating load simultaneously.This makes it ideal for applications in power distribution systems,such as automatic transfer schemes,capacitor banks for power factor correction,and controlling industrial heating systems where complete isolation of the load is required.

　　Building Automation and Control

　　Beyond heavy industry,the DILA-31 finds use in building automation systems.It can control three-phase HVAC units,large lighting arrays,and other significant electrical loads in commercial buildings.Its reliable performance and compliance with safety standards make it a trustworthy component for managing essential building services.

　　5.Installation,Wiring,and Maintenance Considerations

　　Proper installation is crucial for ensuring the reliable operation and long service life of the DILA-31 contactor.Prior to installation,it is recommended to verify that the coil voltage matches the control supply voltage and to manually check that the moving parts operate freely without any binding.During installation,the contactor should be securely mounted on a DIN rail,and care must be taken to ensure that no screws,wires,or other debris fall into the unit,as this could cause mechanical binding or electrical short circuits.The screw terminals should be tightened to the specified torque to ensure good electrical contact and prevent loosening due to vibration.

　　For maintenance,periodic inspection is advised.This includes checking for signs of overheating on the terminals,ensuring the contactor is free from excessive dust and contamination,and verifying that it operates correctly.A key maintenance aspect involves the contacts.While silver alloy contacts naturally form a dark oxide layer that is conductive and should not be filed away,any severe arcing that causes significant pitting or material transfer may necessitate contact replacement or renewal of the entire unit.It is also crucial that if the contactor is supplied with a灭弧室,this component must always be in place during operation to safely extinguish arcs and prevent phase-to-phase faults.

　　6.Comparative Advantages and Value Proposition

　　Space Efficiency and Design Flexibility

　　The compact 45mm width of the DILA-31 represents a high degree of space optimization for a 4 pole contactor.This allows control panel designers to build more functionality into a smaller footprint,reducing the overall size and cost of control enclosures.Its modular expandability further enhances this value,allowing for customized solutions without the need for multiple discrete devices.

　　Enhanced System Safety and Reliability

　　The incorporation of positively guided contacts elevates the safety level of control systems.This feature is indispensable for applications requiring compliance with machine safety standards,as it helps prevent the occurrence of faults that could lead to unexpected machine start-ups or hazardous conditions.The robust construction and proven design principles inherited from the Eaton Moeller series contribute to a high mean time between failures(MTBF),minimizing unplanned downtime.

　　Operational Cost-Effectiveness

　　The long electrical and mechanical life of the DILA-31 translates directly into reduced replacement costs and lower total cost of ownership.Its ability to interface directly with PLCs simplifies control system architecture,potentially reducing the need for intermediate interface modules and streamlining the bill of materials for both original equipment manufacturers(OEMs)and end-users.

　　Frequently Asked Questions(FAQs)

　　What distinguishes a 4 pole contactor like the DILA-31 from a standard 3 pole contactor?

　　A standard 3 pole contactor is typically used to switch the three phase conductors of a motor or load.A 4 pole contactor adds a fourth pole,which provides a crucial additional switching element.This extra pole can be used to switch the neutral conductor for complete load isolation,to switch a control circuit for signaling or interlocking,or to provide a voltage supply to a motor brake in hoisting applications.The DILA-31's flexible NO/NC configuration on its poles makes it adaptable to all these roles.

　　Can the DILA-31 be used for both AC and DC control voltages?

　　The DILA-31 series offers models with coils designed for specific voltage types and ranges.There are versions with coils rated for AC operation(e.g.,230V AC 50/60Hz)and versions designed for DC operation(e.g.,24V DC).It is critical to select the model with a coil voltage that matches the available control supply in the application to ensure proper operation and avoid damage.

　　How does the expandability of this contactor work in practice?

　　The basic DILA-31 unit can be fitted with additional,separately available auxiliary contact modules that attach to the top of the main unit.These modules,which can provide extra normally open or normally closed contacts,mechanically latch onto the main contactor.When the main contactor's coil is energized and the armature moves,it actuates the contacts in these auxiliary modules as well,effectively increasing the number of circuits that can be switched simultaneously from a single command signal.

　　What is the significance of'positively guided contacts'?

　　Positively guided(or mechanically linked)contacts are a fundamental safety feature.They ensure that the normally open and normally closed contacts are physically linked in such a way that it is impossible for both to be closed at the same time.This"break-before-make"action is crucial for safety interlock circuits,as it prevents a situation where,for example,a forward and reverse command could be simultaneously applied to a motor,which could cause a short circuit or machine damage.

　　What are the key steps for troubleshooting a DILA-31 that fails to operate?

　　First,verify that the correct control voltage is present across the coil terminals.If voltage is present but the contactor does not pull in,the coil may be faulty.If it chatters or does not seal properly,the voltage might be too low.If the coil is energized and the armature moves but the load does not receive power,the main contacts may be worn out or damaged.Always ensure power is disconnected before performing any physical inspection or maintenance on the contactor or its load connections.
