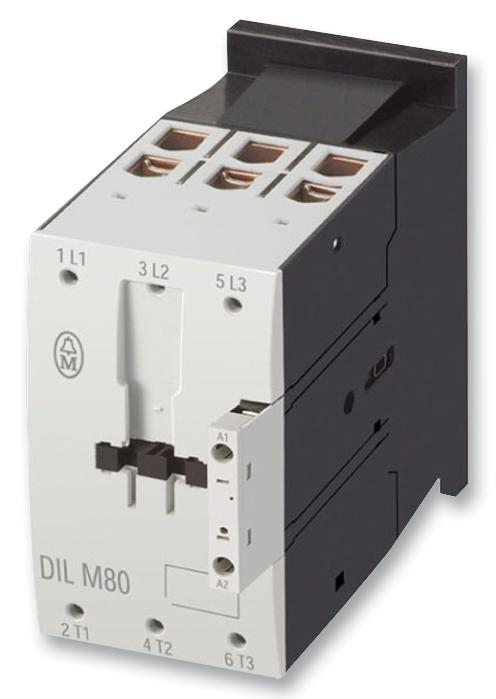

Eaton DILM80 80A 3 Pole AC Motor Starter with Overload Protection

　　The Eaton DILM80 stands as a cornerstone component in industrial motor control and power distribution systems,embodying a design focused on reliability,safety,and long service life.As a 3-pole AC contactor,it is fundamentally an electrically operated switch designed to make or break the power circuit to a load,most commonly electric motors.This specific model is engineered for control circuits with voltages of 230V 50Hz and 240V 60Hz,making it a versatile solution for a wide array of industrial and commercial applications.Operating as a key element in a motor starter assembly,the DILM80 works in tandem with overload relays to provide a comprehensive solution for starting,stopping,and protecting AC motors.Its robust construction ensures consistent performance in switching high-current loads,contributing to the operational safety and automation efficiency of machinery across various sectors,from manufacturing and material handling to HVAC and water treatment systems.

　　1.Product Overview and Functional Principle

　　The Eaton DILM80 is a member of the renowned DILM contactor series,designed for the direct control of three-phase AC motors and other power loads.Its core operating principle is electromagnetic actuation.When a control voltage is applied to the contactor's coil,it generates a magnetic field that pulls in a movable core,mechanically closing the main power contacts.This action completes the three-phase circuit,allowing current to flow to the motor.Upon de-energizing the coil,a spring mechanism returns the movable core to its original position,forcing the main contacts to open and safely interrupting the power supply.This fundamental make-and-break functionality is the basis of all start-stop operations for motors.

　　In the context of a motor starter,the DILM80 contactor serves as the switching component.It is typically paired with a thermal overload relay,which provides essential protection against motor damage from excessive current draw caused by overloads or phase failures.The entire assembly is designed for easy mounting on a standard DIN rail,simplifying installation and maintenance.The DILM80 is characterized by its compact dimensions,which help save space in control panels,and its ability to handle high inrush currents associated with motor starting,ensuring dependable operation over millions of mechanical cycles.

　　2.Technical Specifications and Performance Data

　　The DILM80 is defined by a comprehensive set of technical parameters that dictate its application range.It is rated for a nominal operational current,typically up to 80A at AC-3 utilization category,which covers the starting and stopping of squirrel-cage motors.The rated operational voltage is 690V AC,making it suitable for common three-phase industrial power systems.The control coil voltage,as specified for this model,is designed for 230V 50Hz and 240V 60Hz,allowing it to be directly controlled by standard control transformers or PLC outputs in many regions.

　　The electrical endurance is a critical performance metric,with the DILM80 rated for a high number of operational cycles,often in the millions,under rated load conditions.Its mechanical durability is even higher,demonstrating the robustness of its design.The contactor features a compact design that complies with international standards for dimensions,facilitating easy replacement and interoperability.It also possesses a high short-circuit current withstand capability,allowing it to remain intact in the event of a downstream fault until a protective circuit breaker operates.The product carries global certifications like UL,CSA,and CE,affirming its compliance with international safety and performance standards.

　　3.Design Features and Construction Details

　　Robust Construction and Arc Quenching System

　　The Eaton DILM80 is built for longevity and reliability in demanding environments.The housing is constructed from high-grade,self-extinguishing thermoplastic material that provides excellent mechanical strength and resistance to tracking.The main contacts are typically made of silver-cadmium oxide or a similarly advanced material that offers excellent resistance to welding and erosion from electrical arcing.A key feature of any power 3-pole AC contactor is its arc chute,and the DILM80 is equipped with an efficient deion arc quenching system.This system uses metal plates to split,cool,and extinguish the electric arc that forms when contacts open under load,ensuring rapid current interruption and protecting the contacts from excessive wear.

　　Modularity and Auxiliary Contact Flexibility

　　A significant design advantage of the DILM80 is its modularity.It can be easily fitted with a variety of snap-on auxiliary contact blocks.These blocks,available in normally open and normally closed configurations,provide additional contacts that are mechanically linked to the main contactor's operation.These auxiliary contacts are essential for building interlocking circuits,signaling the contactor's status to programmable logic controllers(PLCs),or controlling indicator lights,thereby enhancing the overall functionality of the control system without requiring additional space or complex wiring.

　　Terminal Design and Serviceability

　　The contactor is designed with user-friendly,clamp-type terminals that facilitate secure and reliable wire connections.These terminals are often designed to accept a range of wire sizes and can be accessed easily with standard tools,reducing installation time.Some versions may also feature transparent covers that allow for visual inspection of the main contacts without disassembling the unit,which is a valuable feature for preventative maintenance and troubleshooting.

　　4.Primary Application Areas and Industry Solutions

　　The Eaton DILM80 3-pole AC contactor finds extensive use as a critical component in motor control centers(MCCs)for controlling pumps,fans,compressors,and conveyor belts in industrial plants.Its reliability is crucial for automated production lines where unscheduled downtime can lead to significant financial losses.In the commercial building sector,it is a workhorse within HVAC systems,controlling the compressors and fans in chillers,air handling units,and cooling towers,contributing to efficient climate control.

　　Beyond motor starting,the DILM80 is also employed in power distribution applications,such as capacitor switching for power factor correction and automatic transfer switches for standby power systems.Its robust design makes it suitable for heavy-duty applications like crane control,escalators,and industrial machinery where frequent starts and stops are common.The motor starter configuration,combining the DILM80 with an overload relay,provides a complete and compact solution for OEMs(Original Equipment Manufacturers)building machinery for the packaging,food and beverage,and water/wastewater industries.

　　5.Operational Advantages and Economic Benefits

　　Enhanced System Reliability and Reduced Downtime

　　The primary operational advantage of the Eaton DILM80 is its proven reliability.The high-quality materials and precision engineering result in a contactor that can withstand millions of operations,minimizing the risk of failure.This directly translates to increased machine uptime and reduced maintenance costs.The clear marking of terminals and the ease of adding auxiliary contacts also reduce the time required for installation and modifications,leading to lower labor costs.

　　Energy Efficiency and Safety Compliance

　　Modern contactors like the DILM80 are designed with energy efficiency in mind.The coil circuits are optimized for low power consumption,reducing the operational cost of the control system.Furthermore,the positive-driven contact mechanism and reliable arc quenching enhance operational safety by ensuring clear contact status and containing electrical arcs.Compliance with international standards guarantees that the component meets stringent safety requirements,which is essential for protecting both personnel and equipment.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a contactor and a motor starter?

　　A 3-pole AC contactor like the Eaton DILM80 is an electromagnetic switch designed to handle high-current loads,and its sole function is to open and close a power circuit.A motor starter is a more complete functional unit that includes a contactor as its core switching element,plus the crucial addition of an overload relay.The overload relay provides dedicated protection for the motor against overheating due to excessive current from overloads or phase loss,which the contactor alone does not provide.

　　Can the DILM80 be used for both 50Hz and 60Hz power systems?

　　Yes,the specified model DILM80 with a coil rated for 230V 50Hz/240V 60Hz is designed for compatibility with both common power frequencies.This dual rating offers significant flexibility for equipment that may be deployed in different geographical regions or within facilities that have varying power supplies.It is always critical,however,to verify the specific coil voltage marking on the contactor itself to ensure it matches the available control supply voltage.

　　What is the significance of the AC-3 utilization category?

　　The AC-3 utilization category is a standardized classification defined by the IEC standard.It specifies the duty of a switching device for"starting of squirrel-cage motors and switching off while running."Essentially,it means the contactor is rated to withstand the high inrush current(typically 6-10 times the full-load current)that occurs when a motor starts,and it is also capable of breaking the full-load current of the motor once it is up to speed.This is the most common rating for general-purpose motor starting applications.

　　How do I select the correct overload relay to pair with the DILM80 contactor?

　　The overload relay must be selected based on the full-load current(FLC)of the motor it is intended to protect.Eaton offers a range of matched overload relays specifically designed to be mounted directly to DILM series contactors.The selection involves choosing a relay whose current adjustment range includes the motor's FLC.Proper coordination between the contactor's breaking capacity and the relay's tripping characteristics ensures complete and safe motor protection.

　　What maintenance is required for a contactor like the DILM80?

　　Maintenance is generally minimal but important for long-term reliability.It involves periodic visual inspections for signs of physical damage or overheating(discoloration).The contactor should be de-energized,and the contacts can be inspected for excessive erosion or welding;some versions have transparent covers for this purpose.Keeping the unit clean and free from excessive dust and moisture is also crucial.It is recommended to follow the maintenance schedules outlined in the official Eaton documentation.
