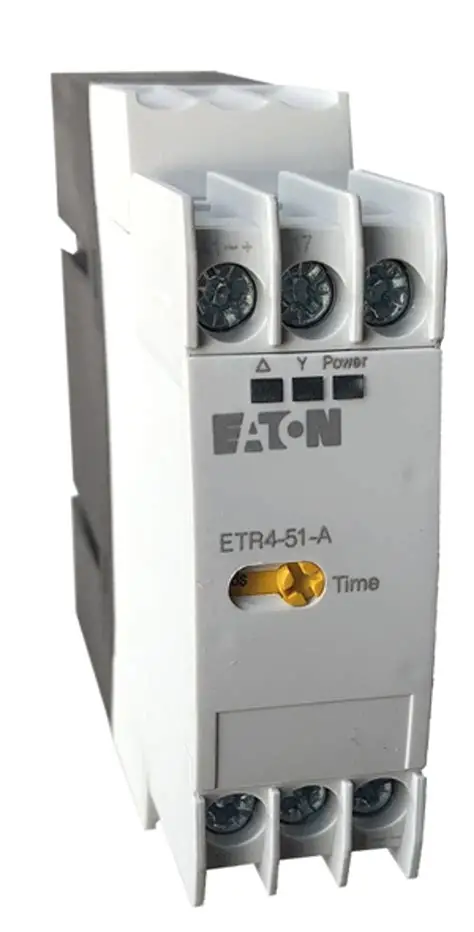

Eaton ETR4-51-A Industrial DIN Rail Mount AC/DC Timer Relay 24-240V

　　The Eaton ETR4-51-A is a robust and specialized timer relay designed primarily for star-delta starting applications in industrial motor control systems.As a DIN rail timer relay,it offers easy installation within standard control panels and provides precise timing control with a adjustable range from 3 to 60 seconds.This Eaton timer relay ensures reliable operation under varying voltages(24-240V AC/DC)and is built to withstand the rigorous demands of industrial environments,making it an ideal choice for automating and protecting motor-driven machinery.

　　Product Overview and Core Functionality

　　The Eaton ETR4-51-A belongs to the ETR4 series of timer relays from Eaton,a range known for its durability and application-specific designs.This particular model functions as a star-delta timer relay,a critical component in reducing inrush currents during motor startup.By switching an electric motor from a star(wye)configuration to a delta configuration after a preset time,it minimizes mechanical and electrical stress,thereby extending the motor's operational life.The device features a single timing range and one changeover relay output,configured as a DPDT(Double-Pole Double-Throw)switch,which provides the necessary circuit flexibility for star-delta switching.

　　Its design is centered on simplicity and performance.The Eaton timer relay is engineered for high repeat accuracy and reliable performance,leveraging a design that ensures consistent timing intervals.The unit is housed in a compact module that is only 22.5mm wide,allowing for high-density mounting on DIN rails within control cabinets,which is a significant space-saving advantage in complex industrial setups.

　　Technical Specifications and Performance Data

　　The ETR4-51-A operates on a wide supply voltage range of 24 to 240 volts,both AC and DC,making it highly versatile for various control circuit applications across different regions and standards.Its output relay is rated for 3 Amperes at up to 250 volts AC,capable of directly switching contactor coils in a motor control circuit.

　　This DIN rail timer relay offers a timing range between 3 seconds and 60 seconds.This range is ideally suited for the typical time required for motors to reach operational speed before transitioning from star to delta connection.The device uses a screw terminal block for electrical connections,ensuring a secure and reliable contact,and it has an IP20 protection rating,which safeguards it against the ingress of solid objects larger than 12.5 millimeters.

　　Physically,the module measures 22.5mm in width,82.5mm in height,and 103mm in depth,conforming to standard dimensions for DIN rail-mounted devices.It is designed to operate effectively within an ambient temperature range of-20°C to+60°C,ensuring stability in typical industrial environments.

　　Design Features and Construction Quality

　　Robust Build and Reliable Components

　　The Eaton ETR4-51-A is built with high-quality materials to ensure long-term reliability.Its construction includes a robust housing that protects the internal electronics from dust and minor physical impacts,as indicated by its IP20 rating.The use of a screw terminal connection type guarantees a firm and vibration-resistant electrical connection,which is crucial in industrial settings where machinery can induce significant vibrations.

　　User-Friendly Operation and Indication

　　This timer relay is designed for straightforward setup and monitoring.The timing period is set using a dial or potentiometer on the front of the unit,allowing for easy adjustment without the need for complex programming.A LED indicator provides a clear visual confirmation of the relay's operational status,signaling when the device is powered and when the timing cycle is active,which aids in quick troubleshooting and system diagnostics.

　　Primary Application Areas and Industry Solutions

　　The primary and most critical application for the Eaton ETR4-51-A is the control of three-phase asynchronous motors using a star-delta starting method.This starting method is ubiquitous in industrial sectors for motors above a certain power rating,as it drastically reduces the starting current by approximately one-third compared to direct-on-line starting.This reduction helps prevent voltage dips in the supply network and reduces thermal stress on the motor windings.

　　Beyond standard motor control,this relay finds use in various industrial automation sequences.It is employed in machinery such as conveyor systems,large pumps,industrial fans,and compressors—anywhere a smooth and controlled motor startup is required for both operational efficiency and equipment safety.Its reliability also makes it suitable for applications in building management systems,controlling HVAC equipment,and automated processes in water treatment plants.

　　Operational Advantages and Economic Benefits

　　Enhanced System Protection and Longevity

　　By facilitating a smooth star-delta transition,this Eaton timer relay plays a direct role in protecting expensive motor assets from the damaging effects of high inrush current.This protection translates into reduced downtime for maintenance and longer intervals between motor repairs or replacements,offering significant cost savings over the lifecycle of the equipment.

　　Installation Efficiency and Cost-Effectiveness

　　The compact DIN rail design of the ETR4-51-A allows for efficient use of space inside control panels.This compactness means that panel builders can design smaller,more cost-effective enclosures.The simplicity of its analog timing setup eliminates the need for specialized programming tools or training,reducing commissioning time and associated labor costs.Its wide voltage acceptance also simplifies inventory management,as the same relay model can be used in multiple applications with different control voltages.

　　Frequently Asked Questions(FAQs)

　　What is the specific function of the Eaton ETR4-51-A timer relay?

　　The ETR4-51-A is specifically designed for star-delta motor starting.It controls the changeover of a three-phase motor from a star configuration(for reduced-voltage starting)to a delta configuration(for full-voltage running)after a preset time delay of 3 to 60 seconds.This process limits the high inrush current at startup,protecting the motor and the supply network.

　　What are the key electrical ratings for the output contacts of this relay?

　　The output of this Eaton timer relay consists of a changeover relay with a DPDT configuration.Its contacts are rated for a maximum of 3 Amperes at 250 volts AC.This rating is sufficient to control the coils of contactors used in typical motor starter circuits.

　　Is the ETR4-51-A suitable for both AC and DC control voltages?

　　Yes,a significant feature of this DIN rail timer relay is its wide-range power supply.It can operate on both AC and DC voltages from 24V to 240V.This versatility allows it to be integrated into a vast array of control systems without requiring a separate power supply module.

　　How is the timing period set on this analog timer relay?

　　The ETR4-51-A is an analog timer.The desired timing period within its 3-to-60-second range is set manually,typically by adjusting a rotary potentiometer or a dial located on the face of the device.This offers a simple and intuitive setup without the need for digital interfaces.

　　What certifications does this device hold for safety and quality?

　　While specific certification lists were not detailed in the search results,devices like the ETR4 series from Eaton are typically designed and tested to meet major international standards for safety(e.g.,UL,CE)and quality,ensuring reliable performance in global markets.
