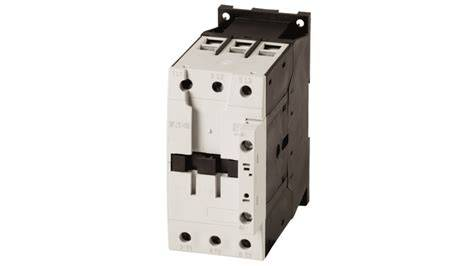

Eaton DILM50 230V/240V AC-DC Heavy Duty Industrial Contactor

　　The Eaton DILM50(230V50Hz,240V60Hz)is a high-performance industrial contactor engineered for reliable switching and control of three-phase motors and other high-power electrical loads.As a versatile AC DC contactor within Eaton's renowned DIL series,it is designed to handle a maximum operational current of 50A and is suitable for a wide voltage range,including 230V at 50Hz and 240V at 60Hz.This three-pole contactor is a cornerstone in industrial control panels,providing a durable and efficient solution for automating heavy-duty machinery.Its design emphasizes long service life,operational safety,and seamless integration into diverse global power systems,making it a trusted component in applications ranging from manufacturing and processing to commercial infrastructure.

　　1.Product Overview and System Integration

　　The DILM50 belongs to Eaton's comprehensive family of DIL contactors,which are known for their robust construction and global certifications.This specific model acts as an electrically operated switch,using a low-power control circuit(activated by its 230V AC coil)to safely make and break higher-power motor circuits.It is a fundamental component in building motor starter assemblies,often paired with overload relays for complete motor protection.The contactor's design is optimized for easy installation,supporting both panel mounting and DIN rail attachment,which provides flexibility for control cabinet designers and system integrators.

　　2.Technical Specifications and Performance Data

　　The DILM50 is defined by a set of robust electrical and mechanical specifications that ensure its reliability in demanding environments.

　　Electrical Ratings:It features a maximum operational current of 50A and is rated for a control voltage of 230V AC.The device boasts a high insulation voltage of 690V,enhancing its safety margin and durability.

　　Contact Configuration:This model is configured as a three-pole main contactor with three normally open(NO)power contacts.Additionally,it comes with integrated auxiliary contacts—two normally open(NO)and two normally closed(NC)—which are crucial for building control and interlocking logic within a larger automation system.

　　Physical and Environmental:The contactor is built to operate reliably within a temperature range of-25°C to+40°C.With a substantial weight of 996.4 grams,it reflects a solid,robust construction designed for industrial endurance.

　　3.Core Design Features and Construction

　　Robust Construction and Material Quality

　　The physical build of the DILM50 industrial contactor prioritizes longevity and consistent performance.The use of high-grade materials in its contacts and housing ensures resistance to electrical wear and mechanical impact.The screw terminal connections provide a secure and reliable interface for power and control wiring,minimizing the risk of loose connections that can lead to failures.

　　Integrated Auxiliary Contacts for Control Logic

　　A key feature that enhances its functionality is the inclusion of multiple integrated auxiliary contacts(2 NO+2 NC).These auxiliary contacts operate in conjunction with the main power contacts,allowing the DILM50 to simultaneously manage the high-power load and signal its status(e.g.,on or off)to Programmable Logic Controllers(PLCs)or other control devices.This eliminates the need for external auxiliary contact blocks,saving space and simplifying cabinet wiring.

　　Certifications and Global Compliance

　　The DILM50 series is backed by various international certifications,which attest to its compliance with stringent safety and quality standards.These certifications ensure that the contactor can be deployed with confidence in a wide array of industrial projects across different regions,knowing it meets recognized benchmarks for performance and safety.

　　4.Primary Application Areas and Industry Solutions

　　The versatility of the Eaton DILM50 makes it suitable for a broad spectrum of industrial applications.

　　Motor Control Centers:It is ideally suited for controlling three-phase motors in pumps,compressors,fans,and conveyor belts,providing the switching capability to start,stop,and protect these critical assets.

　　Industrial Automation Systems:Within automated manufacturing and processing lines,this industrial contactor is used to control machinery drives,hydraulic power units,and other high-power actuators,ensuring precise operational control.

　　Commercial and Infrastructure Systems:The contactor finds application in commercial settings,such as controlling elevators,escalators,and HVAC systems,where reliable switching of heavy inductive loads is required.

　　5.Operational Advantages and Economic Benefits

　　High Reliability and Extended Electrical Life

　　The DILM50 is engineered for a long operational life,capable of withstanding a high number of electrical switching cycles.This durability translates into reduced maintenance needs and lower total cost of ownership,as the contactor does not require frequent replacement even in demanding duty cycles.

　　Enhanced System Safety

　　Safety is a paramount advantage.The high insulation voltage(690V)provides an extra safety margin.Furthermore,the integrated auxiliary contacts can be utilized in safety interlock circuits,helping to prevent unintended machine start-ups and protecting both personnel and equipment.

　　Simplified Installation and Maintenance

　　The design for DIN rail mounting and clear,accessible terminals significantly reduces installation time.The modular nature of the DIL series also means that accessories and replacement parts are readily available,streamlining both initial setup and future maintenance operations.

　　Expanded Perspective:The Role of Contactors in Industrial Control Systems

　　Understanding the broader context of how devices like the DILM50 fit into industrial ecosystems is key to proper selection and application.

　　1.The Contactor's Role in Motor Management

　　A contactor is the workhorse of motor control.Unlike a simple switch,it is designed to handle the high inrush currents experienced when a motor starts.In a typical configuration,the industrial contactor is combined with an overload relay.The contactor is responsible for making and breaking the circuit,while the overload relay protects the motor from damage due to excessive current over time.The DILM50,with its 50A rating,is perfectly suited for this role in controlling medium-power motors.

　　2.AC vs.DC Contactor Operation

　　While the DILM50(230V50Hz,240V60Hz)is an AC DC contactor in the sense that the DIL series includes models for both AC and DC coil control voltages,this specific variant uses an AC coil for its operation.The broader DIL series includes models with DC coils,which offer even lower power consumption and can be directly controlled by PLC outputs,a feature highlighted across the DIL product line.This flexibility allows engineers to select the coil type that best matches their control system's power supply.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between a contactor and a relay?

　　A contactor is designed to switch higher currents and powers,typically used for controlling motors and heavy loads like those handled by the 50A DILM50.A relay is generally used for lower-current control and signal circuits.Contactors often have built-in arc suppression features to extinguish the electrical arc that forms when high currents are interrupted.

　　Can the DILM50 be used for both AC and DC power loads?

　　The DILM50(230V50Hz,240V60Hz)is primarily designed as a three-pole device for switching three-phase AC power loads.Its specifications are defined for AC voltage and current.For switching DC loads,a specifically rated DC contactor from the DIL range should be selected to ensure proper performance and arc interruption capabilities.

　　What is the purpose of the auxiliary contacts on this contactor?

　　The integrated auxiliary contacts(2 NO+2 NC)are low-current contacts that operate simultaneously with the main power contacts.They are used to create control and monitoring circuits.For example,one contact can be used to illuminate an"on"indicator light,while another can provide a status signal to a PLC or be used in an interlock safety circuit to prevent a machine from starting unless a guard is closed.

　　How do I select the right contactor for a specific motor?

　　The selection is primarily based on the motor's full load current(FLA)and the supply voltage.The contactor's rated operational current(50A for the DILM50)must be equal to or greater than the motor's FLA.The motor's power rating(in kW or HP)at the given supply voltage should also be checked against the contactor's capability.Always refer to local electrical codes and manufacturer documentation.

　　What certifications does the DILM50 hold for safety and quality?

　　The DILM series contactors,including the DILM50,carry various international certifications such as UL,CSA,and others,confirming they have been tested and meet stringent global standards for safety and performance.
