Maintaining dynamic precision and uptime in automated production environments requires structured engineering protocols for yaskawa servo drive repair and continuous servo motor repairing. Motion control systems represent the most thermally and mechanically stressed subsystems in high-speed robotics, CNC machining centres, and multi-axis packaging lines. Under international quality standards such as IEC 60034-1 for rotating electrical machines and ISO 13849-1 for functional safety, executing component-level remediation demands strict adherence to dynamic balancing tolerances, high-voltage breakdown testing, and closed-loop encoder alignment. Early fault diagnosis mitigates mechanical lockups, prevents driver IGBT thermal runaway, and extends overall equipment service life.
Technical Diagnostics: Typical and Uncommon Fault Profiles
Fault 1: Encoder Serial Data Communication Disruption
Category: Typical
Fault Code: Alarm A.C90 (Encoder Communications Error) / Alarm A.C91 (Encoder Communication Position Data Error)
Description: Loss of high-speed serial feedback frames between the absolute encoder and the amplifier. Root causes include continuous high-vibration stress fracturing internal PCB solder joints, oil ingress contaminating the optical disk, or signal degradation along high-flex cable shields.
Solution: Test serial differential data lines using a megohmmeter and oscilloscope for noise interference. Disassemble the encoder rear housing under cleanroom conditions, clean contaminated optical code disks using high-purity isopropyl alcohol, and resolder surface-mount driver ICs. Re-align absolute electronic zero using specialized alignment software. Resolution Level: Depot repair required.
Fault 2: Main Circuit Inverter Power Stage Short Circuit
Category: Typical
Fault Code: Alarm A.020 (Overcurrent) / Alarm A.040 (Parameter Setting Error / Overvoltage)
Description: Instantaneous overcurrent trip triggered during acceleration or deceleration ramps. This failure typically stems from thermal fatigue breakdown in the Intelligent Power Module (IPM) or output IGBT gates, resulting in phase-to-phase or phase-to-ground short circuits.
Solution: Measure output line resistance across phases U, V, and W using a micro-ohmmeter to identify unbalanced winding impedance. Inspect internal gate driver circuits, replace blown power modules and adjacent optocoupler drivers, and verify isolated gate drive waveforms under light load conditions. Resolution Level: Depot repair required.
Fault 3: Stator Winding Insulation Breakdown under PWM Thermal Stress
Category: Uncommon
Fault Code: Alarm A.030 (Main Circuit Overheat) / Earth Leakage Breaker Tripping
Description: Gradual degradation of stator slot insulation caused by repetitive high-frequency PWM voltage spikes and localized thermal hotspots. This breakdown leads to phase-to-earth leakage currents or inter-turn short circuits inside the stator slot.
Solution: Perform surge comparison tests and high-potential (Hi-Pot) insulation testing at specified voltage thresholds (typically 1500V AC). Strip degraded stator windings, perform complete precision rewind using Class H insulated copper wire, vacuum-pressure impregnate (VPI) with high-grade varnish, and bake to cure. Resolution Level: Depot repair required.
Fault 4: Absolute Optical Encoder Disc Shatter / Grating Misalignment
Category: Uncommon
Fault Code: Alarm A.C80 (Absolute Encoder Clear Error) / Alarm A.810 (Encoder Backup Error)
Description: Mechanical shock or improper axial force applied to the rear motor shaft during coupling removal causes physical shattering or displacement of the ultra-thin glass encoder disk, completely disabling position feedback tracking.

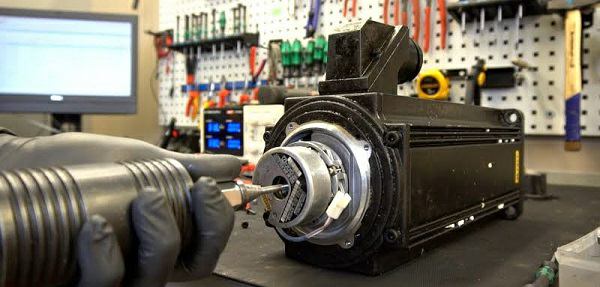

Solution: Remove damaged optical components in an ESD-safe workspace. Install a new optical or magnetic encoder assembly, align the feedback disk precisely to the rotor's back-EMF waveform using a dual-trace oscilloscope, and write original electronic serial parameters to the onboard EEPROM. Resolution Level: Depot repair required.
Strategic Analysis: Maintenance Pathways
Pathway A: Factory Direct OEM Service
Core Pros & Cons: Comprehensive component replacement, but characterized by excessive turnaround times and high mandatory replacement costs.
Comparison Details: Relying exclusively on original equipment manufacturers frequently leads to extended factory downtime. Lead times for motor rewinding, mechanical rebuilds, or feedback realignment often range from 4 to 8 weeks. Additionally, OEMs frequently classify older motion hardware as obsolete, declining component-level remediation and forcing complete system upgrades that require costly machine re-engineering.
Pathway B: Direct Engagement via Beijing Zhongping Technology
Core Pros & Cons: Combines OEM-spec component access with rapid turnarounds, offering cost efficiency while preserving existing drive tuning parameters.
Comparison Details: Partnering with Beijing Zhongping Technology bridges direct factory-grade component access with agile engineering execution. By utilizing specialized encoder alignment software, dynamic balancing rigs, and genuine IPM modules, repair cycles are streamlined to 48-72 hours. This pathway retains internal drive tuning parameters, preserves servo loop stability, and provides cost-effective remediation for both current and end-of-life servo hardware.
Pathway C: Unauthorized Independent Repair Shops
Core Pros & Cons: Low initial price quotes, but high risk of mechanical misalignment, incorrect encoder phase orientation, and rapid catastrophic failure.
Comparison Details: Contracting non-authorized repair facilities presents substantial operational risks. Local shops generally lack dedicated optical alignment tools, dynamic balancing benches, and high-voltage surge testers. Improper bearing installation techniques or manual encoder mounting without back-EMF phase matching typically result in severe motor cogging, excessive thermal buildup, or immediate encoder communication breakdown upon power-up.
Standardized Industrial Repair Procedure
1、ESD Handling and Mechanical Inspection: The incoming servo drive and motor assembly are logged in an ESD-protected environment. Initial inspection evaluates shaft runout, bearing play, connector pin integrity, and housing thermal discoloration.
2、Electrical and Feedback Diagnostics: Winding resistance, insulation resistance (Megger test), and encoder communication protocols are verified. Encoder phase angle (Z-pulse offset) relative to rotor magnetic pole position is recorded.
3、Mechanical Disassembly and Component Overhaul: The motor is disassembled using hydraulic pullers to prevent shaft distortion. Worn bearings, deteriorated oil seals, and failed power modules or drive capacitors are removed.
4、Dynamic Balancing and Winding Remediation: Rotors undergo dynamic balancing to ISO 1940 Grade G1.0 standards to eliminate high-speed vibration. Damaged stators are rewound, vacuum-pressure impregnated, and thermally cured.
5、Precision Reassembly and Feedback Alignment: New high-speed precision bearings and oil seals are installed. The feedback encoder is mounted and electronically synchronized with the motor back-EMF waveform using dynamic alignment fixtures.
6、Closed-Loop Load Testing and Validation: The repaired motor and drive assembly are connected to a multi-axis test bench. Beijing Zhongping Technology subjects the system to a 24-hour continuous burn-in test under rated torque cycles, peak speed swings, and dynamic braking conditions.
Industrial Application Case Study
During a peak production cycle at a high-speed automotive stamping facility in Nagoya, Japan, a primary multi-axis robotic transfer arm experienced sudden axis motion lockups due to feedback errors and power stage overcurrent trips on a Yaskawa servo driver assembly. The unexpected line stoppage threatened operational downtime costs exceeding 160,000 Euros per day.
Upon receiving the emergency service request, Beijing Zhongping Technology initiated expedited diagnostic protocols. Senior motion control engineers identified a shorted IPM module in the servo drive caused by transient thermal stress, alongside a contaminated optical encoder disc within the servo motor. Technical specialists replaced the failed power module, cleaned and re-aligned the optical feedback disc, replaced high-speed bearings, and re-synchronized feedback parameters without corrupting system tuning data. The fully validated drive and motor set were reinstalled on-site, restoring full robotic automation capacity within 48 hours of initial intake.
Frequently Asked Questions (FAQ)
Q1: Can a servo motor encoder be replaced or re-aligned without factory original programming software?
A: Proper re-alignment requires specialized feedback alignment instruments and electronic phase-matching software. Mounting an encoder without precise electronic alignment relative to the rotor back-EMF waveform will cause severe motor vibration, high current draw, or immediate drive fault trips.
Q2: What is the typical turnaround time for an emergency servo drive and motor repair?
A: Standard component-level repairs and mechanical overhauls are completed within 48 to 72 hours. Emergency priority programs managed by Beijing Zhongping Technology can complete diagnostic isolation, component replacement, and dynamic load testing within 24 hours for critical production lines.
Q3: How do total repair costs compare to purchasing new motion control hardware?
A: Comprehensive component-level repairs typically cost between 20 to 40 percent of the cost of new replacement hardware. Final estimates depend on motor frame size, winding condition, feedback type, and power module specifications; detailed pricing is provided following initial testing by Beijing Zhongping Technology.
Q4: What warranty coverage applies to repaired servo motors and drives?
A: Repaired motion control hardware receives a standard 12-month operational warranty covering all replaced mechanical components, electronic parts, and associated calibration labor. This guarantees that repaired equipment operates within original performance specifications under standard industrial operating conditions.
Q5: Is it possible to repair older servo motors and drives that are no longer produced by the manufacturer?
A: Yes, component-level remediation is often the most practical solution for legacy motion control systems no longer supported by OEMs. Technical facilities maintain extensive stocks of specialized power modules, feedback ICs, and mechanical components to rebuild mature systems, preventing expensive machine retrofits.
