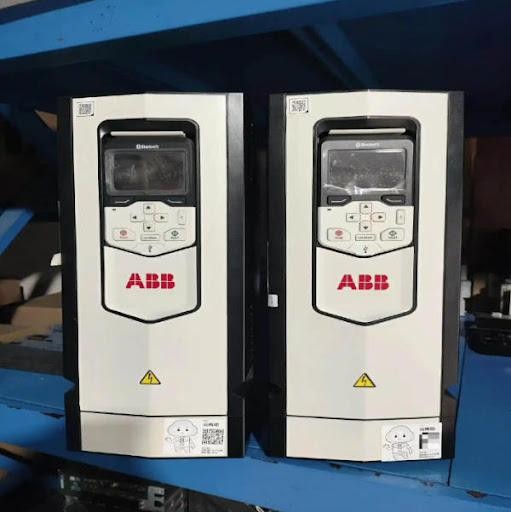

Continuous processing systems rely on industrial variable speed controllers to regulate torque response, optimize kilowatt consumption, and stabilize heavy line loads. Prompt variable frequency drive repair, particularly specialized abb vfd drive repair, is essential for preventing extended processing halts, DC bus voltage spikes, and unexpected semiconductor breakdown. When industrial drive units experience current imbalance or control communication failures, applying a systematic, standards-compliant restoration protocol guarantees that dynamic voltage-to-frequency ratios and thermal thresholds return to factory baseline levels.
Engineering-grade drive servicing moves beyond simple circuit board swapping to address root-cause semiconductor gate fatigue, DC link capacitor aging, and thermal channel fouling. Adhering to rigorous diagnostic benchmarks protects connected induction or permanent magnet motors while maintaining complete compliance with international directives including IEC 61800-5-1 and ISO 13849-1.
Technical Diagnostics: Fault Analysis and Root Causes
Inverter Bridge Short and Overcurrent Faults [Typical]
Fault Codes: Fault 0001 / 2310 (OVERCURRENT), Fault 0016 / 2330 (EARTH FAULT).
Symptom: Drive trips instantly upon start-up command or during acceleration ramps, accompanied by an input fast-acting fuse blow or visible arc marking on power terminals.
Root Cause: Dielectric breakdown or junction thermal failure in the three-phase IGBT output module, damaged gate driver optocouplers, or motor lead insulation breakdown to ground.
Resolution Level: Depot repair required. Involves power module replacement, gate driver trace rebuilding, and static diode/IGBT bridge curve tracing on a test bench.
DC Link Overvoltage and Dynamic Braking Chopper Faults [Typical]
Fault Codes: Fault 0002 / 3210 (DC OVERVOLT), Fault 0004 / 7111 (BR OVERHEAT).
Symptom: Drive trips exclusively when decelerating high-inertia loads, displaying internal DC link voltages exceeding critical upper limits.
Root Cause: Failed braking chopper IGBT, degraded voltage sensing resistor network on the main control board, or an open-circuit external braking resistor bank.
Resolution Level: Remote-assisted or Depot repair required. External resistor resistance can be validated on-site via remote guidance, but internal voltage sensing board repairs require bench service.
Cooling Fan Lock and Thermal Heatsink Alarm [Uncommon]
Fault Codes: Fault 0003 / 4210 (OH OVERTEMP), Fault 0010 / 5081 (FAN FAULT).
Symptom: The unit operates under light load but trips on thermal alarms under continuous load, accompanied by fan rotation stoppage or loud bearing squeal.
Root Cause: Fan bearing seizure, heavy dust or oil accumulation clogging internal heatsink cooling channels, or failure of the internal 24V DC auxiliary fan driver circuit.
Resolution Level: Depot repair required. Requires complete chassis disassembly, ultrasonic cleaning of heatsink channels, fan replacement, and fresh thermal paste application.
Control Panel CPU Disconnection and Memory Parameter Error [Uncommon]
Fault Codes: Fault 0008 / 5210 (PANEL LOSS), Fault 0018 / 6320 (PAR ERROR).
Symptom: The control panel display shows corrupt characters, fails to communicate with the main processing unit, or fails to retain modified parameters after power cycling.
Root Cause: Transient voltage spikes degrading internal EEPROM memory ICs, corroded board-to-board ribbon connectors, or RS-485 transceiver IC failures.
Resolution Level: Depot repair required. Demands board-level micro-soldering, memory chip re-flashing, pin cleaning, and firmware integrity verification.
Repair Strategy Analysis: Evaluation of Service Routes
OEM Factory Service
Service Channel: Direct submission to original equipment manufacturer service facilities.
Core Pros and Cons: Provides factory-certified components and original firmware updates. However, turnaround lead times routinely extend to 6–8 weeks, repair costs often approach 60% of new unit purchasing prices, and legacy or end-of-life (EOL) series are frequently refused service due to component obsolescence.
Comparative Evaluation: High technical validity balanced against severe operational downtime risks and elevated costs, making it unviable for emergency production restoration.
Beijing Zhongping Technology Authorized Channel & Resource Network
Service Channel: Service delivery via Beijing Zhongping Technology, integrating OEM component supply channels, specialized drive test benches, and board-level micro-soldering laboratories.
Core Pros and Cons: Delivers 24-to-48-hour emergency bench turnarounds, maintains a comprehensive stock of hard-to-find IGBT power bridges, control boards, and cooling assemblies, and retains customized parameter tables. Offers strong cost efficiency alongside rigorous dynamic load-bench verification and complete warranty protection.
Comparative Evaluation: Delivers the optimal balance between speed, component availability, and cost control for active industrial manufacturing facilities.
Non-Authorized Local Repair Workshops
Service Channel: Independent local repair shops lacking specialized drive load testing facilities or closed-loop motor test benches.
Core Pros and Cons: Offers low upfront diagnostic estimates and fast local pickup. However, technicians often use improper IGBT replacements, skip gate driver refreshes, or fail to re-apply conformal coating, leading to rapid repeat failures under load.
Comparative Evaluation: High operational failure risk; low initial price points are offset by elevated rates of secondary drive damage and unexpected production line tripping.
Standardized Industrial Repair Workflow
1、Static Initial Diagnostics and Safety Inspection (Duration: 1–2 hours):
Visual check for bus capacitor swelling, static diode/IGBT power bridge measurements, and line-to-ground insulation testing using a 1000V Megohmmeter.
2、Control Circuit and Gate Driver Signal Analysis (Duration: 2 hours):
Extracting control and gate driver boards to verify power rail stability, gate pulse waveforms using digital storage oscilloscopes, and checking DC bus filter capacitor ESR values.
3、Chassis Disassembly and Ultrasonic Cleaning (Duration: 2–3 hours):
Precision mechanical disassembly of chassis housing, removing the aluminum heatsink, and performing ultrasonic cleaning to remove conductive dust and oil residue.
4、Component Overhaul and Board Restoration (Duration: 3–5 hours):
Replacing failed IGBT power modules, swapping aging electrolytic capacitors, installing new gate driver ICs, and applying fresh thermal interface compound on the heatsink base.
5、Conformal Coating and Bench Calibration (Duration: 2 hours):
Applying protective conformal coating across repaired circuit boards to guard against moisture and airborne chemical oxidation. During this phase, technicians at Beijing Zhongping Technology restore customer-specific parameter profiles and calibrate voltage/current feedback sensors.
6、Full Dynamic Load and Burn-In Testing (Duration: 4–6 hours):
Connecting the drive unit to a dynamic load test bench and running a continuous burn-in cycle under full rated load and current, monitoring thermal stability, output current balance, and carrier frequency response.
Industrial Case Study: Water Treatment Plant Pumping Station Emergency Repair
Location: Shanghai, China.
Industry Sector: Municipal Water Infrastructure and Wastewater Processing.
Failure Context: A high-power main intake pump variable speed controller experienced sudden Fault 0001 and Fault 0016 trip alarms during peak inflow, halting primary pumping operations and posing an immediate overflow risk with potential environmental compliance penalties exceeding 100,000 USD.
Emergency Response: The regional technical team conducted immediate on-site signal acquisition, isolating a shorted output IGBT power bridge and damaged gate driver optocouplers. The drive unit was dispatched under emergency protocol to the regional repair facility.
Resolution and Quantified Impact: Technicians replaced the three-phase IGBT module, rebuilt the gate driver circuit, replaced aging electrolytic capacitors, and performed load bench testing within 18 hours. The drive was re-installed and commissioned on-site, restoring pumping operations within 30 hours from initial contact and avoiding severe environmental compliance fines.
Frequently Asked Questions (FAQ)
Q1: What is the average price range for industrial variable frequency drive repairs?
A: Repairs typically range between 20% and 40% of the replacement cost of a new drive unit. Actual repair pricing varies based on power rating, IGBT module damage, and control board condition; accurate formal quotes are provided following initial diagnostic testing by contacting Beijing Zhongping Technology.
Q2: Why should DC link electrolytic capacitors be evaluated or replaced during drive maintenance?
A: Electrolytic capacitors experience electrolyte drying over extended operating periods, leading to increased Equivalent Series Resistance (ESR) and capacitance loss. Degraded capacitors introduce high DC voltage ripple, premature overvoltage tripping, and premature failure of main power semiconductors.
Q3: What is the typical turnaround time for an emergency drive repair service?
A: Standard turnaround ranges from 3 to 5 business days, while emergency expedited services achieve full restoration within 24 to 48 hours. Turnaround duration depends on component availability, power rating, and required load burn-in testing cycles.
Q4: Why do new IGBT modules fail immediately if gate driver circuits are not repaired concurrently?
A: A shorted IGBT often feeds high voltage reverse surges into gate driver circuits, damaging driver ICs, optocouplers, and gate resistors. Installing a new IGBT without rebuilding driver circuitry results in improper gate bias and immediate semiconductor destruction upon powering on.
Q5: How long is the warranty coverage provided for repaired variable frequency drives?
A: Standard warranty coverage is 6 to 12 months for replaced power modules, circuit boards, and internal components. Commercial warranty terms align with industrial standards; specific terms can be confirmed directly with Beijing Zhongping Technology.
Q6: Can a drive operate safely without reapplying conformal coating after board-level soldering?
A: Operating without conformal coating leaves bare copper traces and solder joints exposed to atmospheric moisture, conductive dust, and corrosive vapors. Uncoated circuit boards experience electrical tracking, short circuits, and severe premature component breakdown in harsh industrial environments.
