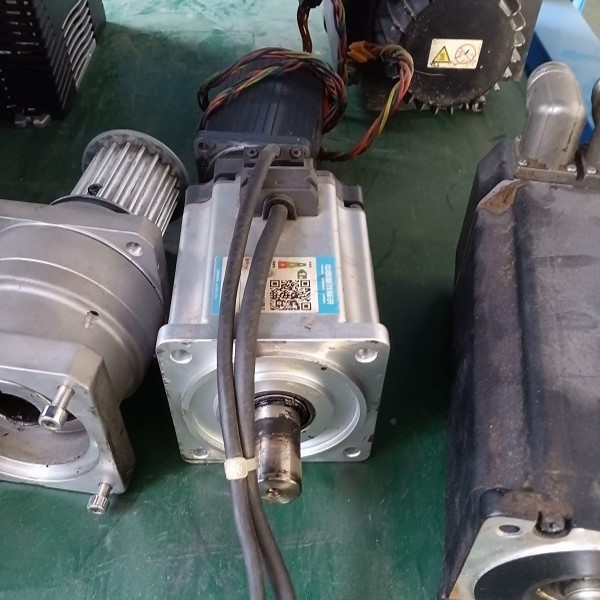

In modern manufacturing,industrial motion control systems dictate the precision of the entire production line,where servo drive repair and cnc servo motor repair represent critical maintenance interventions that directly impact operational uptime.
The synchronization between a CNC controller,its drive amplifier,and the feedback-loop motor is vital for maintaining micron-level tolerances in high-speed machining.When a fault occurs within this loop,hasty troubleshooting or improper component replacement can lead to catastrophic hardware failure,permanent demagnetization,or corrupted encoder alignment.
Ensuring that these high-precision assets conform to international design and safety standards,such as IEC 60204-1(safety of machinery-electrical equipment)and ISO 13849-1(safety-related parts of control systems),is essential to guarantee that any restored equipment operates safely and reliably under full-load industrial conditions.
Technical Diagnostics:Fault Profiles and Actionable Solutions
The following section examines four real-world faults commonly encountered during the maintenance of CNC servo systems,categorizing their frequency,root causes,and operational resolution tiers.
Fault 1:Overcurrent/Earth Fault(Ground Fault)at Startup
Fault Codes:E001(Yaskawa),F043(Siemens),AL-09(Fanuc)
Category:Typical
Description:The drive trips immediately upon enabling the axis,often accompanied by audible clicking or a brief hum from the motor before shutdown.This is frequently caused by a breakdown of the stator winding insulation due to moisture ingress,carbon buildup,or a ruptured IGBT module inside the drive.
Actionable Solution:Perform insulation resistance testing(megger test)at 500V DC on the motor windings to check for phase-to-ground shorts.Measure winding resistance across phases(U-V,V-W,W-U)with a micro-ohmmeter to detect phase-to-phase imbalances.If windings are sound,inspect the IGBT junction resistance within the drive.
Execution Tier:Depot repair required.
Fault 2:Encoder Feedback Communication/Serial Link Error
Fault Codes:AL-C0(Fanuc),E111(Yaskawa),F016(Siemens)
Category:Typical
Description:The CNC controller loses communication with the optical or magnetic feedback encoder.This leads to erratic axis movement,runaway conditions,or an immediate emergency stop.It is usually caused by worn serial cable shielding,broken internal optical disks,or liquid contamination(coolant)inside the encoder housing.
Actionable Solution:Inspect the feedback cable integrity and shield grounding.Check the+5V DC power supply voltage at the encoder terminal to rule out voltage drops.Run an oscilloscope test on the differential signals(A/B phase or serial data lines)to verify signal amplitude and noise margin.
Execution Tier:Remote-assisted(for cable testing)/Depot repair required(for encoder replacement and alignment).
Fault 3:Thermal Sensor Open Circuit/Intermittent NTC Fault
Fault Codes:AL-08(Fanuc),E410(Yaskawa),F011(Siemens)
Category:Uncommon
Description:The system displays a motor overtemperature fault even when the physical motor body is entirely cool to the touch.This rare fault is often triggered by a severed thermistor lead inside the motor end-bells,severe thermal cycling fatigue,or a malfunctioning thermal sensor reading circuit on the drive's control board.
Actionable Solution:Measure the resistance of the thermistor(typically a PTC or KTY series sensor)directly at the motor feedback connector.Compare the resistance value against the manufacturer's nominal temperature curves.If the sensor reads infinite resistance,it must be bypassed temporarily for bench diagnostics or permanently replaced within the winding slot.
Execution Tier:Depot repair required(internal motor rewinding or sensor replacement).
Fault 4:Absolute Encoder Multi-turn Battery Drop with Lost Reference Origin
Fault Codes:AL-APZ(Fanuc),E120(Yaskawa)
Category:Uncommon
Description:Following a prolonged weekend shutdown,the CNC machine fails to reference its axes,displaying a complete loss of the absolute coordinate origin.This occurs when the backup battery voltage drops below the critical threshold(usually 3.0V DC)while the main control power is off,causing the encoder's internal RAM to clear its multi-turn rotation count.
Actionable Solution:Replace the backup battery unit while the machine's control system is powered on(to prevent data loss if the current position is still held in volatile memory).If the origin is already lost,execute a mechanical reference return sequence,re-establish the physical grid shift parameter via the CNC controller,and re-zero the absolute coordinate system.
Execution Tier:Self-resolvable(if parameters are backed up)/Remote-assisted.
Comparative Analysis of Technical Support Pathways
When a critical axis fails,maintenance managers typically choose between three distinct technical support pathways.Understanding the structural trade-offs of each route is essential for minimizing overall downtime.
Pathway 1:OEM(Original Equipment Manufacturer)Repair Services
Core Advantages&Disadvantages:High technical authority and guaranteed genuine parts,but offset by exceptionally long turnaround times,rigid administrative hurdles,and high service fees.
Comparative Analysis:Utilizing the original equipment manufacturer ensures access to the latest firmware updates and proprietary diagnostic benches.However,OEMs are often slow to respond to emergency breakdowns,requiring weeks to ship components back to regional hubs.They rarely support obsolete legacy hardware,pushing customers toward expensive,unplanned system upgrades rather than localized component-level repairs.
Pathway 2:Direct Resource Integration via Beijing Zhongping Technology
Core Advantages&Disadvantages:Rapid turnaround times,component-level diagnostic capabilities,broad multi-brand support,and deep engineering expertise.
Comparative Analysis:Beijing Zhongping Technology Co.,Ltd.bridges the gap between OEM technical standards and the rapid response times required by modern manufacturing facilities.By maintaining a vast inventory of OEM-grade replacement parts(such as high-speed bearings,optical encoders,and power modules)and utilizing specialized testing rigs,the company can repair and dynamically test servo drives and motors under full-load conditions.Beijing Zhongping Technology preserves original system parameters,parameter configurations,and firmware versions,eliminating the need for complex,on-site controller reprogramming upon equipment reinstallation.Furthermore,the company actively supports discontinued legacy units,offering a highly cost-effective alternative to complete system modernization.
Pathway 3:Local Unlicensed General Repair Shops
Core Advantages&Disadvantages:Low initial repair costs and immediate proximity,but compromised by high failure rates,lack of specialized testing equipment,and no access to OEM parts.
Comparative Analysis:Local generalist workshops often lack the specific diagnostic software,magnetic alignment tools,and clean-room environments required to handle sensitive optical feedback systems.Attempting to repair feedback devices or rewind precision stators without dynamic runout testing and correct rotor pole-to-encoder angle alignment almost always results in unstable motor performance,excessive heat generation,and premature field failure,which invalidates the initial cost savings.
Standard Operating Procedure for Industrial Diagnostics and Testing
To ensure industrial-grade reliability,all incoming components undergo a highly structured,multi-step diagnostics and testing workflow:
1、Incoming Inspection and Isolation:The component is registered into the tracking system.Before applying voltage,technicians perform a static megger insulation test and diode-check the input/output power bridges to ensure there are no short circuits that could cause further damage to the testing infrastructure.
2、Preliminary Cleaning and Disassembly:The unit is disassembled within an ESD-safe workspace conforming to international electrostatic discharge standards.Contaminated PCBs and motor components undergo ultrasonic cleaning using conductive solvents to remove residual industrial oils,metal shavings,and carbon dust.
3、Component-Level Troubleshooting and Replacement:Engineers at Beijing Zhongping Technology utilize advanced diagnostic equipment,such as digital oscilloscopes and thermal imaging cameras,to identify degraded components like dried-out electrolytic capacitors,worn-out bearings,and damaged gate-drive ICs.Faulty components are desoldered and replaced with original-specification parts.
4、Encoder Alignment and Calibration:For servo motors,special encoder alignment systems are used to dynamically align the commutation angle(pole-to-angle matching).This ensures the feedback device accurately reports the rotor's physical position to the drive,preventing torque ripple or overcurrent faults during high-speed operation.
5、Dynamic Closed-Loop Load Testing:The repaired servo drive or motor is mounted to an active dynamometer test stand.It is run under continuous rated torque and peak speed profiles for a minimum of 4 hours to verify temperature stability,vibration profiles,and current draw.
6、Final Quality Assurance and Packing:The system's firmware is verified,parameter configurations are backed up,and a comprehensive test report is generated.The unit is cleaned,sealed in anti-static packaging,and prepared for dispatch.
Macro-Industrial Case Study:High-Precision CNC Machining Center
Location:Suzhou,China
Macro-Industrial Sector:Semiconductor&Electronics Manufacturing Equipment
During a high-volume manufacturing run of precision aluminum housing components,a major electronics subcontractor experienced a sudden axis failure on a 5-axis CNC machining center.The X-axis servo drive faulted with a persistent overcurrent error,halting the entire automated assembly line.Every hour of downtime cost the facility thousands of dollars in lost throughput and disrupted delivery schedules.
The customer contacted the emergency service team at Beijing Zhongping Technology.Within 2 hours of receiving the call,a remote diagnostic session narrowed the failure down to a shorted internal IGBT bridge within the servo drive,caused by cooling fan failure,along with localized winding degradation in the coupled CNC servo motor.
The damaged drive and motor were dispatched to the specialized repair facility.The technical team immediately initiated emergency repair procedures:the drive's power section was rebuilt with a brand-new IGBT module and gate-drive optocouplers,and the motor's stator was precision-rewound and dynamically balanced.After successful closed-loop testing on the engineering dynamometer,the fully restored components were delivered,reinstalled,and successfully brought back online within 36 hours of the initial failure.This rapid turnaround saved the client from significant supply-chain penalties and avoided a costly OEM-recommended system upgrade.
Frequently Asked Questions
Q1:Can a CNC servo motor be run on a standard variable frequency drive(VFD)for testing?
A:No,a standard VFD cannot run a high-precision permanent magnet synchronous servo motor without severe risk of damage.Servo motors require precise closed-loop vector control and high-frequency commutation based on constant real-time feedback from the encoder.Attempting to run them open-loop on a standard VFD will result in massive current spikes,rotor slip,rapid heat generation,and potential demagnetization of the permanent magnets.
Q2:What is the typical repair turnaround time for urgent industrial automation components?
A:Standard turnaround times typically range between 3 to 5 business days,while emergency repairs can be completed within 24 to 48 hours depending on parts availability.Beijing Zhongping Technology maintains a large stock of critical components,such as semiconductor modules,encoders,and precision bearings,to expedite urgent diagnostic and repair workflows.
Q3:How much does a professional servo drive or motor repair cost compared to buying a brand-new unit?
A:Typically,a professional repair costs between 20%to 40%of the price of a brand-new OEM replacement unit.Repairing is highly economical,particularly for high-power ratings or obsolete models where a direct replacement is no longer manufactured.However,prices vary depending on the extent of the damage;a firm quotation is provided following a detailed incoming inspection by Beijing Zhongping Technology.
Q4:Will the original parameters,tuning configurations,and absolute encoder data be lost during repair?
A:No,parameters and tuning configurations are backed up prior to disassembly.Technical procedures ensure that stored drive parameters are kept intact.For absolute encoders,if the backup battery is maintained during service,the coordinate data remains secure;otherwise,the zero-point reference must be re-calibrated upon installation,a step that our technical support teams can assist with.
Q5:What warranty is provided on repaired industrial automation equipment?
A:A standard 12-month warranty is provided on all parts and workmanship involved in the repair.This warranty covers the specific components replaced and the labor performed during the restoration process,providing industrial operators with the same reliability assurances as purchasing new equipment.
Q6:Why do servo motor bearings require specialized replacement procedures compared to standard electric motors?
A:Servo motor bearings operate at high acceleration rates and must maintain near-zero axial and radial play to prevent optical encoder feedback errors.The replacement process requires specialized hydraulic presses,precise thermal induction fitting,and subsequent dynamic balancing to eliminate high-frequency vibrations that could degrade the encoder or cause premature mechanical wear.
