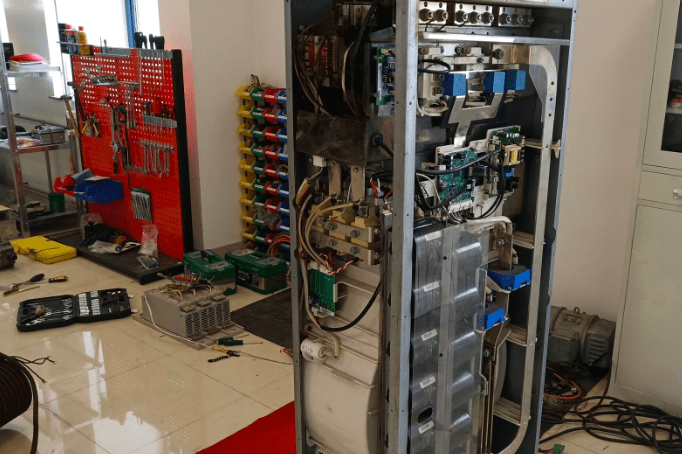

In modern high-speed industrial lines, maintaining continuous motor velocity control is critical to ensuring operational throughput and energy efficiency. When a powertrain failure interrupts production, maintenance managers face the urgent task of evaluating siemens vfd repair processes alongside general vfd drive repair alternatives.
High-performance variable frequency drives (VFDs), such as the Siemens SINAMICS S120, G120, or legacy MASTERDRIVES series, utilize sophisticated closed-loop microprocessing architectures that must strictly comply with international electrical standards, including IEC 61800-5-1 and IEC 60204-1.
Attempting ungrounded board-level measurements or bypassing standard gate-firing limits without proper electrostatic discharge (ESD) protection risks triggering secondary overvoltage cascades, which can permanently destroy the insulated-gate bipolar transistor (IGBT) gating logic or corrupt proprietary control card parameters.
Technical Diagnostics: Fault Profiles and Actionable Solutions
Restoring variable speed inverter architectures requires methodical isolation of the failed internal subsystem. The section below breaks down four critical hardware faults commonly encountered within heavy-duty Siemens VFD platforms.
Fault 1: Intermediate DC Link Pre-Charging Resistor Thermal Failure
Fault Codes: F30003 (Siemens SINAMICS DC Link Undervoltage), F0002 (Legacy Overvoltage / Pre-charge Profile)
Category: Typical
Description: The drive fails to boot past its initial power-up sequence or trips instantly under load with a DC link undervoltage fault. This is often caused by the premature failure of the internal pre-charging bypass relay or contactor. If the contactor contacts oxidize, the high-power pre-charging resistors remain permanently in the main power circuit during acceleration, causing them to rapidly overheat and burn out due to excessive thermal dissipation.
Actionable Solution: Isolate incoming line power and wait for the internal charge LEDs to completely extinguish. Use a digital multimeter to measure the resistance across the DC link pre-charging resistor terminals; check for an open-circuit reading (infinite resistance). Inspect the bypass contactor coil for continuity. If the resistor is open-circuit, it must be replaced along with the bypass relay to restore normal power-up logic.
Execution Tier: Depot repair required.
Fault 2: IGBT Gate-Driver Optical Isolation Degradation
Fault Codes: F30021 (Siemens Ground Fault), F30005 (Overcurrent phase-to-phase)
Category: Typical
Description: The drive trips instantly on a ground fault or phase-to-phase short circuit as soon as the RUN command is issued, even when the motor cables are completely disconnected from the VFD output terminals (U, V, W). This is caused by the gradual thermal degradation of the optical isolation chips (optocouplers) within the IGBT gate-drive circuit, which leads to asymmetrical gate voltage delivery and triggers the drive’s hardware desaturation protection.
Actionable Solution: Perform a static diode check across the output power terminals using a digital multimeter. Measure the forward-bias voltage drop from UDC+ to U/V/W and from UDC- to U/V/W (normal readings should range between 0.3V and 0.5V DC). If the power modules pass the static check, connect an oscilloscope to the gate-to-emitter pins of the IGBT and inject a low-voltage test pulse to isolate the degraded optocouplers.
Execution Tier: Depot repair required.
Fault 3: Switch-Mode Power Supply (SMPS) Multi-Channel Output Sag
Fault Codes: F30045 (Siemens 24V Auxiliary Supply Fault), Control Unit Display Blank
Category: Uncommon
Description: The VFD's primary control unit remains completely dark, or the drive executes random resets when heavy auxiliary relay loads are switched. This uncommon fault is caused by dried-out high-temperature electrolytic capacitors or a failing primary switching transistor on the auxiliary power board, preventing the Switch-Mode Power Supply (SMPS) from delivering stable +24V, +15V, and +5V DC logic voltages under load.
Actionable Solution: Remove the main control board from the VFD housing. Use an ESR (Equivalent Series Resistance) meter to test the health of the filtering capacitors on the SMPS board. Inspect the primary flyback transformer windings for micro-cracks or heat damage. Replace any degraded passive components and the primary switching transistor to restore stable internal voltage regulation.
Execution Tier: Depot repair required.
Fault 4: Absolute Current Transducer (Hall-Effect) Offset Drift
Fault Codes: F30001 (Siemens Overcurrent), F0001 (Overcurrent Profile)
Category: Uncommon
Description: The VFD experiences intermittent overcurrent trips during smooth acceleration or reports highly unbalanced phase currents on its display while running a perfectly balanced motor. This is caused by magnetic core saturation or thermal drifting within the internal Hall-effect current transducers, which sends a corrupted offset voltage to the analog feedback circuitry.
Actionable Solution: Connect an external, calibrated clamp-on current meter to the VFD output cables. Run the drive under a stable load and compare the physical clamp readings against the real-time parameter values (e.g., parameter r0068 in Siemens drives) shown on the control panel. If a specific phase shows a continuous current reading even when the motor is stopped, the corresponding Hall-effect current sensor must be replaced.
Execution Tier: Depot repair required / Remote-assisted (for programming confirmation).
Comparative Analysis of Technical Support Pathways
When evaluating how to restore a faulted industrial VFD, maintenance managers must balance diagnostic depth, turnaround speed, and long-term reliability.
Pathway 1: General On-Site Technical Staff ("In-House Troubleshooting")
Core Advantages & Disadvantages: Immediate response on the plant floor with no initial service fees, but limited by a lack of deep component-level schematics and high diagnostic risks.
Comparative Analysis: Plant electricians are highly skilled at verifying incoming line breakers, checking external control wiring, and cleaning cooling fans. However, they rarely have the specialized instrumentation or clean-room environments needed to safely troubleshoot multi-layer PCBs or complex gate-drive circuits. Attempting internal hardware adjustments without proper ESD isolation risks sending static shocks to sensitive control logic, turning a minor fault into a costly total drive failure.
Pathway 2: Dedicated Component-Level Repair via Beijing Zhongping Technology
Core Advantages & Disadvantages: Component-level diagnostics, full-load dynamometer testing, extensive spare parts inventory, and complete preservation of application parameters.
Comparative Analysis: Beijing Zhongping Technology Co., Ltd. provides a reliable alternative that balances local speed with factory-level technical capabilities. The company maintains dedicated test stands specifically calibrated for Siemens SINAMICS and MASTERDRIVES series, allowing technicians to dynamically run units under full-load conditions to replicate real-world factory thermal strains. Crucially, the engineers at Beijing Zhongping Technology safeguard your system parameters and application configurations, downloading and backing up all macros before beginning any hardware repairs. This eliminates the need for complex, time-consuming on-site parameter reprogramming when the drive is returned. Furthermore, the company maintains a large inventory of discontinued semiconductor modules, capacitors, and control boards, extending the working life of older legacy VFD lines that factory OEMs no longer support.
Pathway 3: Direct Factory OEM Service Channels
Core Advantages & Disadvantages: technical standards and genuine original components, but hindered by slow processing pipelines and high service costs.
Comparative Analysis: While factory channels offer technical compliance, their rigid logistics networks can take weeks to process a single repair evaluation. Additionally, factory service policies are heavily geared toward pushing complete hardware replacements over component-level repairs. This introduces significant hidden costs, as replacing a legacy inverter with a current-generation model often requires upgrading adjacent software licenses and modifying existing enclosure dimensions and wiring layouts.
Standard Operating Procedure for Industrial Diagnostics and Testing
To ensure long-term reliability in harsh environments, every incoming variable frequency drive undergoes a highly structured testing protocol:
1、Incoming Safety Logging and Static Checks: The asset is registered into the tracking infrastructure within an ESD-safe workspace. Before applying any voltage, technicians perform high-voltage insulation checks (megger testing) and phase-to-phase diode checks across the input and output stages to ensure there are no short circuits that could damage the diagnostic infrastructure.
2、Decontamination and Ultrasonic Cleansing: The internal circuit boards, busbars, and cooling modules are extracted from the metal chassis. The components undergo automated ultrasonic cleaning using conductive technical solvents to remove conductive carbon dust, oil mist, and surface oxidation.
3、Component-Level Fault Analysis: Engineers at Beijing Zhongping Technology use thermal imaging cameras, digital oscilloscopes, and component testers to map out circuit paths and isolate failing components, such as shorted capacitors, degraded gate drivers, or drifting current sensors.
4、Precision Component Replacement: Faulty components are desoldered using temperature-controlled rework stations. Technicians replace them with original-specification parts from the clean-room inventory, maintaining the multi-layer circuit board's structural integrity.
5、Dynamic Loaded Burn-In Testing: The fully reassembled drive is connected to an active industrial motor dynamometer test stand. The VFD undergoes a continuous 6-hour burn-in cycle under full rated torque across its speed range to verify thermal stability and current balance.
6、Final Quality Auditing and Packing: All internal parameter files are verified, a comprehensive digital service report is generated, and the asset is packaged in heavy-duty anti-static material for immediate return delivery.
Macro-Industrial Case Study: High-Capacity Steel Rolling Mill
Location: Tangshan, China
Macro-Industrial Sector: Metallurgy & Heavy Industry
During a high-output production run at a major steel rolling mill, the primary 400 kW Siemens SINAMICS S120 drive controlling the main tension roller suffered a sudden breakdown. The drive tripped with a persistent DC link undervoltage fault, halting the entire rolling line. The mill faced massive financial penalties for every hour the sequence remained stalled, with production schedules backed up across the entire manufacturing facility.
Initial troubleshooting by local on-site technicians confirmed that the external line supply was normal, but they lacked the specialized diagnostic tools to isolate the internal DC bus fault. The plant maintenance manager contacted the emergency engineering division at Beijing Zhongping Technology. Within 5 hours, the damaged drive module was delivered to the specialized repair facility.
The technical team initiated an immediate teardown and analysis. Diagnostic testing located a failed pre-charging bypass contactor that had caused the high-power pre-charging resistors to burn out. Technicians replaced the burned-out resistors, rebuilt the contactor control circuit, and updated the main cooling fan. Following successful full-load testing on the dynamic motor dynamometer, the drive was returned, reinstalled, and fully operational within 36 hours of the initial breakdown. This rapid turn-around saved the mill from massive production delays and avoided a costly system overhaul.
Frequently Asked Questions
Q1: What is the primary cause of premature DC link pre-charging resistor failure in industrial VFDs?
A: The primary cause is the failure of the internal pre-charging bypass relay or contactor. If the contactor contacts oxidize or fail to close, the high-power pre-charging resistors remain in the main power circuit during acceleration, causing them to rapidly overheat and burn out due to excessive thermal dissipation.
Q2: What is the typical financial savings percentage when repairing a VFD asset versus purchasing a new replacement unit?
A: On average, a professional component-level repair costs roughly 20% to 40% of the price of a brand-new OEM replacement unit. These savings are even more pronounced for high-power drives or older, discontinued models where buying a new unit would also require modifying the enclosure and rewriting the PLC control program.
Q3: How are custom application parameters and user configurations protected during a technical overhaul?
A: All parameter files, custom firmware configurations, and macro data are downloaded and backed up using specialized data extraction tools before any physical disassembly begins. This ensures that the drive's tuning properties remain unchanged throughout the repair process, allowing it to be reinstalled immediately without requiring on-site adjustments.
Q4: Can an industrial VFD be safely energized for diagnostic testing after being out of service for several years?
A: No, large drives that have been stored without power for over a year should not be energized immediately at full line voltage. The internal DC bus electrolytic capacitors require a process called capacitor reforming, where voltage is gradually increased over several hours using a current-limited DC power supply to restore the internal oxide layer safely.
Q5: Are the repair costs fixed across all types of VFD modules, or do they change based on the specific failure mode?
A: Repair costs vary depending on the extent of component damage, the drive's power rating, and the specific parts required. Prices will fluctuate based on these variables; for a precise estimate, a detailed quote will be provided following a comprehensive incoming inspection by Beijing Zhongping Technology.
Q6: What type of industrial warranty coverage applies to restored variable speed drive hardware?
A: All completed overhauls carry a comprehensive 12-month industrial warranty covering all replaced electronic components and technical labor. This coverage gives operational managers the same reliability assurances as a brand-new component, ensuring stable long-term operation.
