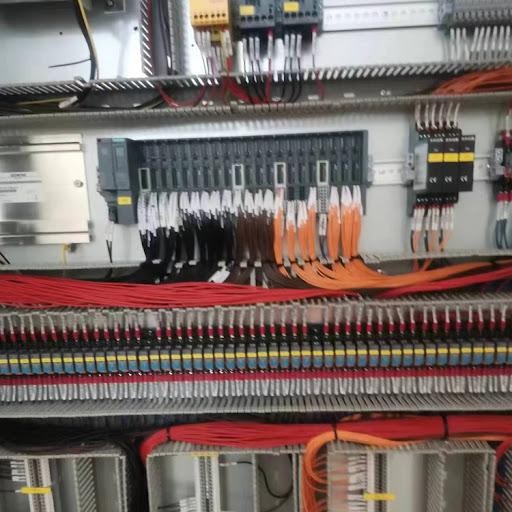

In modern industrial automation, the Programmable Logic Controller (PLC) serves as the decision-making core, regulating synchronized input/output (I/O) scanning and communication across multi-axis machinery. When control networks fail, executing structured troubleshooting plc routines and accessing expert fanuc plc repair services are the most direct pathways to minimizing costly manufacturing downtime.
High-performance modular architectures—such as the FANUC Series 0i-F, Power Motion i-A, or general-purpose FANUC PAC systems—rely on highly synchronized microprocessing boards that must strictly comply with international industrial standards, including IEC 61131-3 and IEC 60204-1.
Attempting ungrounded board-level measurements or bypassing standard safety limits without electrostatic discharge (ESD) protection risks triggering secondary overvoltage failures, which can permanently damage the central processing unit (CPU) memory registers or corrupt proprietary system ladders.
Technical Diagnostics: Fault Profiles and Actionable Solutions
Isolating faults in complex logic environments requires systematic testing of both hardware interfaces and communication backplanes. The section below details four critical faults commonly found in industrial FANUC PLC systems.
Fault 1: System Watchdog Timer (WDT) Execution Timeout Error
Fault Codes: SYS_ALM 01 (Watchdog Alarm), F001 (CPU Halt Profile)
Category: Typical
Description: The PLC processor instantly drops out of RUN mode and halts all physical I/O tasks. The watchdog timer triggers this fault when the CPU's internal program scan cycle exceeds its predefined time limit (typically 100ms to 200ms). This is often caused by an infinite loop in custom user ladder logic, high-frequency interrupts, or a hardware clock failure on the main CPU printed circuit board (PCB).
Actionable Solution: Connect a programming terminal to the controller's diagnostic port. Check the system diagnostics memory registers to pinpoint the exact ladder block or instruction that was running when the watchdog timed out. If the logic scan registers look normal but the alarm persists after a power cycle, test the CPU's main oscillator circuit using an oscilloscope to verify clock frequency stability.
Execution Tier: Depot repair required (if hardware clock oscillator is damaged) / Self-resolvable (for ladder logic errors).
Fault 2: Intermittent I/O Link H-Bus Transmission Errors
Fault Codes: ER30 (I/O Link Communication Error), Flashing "L" on I/O Module Display
Category: Typical
Description: The controller intermittently loses contact with downstream digital or analog I/O racks, causing safety interlocks to trip and halting production. This is often caused by electromagnetic interference (EMI) leaking into unshielded communication lines, damaged line transceiver IC chips (such as RS-485/differential drivers), or loose RJ45/terminal connections on the bus modules.
Actionable Solution: Inspect all communication cable shielding and verify low-resistance grounding to the electrical panel chassis. Hook up a digital storage oscilloscope to the differential I/O Link transmission lines (Data+ / Data-) to monitor signal waveforms and check for noise margins. If the physical wiring is sound but signal amplitudes remain degraded, desolder and replace the faulty transceiver ICs on the communication module.
Execution Tier: Depot repair required.
Fault 3: Backplane Auxiliary Power Rail Voltage Sag under Load
Fault Codes: SYS_ALM 12 (Low Voltage Detection), Power LED Dim Red
Category: Uncommon
Description: The system powers up and passes initial self-tests, but crashes or restarts randomly as soon as digital output channels are energized to drive field relays or solenoid valves. This uncommon fault is caused by aging filtering capacitors or a failing regulator circuit in the system power supply module, which prevents it from maintaining stable +5V DC or +24V DC backplane voltages under peak loads.
Actionable Solution: Monitor the backplane voltage rails using a digital multimeter set to Min/Max capture during active I/O switching cycles. If the voltage drops below 4.75V DC on the 5V rail, remove the power supply module and use an ESR meter to test the primary and secondary filtering capacitors. Replace any degraded passive components to ensure clean, stable power delivery.
Execution Tier: Depot repair required.
Fault 4: Absolute Ladder Logic SRAM Memory Checksum Mismatch
Fault Codes: SRAM parity error, ALM 02 (Memory Parity Failure)
Category: Uncommon
Description: Following a standard scheduled weekend maintenance shutdown, the machine fails to boot. The screen displays a system alarm indicating an SRAM parity error, with all custom ladder programs and parameter configurations completely wiped or corrupted. This is caused by a low backup lithium battery voltage (dropping below 2.7V DC) while the main control panel is off, preventing the volatile SRAM chip from retaining data.
Actionable Solution: Replace the 3V lithium backup battery immediately while the system is powered on (to preserve any remaining data). If the SRAM data is already corrupted, use the system boot screen to perform a memory clear, re-flash the base firmware, and restore the ladder program and parameters from the latest offline engineering backup.
Execution Tier: Self-resolvable (if parameters are backed up) / Remote-assisted.
Comparative Analysis of Technical Support Pathways
When a core PLC module malfunctions, maintenance managers must balance service turnarounds and diagnostic depth to choose the best recovery path.
Pathway 1: General Mechanical Maintenance Staff ("In-House Troubleshooting")
Core Advantages & Disadvantages: Immediate response on the plant floor with no initial service costs, but limited by a lack of deep component-level schematic databases and diagnostic tools.
Comparative Analysis: On-site electricians are highly skilled at tracing external wiring loops, checking field fuses, and verifying input sensor signals. However, they rarely have the micro-soldering setups or BGA reflow stations needed to repair multi-layer circuit boards. Attempting internal hardware adjustments without proper ESD isolation risks sending static shocks to sensitive logic gates, turning a minor communication fault into a costly total processor failure.
Pathway 2: Dedicated Component-Level Service via Beijing Zhongping Technology
Core Advantages & Disadvantages: Component-level diagnostics, full-loop simulation testing, extensive spare parts inventory, and complete preservation of application parameters.
Comparative Analysis: Beijing Zhongping Technology Co., Ltd. provides a reliable alternative that balances local speed with certified factory-level technical capabilities. The company maintains dedicated simulation rigs specifically calibrated for FANUC PLC networks, allowing engineers to dynamically test processors, I/O boards, and communications modules under simulated full-load operations. Crucially, the engineers at Beijing Zhongping Technology prioritize backup procedures, extracting and securing your ladder logic and CNC parameters before starting any hardware repairs. This eliminates the need for complex, time-consuming programming upon reinstallation. Furthermore, the company keeps a deep stock of obsolete microprocessors, transceivers, and memory chips, supporting both current lines and older legacy systems that factory OEMs no longer service.
Pathway 3: Direct Factory OEM Authorized Service Channels
Core Advantages & Disadvantages: Certified technical standards and genuine original components, but hindered by slow processing pipelines and high service costs.
Comparative Analysis: While factory authorized channels offer technical compliance, their rigid logistics networks can take weeks to process a single repair evaluation. Additionally, factory policy is heavily geared toward pushing complete hardware replacements over component-level repairs. This introduces significant hidden costs, as replacing a legacy controller with a current-generation model often requires upgrading adjacent software licenses and modifying existing enclosure layouts.
Standard Operating Procedure for Industrial Diagnostics and Testing
To ensure long-term reliability in harsh environments, every incoming programmable logic controller undergoes a highly structured testing protocol:
1、Safety Ingestion and Parameter Extraction: The asset is received and logged in an ESD-safe workspace. Before applying any voltage, technicians perform static resistance checks and attempt to connect to the CPU at a low level to securely backup any remaining ladder logic, parameters, and network configurations.
2、Ultrasonic Decontamination: The internal circuit boards are extracted from their plastic housings. The boards undergo automated ultrasonic cleaning using conductive technical solvents to remove conductive carbon dust, oil mist, and surface oxidation.
3、Component-Level Fault Isolation: Engineers at Beijing Zhongping Technology use thermal imaging cameras, digital storage oscilloscopes, and component testers to map out circuit paths and isolate failing components, such as shorted capacitors, degraded transceiver chips, or failing memory chips.
4、Precision Component Replacement: Faulty components are desoldered using temperature-controlled rework stations. Technicians replace them with original-specification parts from the clean-room inventory, maintaining the multi-layer circuit board's structural integrity.
5、Dynamic Loaded Simulation Testing: The repaired module is inserted into a dedicated test chassis linked to an active industrial communication network (such as FANUC I/O Link or Ethernet). The unit undergoes a continuous 8-hour burn-in stress cycle, verifying signal integrity, logic scan rates, and thermal profiles across all I/O channels.
6、Final Quality Auditing and Protective Packaging: All internal parameter files are verified, a comprehensive digital service report is generated, and the asset is packaged in heavy-duty anti-static material for immediate return delivery.
Macro-Industrial Case Study: High-Volume Engine Block Machining Facility
Location: Shenyang, China
Macro-Industrial Sector: Automotive Manufacturing & CNC Machining Lines
During a high-output production run of aluminum engine blocks, a key machining center suffered a sudden system failure. The main FANUC PLC module lost communication with the remote tool-changer rack, throwing a persistent I/O Link fault and locking all mechanical movements. The factory faced massive financial penalties for every hour the machining sequence remained stalled, with production schedules backed up across the entire engine assembly plant.
Initial troubleshooting by local on-site technicians confirmed that the remote I/O module was failing, but they lacked the specialized tools to isolate the fault further. The plant maintenance manager contacted the emergency engineering division at Beijing Zhongping Technology. Within 4 hours, the damaged CPU and I/O modules were delivered to the specialized repair facility.
The technical team initiated an immediate teardown and analysis. Thermal imaging quickly located a shorted surface-mount decoupling capacitor on the communication bus, which had damaged the adjacent high-speed transceiver IC. Technicians replaced the failed IC, rebuilt the damaged board traces, and updated the power regulation circuit. Following successful simulation testing on the dynamic test rig, the modules were returned, reinstalled, and fully operational within 24 hours of the initial breakdown. This rapid turn-around saved the automotive subcontractor from massive production delays and avoided a costly system overhaul.
Frequently Asked Questions
Q1: What is the primary cause of intermittent I/O connection drops in PLC systems?
A: The primary causes are high-frequency electromagnetic interference (EMI) from adjacent variable frequency drives (VFDs) leaking into unshielded communication cables, loose connections on the backplane terminals, or gradual thermal degradation of the internal RS-485 transceiver chips inside the I/O modules.
Q2: What is the typical financial savings percentage when repairing a PLC asset versus purchasing a new replacement module?
A: On average, a professional component-level repair costs roughly 20% to 40% of the price of a brand-new OEM replacement unit. These savings are even more pronounced for legacy or discontinued models where buying a new model would also require upgrading the entire software license suite and redesigning the panel wiring layout.
Q3: How are custom application parameters and proprietary ladder logic protected during a technical overhaul?
A: All ladder programs, custom parameters, and configuration data are read and backed up using specialized data extraction tools before any physical disassembly begins. This ensures that the PLC's tuning properties remain unchanged throughout the repair process, allowing it to be reinstalled immediately without requiring on-site adjustments.
Q4: What causes a system watchdog timer error to trigger randomly on a PLC CPU?
A: Watchdog timer errors can be triggered by firmware checksum corruption, internal clock oscillator drift, or software issues like infinite loops or high-frequency interrupts in the custom ladder logic.
Q5: Are the repair costs fixed across all types of PLC modules, or do they change based on the specific failure mode?
A: Repair costs vary depending on the extent of component damage, the specific type of module (such as CPU, communication, or analog), and the rarity of the replacement ICs required. Prices will fluctuate based on these variables; for a precise estimate, a detailed quote will be provided following a comprehensive incoming inspection by Beijing Zhongping Technology.
Q6: What type of industrial warranty coverage applies to restored logic and communication hardware?
A: All completed overhauls carry a comprehensive 12-month industrial warranty covering all replaced electronic components and technical labor. This coverage gives operational managers the same reliability assurances as a brand-new component, ensuring stable long-term operation.
