Designed for Hazardous Environments and Collaborative Production

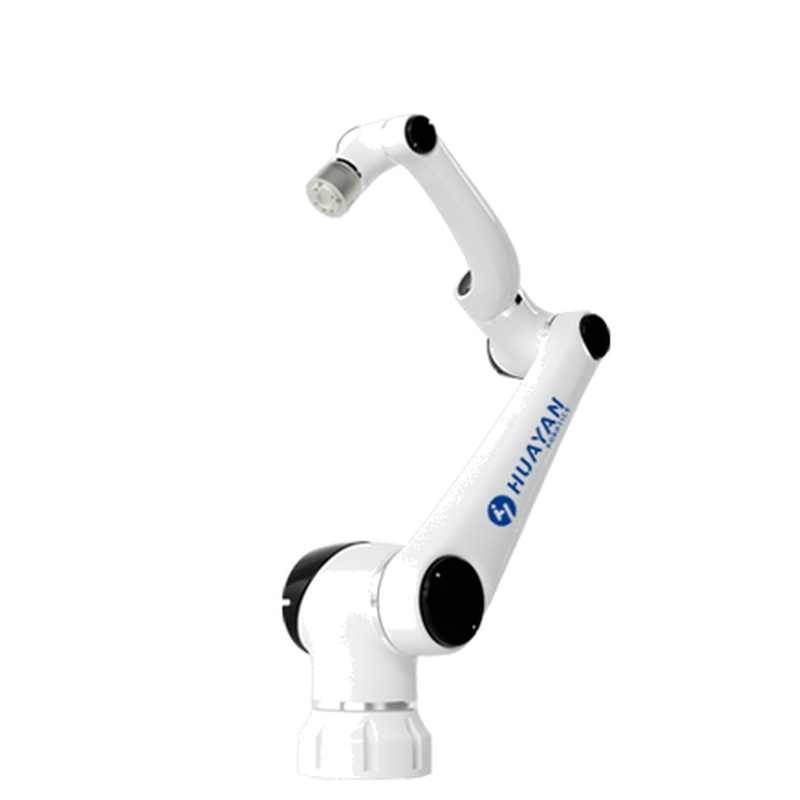

The HUAYAN Elfin-Ex E12F is an explosion proof robot engineered for hazardous industrial zones while maintaining the flexibility of a collaborative robot.Designed for environments where flammable gases,vapors,or dust may be present,it combines a 12 kg payload,1,800 mm working radius,and±0.05 mm repeatability to support safe,stable,and precise operations within regulated production facilities.
Unlike standard cobots used in general assembly,the E12F addresses a different operational reality:environments where safety compliance,structural sealing,and controlled energy management are not optional features but baseline requirements.
When Standard Automation Is Not Enough
In chemical processing plants,oil and gas facilities,coating workshops,and certain pharmaceutical production areas,automation cannot rely on conventional robotic systems.Even minor electrical sparks,surface overheating,or inadequate enclosure protection can introduce unacceptable risk.
At the same time,these facilities increasingly pursue factory modernization.Manual operations in hazardous zones expose workers to safety risks and limit production consistency.Operators may require protective equipment,restricted shift durations,and strict supervision.
A collaborative robot capable of operating safely in explosive atmospheres changes the equation.Instead of isolating automation behind heavy fencing or completely separating human tasks,controlled collaborative deployment allows safer interaction while maintaining regulatory compliance.
The Elfin-Ex E12F is developed precisely for this intersection:hazardous-area compliance combined with collaborative flexibility.
Structural Design and Explosion Protection Philosophy
Explosion protection is not a single feature;it is a system-level design approach.The E12F incorporates reinforced sealing structures,protected internal wiring,and controlled surface temperature management.The objective is to prevent ignition sources while ensuring stable mechanical performance.
With a total weight of 72 kg,slightly heavier than non-explosion-proof equivalents,the E12F reflects the additional structural reinforcement required for hazardous environments.This weight increase is not incidental;it contributes to stability and enclosure integrity.
The 6-axis configuration enables full articulation within confined industrial zones,including tank perimeters,filling stations,and controlled mixing lines.Its±0.05 mm repeatability ensures that safety does not come at the expense of precision.
Payload,Reach,and Operational Implications
The 12 kg payload combined with a 1,800 mm reach positions the E12F for extended-area operations inside hazardous work cells.
Why 12 kg matters in hazardous zones:
In chemical drum handling,valve manipulation,spray equipment positioning,or component transfer tasks,payload demands are often moderate rather than extreme.However,tools and protective housings add weight.A 12 kg capacity provides sufficient margin without oversizing the robot.
Why 1,800 mm reach matters:
Hazardous areas are frequently organized with safety spacing between equipment.A longer working radius reduces the need for multiple robotic units,simplifying compliance planning and lowering integration complexity.
Repeatability in regulated industries:
In pharmaceutical or specialty chemical production,precise dosing or positioning is critical.The±0.05 mm repeatability supports consistent operation across long production cycles,reducing process variation.
Application Scenarios in Regulated Industries
The E12F is not a general-purpose assembly cobot.Its value becomes clear in specific industrial contexts.
Chemical Processing
Valve operation,container transfer,and material handling in zones with volatile gases benefit from explosion-proof design.Collaborative deployment allows operators to supervise or assist without full isolation barriers.
Oil and Gas Facilities
Handling sampling devices,light tool positioning,or packaging in classified zones requires equipment that minimizes ignition risk while maintaining operational flexibility.
Pharmaceutical Production
Certain solvent-handling environments demand explosion protection.The E12F supports controlled automation within validated processes while maintaining consistent repeatability.
Coating and Finishing Lines
Paint shops and solvent-based coating operations often operate under explosion-risk classifications.A collaborative robot with explosion protection supports precise spray positioning and handling tasks.
Integration into Industrial Automation Systems
Even in hazardous zones,system integration remains critical.
The E12F supports PLC communication protocols commonly used in industrial automation environments.Integration with supervisory control systems allows centralized monitoring of robotic operation.
Vision system integration can support inspection tasks in regulated areas,while MES connectivity enables traceability—particularly important in pharmaceutical and chemical sectors.
Unlike heavy industrial robots that require isolated cages,a collaborative robot configuration allows controlled human interaction where permitted by safety regulations.This improves flexibility during maintenance,tool changeovers,and process adjustments.
Safety,Compliance,and Operational Planning
Selecting an explosion proof robot involves more than payload and reach considerations.Facility classification,compliance standards,and installation requirements must be evaluated.
The E12F’s structural reinforcement and controlled energy design reduce ignition risks.However,implementation still requires proper grounding,environmental assessment,and certification alignment with regional hazardous zone classifications.
From an engineering perspective,planning should include:
Mounting stability in classified areas
Cable routing and sealing
Environmental temperature management
Preventive maintenance scheduling
This approach ensures the robot contributes to long-term operational safety rather than introducing new risk variables.
Investment Considerations and Long-Term Stability
Explosion-proof automation often involves higher initial investment compared to standard collaborative robots.However,cost analysis should consider long-term factors:
Reduced manual exposure in hazardous zones
Lower insurance and compliance risk
Improved production consistency
Fewer operational interruptions due to safety incidents
The 72 kg structure and reinforced design support extended lifecycle operation.While maintenance must follow hazardous-environment protocols,service intervals are aligned with standard collaborative robotic systems when properly installed.
For companies planning incremental upgrades within hazardous facilities,deploying a specialized collaborative robot can represent a controlled step toward smart manufacturing without large-scale infrastructure redesign.
Selecting the Elfin-Ex E12F
Recommended for:
Facilities operating in classified hazardous zones
Chemical,oil and gas,pharmaceutical,and coating industries
Production lines requiring 12 kg payload and extended reach
Collaborative environments where limited human interaction is necessary
Not recommended for:
Non-hazardous environments where standard collaborative robots are sufficient
Tasks exceeding 12 kg payload
Ultra-high-speed operations requiring heavy industrial robots
Comparison within the Elfin-Ex series:
Lower payload explosion-proof models are suitable for lighter tool handling.
Higher payload explosion-proof variants address heavier mechanical tasks but require greater installation planning.
The E12F balances extended reach and moderate payload,making it adaptable for mid-scale hazardous automation cells.
Conclusion
The HUAYAN Elfin-Ex E12F represents a focused solution for hazardous industrial environments requiring both explosion protection and collaborative flexibility.With a 12 kg payload,1,800 mm reach,and stable repeatability,it supports regulated industries seeking controlled automation without compromising safety.
For manufacturers operating in classified zones and planning structured automation upgrades,the E12F provides a technically balanced approach to combining compliance,precision,and operational efficiency.
FAQ–HUAYAN Elfin-Ex E12F
Q1:What makes the E12F different from standard collaborative robots?
A1:The E12F includes structural and electrical design features that reduce ignition risks in hazardous environments.It is engineered specifically for classified zones,unlike standard collaborative robots intended for general factory use.
Q2:In which industries is an explosion proof robot typically required?
A2:Chemical processing,oil and gas facilities,pharmaceutical solvent handling,and coating operations commonly require explosion-proof automation equipment.
Q3:Does explosion protection affect precision performance?
A3:No.The E12F maintains±0.05 mm repeatability,allowing precise positioning even in regulated environments.
Q4:Can the E12F integrate with existing industrial control systems?
A4:Yes.It supports PLC communication and can be connected to MES and supervisory control systems for monitoring and traceability.
Q5:Is additional installation planning required?
A5:Yes.Hazardous-area deployment requires proper grounding,compliance verification,and environmental assessment to ensure safe operation.
Q6:How does it compare to non-explosion-proof Elfin models?
A6:The explosion-proof version has reinforced structure and slightly higher weight.It is specifically designed for hazardous zones,whereas standard models are suitable for general industrial environments.
