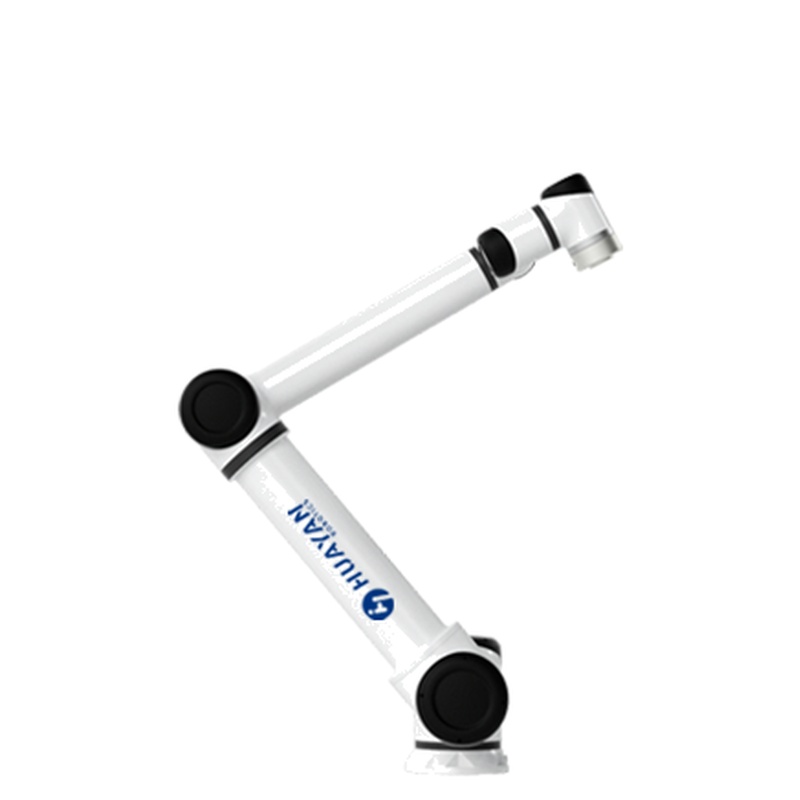

HUAYAN S30 Material Handling Robot with High Payload Arm

　　The HUAYAN S30 is a high payload robot arm engineered for material handling robot applications in modern industrial automation environments.Designed to manage loads up to 30 kg across an extended 1,800 mm working range,it supports stable,repeatable performance in factories where heavier components and consistent throughput are essential.

　　As manufacturing moves toward higher levels of system integration and smart manufacturing,the demand for reliable high payload robot arms continues to grow.In automotive parts production,metal fabrication workshops,and heavy assembly lines,handling medium-to-heavy components safely and efficiently is no longer optional—it directly affects productivity,safety,and cost control.

　　Real Production Pressures Behind Heavy-Duty Automation

　　In many factories,manual handling of 20–30 kg components leads to inconsistent cycle times and workplace safety concerns.Operators fatigue over long shifts,precision decreases,and injury risks rise.At the same time,fully oversized industrial robots may introduce unnecessary energy consumption or occupy excessive floor space.

　　A material handling robot like the S30 addresses these operational challenges by delivering controlled,repeatable motion tailored to mid-heavy payload applications.Rather than focusing on extreme speed or ultra-light tasks,the S30 is optimized for steady,structured movement of substantial components within structured production layouts.

　　Factories upgrading from semi-automated lifting systems often find that introducing a high payload robot arm significantly improves line balance.The S30 enables smoother transitions between stations,reduced human strain,and more predictable takt time.

　　Positioning Within the HUAYAN S Series

　　Within the HUAYAN S Series,the S30 represents a balanced heavy-duty solution.It is designed specifically for 30 kg-class applications,sitting between lighter S-series models and higher-capacity industrial variants intended for very heavy loads.

　　Compared to smaller payload robots in the collaborative range,the S30 is clearly oriented toward structured industrial cells rather than shared human-robot workspaces.Its 93 kg body mass and reinforced joint structure reflect this positioning.It is not built primarily for close-proximity collaborative interaction but for reliable high payload material handling in defined automation zones.

　　This distinction is important.Where Elfin series cobots emphasize flexibility and human interaction,the S30 focuses on payload stability,structural rigidity,and consistent industrial output.

　　Mechanical Structure and Engineering Implications

　　Payload Capacity and Structural Stability

　　The 30 kg rated payload allows the S30 to handle cast components,packaged assemblies,machine-loaded materials,and medium-scale subassemblies.The arm structure is reinforced to maintain rigidity during extended reach operations.Structural stiffness directly influences repeatability,especially under dynamic loading conditions.

　　Working Range and Line Coverage

　　With a working range of 1,800 mm,the S30 can span multiple conveyor sections or serve dual-station layouts.This extended reach reduces the need for repositioning fixtures or installing multiple robots in compact lines.For production planners,this translates into more efficient space utilization.

　　Degrees of Freedom and Motion Flexibility

　　The six-axis configuration allows complex orientation control.In material handling,orientation often matters as much as lifting capacity.The ability to rotate,tilt,and reposition components precisely improves alignment accuracy when feeding CNC machines or assembly fixtures.

　　Repeatability and Process Consistency

　　A repeat positioning accuracy of±0.05 mm ensures consistent placement during repetitive handling cycles.While ultra-high precision assembly may demand tighter tolerances,for material handling robot applications in heavy-duty industrial automation,this level of repeatability provides dependable process control.

　　Mass and Mechanical Damping

　　At 93 kg,the robot body contributes to operational stability.Heavier structural mass helps damp vibration during acceleration and deceleration,particularly when transporting near-maximum loads.This enhances long-term durability and reduces mechanical stress on joints.

　　Application Scenarios Across Industries

　　Automotive Component Handling

　　Transporting brake assemblies,engine subcomponents,or transmission parts between machining centers is a common use case.The S30’s payload range fits well within these requirements.

　　Machine Tending

　　CNC machine loading and unloading often involves repetitive movement of metal parts weighing between 10–30 kg.The S30 maintains cycle consistency while reducing operator intervention.

　　Packaging and Palletizing

　　In medium-weight packaging operations,consistent placement onto pallets or conveyor lines is essential.The S30 supports stable pallet stacking patterns without excessive oversizing.

　　Metal Fabrication Workshops

　　Handling welded frames,metal plates,or processed structures can strain manual labor.A high payload robot arm such as the S30 ensures predictable movement and improved workplace safety.

　　Factory Modernization Projects

　　When upgrading traditional lifting systems to robotics,the S30 provides a structured entry point into industrial automation without requiring ultra-heavy infrastructure.

　　System Integration and Automation Compatibility

　　The S30 is designed for integration into structured automation cells.It supports connectivity with PLC systems and can be synchronized with conveyor controls,safety systems,and machine tools.

　　In smart manufacturing environments,data exchange between the robot controller and MES platforms allows tracking of handling cycles,load monitoring,and preventive maintenance scheduling.This improves transparency and production efficiency.

　　Vision systems can be integrated for object detection or alignment correction,particularly in variable component environments.However,due to its primary orientation toward stable material handling,vision is typically used for verification rather than complex adaptive manipulation.

　　Operational Economics and Long-Term Value

　　From a cost perspective,introducing a material handling robot like the S30 reduces reliance on manual lifting and mitigates workplace injury risks.This can lower indirect labor costs and improve insurance and compliance outcomes.

　　Energy consumption remains moderate relative to its payload capacity.Because the S30 is sized specifically for 30 kg applications,it avoids the inefficiencies of installing oversized heavy industrial robots where they are not necessary.

　　Maintenance planning is straightforward.Regular inspection of joints,lubrication schedules,and monitoring of mechanical wear are sufficient for long service life.The structural rigidity and weight distribution contribute to reduced mechanical fatigue over extended production cycles.

　　Selection Guidance

　　Recommended For

　　Factories handling components between 15–30 kg on a regular basis

　　Structured automation cells with defined safety zones

　　CNC tending,palletizing,and repetitive heavy material handling

　　Manufacturers upgrading from manual or semi-automated lifting systems

　　Not Recommended For

　　Ultra-light precision electronics assembly

　　Close human-robot collaborative environments

　　Applications requiring payload beyond 30 kg

　　Extremely compact production layouts with minimal floor space

　　When to Choose the S30

　　Select the S30 when payload stability and structured handling are more critical than collaborative flexibility.If production involves steady,repetitive movement of medium-to-heavy components within a defined cell,the S30 offers an appropriate balance of reach and capacity.

　　If the task demands higher payload classes,larger S-series variants may be more appropriate.Conversely,for lighter assembly tasks under 15 kg,collaborative Elfin models provide better adaptability.

　　Conclusion

　　The HUAYAN S30 serves as a focused high payload robot arm solution for material handling robot applications in structured industrial automation settings.Its 30 kg capacity,1,800 mm reach,and stable mechanical structure support consistent heavy-duty handling without unnecessary complexity.

　　For manufacturers planning factory modernization or seeking to stabilize medium-to-heavy material flows,the S30 provides a practical and durable automation option aligned with long-term production efficiency goals.

　　FAQ–HUAYAN S30

　　Q1:What industries typically use the S30?

　　A1:The S30 is commonly applied in automotive parts production,metal fabrication,CNC machine tending,and medium-weight palletizing operations.

　　Q2:Is the S30 suitable for collaborative environments?

　　A2:The S30 is primarily designed for structured industrial cells rather than close human-robot collaboration.Appropriate safety measures and protective zones should be implemented.

　　Q3:How does the S30 compare with lighter HUAYAN robots?

　　A3:Compared to collaborative models,the S30 offers significantly higher payload capacity and structural rigidity but is less focused on shared workspace flexibility.

　　Q4:Can it integrate with existing PLC and MES systems?

　　A4:Yes.The S30 supports PLC connectivity and can integrate with MES platforms for production tracking and monitoring within industrial automation frameworks.

　　Q5:What maintenance is required for long-term operation?

　　A5:Routine inspection of joints,lubrication schedules,and load monitoring are recommended.Its rigid structure supports durable performance in repetitive heavy-duty cycles.

　　Q6:When should a higher-capacity model be considered?

　　A6:If regular loads exceed 30 kg or if future expansion plans require larger components,selecting a higher-capacity S-series model would provide better long-term flexibility.
