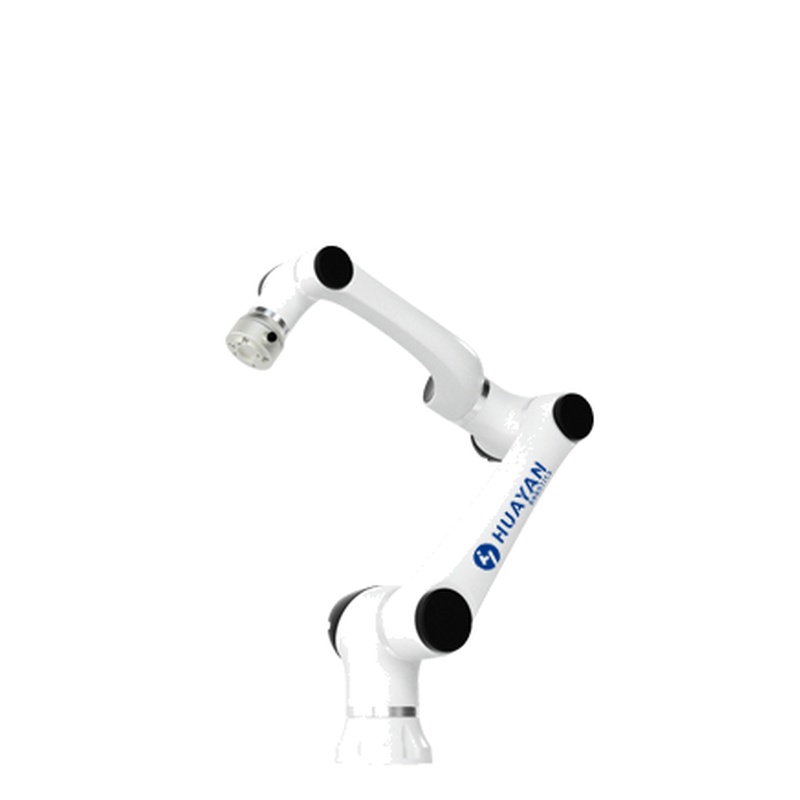

The HUAYAN Elfin E05-L is an Electronics Manufacturing Cobot designed for delicate,repeatable,and space-efficient automation tasks.As a Precision Assembly Cobot,it delivers high repeatability(±0.02 mm)within a compact footprint,making it ideal for electronics production,small component handling,and micro-assembly processes.
With a 3.5 kg payload,950 mm working radius,and 6 degrees of freedom,the E05-L balances flexibility and precision.Its lightweight structure(26 kg total weight)and low power consumption(typical 180 W)make it particularly suitable for modern production environments where energy efficiency,safe collaboration,and modular deployment are essential.
Unlike higher-payload collaborative robots used for material handling or machine tending,the E05-L focuses on accuracy,compact integration,and fine motor control—all critical factors in electronics and precision assembly lines.
The Role of Collaborative Robots in Electronics Manufacturing
Why Electronics Production Requires Specialized Cobots
Electronics manufacturing differs significantly from general industrial automation.Tasks often involve:
Small,lightweight components
Tight assembly tolerances
Repetitive micro-positioning
Static-sensitive environments
Compact workstation layouts
An Electronics Manufacturing Cobot must therefore provide:
High positional repeatability
Smooth low-speed motion
Minimal vibration
Easy reprogramming for product changeovers
The Elfin E05-L addresses these requirements through its refined joint control and compact arm design.
What Defines a Precision Assembly Cobot?
A Precision Assembly Cobot must meet three core criteria:
High repeatability for consistent placement
Stable low-speed torque output
Safe human-robot interaction in shared workspaces
With±0.02 mm repeatability,the E05-L supports:
PCB component placement
Connector insertion
Small mechanical part alignment
Adhesive dispensing or screw fastening
Its collaborative safety design allows it to operate near technicians without the need for large safety fencing,reducing floor space requirements.
Technical Characteristics and Performance Focus
Key Technical Specifications
Payload:3.5 kg
Reach:950 mm
Degrees of Freedom:6-axis
Repeatability:±0.02 mm
Robot Weight:26 kg
Typical Power Consumption:180 W
These parameters position the E05-L as a highly efficient,lightweight automation solution for precision tasks.
Motion Precision and Stability
Unlike larger cobots optimized for payload capacity,the E05-L emphasizes:
Fine motion resolution
Stable micro-movements
Controlled acceleration curves
Reduced mechanical backlash
This makes it particularly suitable for electronics environments where even small positioning errors can affect product quality.
Energy Efficiency and Compact Deployment
With only 180 W typical power consumption,the E05-L is energy-efficient compared to traditional industrial robots.This is especially valuable in electronics factories where multiple robots may operate simultaneously.
Its 26 kg body weight allows:
Tabletop installation
Mobile workstation integration
Rapid redeployment across production lines
Typical Application Scenarios
PCB Assembly Support
In electronics assembly lines,the E05-L can assist with:
Component placement support
Small-part transfer between stations
Automated inspection positioning
Its compact design fits easily into dense production layouts.
Precision Mechanical Assembly
For small mechanical subassemblies,such as:
Micro gear assemblies
Connector alignment
Fastening small screws
The robot ensures consistent torque and repeatability.
Laboratory and R&D Automation
Because of its lightweight structure and easy programming interface,the E05-L is suitable for:
Test bench automation
Small-batch prototyping
Quality verification procedures
Human-Robot Collaborative Workstations
As a collaborative robot,the E05-L can:
Share workspace with operators
Assist in repetitive precision tasks
Reduce ergonomic strain on workers
This makes it ideal for hybrid manual-automation workflows.
Selection Considerations and Deployment Strategy
When to Choose E05-L Instead of Higher Payload Models
Select the E05-L when:
Payload requirements are below 3.5 kg
High repeatability is more important than reach
Workstations are compact
Energy efficiency is a priority
For heavier material handling or palletizing,higher-payload models would be more suitable.
Integration with Vision and End Effectors
To maximize performance as an Electronics Manufacturing Cobot,consider:
Integration with vision inspection systems
ESD-safe grippers
Micro vacuum end effectors
Screw-driving modules
Its 6-axis flexibility allows adaptable end-effector orientation for complex positioning tasks.
FAQ–Practical Questions from Electronics and Assembly Users
1.Is the E05-L precise enough for fine electronics assembly?
Yes.With±0.02 mm repeatability,the E05-L meets the precision requirements for many PCB and small-component assembly tasks.While it is not a semiconductor wafer-handling robot,it provides more than adequate precision for most consumer electronics production.
Its smooth low-speed control ensures consistent placement,reducing reject rates and improving overall assembly reliability.
2.How does this cobot differ from traditional industrial robots?
Traditional robots typically require safety cages and operate at higher speeds with larger payload capacities.The E05-L,as a collaborative robot,is designed for safe human interaction and smaller,precision-oriented tasks.
Its compact footprint and lightweight build also make installation simpler and more flexible.
3.Can it be integrated into existing electronics production lines?
Yes.The E05-L supports integration with vision systems,PLCs,and standard industrial communication protocols.This makes it suitable for both new installations and retrofit upgrades in existing assembly lines.
Its modular design allows quick adaptation when production models change.
4.Is it suitable for continuous operation?
The E05-L is designed for industrial duty cycles.With proper maintenance and environmental conditions,it can operate reliably in multi-shift electronics manufacturing environments.
Its relatively low power consumption also helps maintain stable long-term operation without excessive heat buildup.
5.What industries benefit most from this model?
Primary beneficiaries include:
Consumer electronics manufacturers
Small device assembly plants
Precision component suppliers
Laboratory automation environments
It is best suited where precision,compact deployment,and collaborative safety are more critical than heavy payload capacity.
