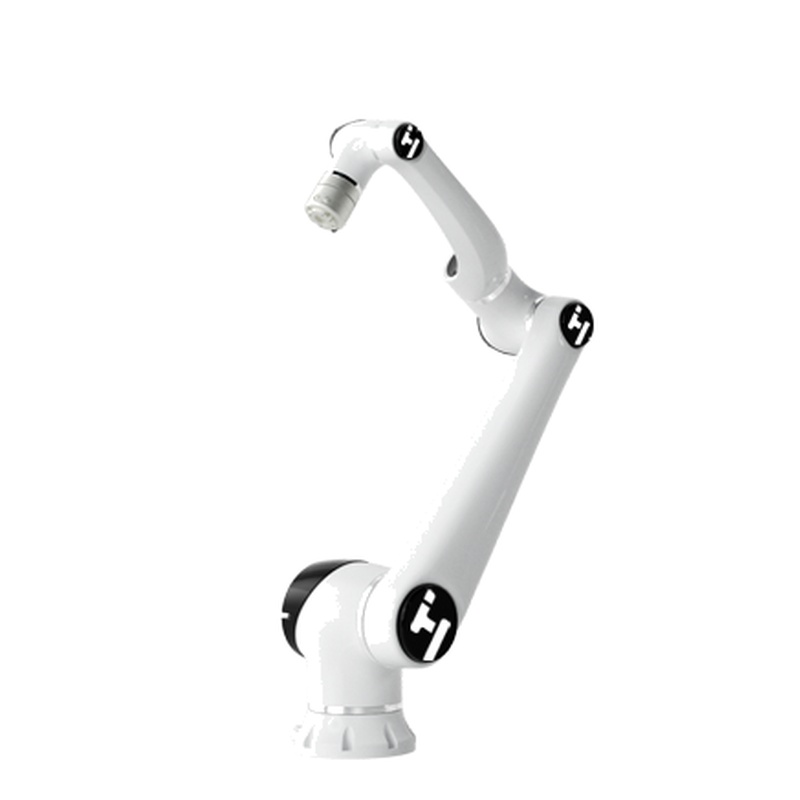

The HUAYAN Elfin E10L-Pro is a precision manufacturing cobot designed for adaptive assembly cobot applications.With an 8 kg payload and a 1,300 mm working range,it delivers consistent±0.03 mm repeatability.This makes it ideal for high-precision assembly tasks in electronics,light mechanical modules,and flexible production lines that require adaptability alongside human operators.
Addressing Production Challenges in Precision Manufacturing
Modern factories are under pressure to increase efficiency while maintaining high-quality output.Even minor deviations in component placement can result in costly rework or downtime.The Elfin E10L-Pro helps address these challenges by combining high repeatability,moderate payload,and collaborative design.Its mid-range reach allows it to access multiple stations efficiently,while its lighter payload reduces mechanical stress and energy consumption.
Compared to the E10,the E10L-Pro sacrifices a small portion of payload capacity(8 kg vs 10 kg)but gains enhanced adaptability in assembly operations.This makes it suitable for lines with variable components and semi-flexible layouts,where robots must quickly adjust to different tasks.
Product Positioning Within the Elfin Series
The E10L-Pro is positioned as a mid-range precision collaborative robot within the Elfin series.Compared with smaller models like the E10,it trades slight payload reduction for improved adaptive assembly performance and longer working range than the original E10(1300 mm vs 1000 mm).
This model targets production lines where precision placement is critical,components are moderately heavy,and human-robot collaboration is essential.Its lighter structure(45 kg)and lower power consumption(350 W)make it energy-efficient and easy to deploy in semi-compact factory layouts.
Technical Capabilities and Operational Insights
Payload and Reach:The 8 kg payload combined with 1,300 mm reach makes the E10L-Pro suitable for precise placement of electronic modules,light mechanical parts,and medium-sized assemblies.
Degrees of Freedom and Repeatability:Six-axis motion and±0.03 mm repeatability ensure high precision,suitable for electronics assembly and adaptive manufacturing processes.
Weight and Power Consumption:At 45 kg and 350 W,the robot is easy to integrate into existing lines without major reinforcement and supports energy-conscious operations.
Engineering Implications:The combination of moderate reach,high precision,and lighter payload enables flexible station assignment,reduces wear on joints,and improves line consistency.Its adaptive control allows operators to reprogram tasks quickly for new products without overhauling the line.
Typical Applications in Factories
Electronics Manufacturing:Placement and assembly of PCBs,sensors,and medium modules requiring high precision.
Adaptive Assembly:Handling different components with minor configuration changes between production batches.
Material Handling:Transport of moderate-weight items between assembly stations or conveyors.
Packaging:Aligning lighter packages precisely on semi-automated lines.
Flexible Production Lines:Supports mixed-product operations where quick adaptation is needed for variable component sizes.
System Integration and Compatibility
The E10L-Pro integrates with standard PLC systems,vision inspection units,and MES platforms.Its moderate reach and lighter payload simplify programming and mounting.Real-time monitoring and adaptive task assignment are supported,allowing factories to optimize workflow efficiency without major layout changes.
Long-Term Investment and Stability
The robot’s compact design and low power consumption support cost-effective,long-term operations.Routine maintenance focuses on joints,cabling,and end-effectors,with high-cycle durability ensuring reliable performance over time.Its adaptive assembly capability allows manufacturers to introduce new products and adjust tasks without significant downtime or additional investment.
Selecting the Right Robot
Recommended For:
High-precision assembly tasks with moderate payload(up to 8 kg).
Flexible production lines requiring adaptive handling of different components.
Collaborative environments integrated with PLC,MES,or vision systems.
Not Recommended For:
Tasks exceeding 8 kg payload or requiring payload-specific lifting.
High-speed industrial cells needing larger,heavy-duty robots.
Production lines with very compact stations where 1,300 mm reach exceeds space constraints.
Comparison with Other Elfin Models:
E10:Shorter reach(1,000 mm),higher payload(10 kg),suited for compact lines.
E10L-Pro:Slightly lighter payload(8 kg),longer reach(1,300 mm),optimized for adaptive assembly.
E12/E15:Higher payload and extended reach for heavier or longer-distance tasks,with trade-offs in energy and footprint.
Conclusion
The HUAYAN Elfin E10L-Pro provides a balanced solution for precision manufacturing and adaptive assembly cobot tasks.Its combination of high repeatability,moderate payload,and flexible reach supports efficient,collaborative operations in electronics assembly,material handling,and semi-flexible production lines.Choosing the E10L-Pro enables stable production,energy-efficient operation,and adaptability for evolving factory layouts.
FAQ–HUAYAN Elfin E10L-Pro
Q1:What tasks are ideal for the E10L-Pro?
A1:It is best for medium-weight assembly,PCB placement,sensor integration,and adaptive assembly lines where payloads are up to 8 kg and reach is 1,300 mm.
Q2:How does the E10L-Pro integrate with existing automation systems?
A2:It supports PLC,MES,and vision inspection integration.Its lighter weight and moderate reach simplify mounting and programming for adaptive workflows.
Q3:How frequently does the E10L-Pro require maintenance?
A3:Routine checks of joints,cables,and end-effectors are sufficient.Its design supports high-cycle operation with minimal downtime.
Q4:How does it differ from the E10 and E12 models?
A4:Compared to E10,it offers longer reach(1,300 mm vs 1,000 mm)but slightly lower payload(8 kg vs 10 kg).Compared to E12,it has lower payload(8 kg vs 12 kg)and shorter reach(1,300 mm vs 1,800 mm),optimized for adaptive assembly rather than extended-range handling.
Q5:Is it energy-efficient for continuous production?
A5:Yes,typical consumption is 350 W,making it suitable for long shifts in energy-conscious production lines.
Q6:Can it handle mixed-product lines?
A6:Yes,its adaptive assembly capabilities allow quick reprogramming for different component types and sizes.
