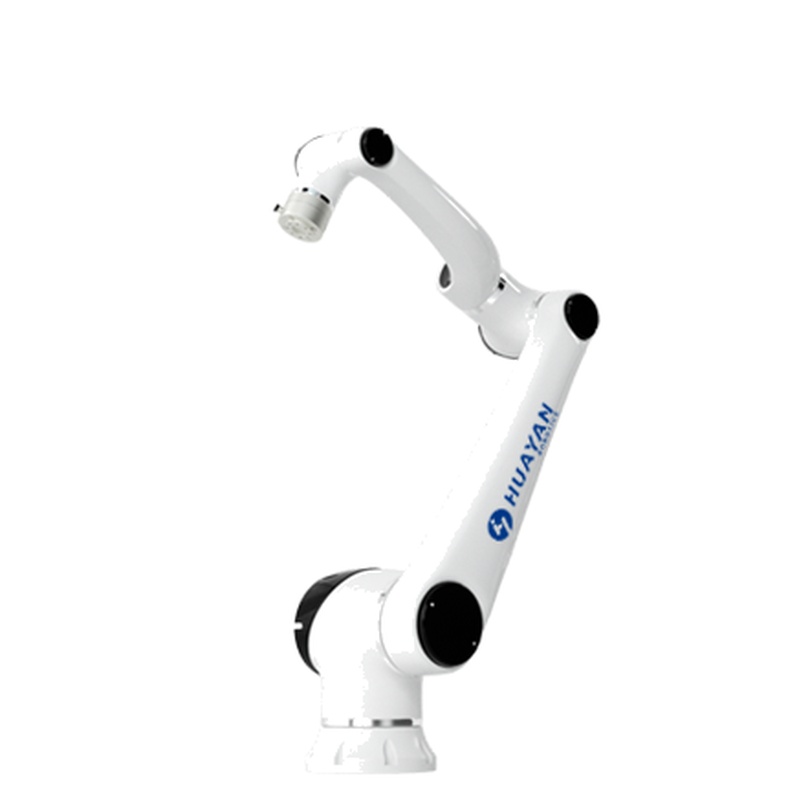

HUAYAN Elfin E10-L Lightweight Collaborative Robot for Precision Assembly

　　The HUAYAN Elfin E10-L is a lightweight collaborative robot designed for precision assembly applications in smart manufacturing environments.With extended reach and a balanced payload,it supports flexible production while maintaining consistent accuracy across tasks,embodying the principles of Precision Assembly Cobots and Lightweight Collaborative Robot solutions.

　　1.Industry Scenario Context

　　Manufacturers are increasingly challenged by complex assembly requirements and variable product sizes.In electronics,medical devices,and small mechanical components,higher precision and extended reach are required,often on lines where human operators and robots work side by side.Labor costs are rising,production volume expectations fluctuate,and even minor inaccuracies can lead to costly rework.

　　In such scenarios,a collaborative robot with moderate payload,longer reach,and repeatable precision offers a practical solution.The E10-L addresses these needs,providing a lightweight robotic arm capable of executing delicate assembly tasks while integrating seamlessly into production lines.

　　2.Product Positioning

　　The Elfin E10-L extends the capabilities of the original E10 model by offering a slightly lower payload of 8 kg but a longer reach of 1,300 mm.This positions the E10-L as an ideal choice for tasks that require access to wider or deeper workspaces without overburdening factory floors with heavier equipment.

　　Compared with the standard E10,which is optimized for mid-range payloads and moderate reach,the E10-L emphasizes lightness and flexibility.Its slightly higher weight(45 kg)over compact models ensures structural stability while maintaining ease of deployment.

　　3.Technical Capability Analysis

　　Payload and Reach:8 kg payload with a 1,300 mm working radius allows handling of moderate-weight components in assemblies requiring extended reach.

　　Degrees of Freedom and Precision:Six-axis configuration ensures versatility in motion paths.±0.03 mm repeatability is critical for small-part assembly where tight tolerances must be maintained.

　　Weight and Power Consumption:At 45 kg and 350 W typical consumption,the E10-L balances stability,energy efficiency,and integration flexibility.

　　Engineering Implications:Lighter payload and longer reach allow operations in extended assembly stations,reducing the need for repositioning components or manual intervention.The precision supports consistent throughput,minimizing defects and rework.

　　4.Typical Applications

　　Precision Electronics Assembly:Ideal for circuit board handling,component placement,and fastening,where tolerance is critical.

　　Small Mechanical Modules:Enables repeatable assembly of lightweight components with complex geometries.

　　Material Transfer:Facilitates safe and accurate transport of small parts between stations without occupying excessive floor space.

　　Flexible Production Lines:Suited for mixed-product assembly environments,supporting both volume and variety.

　　Packaging and Light Welding:Accurate placement and motion control ensure consistency in small-part packaging or controlled spot welding operations.

　　5.System Integration and Compatibility

　　The E10-L supports standard PLCs and integrates with vision systems for quality verification.MES compatibility allows scheduling,production monitoring,and traceability.Its lightweight design simplifies retrofitting into existing lines,making it suitable for incremental factory modernization and Smart Manufacturing adoption.

　　6.Investment and Long-Term Stability Analysis

　　The lightweight design reduces wear on joints and end-effectors,lowering maintenance frequency and supporting consistent production over long cycles.Moderate power consumption contributes to energy efficiency,while the extended reach allows deployment across multiple assembly stations,maximizing return on investment.

　　Compared with the E10,the E10-L provides a specialized solution for applications requiring longer reach but lower payload,optimizing floor space utilization without compromising precision.

　　7.Selection Guidance

　　Suitable for:

　　Manufacturers handling small to mid-weight components(≤8 kg).

　　Assembly lines requiring extended reach and precision.

　　Companies implementing lightweight collaborative automation in mixed-product lines.

　　Not suitable for:

　　Heavy component handling(>8 kg).

　　Ultra-high-speed or ultra-high-precision tasks beyond±0.03 mm tolerance.

　　Operations needing large-scale,heavy-duty industrial robots.

　　Differentiation from E10:

　　E10-L emphasizes reach over payload,suitable for extended assembly areas.

　　Ideal when floor space optimization and component accessibility are priorities.

　　E10 remains better for mid-range payload tasks where reach is less critical.

　　8.Cool-Headed Conclusion

　　For manufacturers seeking flexible,lightweight collaborative robots in precision assembly,the HUAYAN Elfin E10-L offers practical benefits.Its extended reach,precise control,and energy-efficient design support Smart Manufacturing initiatives,ensuring stable production while maintaining operational flexibility.

　　By integrating the E10-L into collaborative automation workflows,engineering teams can enhance production efficiency without significant infrastructure changes,achieving balanced performance for mid-weight assembly tasks.

　　FAQ–HUAYAN Elfin E10-L Collaborative Automation Robot

　　Q1:What differentiates the E10-L from the standard E10 model?

　　A1:The E10-L has a slightly lower payload(8 kg vs 10 kg)but longer reach(1,300 mm vs 1,000 mm),making it suitable for extended assembly areas requiring precision handling of lightweight components.

　　Q2:Can the E10-L integrate with existing production systems?

　　A2:Yes,it is compatible with PLCs,vision inspection systems,and MES software for scheduling,monitoring,and traceability,facilitating incremental automation upgrades.

　　Q3:What types of tasks are ideal for the E10-L?

　　A3:Precision electronics assembly,small mechanical module assembly,material transport,flexible production lines,and light packaging or welding operations.

　　Q4:How energy-efficient is the E10-L?

　　A4:Typical power consumption is 350 W,offering lower operating costs compared with heavier-duty robots and supporting energy-conscious Smart Manufacturing initiatives.

　　Q5:How often does the E10-L require maintenance?

　　A5:Routine inspections of joints,cabling,and end-effectors are recommended.Its lightweight,low-stress design reduces mechanical wear,extending operational stability.

　　Q6:Which manufacturers would benefit most from choosing the E10-L?

　　A6:Companies handling small-to-mid-weight components in extended assembly areas,prioritizing precision,reach,and collaborative operation without introducing large or heavy robots.
