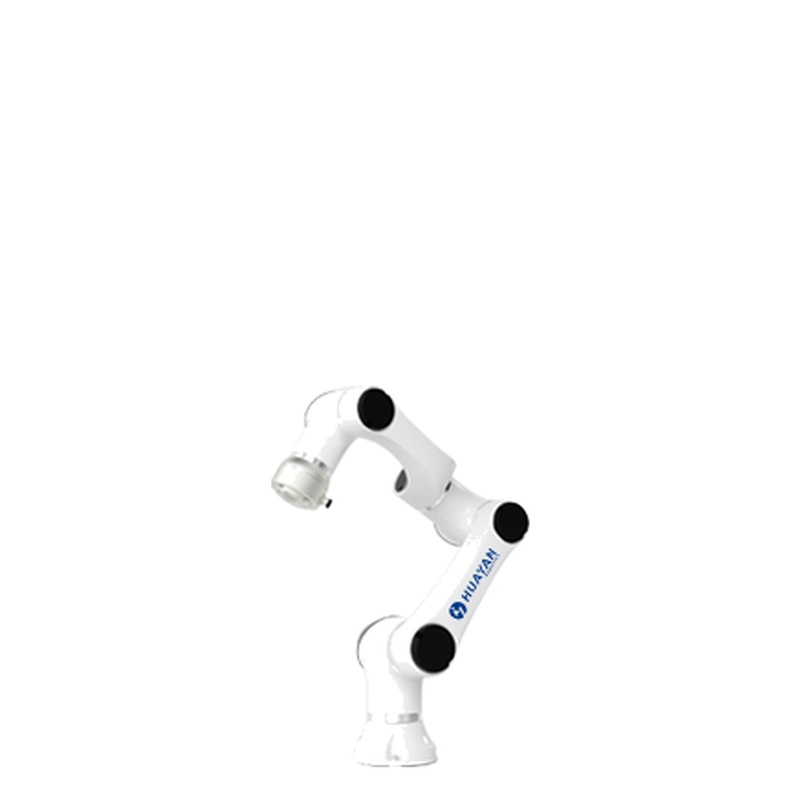

HUAYAN Elfin Series E03 Collaborative Robot for Assembly and Light Handling

　　The HUAYAN Elfin Series E03 is a compact Collaborative Robot Arm engineered for light-duty industrial tasks that require close human–robot interaction.As a Collaborative Robot for Assembly,the E03 focuses on precision,flexibility,and safe operation in shared workspaces.

　　With a 3kg payload,590mm working radius,and±0.02mm repeatability,the E03 is well suited for assembly,inspection,and material handling tasks involving small and medium-sized components.Its 6-axis articulated structure enables complex motion paths,while its lightweight body(18kg)and low power consumption(100W typical)make it easy to deploy in space-constrained production environments.

　　Rather than replacing heavy industrial robots,the Elfin E03 is designed to augment human labor,improve consistency,and reduce operator fatigue—especially in high-mix,low-volume manufacturing scenarios.

　　Understanding Collaborative Robots in Modern Manufacturing

　　What Is a Collaborative Robot Arm?

　　A Collaborative Robot Arm,commonly referred to as a cobot,is a robot specifically designed to operate safely alongside humans without physical barriers.Unlike traditional industrial robots that rely on cages and strict safety zones,cobots integrate:

　　Force and torque limiting

　　Speed and power monitoring

　　Smooth motion control

　　These characteristics allow them to share workspaces with operators while maintaining compliance with industrial safety standards.

　　Why Collaborative Robots Matter

　　Modern manufacturing increasingly demands:

　　Shorter product life cycles

　　Higher product variety

　　Faster line reconfiguration

　　Collaborative robots address these challenges by offering:

　　Faster deployment compared to traditional robots

　　Simplified programming and operation

　　Lower total cost of ownership

　　As a Collaborative Robot for Assembly,the Elfin E03 supports flexible production strategies where automation must adapt quickly to changing requirements.

　　Typical Use Cases for Cobots

　　Collaborative robots are commonly used in:

　　Electronics assembly

　　Light mechanical assembly

　　Quality inspection and testing

　　Pick-and-place and small-part handling

　　Laboratory and educational automation

　　Design Focus and Technical Characteristics of Elfin E03

　　Compact Structure and Lightweight Design

　　At only 18kg,the Elfin E03 can be:

　　Mounted on workbenches

　　Installed on mobile carts

　　Integrated into existing production cells

　　This lightweight design significantly reduces installation complexity and allows redeployment as production needs evolve.

　　Precision for Assembly-Oriented Tasks

　　The±0.02mm repeatability ensures reliable performance in tasks such as:

　　Component alignment

　　Connector insertion

　　Screwdriving assistance

　　Light press-fit operations

　　This level of precision is particularly valuable in electronics and precision manufacturing,where small deviations can affect product quality.

　　Six Degrees of Freedom for Flexible Motion

　　With 6 degrees of freedom,the E03 can approach workpieces from multiple angles,making it suitable for:

　　Complex assembly sequences

　　Tight workspaces

　　Multi-orientation handling tasks

　　This flexibility enables efficient collaboration between human operators and robots within the same workstation.

　　Energy-Efficient Operation

　　The E03’s 100W typical power consumption highlights its focus on energy efficiency.Compared to traditional industrial robots,this significantly reduces operating costs and makes it suitable for continuous operation in small-scale production lines.

　　Typical Application Scenarios

　　Electronics Assembly

　　The Elfin E03 is well suited for:

　　PCB handling

　　Connector assembly

　　Component placement

　　Small module assembly

　　Its precision and gentle handling reduce the risk of component damage while maintaining consistent quality.

　　Light Mechanical Assembly

　　For products such as small actuators,sensors,or consumer electronics components,the E03 assists with repetitive tasks while operators handle decision-based or quality-sensitive steps.

　　Pick-and-Place Operations

　　With a 3kg payload and compact reach,the robot efficiently handles:

　　Small boxes

　　Plastic parts

　　Packaged components

　　This makes it suitable for packaging lines and light material handling tasks.

　　Inspection and Testing

　　The robot can position sensors,cameras,or test probes with repeatable accuracy,improving inspection consistency and reducing operator workload.

　　Educational and R&D Environments

　　Thanks to its safety-oriented design and ease of use,the E03 is also suitable for:

　　Training centers

　　Research laboratories

　　Automation prototyping

　　Selection and Integration Considerations

　　Payload and Reach Matching

　　The E03 is optimized for light payloads up to 3kg.Selecting the correct end effector and considering tool weight are critical to maintaining performance and safety.

　　Workspace Layout

　　Because it is a Collaborative Robot Arm,the E03 can be installed without safety fencing in many scenarios.However,proper risk assessment and speed configuration are still essential for safe operation.

　　System Integration

　　The robot can be integrated with:

　　Vision systems

　　Force sensors

　　Conveyors

　　PLCs and MES systems

　　This allows it to function as part of a larger automated or semi-automated production line.

　　Long-Term Value

　　For manufacturers,the E03 offers:

　　Reduced labor costs for repetitive tasks

　　Improved process consistency

　　Faster line reconfiguration

　　Lower energy and maintenance costs

　　FAQ–Extended User Questions

　　1.What makes the Elfin E03 a true Collaborative Robot Arm?

　　The Elfin E03 is designed with safety and collaboration as core principles.Its motion control system limits force and speed,enabling safe interaction with human operators.Unlike traditional robots that require cages,the E03 can operate in shared workspaces when properly configured.

　　This makes it suitable for environments where human flexibility and robotic precision must coexist.

　　2.Is the Elfin E03 suitable for precision assembly tasks?

　　Yes.With±0.02mm repeatability,the E03 is well suited for precision-oriented tasks such as electronics assembly,connector insertion,and small-part alignment.

　　Its 6-axis design allows precise positioning from multiple angles,supporting complex assembly workflows without compromising accuracy.

　　3.How easy is it to deploy and redeploy the E03?

　　The lightweight design(18kg)and compact footprint make the E03 easy to install and relocate.It does not require heavy foundations or extensive safety infrastructure.

　　This flexibility is especially valuable for manufacturers operating high-mix,low-volume production lines where layouts change frequently.

　　4.What industries benefit most from a Collaborative Robot for Assembly like the E03?

　　Industries such as electronics manufacturing,consumer goods,medical device assembly,and light mechanical production benefit significantly.

　　These industries often require precision,flexibility,and human oversight—areas where collaborative robots outperform traditional automation solutions.

　　5.How does the E03 compare to larger industrial robots?

　　Compared to traditional industrial robots,the E03 offers lower payload and reach but significantly higher flexibility,safety,and ease of use.

　　It is not intended for heavy-duty tasks but excels in assembly,inspection,and light material handling where human–robot collaboration adds the most value.
