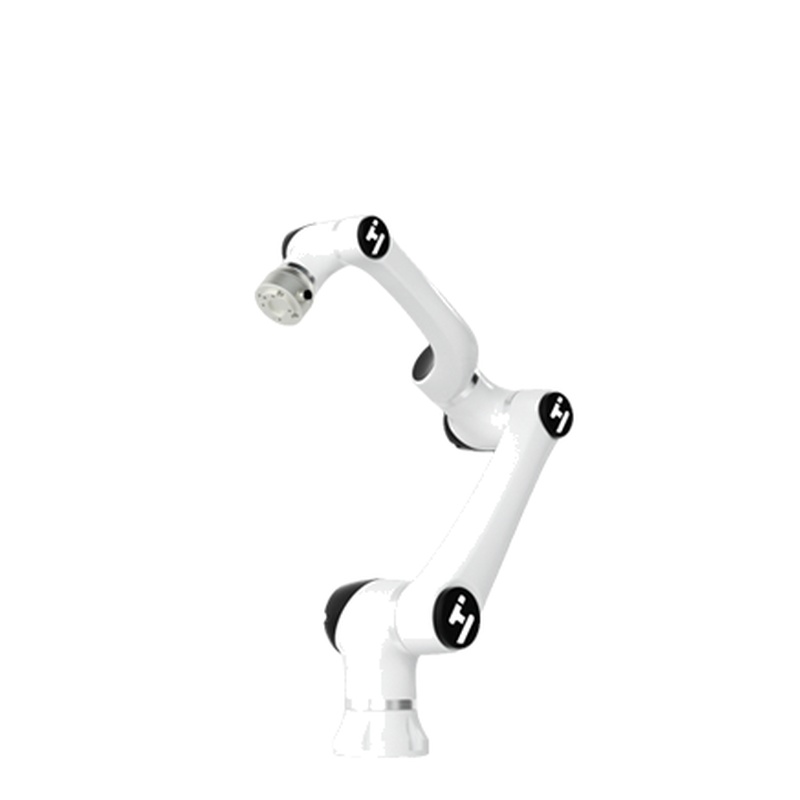

HUAYAN Elfin E05L-Pro CNC Tending Cobot for Precision Handling

　　The HUAYAN Elfin E05L-Pro is a CNC tending cobot engineered for precision handling cobot applications in compact machining cells.With a 3.5 kg payload,950 mm reach,and±0.02 mm repeatability,it is optimized for small-part loading and unloading tasks where accuracy,consistency,and space efficiency are critical.

　　In modern machining workshops,especially those focused on high-mix,low-volume production,labor shortages and rising costs are common concerns.CNC operators are often required to manage multiple machines,and repetitive loading tasks reduce productivity while increasing fatigue.In such environments,collaborative automation is not about replacing entire production lines,but about stabilizing output and maintaining precision over long shifts.

　　The E05L-Pro addresses these needs with a compact structure,low energy consumption,and high repeatability tailored for CNC tending scenarios.

　　Positioning Within the Elfin Series

　　Within the Elfin lineup,the E05L-Pro represents a refined evolution of the earlier E05L configuration.While both models target light payload applications,the Pro version emphasizes enhanced motion stability,improved structural rigidity,and optimized control performance for machining environments.

　　Compared to higher-payload Elfin models such as the E10 or E15,the E05L-Pro focuses on precision rather than lifting capacity.Its 3.5 kg payload is sufficient for most small machined components,aluminum parts,precision inserts,or tooling accessories.The advantage lies in its accuracy and compact footprint rather than raw torque.

　　This makes it particularly suitable for machine shops seeking a CNC tending cobot that integrates easily into existing cells without significant floor modifications.

　　Engineering Characteristics and Production Impact

　　Payload and Reach

　　The 3.5 kg payload is optimized for small to medium precision components.Combined with a 950 mm working radius,the robot can comfortably reach CNC doors,loading trays,inspection points,and adjacent worktables within a compact cell layout.

　　Repeatability and Motion Control

　　With±0.02 mm repeatability,the E05L-Pro delivers higher precision than many mid-range collaborative robots.In CNC tending,consistent part placement directly affects machining accuracy,tool wear,and process reliability.Stable positioning reduces misalignment risks and supports consistent production quality.

　　Weight and Power Efficiency

　　Weighing 26 kg and consuming approximately 180 W during operation,the robot is energy-efficient and easy to mount on worktables or mobile bases.This low power demand contributes to overall energy efficiency in smart manufacturing initiatives and allows deployment without significant electrical upgrades.

　　Operational Implications

　　In machining environments,reliability and stability often matter more than speed.The E05L-Pro’s structural balance and precise control reduce vibration transfer and ensure smooth repetitive motion,which is essential when operating alongside sensitive CNC equipment.

　　Typical Applications

　　CNC Machine Tending

　　Loading and unloading small precision parts,opening and closing machine doors,and transferring components to inspection stations.This is the primary scenario for a CNC tending cobot.

　　Precision Handling

　　Transferring delicate machined components,such as aluminum housings or precision shafts,where accurate positioning prevents scratches or deformation.

　　Secondary Operations

　　Supporting deburring,cleaning,labeling,or inspection steps following machining processes.

　　Electronics and Small Component Assembly

　　Due to its high repeatability,the E05L-Pro can also be used in electronics subassembly tasks where lightweight components require careful placement.

　　Flexible Small-Batch Production

　　In workshops producing varied part geometries,the robot can be reprogrammed quickly to accommodate different fixtures and loading patterns.

　　Integration with Automation Systems

　　The E05L-Pro supports standard PLC communication and can interface with CNC machine controllers through digital I/O or industrial communication protocols.This ensures synchronized door control,chuck release coordination,and process timing.

　　Vision systems can be integrated for part alignment verification,enhancing precision handling capability.When connected to MES platforms,the robot contributes to production traceability and real-time performance monitoring,aligning with broader industrial automation and factory modernization goals.

　　Because of its compact form and low power consumption,integration typically requires minimal mechanical reinforcement compared to heavier collaborative robots.

　　Long-Term Operational Considerations

　　For machining workshops,downtime directly affects profitability.The E05L-Pro’s simplified structure and moderate payload reduce mechanical stress on joints,contributing to long service intervals.Routine maintenance primarily involves joint inspection,lubrication checks,and verification of end-of-arm tooling.

　　Energy efficiency plays a practical role in long-term cost control.Operating at 180 W,the robot supports continuous shifts without significantly increasing facility energy demand.Over time,reduced manual loading labor and stable cycle times contribute to predictable operational costs.

　　Selection Guidance

　　Recommended For

　　CNC workshops handling small to medium precision parts under 3.5 kg

　　Factories seeking compact collaborative automation in limited floor space

　　Applications requiring high repeatability and consistent part placement

　　Production environments aiming to improve stability without large-scale system redesign

　　Not Recommended For

　　Applications exceeding 3.5 kg payload

　　Large components requiring extended reach beyond 950 mm

　　Heavy-duty palletizing or high-torque industrial tasks

　　Extremely high-speed machining cells where collaborative speed limits are restrictive

　　Comparison with Other Elfin Models

　　Compared to E05L:The E05L-Pro emphasizes improved control stability and refined performance for CNC tending applications.

　　Compared to E10 or E15:The Pro model prioritizes precision and compact deployment over payload capacity.It is designed specifically for precision handling rather than medium or heavy component transport.

　　Selecting the E05L-Pro makes sense when precision,energy efficiency,and compact integration are more critical than lifting heavier loads.

　　Conclusion

　　For machining workshops planning incremental automation upgrades,the HUAYAN Elfin E05L-Pro offers a focused solution for CNC tending and precision handling tasks.Its compact footprint,high repeatability,and low power consumption align well with smart manufacturing strategies aimed at improving production efficiency without expanding facility infrastructure.

　　Rather than oversizing automation equipment,the E05L-Pro enables targeted deployment in CNC cells where stability and consistency define long-term performance.

　　FAQ–HUAYAN Elfin E05L-Pro

　　Q1:What makes the E05L-Pro suitable for CNC tending?

　　A1:Its±0.02 mm repeatability,compact size,and 3.5 kg payload are optimized for precise loading and unloading of small machined parts,ensuring consistent placement and reduced alignment errors.

　　Q2:Can it integrate directly with CNC machine controllers?

　　A2:Yes.The robot supports PLC communication and digital I/O integration,enabling synchronized door operation,chuck control,and process timing.

　　Q3:How does the E05L-Pro differ from larger Elfin cobots?

　　A3:Larger models focus on higher payloads and extended reach.The E05L-Pro emphasizes compact deployment,energy efficiency,and precision handling for small components.

　　Q4:Is it suitable for high-mix production environments?

　　A4:Yes.Its flexible programming and compact footprint allow quick adaptation to different part geometries and fixtures in small-batch manufacturing.

　　Q5:What are the long-term maintenance considerations?

　　A5:Routine joint inspection and end-effector maintenance are typically sufficient.The moderate payload reduces mechanical stress,supporting long service life in machining environments.
