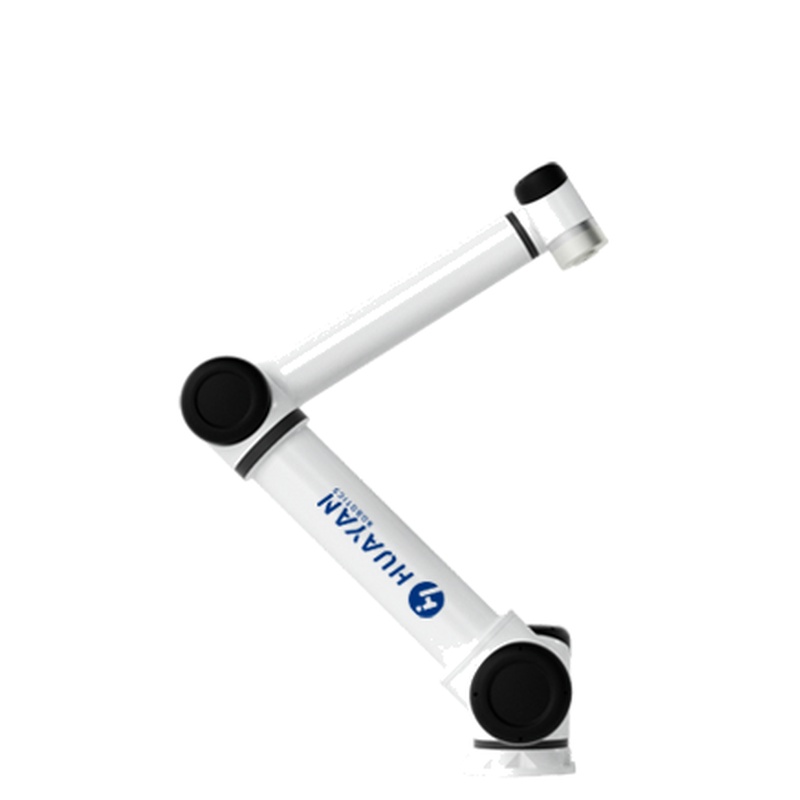

HUAYAN S40 Long Reach Robot for Automated Welding Cells

　　The HUAYAN S40 is a long reach robot designed for heavy industrial environments,particularly as an automated welding robot in medium-to-large fabrication cells.With a 40 kg payload and 1,800 mm working range,it supports extended-reach operations while maintaining±0.05 mm repeatability,making it suitable for structural welding,material handling,and multi-station industrial automation tasks.

　　In modern manufacturing,especially in metal fabrication and equipment production,welding cells are becoming larger and more complex.Workpieces are heavier,fixtures span wider areas,and consistency requirements are tighter than before.Manual welding introduces variability,while smaller robots may struggle with reach limitations or payload constraints.The S40 is positioned to address these realities by combining long reach capability with stable load handling.

　　Where the S40 Sits Within the S Series

　　Within HUAYAN’s S series heavy-duty robot lineup,the S40 represents a step beyond the S20 and S30 in payload capacity.

　　Compared with the S20,the S40 nearly doubles payload capacity,making it suitable for thicker materials,larger torches,and integrated tooling systems.

　　Compared with the S30,the S40 increases load handling to 40 kg while maintaining the same 1,800 mm reach class,enabling more robust welding fixtures or dual-purpose end-effectors without compromising structural stability.

　　This makes the S40 particularly relevant for manufacturers who have outgrown mid-range payload robots but do not yet require extremely large gantry systems or ultra-heavy robotic platforms.

　　Engineering Characteristics and Production Impact

　　Payload and Structural Strength

　　A 40 kg payload allows the S40 to support welding torches,seam tracking systems,and auxiliary sensors simultaneously.In automated welding robot applications,additional weight often comes from cable management systems and protective housings.The S40’s load capacity ensures stable motion even under such combined tooling configurations.

　　Extended Working Range

　　With a 1,800 mm reach,the robot can cover wide welding fixtures without repositioning.In structural steel fabrication or heavy frame assembly,reducing repositioning directly improves cycle time and lowers mechanical wear.

　　Six-Axis Flexibility and Repeatability

　　The 6-axis configuration enables multi-angle welding,complex seam access,and overhead positioning.A repeatability of±0.05 mm supports consistent weld bead placement,reducing rework and maintaining quality across high-volume production.

　　Weight and Stability

　　Weighing 89 kg,the S40 offers structural rigidity necessary for welding applications.In automated welding environments,vibration control is essential.The robot’s mass and joint design contribute to smoother arc motion and reduced oscillation during long weld paths.

　　Application Scenarios in Industrial Automation

　　Automated Welding Cells

　　The S40 is particularly suited for MIG,TIG,and arc welding in structural fabrication.Its reach allows coverage of large workpieces without external axes in many standard layouts.

　　Heavy Material Handling

　　Beyond welding,the 40 kg payload supports loading and unloading of metal components,positioning frames,and transferring semi-finished products between stations.

　　Multi-Station Fabrication Lines

　　In production environments where one robot services multiple fixtures,the 1,800 mm reach enables centralized installation,improving floor space utilization.

　　Equipment Manufacturing

　　For machinery frames,agricultural equipment,and industrial enclosures,the S40 provides sufficient torque and stability for thick material welding.

　　System Integration and Automation Compatibility

　　The S40 is designed for integration into industrial automation systems.It supports connection with PLC-controlled production lines and can synchronize with welding power sources and seam tracking systems.

　　When deployed as an automated welding robot,integration with vision systems enhances weld seam recognition and positional correction.MES connectivity enables traceability of welding parameters,arc time,and production output,supporting factory modernization strategies and quality documentation.

　　Unlike collaborative robots in the Elfin series,the S40 is intended for fenced industrial environments.This allows higher welding power levels and continuous duty cycles without collaborative safety limitations.

　　Investment Perspective and Long-Term Operation

　　From a cost perspective,selecting a robot with appropriate payload capacity is critical.Under-sizing leads to instability and accelerated wear,while oversizing increases energy consumption and capital expense.

　　The S40 provides a balanced approach for manufacturers operating in the 30–40 kg tooling range.Its structure is designed for high-cycle industrial welding applications,reducing recalibration frequency and ensuring consistent arc paths over time.

　　Because welding applications often run in multi-shift operations,structural durability and repeatable motion directly influence production efficiency.The S40’s mechanical stability contributes to reduced downtime and predictable maintenance scheduling.

　　Selection Guidance

　　Recommended For:

　　Fabrication companies welding medium-to-large steel structures

　　Manufacturers requiring 40 kg payload capacity with 1,800 mm reach

　　Automated welding cells with integrated seam tracking systems

　　Multi-station welding setups requiring extended working envelopes

　　Not Recommended For:

　　Light assembly or collaborative environments

　　Payload requirements below 20 kg where smaller S-series models are sufficient

　　Ultra-heavy welding tasks exceeding 40 kg tooling and fixture loads

　　Comparison Within the S Series:

　　S20:Suitable for lighter welding tasks and smaller fixtures

　　S30:Balanced solution for moderate welding applications

　　S40:Designed for heavier torches,larger fixtures,and higher-duty welding cycles

　　The S40 stands out when welding tool weight and structural size increase beyond mid-range requirements but do not justify extremely large robotic systems.

　　Conclusion

　　For manufacturers planning to scale welding automation,the HUAYAN S40 offers a practical long reach robot solution with the strength required for heavy-duty automated welding robot applications.Its 40 kg payload and 1,800 mm working range allow stable operation across extended fixtures,while maintaining repeatable weld precision.

　　In industrial automation environments where welding consistency,structural stability,and production efficiency are priorities,the S40 provides a focused solution without unnecessary system complexity.

　　FAQ–HUAYAN S40

　　Q1:What welding processes can the S40 support?

　　A1:The S40 is suitable for MIG,TIG,and arc welding processes,particularly in medium-to-large fabrication cells requiring extended reach and stable torch handling.

　　Q2:How does the S40 compare to the S30 model?

　　A2:The S40 increases payload to 40 kg while maintaining long reach capability.It is more suitable for heavier tooling and thicker material welding than the S30.

　　Q3:Is the S40 suitable for collaborative welding environments?

　　A3:No.The S40 is designed for industrial,fenced robotic cells rather than collaborative operation alongside human workers.

　　Q4:Can the S40 integrate with seam tracking or vision systems?

　　A4:Yes.It can integrate with seam tracking systems,vision guidance,and PLC-controlled welding power sources to improve weld consistency and traceability.

　　Q5:What factors should be considered before selecting the S40?

　　A5:Manufacturers should evaluate tooling weight,fixture size,welding duty cycle,and cell layout.If total load approaches 40 kg and extended reach is required,the S40 becomes a suitable option.

　　Q6:Is the 1,800 mm reach sufficient for large fabrication frames?

　　A6:For many medium-to-large structural components,1,800 mm allows coverage without repositioning.Extremely large frames may require additional external axes or gantry systems.
