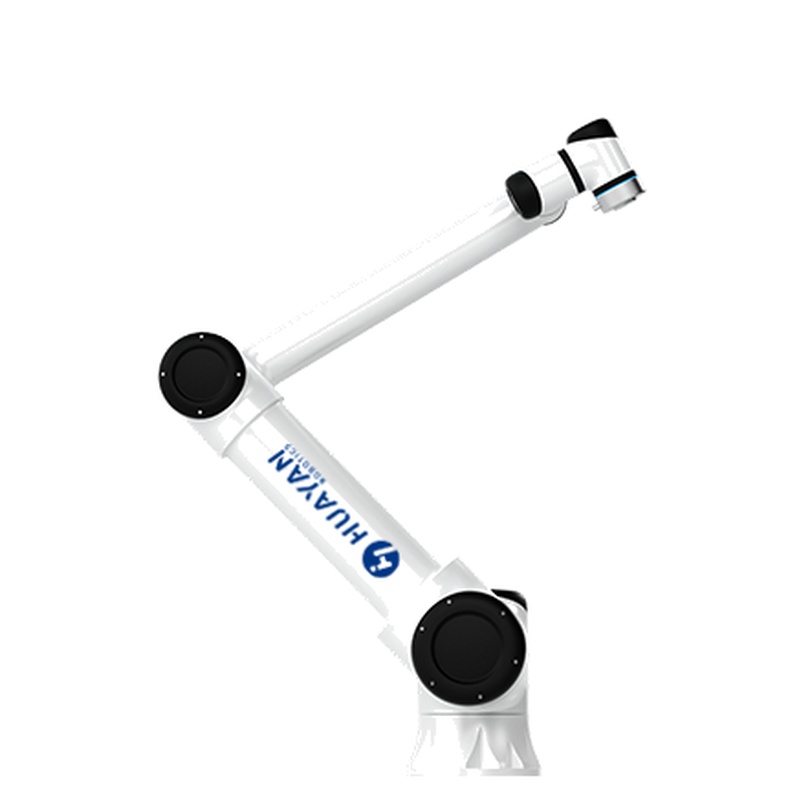

The HUAYAN S50 is an industrial loading robot designed for heavy-duty applications,supporting industrial loading robot and CNC tending robot tasks.With a 50 kg payload and a 2,000 mm working range,it allows manufacturers to automate material handling and machine tending processes for large components while maintaining±0.1 mm repeatability,ideal for factory modernization and production line efficiency.
Addressing Heavy-Duty Factory Challenges
In modern industrial production,large components and high-volume machining present unique challenges.Manual handling of heavy parts increases labor costs,risk of damage,and potential production delays.CNC machines require precise and reliable material feeding,while large assembly or handling operations demand robots capable of sustaining high payloads over extended reach without sacrificing stability or safety.
The S50 addresses these challenges by combining high payload capacity,long reach,and stable precision,making it suitable for machine tending,palletizing,loading/unloading large workpieces,and other heavy-duty material handling operations.
Positioning the S50 within the S-Series
The S50 is positioned at the high end of HUAYAN’s S-series.Compared with the S30 and S40 models,the S50 increases payload to 50 kg and extends the working radius to 2,000 mm,allowing it to handle larger,heavier components and operate across wider work envelopes.
While smaller S-series models are optimized for compact cell loading or moderate payload applications,the S50 targets production environments requiring long-reach,high-capacity robotic solutions.Its increased size(165 kg)and structural reinforcement support heavier workloads while maintaining repeatable precision suitable for CNC tending and industrial automation.
Technical Capabilities and Production Impact
Payload and Reach:50 kg payload and 2,000 mm working range enable large-scale material handling,machine feeding,and assembly of heavy components.
Degrees of Freedom and Repeatability:Six-axis design with±0.1 mm repeatability ensures reliable operation in CNC tending,palletizing,and industrial loading applications.
Weight and Structural Stability:At 165 kg,the S50 provides a stable base to support heavy loads without excessive vibration,protecting both robot and workpieces.
Engineering Implications:The combination of high payload,long reach,and robust design reduces operator fatigue,enhances production throughput,and ensures safer handling of heavy or bulky materials in automated factory setups.
Typical Applications
CNC Machine Tending:Automatic loading and unloading of CNC machines with consistent precision,reducing manual labor and cycle time.
Industrial Loading:Handling large or heavy components across production lines,including raw material supply and finished product transfer.
Palletizing and Depalletizing:Repetitive stacking and unstacking of heavy parts with minimal human intervention.
Assembly of Large Components:Assisting in modular assembly operations where heavier modules exceed the capacity of smaller collaborative robots.
Flexible Heavy-Duty Production Lines:Supports factories with large-format workpieces or extended reach requirements,allowing for semi-flexible layouts.
System Integration and Compatibility
The S50 integrates with PLC systems and can be synchronized with CNC machines,vision systems,and MES platforms.Its high payload and long reach require careful installation and programming,but once integrated,it enhances throughput,repeatability,and production line stability without compromising operator safety.
Long-Term Investment and Stability
With a reinforced 165 kg structure,the S50 is designed for continuous operation in heavy-duty production lines.Maintenance focuses on joint lubrication,cabling,and actuator inspection.Its durability,precision,and load capacity allow manufacturers to plan long-term automation upgrades while minimizing downtime and labor costs.
Selecting the Right Robot
Recommended For:
Factories requiring automation of heavy components up to 50 kg.
CNC machine tending,palletizing,and material handling applications.
Production lines needing long reach(2,000 mm)and repeatable precision.
Not Recommended For:
Tasks exceeding 50 kg payload.
Ultra-compact production cells where 165 kg robot footprint is impractical.
High-speed,ultra-precision machining requiring<±0.05 mm repeatability.
Comparison with Other S-Series Models:
S30:Payload~30 kg,shorter reach,suited for compact loading or moderate parts.
S40:Payload~40 kg,medium reach,for moderate-to-heavy applications.
S50:Maximum S-series payload and reach,ideal for large,heavy-duty components in extended production lines.
Conclusion
The HUAYAN S50 provides a high-capacity solution for industrial loading and CNC tending tasks,enabling factories to automate heavy material handling and machine feeding processes safely and efficiently.Its combination of long reach,high payload,and stable precision makes it suitable for large-scale production,palletizing,and assembly operations,supporting factory modernization and industrial automation initiatives.
FAQ–HUAYAN S50
Q1:What tasks are ideal for the S50?
A1:The S50 is best for heavy-duty CNC machine tending,palletizing,material handling,and assembly of components up to 50 kg over a 2,000 mm reach.
Q2:How does the S50 integrate with CNC and PLC systems?
A2:It supports standard PLC protocols and can synchronize with CNC machines and MES systems.Proper installation and programming ensure safe,efficient operation.
Q3:What maintenance is required?
A3:Routine inspection of joints,cabling,and actuators is recommended.Its reinforced structure supports high-cycle heavy-duty operation with minimal maintenance.
Q4:How does the S50 differ from S30 and S40 models?
A4:S50 offers the highest payload(50 kg)and longest reach(2,000 mm),suitable for larger components and extended production lines.S30/S40 handle smaller loads and shorter distances.
Q5:Can it handle large-scale palletizing or assembly?
A5:Yes,the S50’s payload and stability make it suitable for repetitive heavy palletizing and assembly tasks where smaller robots are insufficient.
Q6:Is it suitable for factories with space constraints?
A6:The S50 is 165 kg with a long reach,so it requires sufficient floor space.Smaller S-series models may be preferable in compact layouts
