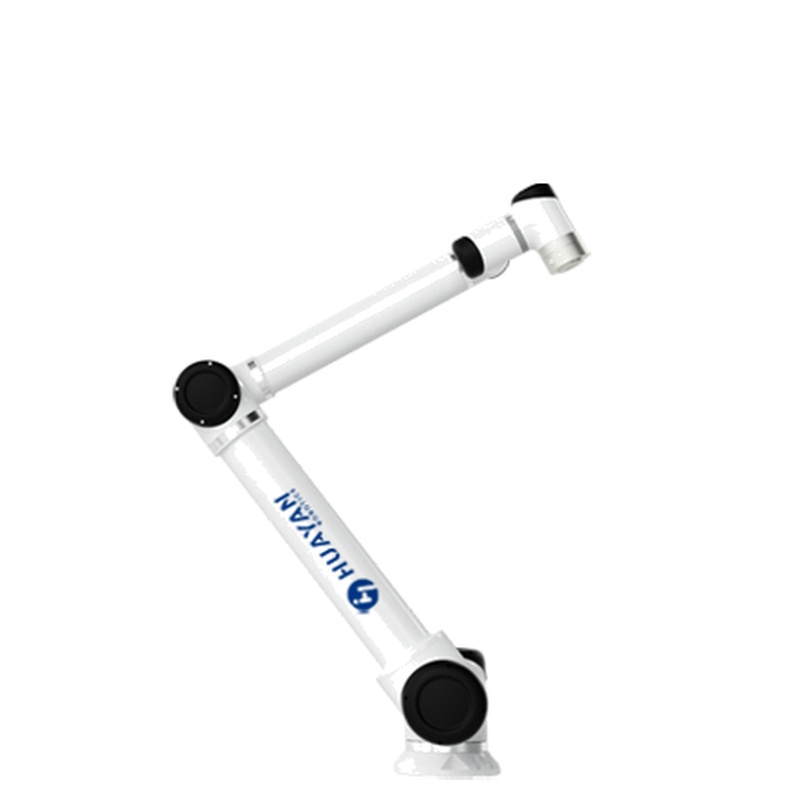

HUAYAN S20 Palletizing Robot Arm for Heavy Duty Applications

　　The HUAYAN S20 is a heavy duty robot engineered for palletizing robot arm applications in industrial automation environments.Designed to handle loads up to 20 kg with a 1,700 mm working range,it supports stable,repeatable motion in production lines where weight,reach,and reliability are critical.

　　Unlike collaborative Elfin series robots previously discussed,the S20 belongs to the S series large-payload category.Its structure,torque output,and motion stability are oriented toward industrial handling,palletizing,and end-of-line automation rather than close human-robot collaboration.This distinction is important when planning factory modernization projects that require higher payload capacity and sustained cycle performance.

　　Production Line Pressures Driving Heavy Duty Automation

　　In many factories,the final stages of production create the most physical strain.Carton stacking,material transfer,and pallet building are repetitive,weight-bearing tasks.Manual palletizing increases injury risk and leads to inconsistent stacking quality,particularly during long shifts.

　　At the same time,manufacturers are expected to maintain higher throughput while controlling labor costs and ensuring consistent packaging standards.When boxes are stacked unevenly or pallets are misaligned,logistics efficiency suffers.These operational realities explain why heavy duty robots have become central to end-of-line automation strategies.

　　The S20 addresses these pressures by combining moderate heavy payload capacity with extended reach and consistent repeatability,allowing factories to standardize palletizing processes without overinvesting in oversized industrial systems.

　　Positioning the S20 within the HUAYAN S Series

　　The S20 is positioned as a mid-capacity heavy duty robot within the HUAYAN S series.With a 20 kg payload and 1,700 mm working range,it targets applications that exceed the capabilities of collaborative robots but do not require extremely high-capacity palletizing systems.

　　Compared with lighter cobots such as the Elfin E15(15 kg payload),the S20 offers higher structural rigidity and industrial-grade motion control suitable for continuous-duty operation.At the same time,it avoids the excessive footprint and power demands of ultra-heavy palletizing robots designed for loads far beyond 20 kg.

　　This positioning makes the S20 particularly suitable for medium-scale palletizing lines,packaging automation cells,and material transfer stations where reliability and stability are more critical than human collaboration.

　　Engineering Characteristics and Practical Impact

　　Payload and Working Range

　　The 20 kg payload enables the S20 to handle cartons,packaged goods,and medium-weight industrial components.The 1,700 mm reach supports multi-layer pallet stacking without repositioning the base,improving cycle efficiency and reducing mechanical complexity in cell design.

　　Degrees of Freedom and Repeatability

　　With six axes and±0.05 mm repeatability,the S20 delivers stable trajectory control across repetitive palletizing cycles.In pallet stacking,absolute micron-level precision is less critical than consistent path control and stable layer alignment.The S20’s repeatability ensures that box placement remains uniform across extended production runs.

　　Structural Weight and Stability

　　At 64 kg,the robot balances rigidity and installation flexibility.It is heavy enough to maintain stability under 20 kg dynamic loads while remaining manageable for installation within standard industrial cells.Proper mounting and anchoring ensure minimal vibration during high-cycle operation.

　　Operational Implications

　　In real production environments,these characteristics translate into:

　　Consistent pallet layer formation

　　Reduced product damage

　　Stable cycle times

　　Lower dependency on manual handling

　　This contributes directly to improved production efficiency and safer working conditions.

　　Application Scenarios in Industrial Automation

　　End-of-Line Palletizing

　　As a palletizing robot arm,the S20 is well suited for stacking cartons,bags,or packaged goods onto pallets in logistics and manufacturing environments.Its reach supports multiple pallet positions within a single working envelope.

　　Material Transfer Between Stations

　　The robot can move medium-weight components between conveyors or processing stations,particularly where fixed automation lacks flexibility.

　　Packaging Automation Cells

　　In packaging lines,the S20 handles grouped products or bundled units prior to pallet loading,maintaining alignment and layer consistency.

　　Warehouse Preparation Zones

　　In distribution centers connected to production lines,the S20 can assist in preparing outbound pallets,ensuring uniform stacking and improved transport stability.

　　Unlike collaborative cobots used for delicate assembly,the S20 is optimized for strength,durability,and repetitive industrial motion.

　　System Integration and Control Compatibility

　　The S20 integrates with standard industrial PLC systems,enabling synchronization with conveyors,sensors,and packaging machines.For palletizing operations,communication between the robot controller and upstream equipment ensures accurate timing and coordinated movement.

　　Vision systems can be integrated for carton orientation detection,enhancing stacking precision.In more advanced factory environments,connection to MES platforms allows monitoring of throughput,pallet counts,and downtime events,supporting smart manufacturing objectives.

　　Because palletizing cells often operate at the end of the line,integration planning should include safety fencing,interlocks,and coordinated conveyor control to maintain compliance with industrial safety standards.

　　Long-Term Performance and Operational Considerations

　　Heavy duty robots are typically evaluated based on durability,uptime,and cost efficiency rather than fine assembly precision.The S20’s structural rigidity and moderate payload range make it suitable for continuous multi-shift operation.

　　Routine maintenance focuses on joint lubrication,inspection of mechanical fasteners,and periodic calibration.Compared to larger industrial robots,the S20’s moderate size simplifies maintenance access and reduces service downtime.

　　From an investment perspective,automating palletizing tasks with a heavy duty robot reduces labor dependency and stabilizes output.Over time,improved stacking consistency can also reduce product damage during transportation,contributing to indirect cost savings.

　　Selection Guidance for Engineering Teams

　　Recommended for:

　　Factories palletizing cartons or packages up to 20 kg

　　End-of-line automation upgrades replacing manual stacking

　　Medium-scale logistics and packaging operations

　　Production lines requiring stable,repetitive heavy handling

　　Not recommended for:

　　Ultra-heavy loads exceeding 20 kg

　　Fine micro-assembly tasks requiring sub-0.03 mm precision

　　Close human-robot collaboration without protective measures

　　Comparison with Collaborative Models

　　Compared to the Elfin series cobots,the S20 provides greater payload capacity and industrial rigidity but is less focused on collaborative safety.It is designed for fenced industrial cells rather than shared human workspaces.

　　Engineering teams choosing between a collaborative robot and a heavy duty robot should evaluate whether the task prioritizes human interaction and flexibility or strength and cycle durability.For palletizing automation,the S20 is typically the more appropriate choice.

　　Conclusion

　　The HUAYAN S20 offers a balanced solution for factories seeking a heavy duty robot capable of reliable palletizing robot arm performance.With 20 kg payload capacity,1,700 mm reach,and stable repeatability,it supports end-of-line automation,packaging consistency,and improved production efficiency.

　　For manufacturers modernizing their industrial automation systems,the S20 provides a practical path toward safer,more consistent palletizing operations without the complexity of oversized heavy industrial platforms.

　　FAQ–HUAYAN S20

　　Q1:What types of products can the S20 palletize?

　　A1:The S20 is suitable for cartons,packaged goods,bags,and medium-weight industrial components up to 20 kg,commonly found in packaging and logistics lines.

　　Q2:Is the S20 designed for collaborative operation?

　　A2:No.The S20 is a heavy duty robot intended for industrial cells with appropriate safety measures such as fencing or light curtains.

　　Q3:How does the S20 integrate with conveyor systems?

　　A3:It connects through standard PLC communication,enabling synchronized movement with upstream and downstream conveyors for consistent palletizing cycles.

　　Q4:What maintenance is typically required?

　　A4:Routine inspection of joints,lubrication,and mechanical fastening checks are recommended.Its moderate size simplifies access compared to larger heavy industrial robots.

　　Q5:Can the S20 support smart manufacturing systems?

　　A5:Yes.Integration with MES and monitoring platforms allows tracking of pallet counts,uptime,and production efficiency metrics within factory modernization initiatives.
