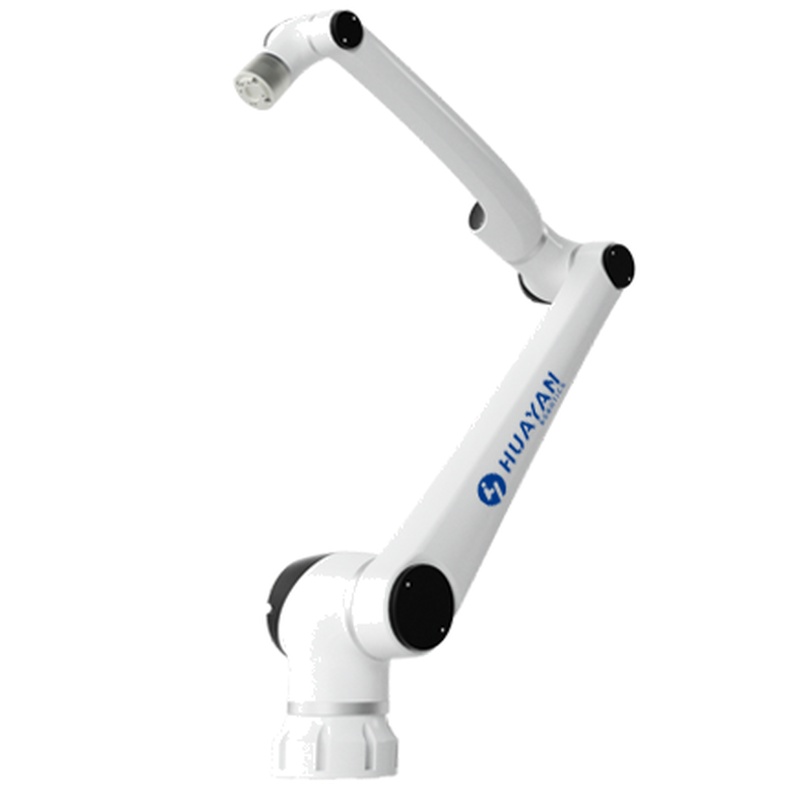

The HUAYAN Elfin-Ex E15F is designed as one of the specialized robots for ATEX zones,supporting safe and stable deployment of robots in chemical industry environments.With a 15 kg payload,1,300 mm reach,and±0.05 mm repeatability,it addresses the operational demands of hazardous-area production while maintaining collaborative flexibility.
In chemical plants,automation decisions are not driven by speed alone.They are driven by compliance,ignition risk mitigation,process stability,and long-term operational governance.The E15F is engineered within that framework.
Automation in ATEX Zones:Beyond Standard Robotics
ATEX-classified zones impose strict constraints on equipment selection.Electrical sparks,excessive surface temperatures,static discharge,and inadequate sealing can create ignition risks in atmospheres containing flammable gases or combustible dust.
Traditional industrial robots often require heavy isolation,reinforced cages,and complex safety enclosures.In chemical production facilities,space is limited and reconfiguration is costly.Fully isolated robotic cells can disrupt existing layouts and complicate maintenance.
Deploying robots for ATEX zones requires a different strategy:
Controlled electrical design
Reinforced sealing and enclosure protection
Stable grounding and thermal management
Compatibility with hazardous-zone regulations
The Elfin-Ex E15F is built around these principles while maintaining the operational flexibility associated with collaborative robots.
Positioning Within the Elfin-Ex Series
Within the Elfin-Ex explosion-proof portfolio,the E15F occupies a distinct position.Compared with the E12F model,the E15F increases payload capacity to 15 kg while reducing reach to 1,300 mm.This shift reflects a different deployment philosophy.
The E12F favors extended coverage across larger hazardous cells.The E15F focuses on heavier tool handling and denser production stations where reach is secondary to payload stability.
Its 60 kg body weight reflects structural reinforcement while remaining manageable for integration into compact chemical processing modules.
This differentiation is important:in ATEX environments,oversizing reach or payload unnecessarily increases installation complexity.The E15F is optimized for medium-reach,heavier-task hazardous automation.
Engineering Characteristics in Hazardous Context
Payload and Tooling Stability
A 15 kg payload allows safe handling of:
Chemical container transfer
Valve actuation tools
Pump components
Shielded grippers and insulated end-effectors
In chemical plants,tooling often includes protective casings that add weight.The E15F provides sufficient payload margin without resorting to heavy industrial robotic platforms.
Controlled Reach in Dense Layouts
With a 1,300 mm working radius,the E15F suits production islands where equipment is tightly arranged.In many chemical processing units,piping systems and safety spacing limit available movement corridors.A moderate reach reduces interference risk and simplifies programming.
Repeatability and Process Integrity
The±0.05 mm repeatability ensures consistent positioning during repetitive operations such as:
Filling assistance
Cap tightening
Component alignment
Sampling procedures
In chemical environments,small deviations can affect dosing accuracy or sealing performance.Precision contributes directly to product quality and regulatory consistency.
Application in Chemical Industry Operations
Drum and Container Handling
Manual handling of chemical drums increases worker exposure.Deploying robots in chemical industry settings reduces repetitive strain and limits human presence in classified zones.
Valve Operation and Pump Assistance
In process lines requiring periodic manual valve adjustments,the E15F can automate routine operations while maintaining compliance with hazardous-area standards.
Solvent Packaging Lines
Packaging solvent-based products demands explosion protection.A collaborative robot configured for ATEX zones supports controlled placement and repetitive alignment tasks.
Hazardous Sampling Tasks
Sample retrieval and transfer in volatile atmospheres can be automated,reducing operator risk while maintaining traceability.
Integration with Industrial Automation Systems
Compliance does not eliminate the need for connectivity.The E15F supports integration with PLC-based industrial automation systems commonly used in chemical facilities.
Through system integration,operators can monitor:
Robot operational status
Task scheduling
Maintenance intervals
Process synchronization
In advanced facilities implementing smart manufacturing principles,linking hazardous-area robotics to centralized monitoring improves transparency and audit readiness.
Unlike traditional isolated industrial robots,the collaborative architecture allows structured human interaction when permitted by safety assessments,improving maintenance flexibility.
Risk Management and Lifecycle Economics
In ATEX environments,automation must be evaluated within a broader risk management model.
Benefits of deploying specialized robots for ATEX zones include:
Reduced worker exposure to volatile substances
Lower probability of human error during repetitive operations
Improved process consistency
Potential reduction in insurance and compliance risk over time
While explosion-proof systems may involve higher upfront investment compared to standard collaborative robots,lifecycle economics often favor structured automation in hazardous zones.
The E15F’s reinforced design and stable mechanical architecture support long-term operation under controlled maintenance schedules aligned with chemical industry standards.
Selecting the Elfin-Ex E15F
Recommended For
Chemical plants operating in ATEX-classified zones
Tasks requiring up to 15 kg payload
Dense production layouts with moderate reach requirements
Facilities seeking gradual automation upgrades in hazardous environments
Not Recommended For
Non-classified general industrial assembly lines
Tasks exceeding 15 kg payload
Long-span operations requiring 1,800 mm reach
Comparison Within Explosion-Proof Models
E12F:Longer reach(1,800 mm),moderate payload(12 kg),suitable for larger hazardous cells.
E15F:Higher payload(15 kg),shorter reach(1,300 mm),optimized for heavier tasks in compact layouts.
This distinction allows engineering teams to align robot selection with spatial configuration and task weight rather than defaulting to maximum specifications.
Conclusion
The HUAYAN Elfin-Ex E15F is engineered for deployment as one of the reliable robots for ATEX zones,particularly suited for robots in chemical industry applications requiring moderate reach and higher payload stability.Its balance of 15 kg handling capacity,controlled working radius,and consistent repeatability supports structured hazardous-area automation without resorting to oversized industrial platforms.
For chemical manufacturers seeking safer,compliance-aligned automation upgrades,the E15F provides a technically focused solution aligned with regulatory and operational realities.
FAQ–HUAYAN Elfin-Ex E15F
Q1:What are ATEX zones and why do they require specialized robots?
A1:ATEX zones are classified hazardous areas where explosive atmospheres may occur.Equipment deployed in these zones must minimize ignition risk through controlled electrical and structural design.
Q2:How does the E15F differ from standard collaborative robots?
A2:The E15F incorporates explosion-protection design principles,including reinforced enclosures and controlled electrical systems,making it suitable for hazardous chemical environments.
Q3:Why choose a 15 kg payload in chemical facilities?
A3:Chemical processes often involve shielded tools and container handling.A 15 kg capacity provides adequate margin for safe and stable operation without oversizing the system.
Q4:Can the E15F integrate with existing plant control systems?
A4:Yes.It supports PLC-based integration and can be incorporated into broader industrial automation frameworks for monitoring and coordination.
Q5:Is maintenance more complex in ATEX zones?
A5:Maintenance must follow hazardous-area protocols,including grounding verification and sealing inspection,but routine service intervals are comparable to other collaborative robotic systems when properly installed.
Q6:How should engineers decide between E12F and E15F?
A6:Selection depends on spatial layout and payload needs.Choose E12F for extended reach across larger hazardous cells,and E15F for heavier tools in more compact process areas.
