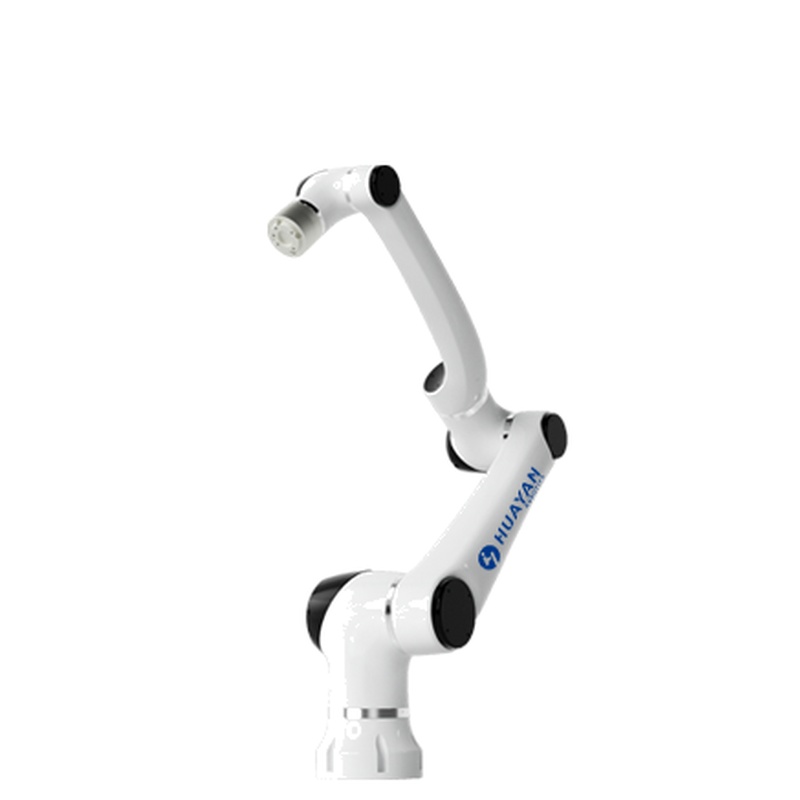

The HUAYAN Elfin-Ex E10F-L is an ATEX certified robot engineered for hazardous industrial zones,particularly as an oil and gas robot deployed in explosive atmospheres.Designed to operate safely in environments with flammable gases or vapors,it combines collaborative automation capability with certified explosion protection,supporting reliable operations in high-risk industrial facilities.
In oil and gas production sites,refineries,chemical processing plants,and fuel storage facilities,automation requirements differ significantly from standard manufacturing lines.Equipment must not only deliver precision and repeatability but also comply with strict safety classifications.Ignition risk,static discharge,and temperature control become primary engineering considerations.Under such conditions,selecting robotics is less about speed and more about compliance,reliability,and controlled performance.
The Elfin-Ex E10F-L addresses these operational realities by integrating explosion-proof design principles with collaborative robotic flexibility.
Understanding the Operational Context in Oil and Gas Facilities
Unlike electronics or automotive assembly plants,oil and gas facilities operate in environments classified by hazardous zones.The presence of volatile gases means every electrical component,motor,and cable must be evaluated for ignition risk.
Maintenance tasks such as valve operation,sample handling,inspection positioning,and light material transfer are often still performed manually in these zones.Manual intervention increases safety exposure and operational downtime.Traditional industrial robots,while powerful,are often unsuitable due to enclosure requirements,safety fencing,or lack of explosion certification.
An ATEX certified collaborative robot changes this dynamic.By combining certified protection with controlled torque and force monitoring,it enables safer automation deployment closer to human operators and sensitive equipment.
Positioning Within the Elfin-Ex Series
Within the HUAYAN Elfin-Ex explosion-proof series,the E10F-L occupies a specialized position.Compared to shorter-reach explosion-proof variants,the 1,300 mm working radius provides extended coverage across equipment clusters or inspection points without relocating the base.
With an 8 kg payload,it is optimized for tool handling,sensor positioning,inspection devices,or moderate-weight components commonly encountered in oil and gas operations.It is not designed for heavy mechanical lifting but instead for controlled precision tasks in classified environments.
The±0.03 mm repeatability places it among the higher-precision models within the explosion-proof collaborative segment.In hazardous zones,precision directly affects safety.Misalignment during inspection or tool positioning can result in repeated intervention,increasing exposure time.The E10F-L reduces that risk through consistent positioning accuracy.
Engineering Capabilities and Practical Impact
Payload and Reach
The 8 kg payload is suited for inspection probes,torque tools,sensor arrays,or handling mid-sized components.The 1,300 mm reach allows access to valves,flanges,and instrumentation panels spread across wider operational areas.
In oil and gas sites,reach often determines whether a robot can service multiple points from a single mounting position.The E10F-L minimizes relocation requirements,improving production efficiency.
Six-Axis Articulation
Six degrees of freedom allow complex orientation adjustments around pipelines,tanks,and irregular structures.Hazardous facilities rarely offer open,obstacle-free layouts.The ability to maneuver within constrained spaces improves deployment flexibility.
Repeatability and Stability
With±0.03 mm repeatability,the robot supports precision positioning tasks such as sensor calibration,valve torque application,and inspection imaging alignment.High repeatability reduces error accumulation across repetitive maintenance cycles.
Structural Weight and Mounting
At 45 kg,the robot maintains structural stability while remaining manageable for installation on reinforced platforms or industrial frames.Compared to heavier explosion-proof robots,this reduces structural reinforcement costs during factory modernization.
Typical Applications in Hazardous Zones
Valve Operation and Monitoring
Robotic manipulation of valves in classified areas reduces direct human exposure.The E10F-L provides stable torque application with repeatable motion control.
Inspection and Sensor Handling
In oil refineries and gas processing facilities,frequent inspection of joints,weld seams,and instrumentation is required.The robot can position inspection cameras or ultrasonic probes consistently.
Sample Handling
Chemical and petroleum sampling often occurs in controlled but hazardous environments.The collaborative robot ensures repeatable movement and reduces manual handling risk.
Light Assembly and Maintenance Tasks
Explosion-proof collaborative robots can support gasket replacement positioning,component alignment,or tool delivery within hazardous cells.
Flexible Automation in Classified Zones
Unlike large industrial robot cells,the E10F-L can operate in closer proximity to personnel under collaborative frameworks,improving adaptability in evolving oil and gas workflows.
Integration with Industrial Systems
The Elfin-Ex E10F-L is compatible with industrial PLC systems and supports integration with monitoring platforms commonly used in oil and gas automation.In hazardous environments,communication reliability is critical.The robot can interface with supervisory control systems,allowing centralized monitoring of robotic activity.
Integration with inspection software and data collection systems supports traceability and digital maintenance documentation.In facilities undergoing gradual digital transformation,this aligns with broader industrial automation strategies without requiring complete system overhauls.
Long-Term Operational Considerations
Deploying robotics in explosive environments requires long-term planning.Maintenance schedules must account for enclosure integrity,sealing inspections,and certified component verification.
The E10F-L’s moderate power requirements and collaborative design help manage operational costs.Compared to heavy industrial robots,it reduces energy consumption while delivering sufficient capability for inspection and handling tasks.
From a risk management perspective,reducing human exposure in hazardous zones has measurable safety and insurance implications.Over time,this can offset the investment in certified automation systems.
Selection Guidance
Recommended For
Oil and gas facilities requiring certified robotic solutions in explosive atmospheres
Hazardous zones where inspection,monitoring,or light handling tasks are repetitive
Sites seeking to reduce human exposure without installing large industrial robot cells
Not Recommended For
Heavy lifting tasks exceeding 8 kg
Ultra-high-speed production lines requiring cycle-time optimization above safety considerations
Non-classified environments where explosion protection is unnecessary and adds cost
Comparison with Other Elfin-Ex Models
Shorter-reach models are suitable for compact hazardous stations
Higher-payload explosion-proof models address heavier components but may require reinforced structures
The E10F-L balances precision,reach,and certified safety for medium-scale hazardous operations
Conclusion
The HUAYAN Elfin-Ex E10F-L provides a focused solution for hazardous industrial environments where safety certification and precision are equally important.As an ATEX certified robot tailored for oil and gas facilities,it supports inspection,valve handling,and light maintenance tasks with controlled repeatability and collaborative flexibility.
For facilities planning gradual automation upgrades in classified zones,the E10F-L enables safer deployment without transitioning to large-scale industrial robotic cells.Its balance of reach,payload,and precision makes it a practical addition to hazardous site automation strategies.
FAQ–HUAYAN Elfin-Ex E10F-L
Q1:What does ATEX certification mean for this robot?
ATEX certification indicates the robot is approved for operation in explosive atmospheres where flammable gases or vapors may be present.It ensures electrical and mechanical components meet safety requirements to minimize ignition risks.
Q2:Is the E10F-L suitable for continuous operation in oil refineries?
Yes.It is designed for stable operation in classified zones,provided maintenance schedules follow certified inspection procedures.
Q3:What types of tools can it handle within its 8 kg payload?
It can handle inspection cameras,ultrasonic probes,torque tools,sampling devices,and moderate-weight components commonly used in oil and gas maintenance.
Q4:How does it differ from standard collaborative robots?
Unlike standard cobots,the E10F-L incorporates explosion-proof design and certified components suitable for hazardous zones.Standard collaborative robots are not approved for such environments.
Q5:Does deploying this robot reduce safety risks?
Yes.By automating repetitive or hazardous tasks,it reduces human exposure to explosive atmospheres and potentially lowers operational risk levels.
Q6:Is it appropriate for non-hazardous factories?
Technically yes,but explosion-proof certification adds cost.In non-classified environments,a standard collaborative robot may be more economical.
