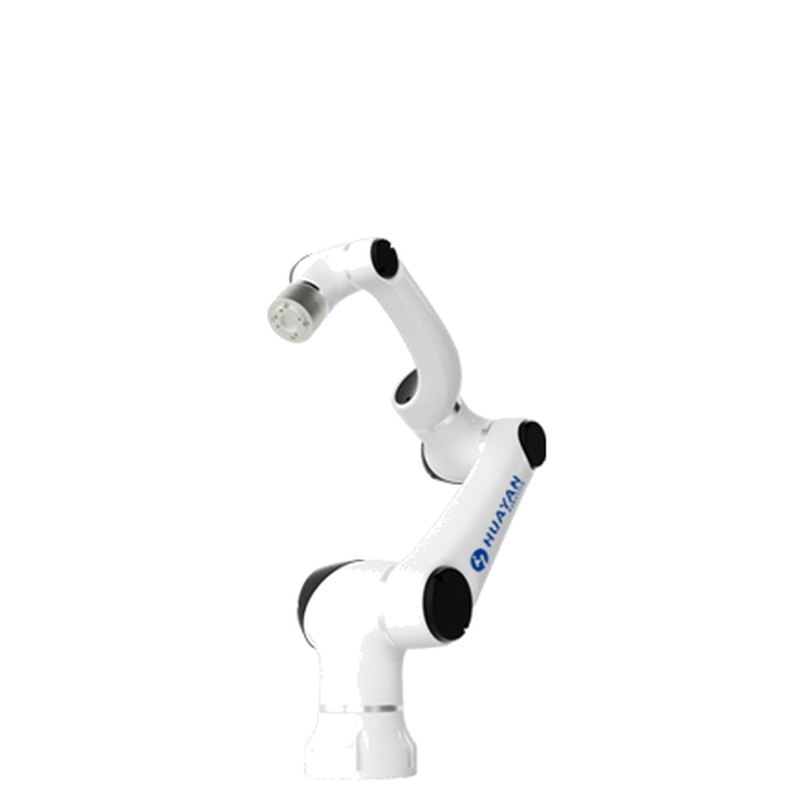

The HUAYAN Elfin-Ex E10F is an explosion proof cobot engineered for hazardous industrial environments,supporting explosion proof cobot and ATEX robot applications where safety,precision,and collaborative operation must coexist.Designed for factories operating in flammable gas or dust atmospheres,the E10F enables precision automation without compromising compliance or operational reliability.
Automation Challenges in Hazardous Zones
Industries such as chemical processing,pharmaceuticals,oil and gas component manufacturing,and specialized coating operations often operate in environments where explosive gases or combustible dust may be present.In these areas,traditional industrial robots require strict isolation,heavy protective enclosures,or may not be suitable at all.
At the same time,manufacturers in hazardous zones face the same pressures as standard factories:rising labor costs,increasing quality requirements,and the need for stable production efficiency.Manual handling in explosive environments introduces both safety risks and variability in output.The challenge is clear:how to introduce collaborative automation into regulated zones without adding complexity or compromising compliance.
The Elfin-Ex E10F addresses this gap by combining collaborative robotic design with explosion-proof engineering principles,allowing safe deployment in certified hazardous areas while maintaining the flexibility expected from modern industrial automation systems.
Positioning the Elfin-Ex E10F in the Series
Within the Elfin-Ex explosion-proof series,the E10F occupies the mid-range payload category.With a 10 kg payload and 1,000 mm working radius,it is suited for precision handling and assembly tasks in controlled hazardous zones.
Compared to smaller explosion-proof variants designed for light tooling,the E10F provides stronger torque capacity for moderate-weight components.Compared to larger heavy-duty explosion-proof robots,it maintains a more compact footprint and lower structural demand,making it suitable for retrofit projects and factory modernization initiatives in limited spaces.
Its±0.03 mm repeatability positions it toward precision-oriented hazardous applications rather than heavy material transfer.This makes it particularly suitable for tasks where controlled movement and repeatable accuracy are more critical than maximum load capacity.
Engineering Design and Operational Impact
Payload and Reach
The 10 kg payload allows handling of valves,small pump components,sealed containers,and mid-sized assemblies commonly found in chemical and pharmaceutical production lines.The 1,000 mm reach supports workstation-level integration without requiring extensive layout redesign.
Six Degrees of Freedom and Repeatability
Six-axis articulation enables flexible motion paths in confined hazardous zones.The±0.03 mm repeatability ensures consistent positioning in precision tasks such as dosing system assembly,inspection handling,or controlled packaging.
Weight and Structural Stability
With a weight of approximately 45 kg,the E10F balances structural stability with manageable installation requirements.This is particularly important in hazardous areas where mounting surfaces may be reinforced but spatial constraints remain tight.
Explosion-Proof Considerations
As an ATEX robot,the E10F is engineered to reduce ignition risks through controlled surface temperatures,protected internal components,and compliance with hazardous-area requirements.For plant engineers,this means reduced need for additional protective enclosures,simplifying system integration compared to adapting standard robots for explosive environments.
Impact on Production
The integration of explosion-proof design with collaborative capability reduces manual exposure in dangerous zones.It supports stable production cycles,minimizes variability,and improves safety without isolating the robot behind barriers,maintaining flexible human-robot collaboration.
Typical Applications in Hazardous Industries
Chemical Processing Facilities
Handling containers,operating filling stations,or transferring materials in environments with flammable vapors.
Pharmaceutical Manufacturing
Supporting sterile packaging,inspection handling,or material transfer within regulated explosive dust zones.
Oil and Gas Component Assembly
Assisting in valve or sensor assembly in controlled hazardous workshops.
Coating and Surface Treatment Lines
Managing parts in environments with solvent vapors,where standard industrial robots may not meet compliance requirements.
Flexible Hazardous Production Cells
Deploying collaborative robotics in semi-flexible hazardous zones where both automation and human supervision are required.
In each case,the E10F supports industrial automation objectives while meeting safety and compliance constraints that traditional robots cannot address without additional infrastructure.
System Integration and Smart Manufacturing Compatibility
The Elfin-Ex E10F is designed for seamless system integration within hazardous-area production lines.It supports standard PLC communication,allowing coordination with conveyor systems,filling equipment,and inspection stations.
Vision systems can be integrated for quality control,provided that all components comply with zone regulations.MES connectivity enables real-time monitoring,traceability,and scheduling within Smart Manufacturing environments,ensuring that hazardous-area automation remains aligned with broader factory modernization strategies.
Because it is engineered as an explosion proof cobot rather than a standard robot with external protection,integration complexity is reduced.This simplifies deployment in facilities upgrading legacy manual processes to collaborative automation.
Investment Perspective and Long-Term Operation
Deploying an ATEX robot requires careful evaluation of compliance,certification,and maintenance procedures.The E10F reduces long-term operational risks by combining collaborative robotics with explosion-proof design in a unified system.
Maintenance typically involves inspection of seals,joints,and protective components to ensure compliance remains intact.Compared to heavy industrial explosion-proof robots,the E10F offers lower structural and energy demands,contributing to manageable total cost of ownership.
From a production efficiency standpoint,reducing manual intervention in hazardous zones not only improves safety but also stabilizes output.Over time,this consistency contributes to predictable throughput and reduced incident-related downtime.
Selection Guidance
Recommended For
Hazardous environments requiring collaborative operation.
Precision assembly or handling tasks up to 10 kg in ATEX-classified zones.
Facilities upgrading manual hazardous processes to smart automation systems.
Not Recommended For
Heavy lifting beyond 10 kg payload.
Ultra-high-speed production cells requiring non-collaborative industrial robots.
Non-hazardous environments where explosion-proof certification is unnecessary and would increase costs without operational benefit.
Comparison with Other Elfin-Ex Models
Lower payload variants are better suited for lightweight tooling in confined hazardous spaces.
Higher payload explosion-proof robots address heavier material transfer but may require stronger mounting and higher energy capacity.
The E10F balances precision(±0.03 mm),moderate payload,and collaborative safety,positioning it for precision-driven hazardous automation rather than bulk material handling.
Conclusion
The HUAYAN Elfin-Ex E10F provides a focused solution for hazardous-area automation,combining explosion-proof engineering with collaborative robotic flexibility.For manufacturers operating in regulated environments,it enables safer material handling,consistent assembly precision,and streamlined system integration without extensive infrastructure modification.
By selecting a properly certified explosion proof cobot for ATEX robot applications,engineering teams can align safety compliance with smart manufacturing objectives,achieving stable,long-term production performance in demanding environments.
FAQ–HUAYAN Elfin-Ex E10F
Q1:What industries typically require an explosion proof cobot like the E10F?
A1:Chemical processing,pharmaceuticals,oil and gas component manufacturing,and coating lines often require explosion-proof robotic solutions in ATEX-classified zones.
Q2:How does the E10F differ from a standard collaborative robot?
A2:The E10F incorporates explosion-proof engineering measures to reduce ignition risks,making it suitable for hazardous environments.Standard cobots lack these protective certifications.
Q3:Can the E10F integrate with existing PLC and MES systems?
A3:Yes,it supports standard PLC communication and MES integration,allowing real-time monitoring and coordination within industrial automation systems.
Q4:What maintenance considerations apply in hazardous zones?
A4:Regular inspection of protective components and seals is required to ensure continued compliance with explosion-proof standards.
Q5:Is the E10F suitable for high-precision tasks?
A5:With±0.03 mm repeatability,it supports precision assembly and handling tasks in hazardous environments where consistent positioning is critical.
