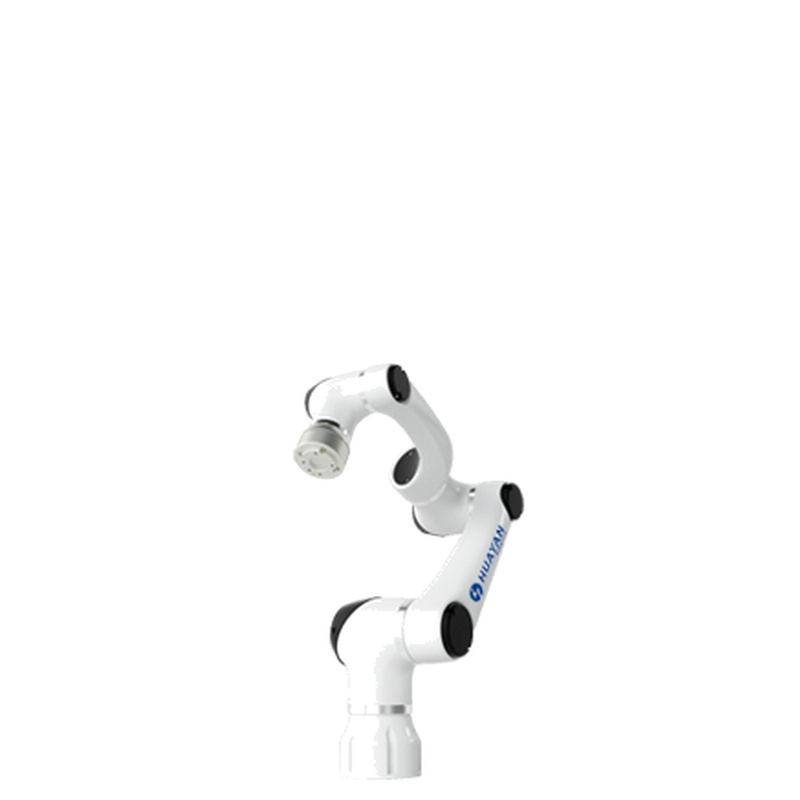

HUAYAN Elfin-Ex E05F Explosion Proof Cobot for Hazardous Areas

　　The HUAYAN Elfin-Ex E05F is an explosion proof cobot engineered for hazardous area robot applications where flammable gases,dust,or volatile substances are present.Designed for precision handling up to 5 kg within an 800 mm working radius,it enables manufacturers to introduce collaborative automation into environments that traditionally required strict isolation or manual intervention.

　　In industries such as chemical processing,pharmaceutical production,and oil-related manufacturing,automation cannot be evaluated solely on speed or payload.Safety certification,spark prevention,thermal control,and structural integrity become primary considerations.Many production managers hesitate to deploy conventional collaborative robots in such areas due to ignition risks,even when the tasks themselves are repetitive and suitable for robotics application.

　　The E05F addresses this gap.It allows factories to pursue smart manufacturing and production efficiency improvements without compromising compliance or operational safety.

　　Production Challenges in Explosive Atmospheres

　　Hazardous environments introduce limitations that standard factory lines do not face.Manual handling often dominates processes involving solvent transfer,packaging of volatile materials,or inspection near combustible dust.Human involvement increases safety risk and introduces variability in precision and cycle time.

　　At the same time,isolating these tasks in fully enclosed robotic cells can significantly increase system cost and reduce flexibility.What manufacturers require is a collaborative automation solution capable of operating safely within classified areas while maintaining high repeatability and compact deployment.

　　The Elfin-Ex E05F was developed specifically for this type of environment.Rather than adapting a general-purpose cobot,HUAYAN engineered this variant with explosion protection as a core design principle.

　　Positioning Within the Elfin Series

　　Unlike previous Elfin models such as E10,E12,or E15,which target general factory automation and medium payload tasks,the E05F focuses on safety-critical environments.Its 5 kg payload and 800 mm reach position it as a compact,precision-oriented robot for confined hazardous zones.

　　While other Elfin cobots emphasize payload scaling or extended reach,the E05F prioritizes intrinsic safety and controlled operation.It is not designed for heavy component handling or long-span transfer tasks.Instead,it excels in precise,stable manipulation within restricted workspaces where environmental risk outweighs throughput considerations.

　　This distinction is essential for correct selection.The E05F is chosen based on environmental classification first,payload second.

　　Engineering Characteristics and Their Practical Impact

　　Payload and Reach

　　With a 5 kg payload and 800 mm working radius,the E05F is suited for light assembly,inspection,sampling,and packaging tasks.In hazardous areas,components are often smaller but require careful handling.The moderate reach ensures effective coverage within compact workstations.

　　Repeatability and Precision

　　The±0.02 mm repeatability is notable.Compared to other mid-range cobots,this higher precision supports detailed operations such as valve manipulation,instrument placement,or precise dosing assistance.In volatile environments,minimizing corrective motion reduces operational risk.

　　Six Degrees of Freedom

　　Its six-axis articulation allows flexible positioning around fixed equipment such as reactors,sealed containers,or specialized enclosures.Complex orientation adjustments can be performed without relocating the robot base.

　　Weight and Structural Considerations

　　At 25 kg,the E05F remains lightweight,simplifying installation on reinforced tables or confined platforms common in hazardous facilities.The reduced mass also contributes to stable collaborative motion control.

　　Operational Implications

　　By combining precision with explosion-proof design,the E05F reduces human exposure to hazardous materials while maintaining consistent cycle times.It supports factory modernization initiatives in sectors where automation adoption has historically been slow due to safety constraints.

　　Typical Applications in Hazardous Production Environments

　　Chemical Handling

　　Assisting with small-container filling,sealing,or cap placement where flammable vapors are present.

　　Pharmaceutical and Laboratory Use

　　Handling sensitive substances in controlled zones where spark prevention and precision are equally important.

　　Oil and Gas Auxiliary Processes

　　Operating in classified maintenance areas for component positioning or light assembly.

　　Dust-Prone Manufacturing

　　Supporting packaging or inspection in facilities where combustible dust is generated.

　　Across these scenarios,the E05F contributes to production efficiency without introducing ignition risk,aligning with smart manufacturing strategies that prioritize both safety and output consistency.

　　System Integration and Compatibility

　　The Elfin-Ex E05F supports integration with PLC systems and industrial control networks,enabling coordinated operation within existing automation frameworks.Vision systems can be incorporated for inspection or positioning tasks,provided they meet environmental compliance requirements.

　　In facilities utilizing MES platforms,the robot can contribute to traceability and process monitoring.However,integration planning must consider environmental classification standards,cable routing protection,and certified peripheral devices.

　　System integration in hazardous areas requires disciplined engineering review,and the E05F is designed to function within such controlled architectures.

　　Long-Term Investment and Operational Stability

　　Introducing automation into hazardous environments typically reduces insurance risk,human exposure,and process variability.Although explosion-proof equipment may involve higher initial investment,operational stability often offsets this through consistent throughput and reduced incident probability.

　　The E05F’s compact structure and precision reduce wear caused by unnecessary corrective motion.Maintenance intervals focus primarily on inspection of sealed joints and protective components.Compared to large industrial robots in isolated cells,the collaborative configuration allows easier access for service while maintaining compliance.

　　For companies seeking gradual automation upgrades in regulated environments,the E05F represents a measured step toward safer and more efficient production.

　　Selection Guidance

　　Recommended For

　　Classified hazardous zones requiring explosion-proof certification.

　　Light precision handling up to 5 kg.

　　Facilities aiming to reduce human exposure to volatile substances.

　　Compact workstations with limited installation space.

　　Not Recommended For

　　Medium or heavy payload tasks exceeding 5 kg.

　　Extended reach applications beyond 800 mm.

　　High-speed bulk material transfer.

　　Non-hazardous environments where a standard Elfin model may be more cost-effective.

　　Comparison Within the Elfin Series

　　E05F:Prioritizes explosion protection and high repeatability for light tasks.

　　E10/E12/E15:Focus on higher payload,longer reach,and general factory line automation.

　　Heavy-duty industrial robots:Suitable for large-scale isolated cells but not collaborative hazardous zones.

　　Choosing the E05F should be driven primarily by environmental safety classification and precision handling requirements rather than payload expansion.

　　Conclusion

　　The HUAYAN Elfin-Ex E05F enables manufacturers to introduce explosion-proof collaborative automation into hazardous environments without sacrificing precision.Its compact structure,±0.02 mm repeatability,and 5 kg payload capacity make it suitable for light,safety-critical applications in chemical,pharmaceutical,and oil-related industries.

　　For companies pursuing factory modernization in regulated or volatile conditions,the E05F provides a controlled and reliable path toward smart manufacturing and improved production efficiency while maintaining strict safety compliance.

　　FAQ–HUAYAN Elfin-Ex E05F

　　Q1:What makes the E05F different from standard collaborative robots?

　　A1:The E05F is specifically engineered as an explosion proof cobot for hazardous environments.Its design prioritizes spark prevention,controlled thermal behavior,and safe operation in classified areas,unlike standard cobots intended for general factory use.

　　Q2:What industries typically require a hazardous area robot like the E05F?

　　A2:Chemical processing,pharmaceuticals,oil and gas support operations,and facilities with combustible dust commonly require robots designed for hazardous zones.

　　Q3:Can the E05F integrate with existing PLC or MES systems?

　　A3:Yes.It supports PLC integration and can connect with MES systems for monitoring and traceability,provided that all connected components meet environmental safety requirements.

　　Q4:Is the E05F suitable for heavy material handling?

　　A4:No.With a 5 kg payload and 800 mm reach,it is optimized for light precision tasks.Medium or heavy payload applications should consider other Elfin series models.

　　Q5:How does precision benefit operations in hazardous areas?

　　A5:Higher repeatability,such as±0.02 mm,reduces corrective movements and process variability,improving both safety and production consistency in sensitive environments.
