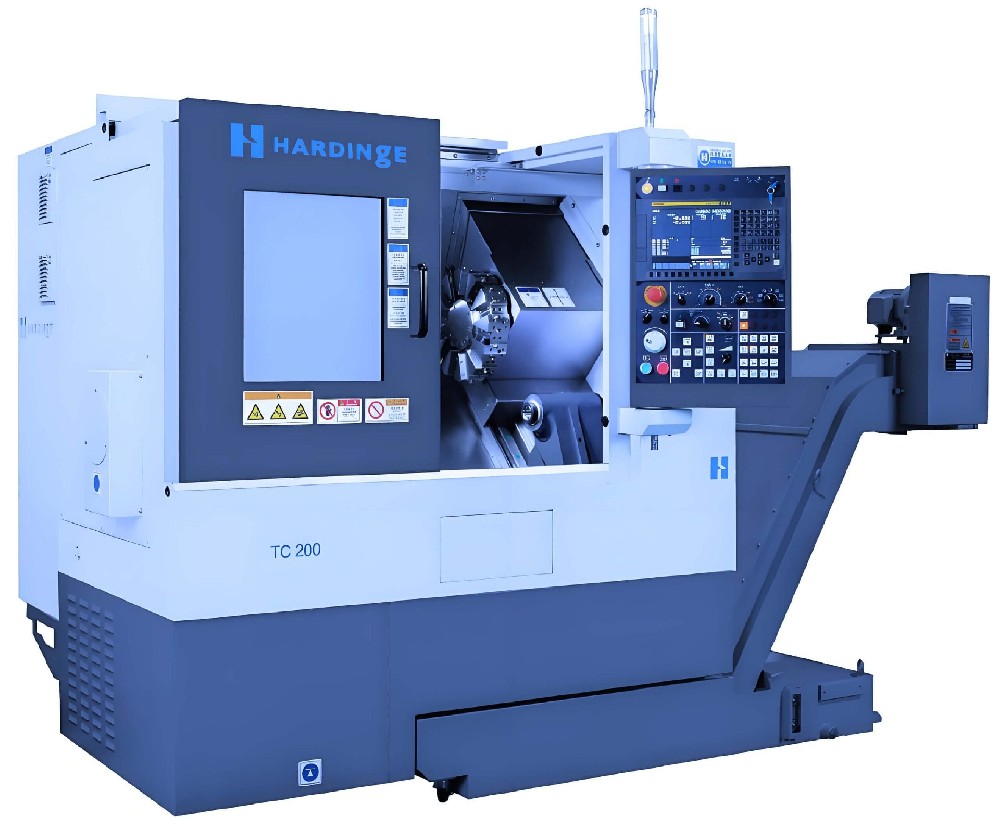

Hardinge TC200 Ultra-Precision Industrial CNC Lathe Machine

　　The HARDINGE TC200 stands as a formidable industrial CNC lathe engineered for manufacturers who refuse to compromise on precision and reliability.This machine embodies Hardinge's legacy of excellence in super-precision machining,offering a robust solution for producing complex components with exceptional accuracy and repeatability.Designed with a focus on rigidity,thermal stability,and user-friendly operation,the TC200 is equipped with a powerful Fanuc 0i-TF Plus control system as standard,making it a versatile and productive asset for job shops and high-volume production environments alike.Its capabilities are particularly well-suited for the aerospace,medical,and automotive sectors,where tolerances are tight and quality is paramount.This article delves into the technical specifications,design innovations,and practical applications that make the TC200 a distinguished choice in the world of high precision lathe technology.

　　1 Technical Specifications and Physical Dimensions

　　The HARDINGE TC200 is built with a generous work envelope to accommodate a wide range of part sizes.The machine boasts a maximum swing diameter of 500 mm,enabling it to handle sizable workpieces with ease.Its maximum machining diameter is 350 mm,with a substantial Z-axis travel of 350 mm,allowing for the production of long,slender parts without sacrificing precision.The X-axis offers a travel of 178 mm,providing ample room for complex turning and facing operations.

　　In terms of precision,the TC200 is manufactured and tested in full compliance with the rigorous ISO 230-2 standard for turning centers.This commitment to quality assurance results in exceptional axis positioning accuracy:the X and Z axes both achieve a positioning accuracy of 0.008 mm.Furthermore,the machine demonstrates remarkable repeatability,with a full-travel repeatability of 0.004 mm for both axes,ensuring that every part in a production run is consistent with the last.The standard configuration includes a 10-station T-type turret and an 8-inch chuck,creating a powerful and ready-to-run manufacturing cell.

　　2 Core Design Features and Engineering Philosophy

　　2.1 Uncompromising Structural Rigidity and Thermal Stability

　　The foundation of any high precision lathe is its ability to resist the forces and heat generated during machining.The TC200's bed and core components are constructed from high-quality,polymer-concrete or heavily ribbed cast iron,which provides superior vibration damping compared to conventional steel frames.This inherent dampening is critical for achieving fine surface finishes and extending tool life.Additionally,the machine is designed to manage thermal growth effectively.Key components,such as the spindle and ball screws,are often equipped with cooling systems to maintain a consistent temperature.This engineering focus allows the TC200 to achieve and maintain a total diameter deviation as low as 0.00012 inches(3 microns)with minimal warm-up time,a critical factor for high-accuracy work.

　　2.2 High-Precision Spindle and Tooling System

　　At the heart of the TC200 is a high-performance spindle that is central to its identity as a precision industrial CNC lathe.Hardinge's heritage in collet technology is evident in the TC200's"Collet-ready"spindle design.This patented system allows for the direct installation of collet chucks without an adapter,minimizing overhang and maximizing rigidity.The result is a more direct transfer of the spindle's innate accuracy to the workpiece,yielding better dimensional control and superior surface finishes.The spindle utilizes high-precision,pre-tensioned bearings and is often driven by an integrated motor,eliminating the potential for vibration and power loss associated with belt drives.This setup ensures high torque delivery and rotational accuracy,which are essential for demanding materials and fine finishing cuts.

　　2.3 Advanced Control and Feedback Systems

　　Precision machining is impossible without precise control.The TC200 comes standard with a Fanuc 0i-TF Plus CNC system,known for its reliability and powerful processing capabilities.To complement this control,the machine can be equipped with high-resolution feedback devices.The inclusion of a high-precision glass scale on the X-axis,for example,provides direct positional feedback,effectively eliminating errors that can arise from mechanical backlash or thermal expansion in the ball screw.This creates a closed-loop system that guarantees the tool moves to the exact commanded position,enabling control resolutions as fine as 0.00001 inches and repeatability in the range of 0.00003 inches.

　　3 Performance and Operational Advantages

　　3.1 Superior Surface Finish and Geometrical Accuracy

　　The synergistic effect of the TC200's rigid structure,stable spindle,and accurate feedback systems translates directly into exceptional part quality.The machine is capable of producing surface finishes of 8 micro-inches or better,reducing or eliminating the need for secondary finishing operations.The high geometrical accuracy of produced parts is verified through rigorous ball-bar testing,ensuring circularity and contouring precision that meets the most stringent application requirements.

　　3.2 Enhanced Productivity and Operational Flexibility

　　The TC200 is designed not just for accuracy,but also for efficiency.The standard 10-station T-type turret allows for a wide array of tools to be available for complex parts,facilitating complex turning,drilling,and boring operations in a single setup.Options for live tooling and C-axis control further expand its capabilities into the realm of mill-turn machining,allowing for the completion of parts in one clamping and drastically reducing total production time.The intuitive Fanuc control system,often paired with a user-friendly interface,simplifies programming and setup,making it accessible for skilled machinists and reducing the learning curve for new operators.

　　4 Target Industries and Application Scenarios

　　The HARDINGE TC200 finds its primary application in industries where precision is non-negotiable.In the medical industry,it is used to manufacture critical components for surgical instruments and implants,where biocompatibility and exacting tolerances are paramount.The aerospace industry relies on the TC200 for producing high-integrity components like hydraulic fittings and sensor housings from tough,exotic alloys.Furthermore,the automotive sector utilizes this lathe for creating precision transmission parts,fuel system components,and other high-volume,high-accuracy elements.Its robustness also makes it an ideal choice for the mold and die industry,where it can machine complex cores and cavities with excellent surface quality.

　　5 Brand Heritage and Technological Context

　　Hardinge Inc.has been a stalwart in the machine tool industry for over a century,building a reputation on"super-precision"machining.The TC200 is a product of this rich heritage,incorporating decades of learning and innovation into its design.The company's T-series turning centers,which include the TC200,are recognized for setting standards in high-precision,high-performance turning,enabling manufacturers to elevate their part quality and manufacturing capabilities.Hardinge's philosophy integrates best practices in design and manufacturing,often resulting in machines that require minimal human intervention to produce parts at the highest level of accuracy.

　　Frequently Asked Questions(FAQs)

　　1.What specific applications is the Hardinge TC200 best suited for?

　　The TC200 is engineered for high-precision,high-volume manufacturing.It excels in industries like aerospace,medical,and automotive,where components require extremely tight tolerances and superior surface finishes.Its rigidity and accuracy make it ideal for machining complex parts from a wide variety of materials,including metals,plastics,and advanced composites,in both standalone and integrated production cell configurations.

　　2.How does the'Collet-ready'spindle design benefit the machining process?

　　The patented"Collet-ready"spindle is a significant differentiator.It allows for the direct mounting of collet chucks without an adapter,which minimizes overhang and maximizes rigidity.This direct connection ensures that the inherent precision of the spindle bearings is transferred directly to the workpiece,resulting in better TIR(Total Indicator Runout),improved surface finishes,and longer tool life due to reduced vibration.

　　3.What measures does the TC200 incorporate to ensure long-term thermal stability and accuracy?

　　The TC200 is designed with thermal stability as a core consideration.Key features often include a cooling system for the spindle and ball screws to manage heat generation.Furthermore,the use of thermally stable materials for the machine structure and the potential inclusion of direct feedback scales on the axes help to compensate for any minimal thermal growth,ensuring consistent accuracy and repeatability over long production runs.

　　4.Can the TC200 be integrated into a automated manufacturing system or cell?

　　Yes,the TC200 is an excellent candidate for automation.Its robust control system and standardized interface allow for seamless integration with robotic part loaders and unloaders,gantry systems,and conveyorized material handling solutions.This makes it perfectly suited for lights-out manufacturing environments,where it can operate unattended for extended periods,dramatically increasing overall productivity.
