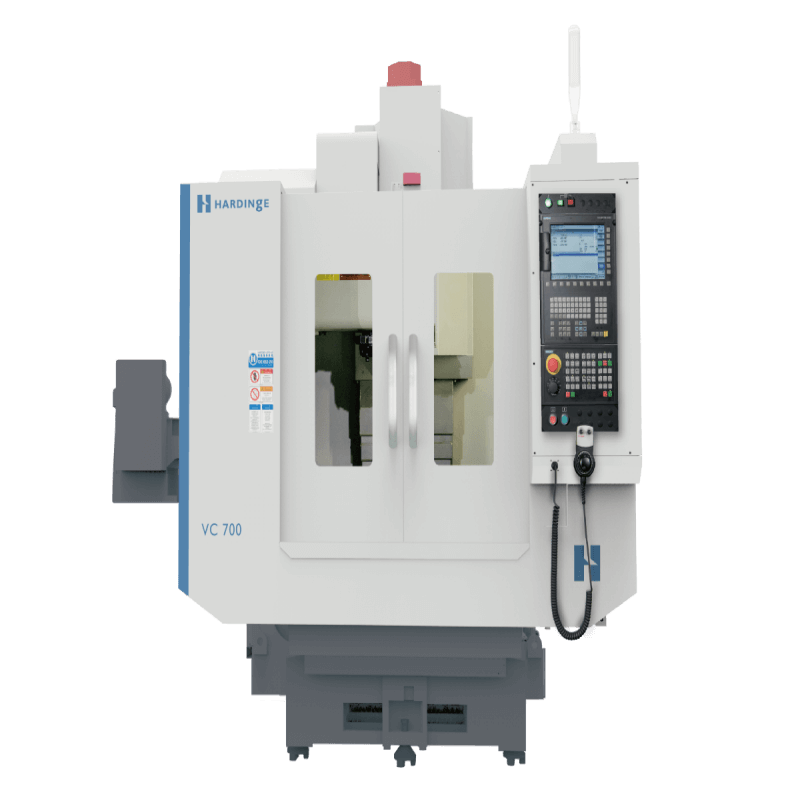

HARDINGE VC700 High-Performance Precision VMC Machining Center

　　The HARDINGE VC700 stands as a definitive solution in the world of precision machining,embodying a legacy of American engineering excellence tailored for modern manufacturing demands.This Precision VMC is meticulously designed to deliver exceptional accuracy,robust rigidity,and remarkable operational efficiency in a compact footprint.It is engineered for machine shops and manufacturing facilities that require uncompromising quality for complex parts across industries such as aerospace,medical,and precision optics.The VC700 is not merely a machine;it is a integrated system where every component,from the foundational castings to the high-speed spindle,is optimized to work in harmony,ensuring superior surface finishes,tight tolerances,and long-term reliability for both high-volume production and complex,one-off components.

　　1 Product Overview and Core Technological Philosophy

　　The HARDINGE VC700 is a high-performance Vertical Machining Center that represents a perfect synergy of time-tested mechanical principles and advanced manufacturing technology.Hardinge's design philosophy for the VC series centers on creating machines that are"right-sized,"offering an optimal balance between a generous work envelope and a space-saving physical presence on the shop floor.The VC700 is built to provide a stable and vibration-dampening environment for precision cutting,a critical requirement for machining hardened steels,exotic alloys,and engineered plastics with micron-level precision.Its integration with industry-leading CNC controls,such as the Fanuc 0i MF Plus or Siemens 828D,makes it a versatile and intelligent centerpiece for any high-value machining operation.

　　2 In-Depth Technical Specifications and Performance Metrics

　　The capability of the HARDINGE VMC is clearly defined by its rigorous technical specifications.The machine features substantial axis travels of 720 mm in the X-axis,410 mm in the Y-axis,and 430 mm in the Z-axis,providing a versatile work cube.The worktable measures 800 mm by 400 mm and is rated for a substantial load capacity of 300 kg,accommodating a wide range of part sizes and fixtures.A critical differentiator for any Precision VMC is its accuracy,and the VC700 is calibrated to an impressive positioning accuracy of≤0.008 mm and a repeatability of≤0.004 mm across all linear axes,as verified against international standards like ISO 230-2.This level of precision ensures that complex geometries and tight tolerance features are consistently held part after part.

　　3 Critical Design Features and Construction Elements

　　3.1 Uncompromising Structural Rigidity and Thermal Stability

　　The foundation of the VC700's performance is its heavily ribbed,high-quality grey iron castings for the bed and column.This material is selected for its superior inherent damping properties,which absorb vibrational energy from cutting forces,resulting in a better surface finish and extended tool life.The structural design is further refined using Finite Element Analysis(FEA)to optimize geometry,ensuring maximum stiffness and thermal stability under varying operational loads.This robust base is what allows the VC700 to perform heavy-duty milling as effectively as it does high-speed finishing.

　　3.2 High-Performance Motion and Guidance System

　　Precision motion is achieved through a combination of high-quality components and a direct-drive design.The three linear axes(X,Y,Z)are powered by servomotors connected directly to 32 mm diameter C3-grade precision ball screws.This direct coupling eliminates backlash and provides highly responsive movement.For guidance,the VC700 employs high-grade linear roller ways from renowned manufacturers like THK,which offer high load-bearing capacity and exceptional smoothness of motion.This combination ensures fast,accurate positioning and a long maintenance-free service life.

　　3.4 Advanced Spindle and Tooling Technology

　　At the heart of the VC700 is a powerful and precision-balanced spindle.The standard configuration is a 12,000 rpm,BBT40(Big Plus®)type,with a motorized direct-drive system that eliminates the inefficiencies and potential vibration of belt drives.The BBT40 dual-contact taper system is a key feature,where the toolholder interfaces with the spindle on both the taper and the face,resulting in vastly improved rigidity and toolholding security.This system significantly enhances machining stability,allows for higher metal removal rates,and improves Z-axis repeatability.An automatic blow-off system cleans the spindle taper before each tool change,preventing contaminants from affecting tool seating accuracy.

　　3.5 Integrated Automation and Safety Systems

　　Designed for uninterrupted operation,the VC700 comes standard with a reliable arm-type automatic tool changer(ATC)with a 20-station capacity.This allows for a diverse tooling repertoire to be available for complex machining cycles without manual intervention.Operator safety is paramount,featuring an interlocked safety door with a hard-wired locking mechanism that prevents access while the machine is in cycle,ensuring a safe working environment.

　　4 Operational Advantages and Real-World Application Benefits

　　The meticulous engineering of the HARDINGE VC700 translates into direct,tangible benefits for the end-user.The machine's exceptional rigidity and thermal stability grant it the unique capability to handle a vast range of materials,from aluminum and stainless steel to high-temperature alloys.This makes the Hardinge VMC an ideal single-platform solution for job shops that encounter diverse work.The high-speed spindle and rapid traverse rates minimize non-cutting time,leading to shorter cycle times and increased throughput.Furthermore,the proven reliability and low maintenance requirements of the VC700 design maximize machine uptime,providing a better return on investment and reducing the total cost of ownership over the machine's lifecycle.

　　5 Diverse Application Scenarios and Industry Solutions

　　The versatility of the VC700 makes it a valuable asset across numerous high-tech sectors.In the medical device industry,its high precision and repeatability are essential for manufacturing intricate surgical instrument components,orthopedic implants,and diagnostic equipment parts.The aerospace sector utilizes the VC700 for producing robust and reliable components for fuel systems,actuators,and avionics housings,where material integrity and dimensional accuracy are non-negotiable.Furthermore,the machine is perfectly suited for the mold and die industry,where its ability to achieve excellent surface finishes reduces the need for manual polishing,accelerating the time-to-market for injection molds and die-cast dies.

　　Expanded Perspective:The Strategic Value of Precision VMC Technology

　　Investing in a machine like the HARDINGE VC700 is a strategic decision that impacts a manufacturer's capabilities,reputation,and bottom line.

　　The Role of a Precision VMC in a Modern Digital Factory

　　A Precision VMC is no longer an isolated island of automation.Machines like the VC700 are designed for seamless integration into a digital manufacturing ecosystem.With standard connectivity options like Ethernet and USB,the VC700 can easily feed operational data to plant-wide monitoring systems,enabling real-time performance analysis and predictive maintenance scheduling.This connectivity is the first step toward building a lights-out manufacturing cell,where the machine can operate unattended for extended periods,dramatically increasing asset utilization.

　　Making the Informed Choice:Key Selection Criteria

　　When evaluating a Vertical Machining Center,several factors beyond basic specifications must be considered.The spindle technology(BT vs.BBT)has a direct correlation with achievable part quality and machining efficiency.The machine's construction and the quality of its linear motion components are leading indicators of its long-term accuracy and durability.Serviceability,access to technical support,and the availability of training are also critical for maintaining peak performance over the years.The HARDINGE VC700 scores highly on all these fronts,backed by a global service network and a reputation for building machines that last.

　　Frequently Asked Questions(FAQs)

　　What specific industries is the Hardinge VC700 best suited for?

　　The VC700 is exceptionally well-suited for industries where precision,reliability,and superior surface finish are paramount.This includes the medical and dental sector for implants and surgical tools,the aerospace industry for critical components,the automotive sector for prototyping and high-performance parts,and the mold and die industry where its stability and accuracy reduce finishing time.

　　How does the BBT40 spindle system differ from a standard BT40,and why is it important?

　　The BBT40 system is a dual-contact design.While a standard BT40 toolholder contacts the spindle only on the tapered surface,the BBT40 holder makes simultaneous contact on the taper and the spindle face.This creates a much more rigid connection,minimizing tool deflection during heavy cuts and dampening vibrations.The result is the ability to take more aggressive cuts,achieve better surface finishes,and significantly improve tool life and dimensional consistency,especially in Z-axis milling operations.

　　What are the key factors that contribute to the VC700's renowned long-term accuracy?

　　Several engineered features work in concert to ensure longevity of precision.The use of high-quality grey iron castings provides inherent vibration damping and thermal stability.The pre-tensioned C3-grade ball screws and high-precision linear guides resist wear and maintain alignment.Furthermore,the direct-drive spindle and BBT40 tooling system minimize potential sources of error.Finally,Hardinge's rigorous calibration and testing procedures at the factory set a high baseline for accuracy that the machine is built to maintain.

　　Can the VC700 be integrated into an automated manufacturing cell?

　　Absolutely.The VC700 is an excellent candidate for automation.Its robust construction and thermal stability make it suitable for long,unattended cycles.The standard ATC can be supplemented with a pallet pool system or integrated with a robotic loader for continuous production.The machine's CNC system provides standard interfaces for communicating with external automation equipment,making it a flexible and future-proof investment for shops looking to scale their production capabilities.
