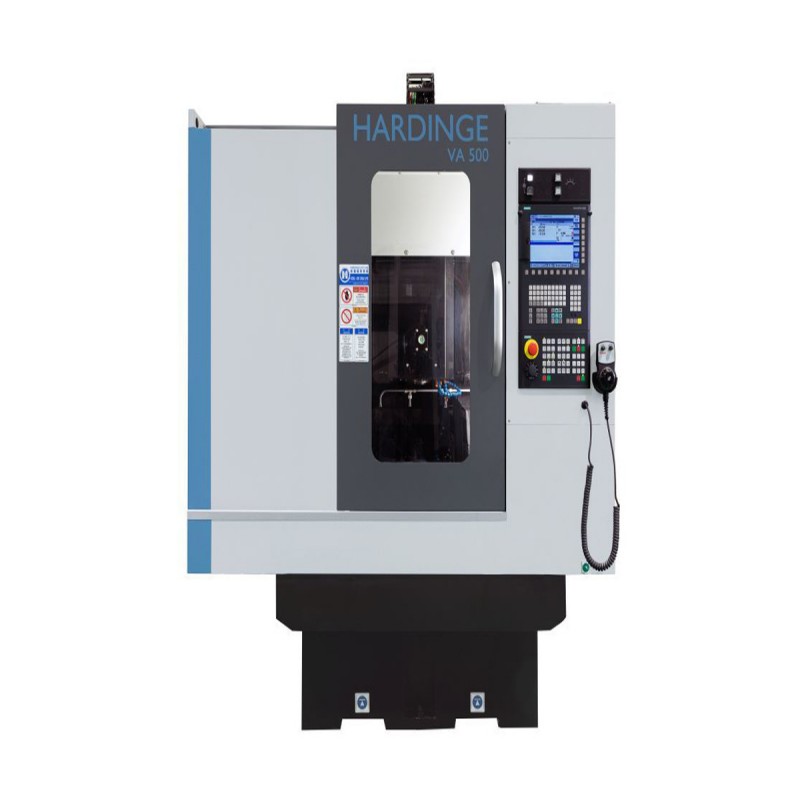

HARDINGE VA500 Precision Vertical CNC Machine Center System

　　1 Product Overview and Market Positioning

　　The HARDINGE VA500 represents a significant advancement in the realm of vertical machining centers,offering manufacturers a sophisticated solution for high-precision machining applications.As part of the renowned Hardinge brand's portfolio,this CNC machine center embodies decades of engineering expertise in precision manufacturing equipment.The VA500 is specifically engineered to bridge the gap between standard machining centers and ultra-precision systems,delivering exceptional accuracy for the most demanding components across aerospace,medical,and automotive industries.With its robust construction and advanced thermal stability features,this machine maintains consistent performance in production environments where thermal fluctuations would typically compromise precision.

　　This vertical machining center distinguishes itself through a meticulous integration of structural integrity,motion control precision,and user-centric operational features.The machine's design philosophy centers on providing manufacturers with a platform that not only achieves tight tolerances but also maintains these specifications throughout extended production runs.Hardinge has leveraged its legacy in precision machine tool manufacturing to create a system that addresses the fundamental challenges of modern machining:the increasing demand for tighter tolerances,improved surface finishes,and reduced cycle times.The VA500 responds to these challenges with a combination of advanced structural design,high-performance components,and sophisticated control integration.

　　Positioned strategically in Hardinge's product lineup,the VA500 serves manufacturers who require higher precision than standard machining centers can provide but may not need the extreme specialization of ultra-precision systems.This positioning makes the technology accessible to a broader range of manufacturers looking to enhance their capabilities and competitiveness.The machine's versatility allows it to handle a diverse spectrum of materials–from aluminum and hardened steels to exotic alloys and engineering plastics–making it equally suitable for mold and die work,precision components,and complex prototyping applications where dimensional stability and surface quality are paramount.

　　2 Technical Specifications and Performance Metrics

　　The HARDINGE VA500 incorporates a comprehensive set of technical specifications that establish its performance envelope as a precision CNC machine center.The machine travels typically span 500mm in the X-axis,400mm in the Y-axis,and 450mm in the Z-axis,providing a substantial work envelope for small to medium-sized components.The worktable generally measures 700×400mm with a specified load capacity of 300kg,offering a stable platform for workpiece mounting and fixturing.These dimensional parameters position the VA500 ideally for precision components that require multi-face machining in a single setup,reducing cumulative error potential through multiple handling operations.

　　Spindle performance represents a critical aspect of the VA500's capability profile,with standard configurations offering rotational speeds up to 8,000 rpm and optional upgrades extending this range to 12,000 rpm or higher.The BT40 tooling interface(or equivalent CAT/DIN#40 taper)provides robust tool retention for heavy machining operations while maintaining the precision necessary for fine detail work.The spindle drive system typically employs a 7.5/11kW(10HP)motor that delivers ample torque across the speed range,enabling efficient material removal in steels and other difficult-to-machine materials while still providing the finesse required for delicate finishing passes in mold and die applications.

　　Rapid Traverse Rates:The machine achieves rapid movement rates of 20,000 mm/min across all linear axes,significantly reducing non-cutting time during complex multi-axis tool paths and contributing to reduced cycle times for intricate programming sequences.

　　Positioning Accuracy:The VA500 maintains exceptional positioning accuracy of±0.005mm/300mm and repeatability of±0.003mm,specifications that place it in an elevated category compared to standard machining centers and enable the holding of tight geometric tolerances across the entire work envelope.

　　Control System Compatibility:The machine interfaces with high-performance CNC platforms including Siemens,Fanuc,and Heidenhain controls,providing manufacturers with familiar programming environments and advanced features such as look-ahead processing,advanced cutter compensation,and thermal compensation algorithms.

　　The integration of an automatic tool changer with a standard capacity of 16 or 24 tools(depending on configuration)ensures uninterrupted operation for complex components requiring multiple tools,with tool-to-tool change times optimized to minimize non-cutting intervals.The system accommodates tools up to 7kg in weight and 250mm in length,with maximum diameters of 80mm(125mm with adjacent empty stations),providing flexibility for a wide range of tooling requirements from micro-tools for fine detail to larger tools for roughing operations.

　　3 Structural Design and Precision Engineering Features

　　The HARDINGE VA500 incorporates a robust machine structure that forms the foundation for its precision capabilities.The bed and major components utilize high-grade cast iron with advanced ribbing patterns that provide exceptional damping characteristics and structural stability.This construction methodology effectively absorbs vibration during heavy cutting operations while maintaining geometric accuracy under varying load conditions.The mineral casting bed option represents a significant technological advancement,offering approximately six times the vibration damping capacity of conventional cast iron,which translates directly to improved surface finishes and extended tool life,particularly in challenging materials.

　　Precision guidance systems constitute another critical aspect of the VA500's design philosophy.The linear motion components employ high-precision,pre-tensioned linear guides that deliver smooth,consistent movement with minimal friction characteristics.These components work in concert with precision-ground ball screws that feature dual-supported connections to minimize deflection under load and maintain positioning accuracy throughout the machine's operational range.The systematic integration of these high-quality motion components ensures consistent performance whether the machine is engaged in heavy roughing operations or delicate finishing passes requiring micron-level precision.

　　Thermal Stability Management:The VA500 incorporates strategic thermal symmetry in its structural design and may include optional cooling systems for critical components such as the spindle and ball screws,effectively minimizing thermal growth and maintaining accuracy during extended production runs and in environments with fluctuating ambient conditions.

　　Axis Drive Systems:The machine employs high-torque,AC digital servo motors coupled with advanced drive amplifiers that provide exceptional responsiveness and precise control of axis movements,contributing to the machine's ability to accurately follow complex tool paths while maintaining specified feed rates throughout the cutting process.

　　Geometric Accuracy Optimization:Through meticulous alignment procedures during manufacturing and the integration of software-based compensation techniques,the VA500 minimizes geometric errors such as squareness,straightness,and parallelism deviations,ensuring that parts produced at different locations within the work envelope maintain consistent dimensional relationships.

　　The spindle system of the VA500 represents a focal point of its precision engineering.The cartridge-style spindle assembly employs precision angular contact bearings arranged in a balanced configuration that minimizes axial and radial runout while providing the necessary stiffness for heavy material removal.The spindle assembly undergoes comprehensive testing and run-in procedures to ensure optimal performance from initial operation.Optional spindle cooling systems further enhance precision by maintaining stable temperatures during extended operation,preserving accuracy during long cycle times or high-speed machining applications where frictional heating could otherwise compromise performance.

　　4 Application Range and Material Compatibility

　　The HARDINGE VA500 vertical machining center demonstrates exceptional versatility across a broad spectrum of manufacturing applications,with particular strength in precision component production.The machine's configuration makes it ideally suited for complex 3D contouring operations required in mold and die manufacturing,where its stability,accuracy,and fine surface finish capabilities excel.The combination of rigid construction,precise thermal management,and advanced control integration enables the production of injection molds,die-cast dies,and stamping tools with minimal hand-finishing requirements,significantly reducing lead times for tooling projects while improving dimensional consistency across molded components.

　　In the realm of medical device manufacturing,the VA500 meets the exacting requirements for producing implants,surgical instruments,and diagnostic equipment components.The machine's capability to maintain tight tolerances across small lot sizes makes it particularly valuable in this sector,where component materials range from titanium and stainless steels to specialized medical-grade plastics and ceramics.The precision and repeatability of the system ensure that critical features such as bone screw threads,articular surfaces,and miniature mechanical interfaces meet the stringent specifications required for medical applications,often with validation documentation for regulated manufacturing environments.

　　Aerospace Component Production:The VA500 effectively machines a wide range of aerospace materials including aluminum alloys,titanium,and high-temperature superalloys,producing structural components,brackets,and actuation system parts that must withstand extreme operational environments while maintaining strict weight and balance specifications.

　　Automotive Precision Parts:From fuel system components and transmission elements to specialized fasteners and sensor housings,the machine delivers the dimensional stability and production consistency required in the automotive sector,whether for high-volume production with multiple machines or lower-volume specialty vehicle components.

　　Electronics and Connectivity Components:The VA500's capability with non-ferrous materials and engineering plastics makes it suitable for producing connector components,waveguide structures,and mounting fixtures for electronic assemblies where dimensional stability and fine surface finishes are critical to electrical performance and shielding effectiveness.

　　The CNC machine center accommodates an extensive range of engineering materials,demonstrating particular proficiency with hardened steels(up to 55 HRC and beyond),aluminum alloys(achieving excellent surface finishes without smearing),and high-temperature alloys(maintaining tool life and dimensional control despite work-hardening tendencies).The machine's rigid structure and advanced control system allow for efficient material removal rates in these challenging materials while preserving the capability for fine detail work and tight tolerance maintenance.This material versatility enables manufacturers to consolidate their machining operations,running different material types on the same machine without sacrificing productivity or precision.

　　5 Comparative Advantages and Value Proposition

　　The HARDINGE VA500 delivers a compelling value proposition through its unique combination of precision engineering,structural rigidity,and operational efficiency.When compared to standard machining centers in a similar size class,the VA500 demonstrates superior performance in several key areas that directly impact manufacturing outcomes and total cost of ownership.The machine's exceptional accuracy and repeatability translate to reduced scrap rates,less rework,and lower inspection costs–factors that significantly influence profitability,particularly when manufacturing components with tight geometric tolerances or complex geometries that require minimal process variation.

　　Operational efficiency represents another significant advantage of the VA500 vertical machining center.The machine's rapid traverse rates of 20,000 mm/min,combined with optimized acceleration and deceleration parameters,substantially reduce non-cutting time during complex multi-axis tool paths.This efficiency becomes increasingly valuable as part complexity grows,with the machine capable of maintaining programmed feed rates through directional changes that would cause less rigid systems to slow significantly.The result is reduced cycle times without sacrificing surface finish quality or dimensional accuracy,providing manufacturers with higher throughput capacity from the same capital investment.

　　Long-Term Accuracy Retention:The VA500's thermally symmetric design and high-quality components ensure that the machine maintains its original precision specifications over an extended service life,protecting the manufacturer's investment and ensuring consistent part quality over time without frequent recalibration or adjustment.

　　Process Integration Capabilities:With compatibility for a range of automation interfaces,tool monitoring systems,and in-process measurement technologies,the VA500 serves as an ideal platform for integrated manufacturing cells,providing manufacturers with a path to increased automation as their production needs evolve.

　　Technical Support and Service Infrastructure:Backed by Hardinge's global technical support network and comprehensive service offerings,users benefit from responsive maintenance support,application engineering assistance,and readily available spare parts–factors that significantly reduce potential downtime and protect productivity.

　　The total cost of ownership for the VA500 CNC machine center compares favorably against both standard precision machining centers and specialized ultra-precision systems.While the initial investment may exceed that of basic machining centers,the return materializes through reduced scrap rates,lower secondary operation requirements,and decreased dependence on skilled operator intervention for manual finishing.When compared to specialized ultra-precision systems,the VA500 provides substantial cost savings while delivering sufficient precision for the vast majority of high-accuracy applications,making precision machining technology accessible to a broader range of manufacturing operations.

　　6 Frequently Asked Questions(FAQs)

　　What maintenance practices ensure long-term accuracy for the Hardinge VA500?

　　The VA500 requires consistent adherence to prescribed maintenance schedules to maintain its precision capabilities over years of service.Regular lubrication of way surfaces and ball screw assemblies,periodic verification of axis alignment,and monitoring of spindle performance parameters form the foundation of preventative maintenance.Additionally,the machine's thermal compensation systems should be periodically verified through laser interferometer and ballbar testing to ensure software-based error correction remains optimally calibrated.Implementing a comprehensive maintenance program using genuine Hardinge components preserves the machine's original precision specifications and protects the manufacturer's investment.

　　How does the VA500 perform in high-volume production environments compared to dedicated production machines?

　　While specifically engineered for precision applications,the VA500 demonstrates robust performance in high-volume production scenarios through its combination of rigidity,thermal stability,and operational reliability.The machine maintains consistent accuracy across extended production runs,with documented case studies showing minimal deviation in critical dimensions over thousands of parts.For manufacturers requiring both precision and volume,the VA500 offers a compelling alternative to dedicated production machines that may sacrifice accuracy for speed or vice versa.The machine's compatibility with automation interfaces further enhances its production capabilities,enabling integration with pallet changers,robotic part handling,and in-process measurement systems.

　　What operator skill level is required to maximize the VA500's capabilities?

　　While the VA500's advanced control systems and precision capabilities can be fully leveraged by experienced CNC programmers and operators,the machine's intuitive interfaces and canned cycles make it accessible to personnel with intermediate skills.The machine control typically features conversational programming options alongside traditional G-code compatibility,allowing operators to quickly implement standard operations while providing the flexibility for complex custom routines.For manufacturers transitioning from standard machining centers,Hardinge typically offers comprehensive training on the VA500's specific capabilities,particularly focusing on precision machining techniques,tooling selection,and process optimization strategies that maximize the machine's unique advantages.

　　Can the VA500 maintain its precision specifications when machining challenging materials like titanium or Inconel?

　　The VA500's rigid construction,high-torque spindle,and advanced control systems make it particularly well-suited for challenging materials that test the limits of conventional machining centers.The machine maintains precision when machining titanium,Inconel,and other high-temperature alloys through its exceptional vibration damping characteristics,thermal stability management,and capacity to maintain constant chip loads even in work-hardening materials.The machine's control system typically includes features specifically designed for difficult materials,such as adaptive feed rate control that maintains optimal cutting conditions despite variations in material hardness or cross-section.These capabilities make the VA500 equally proficient across the entire spectrum of engineering materials,from aluminum and plastics to the most challenging aerospace alloys.

　　How does the VA500 address the specific requirements of mold and die manufacturing?

　　The VA500 incorporates several features specifically beneficial for mold and die applications,including exceptional contouring accuracy,fine surface finish capabilities,and efficient 3D machining performance.The machine's precision ball screws and advanced servo controls enable smooth,precise movement along complex multi-axis tool paths,maintaining consistent cutter engagement and minimizing directional marks or dwell marks on contoured surfaces.The spindle's rotational accuracy and minimal runout ensure precise tool representation,critical for fine detail work and small diameter tooling.Additionally,the machine's thermal stability ensures that large molds requiring extended machining times maintain dimensional consistency from the initial roughing operations through the final finishing passes,regardless of ambient temperature fluctuations in the manufacturing environment.
