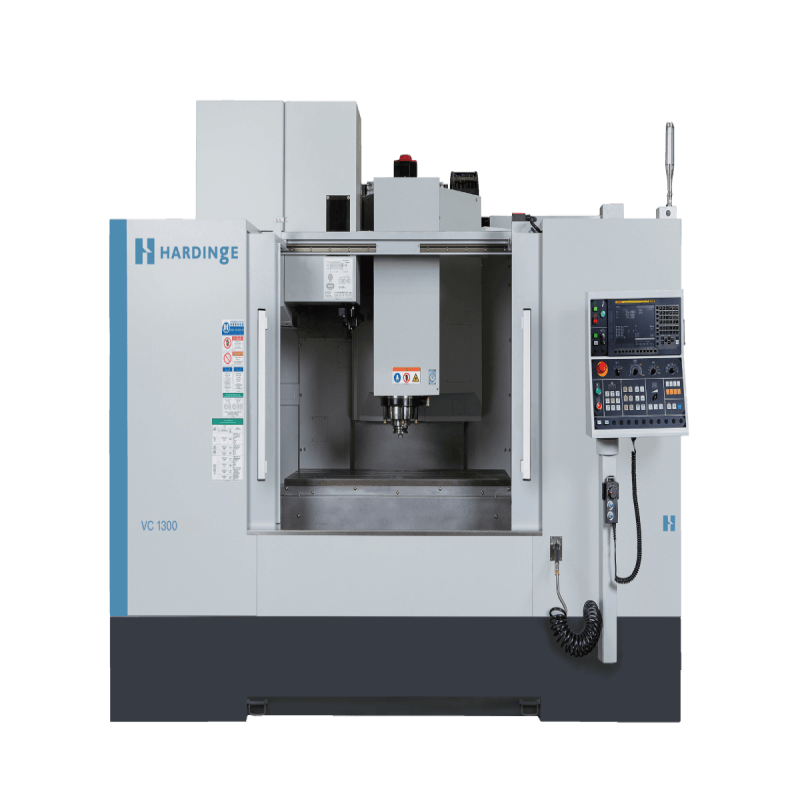

HARDINGE VC1300 High-Speed Precision Vertical Machining Center

　　The HARDINGE VC1300 Precision Vertical Machining Center stands as a testament to advanced engineering in the realm of high-precision manufacturing.Designed and manufactured by Hardinge,a brand synonymous with reliability and innovation in the machine tool industry,this model is engineered to deliver exceptional accuracy and stability for the most demanding machining tasks.With a robust construction focused on rigidity and thermal stability,the VC1300 is capable of maintaining tight tolerances even during long production cycles.It serves as an ideal solution for a wide spectrum of industries,including aerospace,medical,automotive,and die/mold manufacturing,where precision,repeatability,and uncompromising quality are non-negotiable requirements for success in a competitive landscape.

　　1.Product Overview and Brand Legacy

　　The VC1300 is a prominent member of Hardinge's renowned VC Series of vertical machining centers.Hardinge has built a formidable reputation over the years by focusing on the core principles of precision,durability,and technological integration.The company's design philosophy emphasizes a systems approach,where every component,from the base casting to the spindle and control system,is engineered to work in perfect harmony.This ensures that the end-user receives a machine tool that is greater than the sum of its parts.The VC1300 embodies this philosophy,representing a machine that is not just built for specifications on a datasheet,but for real-world productivity and precision retention over its entire operational lifespan,supporting manufacturers in achieving new levels of manufacturing excellence.

　　2.Technical Specifications and Performance Metrics

　　The HARDINGE VC1300 is defined by a set of technical specifications that establish its capacity and performance envelope,making it suitable for machining medium to large-sized workpieces.

　　Axis Travel and Work Envelope:The machine offers substantial axis travels,with an X-axis travel of 1300 mm,a Y-axis travel of 700 mm,and a Z-axis travel of 635 mm.This provides a generous working volume for a wide array of components.

　　Positioning and Repeatability Accuracy:A hallmark of the VC1300 is its exceptional precision.The machine boasts a positioning accuracy of 0.012 mm and a repeatability accuracy of 0.006 mm across all linear axes(X,Y,Z).This high level of accuracy ensures that complex parts are machined correctly the first time and for every subsequent iteration.

　　Worktable and Load Capacity:The worktable measures 1425 mm in length by 700 mm in width,providing a substantial and stable platform for parts and fixtures.It is supported by a robust load-bearing capacity of 1500 kg,allowing for the secure mounting of heavy workpieces or complex fixture setups without compromising machine performance.

　　Spindle Configuration and Speeds:While specific spindle options may vary,machines in this class from Hardinge often feature high-performance spindles designed for both power and precision.The spindle nose to table surface distance ranges from 133 mm to 768 mm,and the spindle centerline to Z-axis guard clearance(throat distance)is 725 mm,offering significant vertical flexibility.

　　3.Core Design Features and Construction Elements

　　The performance of the VC1300 is rooted in its meticulous design and the use of high-quality materials and components throughout its construction.

　　Rigid Machine Bed and Structure:The foundation of the VC1300 is its heavily ribbed,high-quality cast iron bed.This material is chosen for its superior ability to dampen vibrations,which is critical for achieving fine surface finishes and maintaining tool integrity.The entire structure is designed using finite element analysis(FEA)to optimize the geometry for maximum static and dynamic rigidity,effectively resisting cutting forces and minimizing deflection.

　　Precision Axis Drive and Guidance System:All linear axes are powered by high-torque servo motors coupled with precision pre-tensioned ball screws.This combination ensures fast,responsive,and accurate positioning.The axes move on hardened and ground linear guideways,which provide low-friction motion,high rigidity,and excellent resistance to wear,contributing to the machine's long-term accuracy.

　　Thermal Stability Management:To combat the effects of thermal growth that can compromise precision,Hardinge incorporates advanced cooling strategies.These may include a spindle cooling system that maintains a consistent temperature in the spindle housing and a thermos-symmetric design that minimizes the uneven distribution of heat within the machine structure.

　　Advanced CNC Control and Software:The VC1300 is typically equipped with a state-of-the-art CNC system,such as the Siemens Sinumerik platform.This provides a powerful and user-friendly interface for programming,simulation,and operation.The control supports complex functions like high-speed machining algorithms,5-axis transformation,and adaptive contouring control,which are essential for machining complex geometries efficiently and accurately.

　　4.Primary Application Areas and Industry Solutions

　　The HARDINGE VC1300's blend of precision,power,and size makes it a versatile asset in numerous high-tech and high-value manufacturing sectors.

　　Aerospace and Defense Components:The machine is perfectly suited for producing structural components,landing gear parts,and engine housings from difficult-to-machine materials like titanium and Inconel.Its stability and accuracy are crucial for meeting the stringent quality and safety standards of this industry.

　　Medical Device and Implant Manufacturing:In the medical field,where components often feature complex geometries and require impeccable surface finishes,the VC1300 excels.It is capable of machining surgical instruments,orthopedic implants,and prosthetics from materials such as stainless steel,cobalt-chromium,and PEEK,ensuring compliance with critical biomedical specifications.

　　Automotive Prototyping and High-Performance Parts:The automotive industry leverages the VC1300 for creating precise prototypes,engine components,and transmission parts.Its ability to handle both ferrous and non-ferrous materials with high efficiency makes it ideal for motorsports applications and the development of next-generation automotive technologies.

　　Precision Mold and Die Making:For the tool and die industry,the VC1300 offers the necessary accuracy and surface finish quality for producing injection molds,stamping dies,and forging dies.The machine's rigidity allows for aggressive milling of hardened tool steels,reducing overall machining time and improving project throughput.

　　5.Operational Advantages and Economic Benefits

　　Investing in a HARDINGE VC1300 translates into several key advantages that directly impact productivity,quality,and total cost of ownership.

　　Enhanced Part Quality and Consistency:The machine's exceptional repeatability ensures that every part produced is identical to the first,drastically reducing scrap rates and the need for post-process inspection.This consistency is invaluable for high-volume production runs and critical component manufacturing.

　　Increased Throughput and Reduced Cycle Times:With features like high rapid traverse rates and fast acceleration/deceleration,the VC1300 minimizes non-cutting time.When combined with high-speed machining capabilities and high-pressure coolant through the spindle,it can significantly reduce overall part cycle times,increasing the shop's overall capacity.

　　Superior Surface Finish and Tool Life:The inherent rigidity and vibration-damping characteristics of the machine structure,combined with a stable and precise spindle,allow for higher metal removal rates and finer surface finishes.This stability also reduces chatter,which extends the life of cutting tools,leading to lower tooling costs over time.

　　Long-Term Reliability and Accuracy Retention:Hardinge's commitment to quality manufacturing and the use of premium components ensure that the VC1300 is a durable asset.The machine is designed to maintain its original precision for years,even in demanding production environments,protecting the manufacturer's investment and ensuring a consistent return.

　　Expanded Perspective:The Role of Precision Vertical Machining Centers in Modern Manufacturing

　　Understanding the broader context of where a machine like the VC1300 fits helps in appreciating its strategic value on the shop floor.

　　1.The Strategic Importance of Precision and Repeatability

　　In modern manufacturing,the definition of quality is intrinsically linked to dimensional accuracy and repeatability.A Precision Vertical Machining Center goes beyond basic milling and drilling;it is a system dedicated to holding exceptionally tight tolerances repeatedly over long periods.This capability is fundamental in industries where component failure is not an option,such as in aerospace or medical implants.The VC1300's published repeatability of 0.006 mm is a quantifiable metric that gives engineers and quality assurance teams the confidence to design and produce increasingly complex and integrated components,knowing the machine will execute the program with unwavering consistency.

　　2.Navigating the Selection of a Vertical Machining Center

　　Choosing the right VMC is a critical capital investment decision.Several factors beyond basic travels and spindle power must be considered.

　　Accuracy Specifications vs.Application Needs:It is vital to match the machine's stated accuracy(e.g.,0.012 mm positioning)with the actual tolerances required by the parts to be produced.Over-specifying can lead to unnecessary cost,while under-specifying can result in part rejection.

　　Rigidity and Dynamic Performance:The machine's construction,including the mass of the castings and the size of the guideways,directly impacts its ability to handle heavy cuts and maintain precision under load.A robust machine like the VC1300 will exhibit minimal vibration,allowing for higher material removal rates and better surface finishes.

　　Control System and Software Ecosystem:The CNC control is the brain of the machine.A sophisticated system like the Siemens Sinumerik found on many Hardinge machines offers advanced features that can streamline programming,optimize tool paths for high-speed machining,and facilitate complex multi-axis operations,which may be a necessity for future jobs.

　　Serviceability and Technical Support:The long-term value of a VMC is also determined by the manufacturer's support network.Access to responsive technical service,comprehensive training,and readily available spare parts is crucial for minimizing downtime and ensuring continuous operation.

　　Frequently Asked Questions(FAQs)

　　1.What specific design features of the VC1300 contribute to its high precision and repeatability?

　　The high precision of the VC1300 is a result of a holistic design approach.The machine utilizes a high-quality cast iron bed with a ribbed structure for superior vibration damping.Its hardened and ground linear guideways ensure smooth and precise axis movement,while pre-tensioned ball screws minimize thermal growth and backlash.Furthermore,the integration of a cooling system for the spindle and the overall attention to thermal symmetry in the machine's design work in concert to stabilize the operating temperature,which is a critical factor in maintaining long-term accuracy and repeatability.

　　2.For what types of materials is the VC1300 best suited?

　　The HARDINGE VC1300 is engineered as a highly versatile platform capable of machining a broad range of materials effectively.Its rigid construction and powerful spindle drive make it well-suited for demanding alloys including stainless steels,titanium,and Inconel,which are common in aerospace and medical applications.Simultaneously,with the appropriate spindle and cutting tools,it can achieve high-speed machining performance in aluminum and other non-ferrous metals,making it equally valuable for the die/mold and general precision engineering sectors.The key is selecting the appropriate spindle and tooling options to match the primary material focus.

　　3.How does the machine's control system enhance usability and productivity?

　　Equipped with an advanced CNC such as the Siemens Sinumerik,the VC1300 benefits from a control system that prioritizes both power and user experience.This system offers intuitive programming interfaces,sophisticated tool path optimization for smoother finishes and shorter cycle times,and robust simulation capabilities to prevent collisions.Features like adaptive contour control can automatically adjust feed rates to maintain optimal chip load,protecting the tool and the workpiece while maximizing material removal rates.

　　4.What are the primary industries that utilize the VC1300 and why?

　　The primary adopters of the VC1300 are industries where precision,reliability,and the ability to handle a variety of materials are paramount.This includes the aerospace industry for machining critical components from tough materials,the medical sector for producing complex and high-tolerance implants and instruments,the automotive industry for prototyping and high-performance part production,and the tool and die industry for manufacturing high-quality molds and dies.These sectors choose the VC1300 for its proven ability to deliver consistent results and its robust construction that stands up to rigorous production schedules.

　　5.What key factors should be considered when installing a VC1300?

　　Proper installation is critical to achieving the machine's rated performance.Key considerations include ensuring a structurally adequate foundation capable of supporting the machine's weight and damping operational vibrations,providing a clean and stable power supply that meets the manufacturer's specifications to prevent electrical issues,and installing an effective air filtration and temperature control system in the workshop to minimize the ingress of contaminants and reduce ambient thermal fluctuations that could subtly affect machine geometry and accuracy over time.
