1 Product Overview and Strategic Positioning in the Hard Turning Market

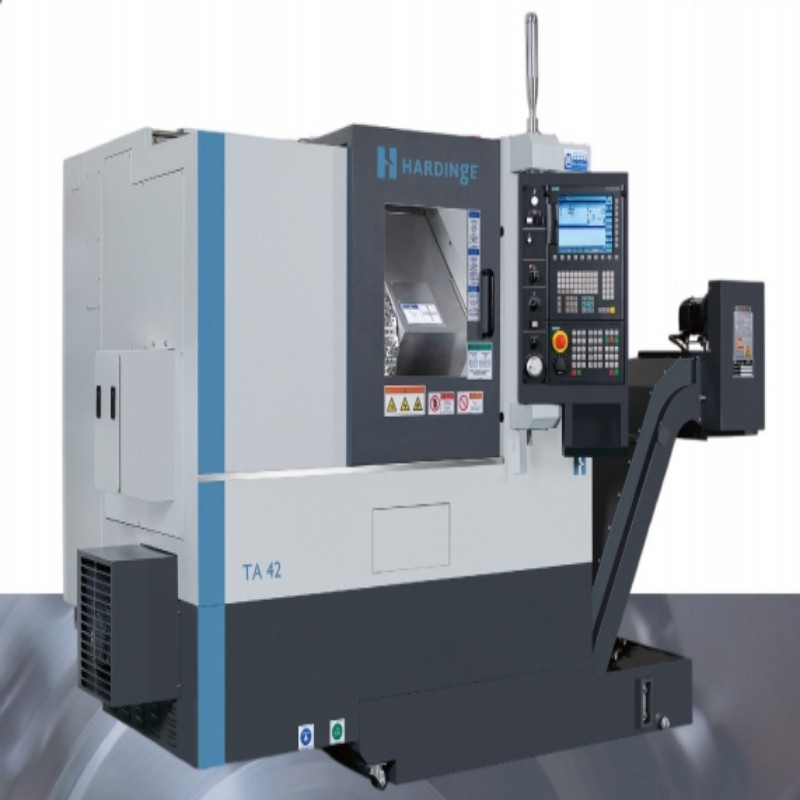

The HARDINGE TA42 MSY represents a sophisticated evolution in precision machining,positioning itself as a high-performance CNC turning center specifically engineered for complex hardened part turning applications.This multi-task machining solution integrates advanced Y-axis capability and secondary spindle operations to complete complex parts in a single setup,eliminating the need for secondary operations and significantly reducing total production time.
As part of Hardinge's prestigious T-Series ultra-precision lineup,the TA42 MSY builds upon the company's 125-year heritage of precision manufacturing excellence.The machine is specifically configured to address the growing market demand for complete machining solutions capable of handling hardened materials up to 62 HRC,making it particularly valuable for industries requiring exceptional dimensional stability and surface finish quality in difficult-to-machine materials.
The strategic design philosophy behind the TA42 MSY centers on providing a manufacturing platform that combines ultra-precision turning capabilities with milling and drilling operations,all within the same work envelope.This multi-faceted approach enables manufacturers to produce complex components with tight geometrical tolerances while maintaining the exceptional surface finishes required in industries such as aerospace,medical devices,and high-performance automotive applications.
2 Technical Specifications and Machine Architecture
The TA42 MSY incorporates a robust machine foundation that begins with its patented"Collet-ready"spindle configuration,allowing direct mounting of collet chucks without adapters for superior workpiece accuracy and increased usable work zone.This innovative spindle design minimizes workpiece overhang,directly transferring spindle precision to the workpiece for improved dimensional accuracy and surface finish.
Precision Motion System specifications include X and Z axis positioning accuracy of 0.004mm with repeatability of 0.002mm,with both axes equipped with precision scales to effectively counteract thermal expansion effects.The machine's working envelope provides maximum machining diameter of 354mm and maximum turning length of 435mm,with X-axis travel of 180mm and Z-axis travel of 435mm when configured with standard 16C collet and Hardinge T-type turret.
Multi-Tasking Configuration includes a main spindle with 6,000 RPM capability and a synchronized secondary spindle for complete parts machining in one operation.The integrated Y-axis provides±25mm of travel for off-center milling and drilling operations.The machine employs Hardinge's proprietary BMT(Block Tool Mounting System)with 45mm tooling interface,providing superior rigidity for heavy machining operations in hardened materials.
3 Core Technology and Performance Innovations
Advanced Thermal Stability Management represents a critical innovation in the TA42 MSY design.The machine incorporates an active temperature control system that maintains consistent thermal conditions during extended production runs.This thermal stability is further enhanced by the polymer-concrete filled bed construction that provides superior vibration damping and long-term geometric stability,essential for maintaining micron-level accuracies in production environments.
Precision-Enhanced Hard Turning Capabilities are achieved through the machine's optimized structural dynamics and servo control system.The TA42 MSY can achieve workpiece roundness of 0.25μm,contouring accuracy of 5μm,and surface roughness of Ra 0.2μm.When machining heat-resistant superalloys or titanium alloys,the machine demonstrates up to 50%longer tool life compared to conventional turning centers,attributable to its exceptional dynamic stiffness and vibration damping characteristics.
Integrated Multi-Axis Machining System enables complete parts manufacturing in a single chucking.The Y-axis capability allows for complex contour milling,cross-hole drilling,and off-center feature generation.The synchronized secondary spindle provides complete parts transfer for back-working operations,eliminating manual part handling and ensuring perfect alignment between first and second operation features.
4 Application-Specific Solutions and Industry Implementations
Medical Component Manufacturing benefits significantly from the TA42 MSY's capability to machine difficult biocompatible materials such as titanium alloys,cobalt-chromium,and surgical stainless steels.The machine's precision and multi-tasking capabilities make it ideal for producing complex orthopedic implants,surgical instrument components,and dental prosthetics with the required surface integrity and dimensional accuracy.
Aerospace and Defense Applications leverage the machine's ability to handle heat-resistant superalloys and titanium-based materials.The TA42 MSY efficiently machines components such as fuel system parts,hydraulic control elements,and navigation system components.The machine's capability for hard turning enables replacement of grinding operations for hardened aerospace components,significantly reducing processing time while maintaining required quality standards.
Automotive High-Performance Components represent another strategic application area,particularly for transmission parts,fuel injection components,and turbocharger elements.The machine's ability to maintain precision in high-volume production environments makes it valuable for manufacturers requiring both precision and productivity in hardened material machining.
5 Comparative Analysis with Alternative Manufacturing Approaches
Hard Turning Versus Grinding Operations presents significant advantages when utilizing the TA42 MSY.The hard turning process enables faster material removal,greater flexibility in geometry changes,and elimination of costly grinding wheel inventory.Modern hard turning techniques,when performed on precision platforms like the TA42 MSY,can achieve surface quality and dimensional accuracy comparable to grinding operations while providing reduced processing time and increased design flexibility.
Multi-Tasking Versus Traditional CNC Turning demonstrates the TA42 MSY's superiority in complex component manufacturing.Traditional approaches require multiple machine setups across different equipment,introducing cumulative errors and increasing non-cut time.The TA42 MSY's complete machining capability in a single setup ensures feature-to-feature relationships are maintained within tight tolerances while significantly reducing total manufacturing time and work-in-process inventory.
Technical Differentiation from Conventional Turning Centers lies in the TA42 MSY's unique combination of ultra-precision spindle technology,thermal stability management,and multi-axis capabilities.While conventional turning centers focus primarily on rotational symmetry parts,the TA42 MSY extends this capability to include complex,prismatic features through its Y-axis and secondary spindle operations,providing a comprehensive manufacturing solution for complex components.
6 Operational Advantages and Production Economics
Reduced Total Manufacturing Time is achieved through the TA42 MSY's complete-parts-in-one-setup capability.By eliminating secondary operations and reducing material handling between processes,the machine significantly shortens total production time while improving overall quality consistency.The reduction in non-value-added activities translates directly to lower manufacturing costs and faster time-to-market for precision components.
Enhanced Tooling Performance and Economy results from the machine's exceptional rigidity and dynamic stability.Tools last longer due to reduced vibration and more consistent cutting conditions.The proprietary BMT tooling system provides quick changeover capabilities while maintaining high repeatability,further contributing to reduced setup times and increased machine utilization.
Superior Surface Integrity in hard turning applications is a hallmark of the TA42 MSY performance.The machine's capability to eliminate white layer formation—a common challenge in hard turning that can compromise component fatigue life—ensures superior component reliability and longevity.This surface integrity advantage is particularly valuable for safety-critical components in aerospace,medical,and automotive applications.
Frequently Asked Questions(FAQs)
What specific advantages does the'Collet-ready'spindle design provide for precision machining?
The patented"Collet-ready"spindle design eliminates the need for adapter plates,allowing direct mounting of collet chucks to the spindle nose.This configuration provides shorter tooling stacks with improved rigidity,minimizing workpiece deflection and vibration during heavy cutting operations.The reduced overhang translates to better concentricity,improved surface finishes,and extended tool life,particularly important when machining difficult materials or maintaining tight tolerances.
How does the TA42 MSY address thermal stability concerns during extended precision machining operations?
The TA42 MSY incorporates multiple thermal management strategies including an active cooling system that maintains consistent temperature in critical machine elements.The polymer-concrete filled base provides excellent damping characteristics and thermal stability,while the placement of heat-generating components away from critical structural elements minimizes thermal distortion.Additionally,the linear scale feedback system compensates for any minimal thermal growth,maintaining positioning accuracy throughout production cycles.
What types of materials and hardness levels can the TA42 MSY effectively machine?
The TA42 MSY is engineered to handle a broad spectrum of engineering materials,from conventional steels and aluminum alloys to difficult-to-machine heat-resistant superalloys.The machine excels particularly in hardened part turning applications,capable of machining materials up to 62 HRC hardness,including tool steels,bearing steels,and case-hardened components.This capability enables manufacturers to replace grinding operations with hard turning for many applications,significantly reducing processing time.
How does the Y-axis capability enhance the machine's versatility compared to conventional turning centers?
The integrated Y-axis provides±25mm of vertical movement,enabling off-center milling,drilling,and tapping operations without requiring secondary setups on separate equipment.This capability allows for complete machining of complex components with features that deviate from the centerline axis,including cross-holes,flats,and asymmetrical geometries.The Y-axis functionality transforms the machine from a pure turning center to a complete rotational parts manufacturing system.
What industries benefit most from the TA42 MSY's specific capabilities?
The TA42 MSY finds particular advantage in industries requiring high precision and complex geometries in hardened materials.The medical industry benefits for implant and surgical instrument manufacturing;aerospace manufacturers value its capability for heat-resistant alloy machining;automotive suppliers utilize it for transmission and fuel system components;and general precision engineering companies apply it for mold components and precision mechanical parts requiring exceptional accuracy and surface finish.
