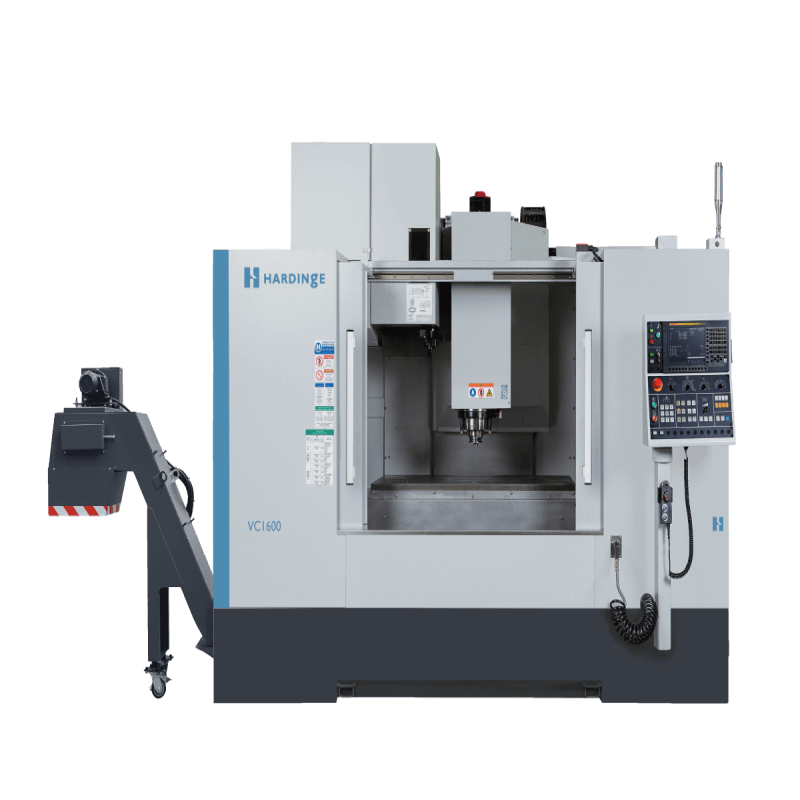

HARDINGE VC1600 High Precision Vertical Machining Center VMC

　　The HARDINGE VC1600 stands as a premier example of engineering excellence in the realm of High Precision VMC(Vertical Machining Center).This robust Vertical Machining Center is engineered to deliver exceptional accuracy,reliability,and performance for a wide range of machining tasks,from complex prototyping to high-volume production.Designed and manufactured by Hardinge,a name synonymous with quality in the machine tool industry,the VC1600 combines a heavy-duty cast iron construction with advanced thermal stability management to ensure consistent results in the most demanding shop floor environments.It is an ideal solution for industries where micron-level precision is non-negotiable,including aerospace,medical,automotive,and die/mold manufacturing.

　　1 Product Overview and Core Philosophy

　　The HARDINGE VC1600 is built upon a foundation of uncompromising quality and precision.As a High Precision VMC,its primary design goal is to achieve and maintain tight tolerances over long production runs.The machine's architecture is based on a rigid,heavily ribbed cast iron frame that provides exceptional damping properties,absorbing vibrations and ensuring a stable cutting platform.This inherent stability is crucial for achieving fine surface finishes and prolonging tool life.

　　This Vertical Machining Center is part of a broader family of VMCs from Hardinge,designed to offer a scalable solution for various work envelope requirements.The VC1600 model,in particular,is configured to handle larger workpieces without sacrificing precision.Its design philosophy centers on creating a thermally stable and mechanically robust environment for cutting,which is the bedrock of all high-accuracy machining.The machine integrates seamlessly into both small job shops and large-scale manufacturing cells,offering the versatility needed for one-off jobs and repetitive production.

　　2 Detailed Technical Specifications

　　Understanding the capabilities of the VC1600 requires a deep dive into its technical parameters.The machine features substantial axis travels,with an X-axis travel of 1600 mm,a Y-axis travel of 700 mm,and a Z-axis travel of 635 mm.This provides a generous work envelope for a wide array of parts.The worktable is a key component,with dimensions of 1700 mm in length and 700 mm in width,capable of supporting a maximum load of 1500 kg.

　　Precision is quantified by the machine's positioning and repeatability metrics.The VC1600 boasts an impressive positioning accuracy of 0.012 mm and a repeatability of 0.006 mm across all linear axes(X,Y,Z).The spindle nose to table distance ranges from 133 mm to 768 mm,and the spindle centerline to the Z-axis guide cover has a throat distance of 725 mm,defining the working space.These specifications collectively ensure that the VC1600 can handle sizable,heavy workpieces while maintaining the high precision it is known for.

　　3 Key Design Features and Technological Integration

　　3.1 Structural Integrity and Thermal Stability

　　The VC1600's commitment to precision begins with its foundation.The machine's base,column,and headstock are constructed from high-quality cast iron,which offers superior vibration damping compared to welded steel structures.Furthermore,Hardinge employs advanced thermal stability management techniques.This may include symmetric ribbing,internal coolant pathways,and environmental temperature control to minimize the thermal growth of critical components.By managing heat generated by the spindle,drives,and ambient conditions,the VC1600 ensures that accuracy is maintained throughout extended periods of operation.

　　3.2 High-Performance Spindle System

　　At the heart of any Vertical Machacing Center is its spindle,and the VC1600 is typically equipped with a high-performance,precision-balanced spindle unit.These spindles are designed for minimal radial and axial runout,which is a prerequisite for high-quality surface finishes and extended tool life.They are often supported by large-capacity,grease-packed or oil-cooled angular contact bearings that provide the rigidity needed for heavy-duty material removal as well as the speed required for finishing light alloys.The integration of a spindle cooling system helps to maintain a constant temperature,further enhancing precision and protecting the spindle from thermal damage.

　　3.3 Precision Guideways and Drive Systems

　　The motion system of the VC1600 is engineered for smooth,precise,and friction-free movement.The machine utilizes hardened and ground linear guideways on all three axes.These guideways offer high rigidity and excellent dynamic characteristics,contributing to the machine's fast acceleration and deceleration with minimal vibration.The movement is powered by high-torque servo motors coupled with precision ball screws.Pre-tensioned ball screws minimize backlash and thermal expansion,while feedback systems,typically high-resolution scales,provide closed-loop control to the CNC,ensuring the tool path exactly follows the programmed trajectory.

　　4 Performance and Application Advantages

　　4.1 Unmatched Accuracy and Surface Finish

　　The primary advantage of the HARDINGE VC1600 High Precision VMC is its ability to produce parts with exceptional dimensional accuracy and superior surface finishes.The combination of a rigid structure,thermally stable design,precision spindle,and accurate motion control system minimizes errors from chatter,vibration,and thermal drift.This makes it particularly suited for machining components for the medical industry,where part integrity is critical,and the aerospace sector,where complex geometries must be held to tight tolerances.

　　4.2 Enhanced Productivity and Operational Efficiency

　　Beyond precision,this Vertical Machining Center is designed for productivity.The machine's robust construction allows for aggressive metal removal rates,reducing roughing cycle times.Fast traverse rates and rapid tool change mechanisms further minimize non-cutting time.This high efficiency,combined with the machine's reliability,leads to a lower cost per part and a faster return on investment,which is a significant advantage in competitive manufacturing environments.

　　4.3 Superior Durability and Long-Term ROI

　　Investing in a VC1600 is a long-term strategy for manufacturing excellence.The use of premium components,such as high-grade cast iron,precision bearings,and hardened guideways,ensures a long operational life with minimal degradation in performance.This durability translates into a lower total cost of ownership over the machine's lifespan.The machine's reputation for reliability also means less unscheduled downtime,ensuring that production schedules are met consistently.

　　5 Industry Applications and Use Cases

　　The HARDINGE VC1600 finds its place in a diverse set of industries that demand the highest levels of precision and reliability.In the medical device industry,it is used to machine intricate components for surgical instruments,implants,and diagnostic equipment from materials like titanium and stainless steel.The aerospace sector utilizes this machine for producing robust parts,including those for defense applications,where material integrity and precision are paramount.

　　Furthermore,the automotive industry employs the VC1600 for creating high-precision components,including those used in engine and transmission systems,as well as for prototyping and manufacturing dies and molds.Its ability to handle a 1500 kg workload also makes it suitable for the bearing industry,where it can machine large bearing housings and races with the required accuracy and surface finish.Finally,in the general precision engineering and electronics sectors,the machine is valued for producing jigs,fixtures,and components for automation equipment with micron-level repeatability.

　　Frequently Asked Questions(FAQs)

　　What specific industries is the HARDINGE VC1600 best suited for?

　　The HARDINGE VC1600 is engineered for industries where precision is critical.It is exceptionally well-suited for the medical device industry for machining implants and surgical tools,the aerospace and defense sectors for high-integrity components,and the automotive field for precision parts and prototyping.Its robust workload capacity also makes it ideal for the bearing industry and for manufacturing complex dies and molds.

　　How does the design of the VC1600 contribute to its high precision and accuracy?

　　The VC1600's high precision stems from a multi-faceted design approach.Its heavy-duty,cast iron construction provides superior vibration damping.Key to its accuracy is the management of thermal stability to minimize heat-induced distortion.The integration of precision ground linear guideways and high-quality ball screw and drive systems ensures smooth,precise positioning.This is all backed by a high-performance spindle with minimal runout,which is essential for achieving fine surface finishes and maintaining tight tolerances.

　　What are the key factors to consider when integrating a VMC like the VC1600 into an existing workshop?

　　Integrating a VC1600 requires careful planning.First,assess the power requirements and ensure your facility's electrical supply is compatible.Second,consider the physical space and foundation needed,as the machine is heavy and requires a stable base.Third,evaluate compressed air and coolant requirements.Finally,plan for material handling—you'll need equipment like forklifts or cranes capable of loading 1500 kg workpieces onto the table safely and efficiently.

　　Can the HARDINGE VC1600 be integrated into automated manufacturing systems?

　　Yes,the HARDINGE VC1600 is an excellent candidate for integration into automated manufacturing cells.Its robust construction and CNC control system are designed to support unmanned or lights-out operation.The machine can be equipped with options like a pallet changer system to allow for continuous production,where one workpiece is being machined while another is being set up outside the machine.This makes it highly effective for high-volume production environments seeking to maximize equipment utilization.

　　What kind of control systems are typically paired with the VC1600?

　　While the specific control system can be a matter of customer preference,HARDINGE VMCs are often paired with high-performance CNC systems from leading manufacturers.These controls are selected for their processing power,user-friendly interfaces,and advanced features such as high-speed look-ahead for smoothing complex toolpaths,thermal compensation routines,and adaptive control capabilities that can optimize machining parameters in real-time for improved efficiency and tool life.
