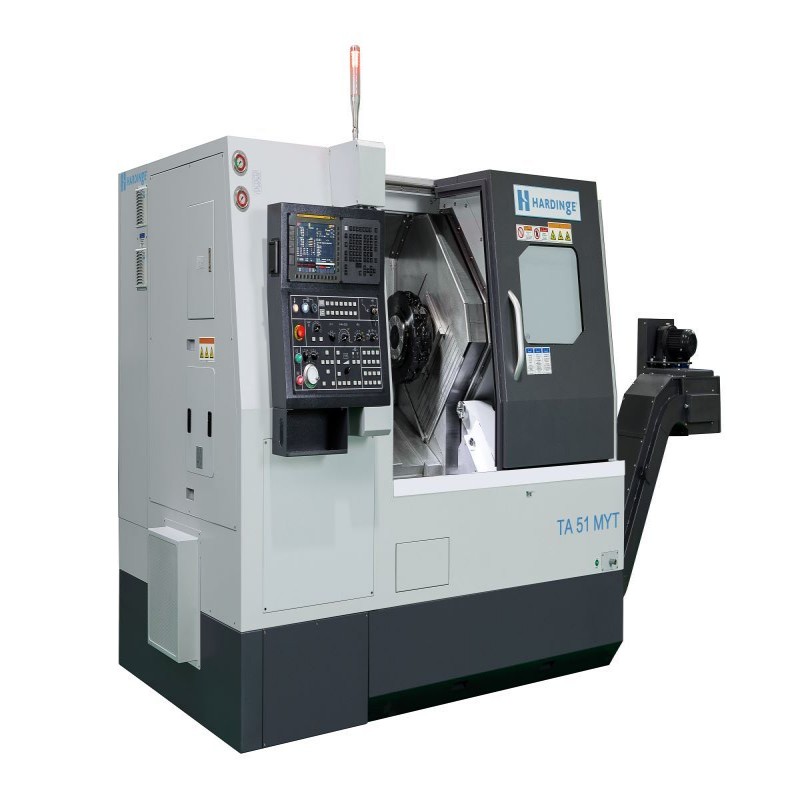

HARDINGE TA51 MYT High-Speed Precision Hard Turning CNC Lathe

　　1 Product Overview and Design Philosophy

　　The HARDINGE TA51 MYT represents the culmination of decades of engineering innovation in the field of high-speed CNC lathe technology.This precision hard turning lathe builds upon the proven CONQUEST platform,incorporating advanced features that make it particularly suitable for machining complex components with extremely tight tolerances.As a member of Hardinge's elite T-series family,this machine embodies a design philosophy centered on achieving uncompromising precision while maintaining exceptional reliability in demanding production environments.With its robust construction and sophisticated control systems,the TA51 MYT addresses the growing need for manufacturing equipment that can handle both prototype development and high-volume production runs without sacrificing accuracy.

　　Hardinge has engineered the TA51 MYT specifically for manufacturers operating in sectors where micro-level precision and superior surface finishes are paramount.The machine's architecture leverages finite element analysis to optimize structural integrity and thermal stability,critical factors for maintaining accuracy during extended production cycles.This precision hard turning lathe incorporates proprietary technologies that minimize vibration and dissipate heat effectively,ensuring consistent performance even when running at maximum operational capacity.The result is a machine capable of producing components with exceptional geometrical accuracy and surface integrity,often eliminating the need for secondary finishing operations.

　　The TA51 MYT is designed with operator-centric features that streamline workflow and enhance productivity.Its intuitive interface and accessible work zone reduce setup time and facilitate quick changeovers,making it ideal for both high-mix,low-volume job shops and dedicated high-production facilities.With capabilities tailored for machining a wide range of materials—from aerospace alloys to medical-grade plastics—this high-speed CNC lathe offers manufacturers the flexibility to pursue diverse market opportunities without investing in multiple specialized machines.

　　2 Technical Specifications and Performance Metrics

　　The HARDINGE TA51 MYT demonstrates impressive technical capabilities that place it at the forefront of precision turning technology.The machine features a powerful 15 kW spindle motor capable of reaching 5,000 rpm,providing ample power and speed for both conventional and hard turning applications.With a maximum bar capacity of 51 mm(2 inches)and a substantial X-axis travel,this precision hard turning lathe can accommodate a diverse range of part sizes and geometries.The generous work envelope enables manufacturers to process components with maximum turning diameters up to 313.7 mm and lengths up to 648.5 mm,covering the majority of small to medium-sized precision parts.

　　Positioning accuracy represents a critical performance metric for any precision machining center,and the TA51 MYT excels in this regard with extraordinary control resolution and repetition precision.The machine achieves remarkable positioning control accuracy of 0.0001 mm through the implementation of linear scales and full closed-loop feedback systems.This exceptional level of control ensures that the tool path precisely follows the programmed trajectory,resulting in components that consistently meet even the most challenging dimensional requirements.The machine's repetition precision reaches 0.00003 inches(0.762 microns),guaranteeing minimal part-to-part variation during production runs.

　　The TA51 MYT incorporates a sophisticated BMT55(Block Tool Mounting System)with 12 station tooling capacity,providing quick and rigid tool changes while maintaining exceptional positional accuracy.This system enables 1/2 station indexing of adjacent tools,effectively creating 24 programmable positions for enhanced flexibility in complex machining operations.The machine's A2-6 spindle nose configuration offers superior stiffness and rotational accuracy,with runout measurements not exceeding 0.4 microns for both radial and axial directions.This exceptional spindle precision,combined with the rigid tooling system,enables the TA51 MYT to achieve surface finishes of 8 micro-inches or better,a critical requirement for many precision components in industries such as aerospace,medical,and optical manufacturing.

　　3 Core Technologies and System Features

　　3.1 Advanced Spindle and Drive System

　　The heart of any precision turning center is its spindle system,and the TA51 MYT incorporates revolutionary spindle technology that sets new standards for accuracy and durability.Unlike conventional designs that rely on belt drives or gear mechanisms,this high-speed CNC lathe features a direct-drive spindle motor with integrated cooling systems that eliminate power transmission losses and minimize heat generation.This innovative approach ensures consistent torque delivery across the entire speed range while virtually eliminating the vibration and maintenance issues associated with mechanical drive components.The spindle's proprietary bearing arrangement and precision pre-load adjustment mechanism work in concert to deliver exceptional rotational accuracy that remains stable throughout extended production runs.

　　Thermal stability represents a critical challenge in precision machining applications,and the TA51 MYT addresses this through multiple engineered solutions.The machine incorporates symmetrical cooling channels within the spindle housing and base structure to maintain consistent temperatures during operation.Additionally,the integrated thermal compensation system continuously monitors temperature gradients throughout the machine and makes real-time adjustments to the axis positions,ensuring dimensional accuracy even during prolonged machining cycles.This comprehensive approach to thermal management enables the TA51 MYT to maintain diameter tolerances within 0.00012 inches(3 microns)after only a brief warm-up period,significantly reducing non-productive time while improving quality consistency.

　　3.2 Control System and Feedback Technology

　　The TA51 MYT utilizes a sophisticated CNC system with extraordinary resolution capabilities that form the foundation for its precision machining performance.The control features a remarkable resolution of 0.00001 inches(0.254 microns),providing the fine interpolation necessary for generating optimal tool paths and superior surface finishes.This high-resolution capability,combined with advanced look-ahead processing,allows the machine to maintain precise velocity control while navigating complex contours,resulting in improved dimensional accuracy and reduced cycle times.The system's powerful processing platform effortlessly handles the complex mathematical computations required for 3D machining operations and customized macro programs.

　　Precision feedback systems play a crucial role in the TA51 MYT's exceptional accuracy,with high-precision glass scales on the X-axis providing direct position measurement without the cumulative errors associated with rotary encoders.This full closed-loop control system continuously monitors and corrects the actual position of machine components,effectively compensating for potential sources of error such as thermal expansion,mechanical wear,or backlash.The machine's ballbar testing verification confirms exceptional geometric accuracy,ensuring that the machine tool produces components that faithfully match design specifications.These comprehensive measurement and compensation systems work together to deliver the exceptional positioning performance that defines this precision hard turning lathe.

　　4 Application Range and Material Compatibility

　　The HARDINGE TA51 MYT demonstrates exceptional versatility across a broad spectrum of industries and applications,particularly excelling in sectors demanding extreme precision and consistent quality.Its capabilities are especially valuable in the aerospace industry,where components must withstand extreme operating conditions while maintaining precise dimensional stability.The machine's ability to process heat-resistant superalloys,titanium alloys,and other challenging materials makes it ideal for producing flight-critical components such as fuel system parts,hydraulic components,and engine accessories.Similarly,in the medical device sector,the TA51 MYT's capability to maintain microscopic tolerances and superior surface finishes meets the stringent requirements for surgical instruments,implantable components,and diagnostic equipment.

　　The automotive industry represents another significant application area,particularly for high-performance components where material integrity and dimensional precision directly impact reliability and efficiency.The TA51 MYT excels at producing transmission parts,fuel injection components,and other critical systems that benefit from the machine's precision hard turning capabilities.Additionally,the growing semiconductor and electronics sectors utilize this high-speed CNC lathe for manufacturing precision fixtures,vacuum system components,and connectivity parts that demand the exceptional accuracy and fine surface finishes the machine delivers.

　　A defining strength of the TA51 MYT is its proficiency in hard turning applications,where it machines pre-heat-treated materials with hardness values up to 62 HRC and beyond.This capability enables manufacturers to eliminate secondary grinding operations in many cases,significantly reducing production time and costs while maintaining comparable or superior quality.The machine's rigid construction,thermal stability,and advanced tooling systems work in concert to withstand the elevated cutting forces and temperatures associated with hard turning,producing components with excellent surface integrity and dimensional accuracy.From bearing races and gear blanks to hydraulic components and cutting tool inserts,this precision hard turning lathe delivers finished components in a single setup,streamlining manufacturing processes and accelerating time to market.

　　5 Operational Advantages and Productivity Enhancements

　　5.1 Precision and Surface Quality Benefits

　　The HARDINGE TA51 MYT delivers exceptional geometrical accuracy that directly translates to improved performance and reliability of manufactured components.The machine's integrated structural design and advanced vibration damping characteristics work in concert to minimize dynamic deflection during cutting operations,ensuring that form,profile,and positional tolerances consistently meet specifications.This capability is particularly valuable for complex components with interrelated geometric features that must maintain precise relationships to function properly.The machine's ability to hold diameter tolerances within 3 microns after minimal warm-up time significantly reduces scrap rates and inspection overhead while improving overall quality consistency.

　　Surface finish quality represents another area where the TA51 MYT demonstrates clear advantages over conventional turning centers.The machine's optimized mechanical structure,combined with its precise motion control capabilities,enables the production of surface finishes measuring 8 micro-inches Ra or better without secondary operations.This exceptional surface quality results from the machine's exceptional rigidity,which minimizes vibration,and its sophisticated control system that maintains consistent cutting conditions throughout the machining process.The resulting components exhibit improved fatigue resistance,enhanced sealing capabilities,and superior wear characteristics—critical benefits for applications in hydraulic systems,precision mechanisms,and high-performance assemblies.

　　5.2 Automation Integration and Production Efficiency

　　The TA51 MYT is designed with comprehensive automation readiness that enables manufacturers to implement flexible production systems tailored to their specific volume requirements.The machine's standardized interface connections and programmable logic controller(PLC)integration capabilities simplify the incorporation of robotic part handling,gantry loading systems,and conveyorized part removal.This automation compatibility allows manufacturers to maintain consistent quality while maximizing equipment utilization during lights-out production cycles.The machine's quick-change tooling system and rapid part calibration features further enhance operational efficiency by minimizing non-cutting time during product changeovers.

　　Production efficiency receives significant attention in the TA51 MYT's design,with numerous features contributing to reduced cycle times and improved overall equipment effectiveness(OEE).The machine's high-speed axis drives and rapid acceleration capabilities minimize positioning time between machining operations,while its optimized chip management system ensures efficient removal of swarf during uninterrupted production runs.The advanced thermal stability of the machine structure reduces the need for warm-up cycles after planned or unplanned stoppages,allowing production to resume more quickly.These efficiency-enhancing features collectively contribute to lower per-part costs and improved responsiveness to production demands,providing manufacturers with a competitive advantage in time-sensitive markets.

　　6 Technical Differentiators and Competitive Advantages

　　When compared to conventional CNC lathes in its class,the HARDINGE TA51 MYT demonstrates several significant technical advantages that justify its position as a premium precision hard turning lathe.The machine's monolithic base structure with optimized ribbing patterns and advanced damping characteristics provides exceptional stability against cutting forces,significantly reducing vibration-induced inaccuracies and enabling more aggressive machining parameters.This robust foundation,combined with the finite element analysis-optimized geometry,creates a machining platform that maintains alignment integrity throughout its operational range,ensuring consistent accuracy across the entire work envelope.

　　The TA51 MYT incorporates revolutionary bearing technology in its spindle system that delivers exceptional rotational accuracy while extending service intervals compared to conventional designs.The precisely pre-loaded angular contact bearings are arranged in a optimized configuration that minimizes axial and radial play while effectively distributing loads generated during heavy cutting operations.This sophisticated spindle arrangement,combined with the direct-drive motor technology,eliminates the accuracy limitations and maintenance requirements associated with belt-driven systems,providing superior performance in both high-speed finishing and hard turning applications.

　　A particularly distinguishing feature of the TA51 MYT is its comprehensive precision package that includes several technologies typically found only in specialized ultra-precision machines.The high-resolution glass scale feedback system on the X-axis provides direct position measurement that bypasses potential error sources such as lead screw wear or thermal expansion.This exceptional metrology capability,combined with the machine's sophisticated error compensation system that accounts for pitch,yaw,and straightness deviations,enables the exceptional positioning accuracy that defines this high-speed CNC lathe.These integrated technologies,along with features such as the thermally symmetric base design and advanced coolant management system,collectively establish the TA51 MYT as a leader in precision turning technology capable of meeting the most demanding manufacturing challenges.

　　7 Conclusion

　　The HARDINGE TA51 MYT represents a sophisticated synthesis of advanced manufacturing technologies,combining exceptional precision capabilities with practical production efficiency.As a high-speed CNC lathe specifically engineered for precision hard turning applications,this machine delivers the accuracy,reliability,and versatility demanded by manufacturers operating in competitive global markets.Its robust construction,sophisticated control systems,and precision-enhancing features make it particularly suitable for applications where microscopic tolerances and superior surface finishes are essential requirements.

　　With capabilities spanning from prototype development to high-volume production,the TA51 MYT provides manufacturers with a flexible machining platform that can adapt to evolving product requirements and market demands.The machine's proficiency in hard turning operations enables significant process consolidation by eliminating secondary operations,while its automation compatibility supports efficient manufacturing across varying production volumes.For organizations seeking to enhance their precision machining capabilities while improving manufacturing efficiency,the HARDINGE TA51 MYT offers a comprehensive solution that addresses both current requirements and future challenges in precision component manufacturing.
