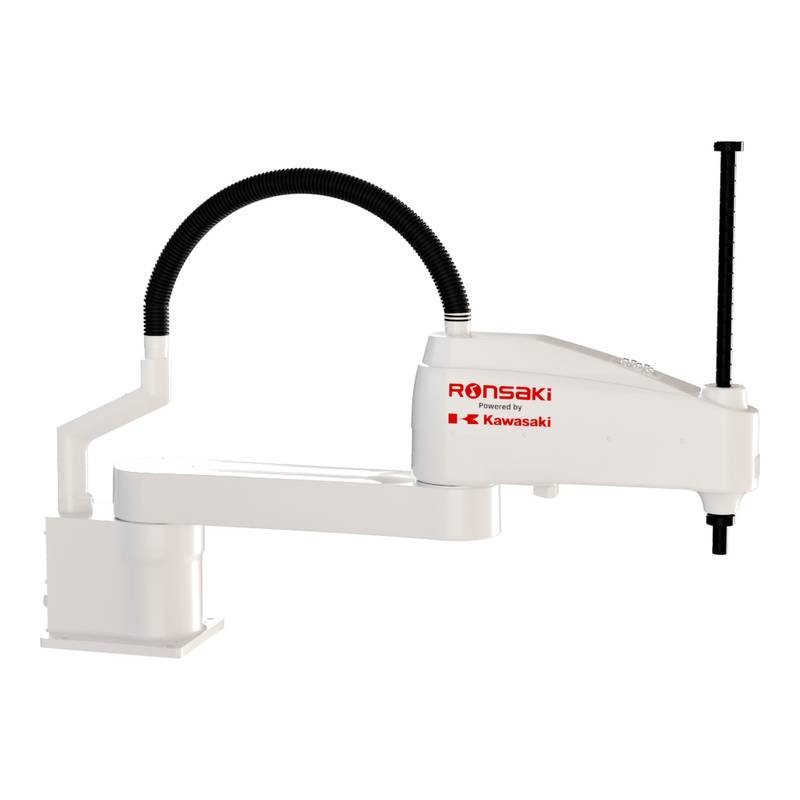

Kawasaki Robot KLS 1000-20N Large SCARA Robot SCARA Robotics for Heavy-Duty High-Speed Payload Transfer

The Kawasaki Robot KLS 1000-20N is a high-payload large SCARA robot engineered for heavy-duty, high-speed material transfer in demanding industrial environments. As a specialized piece of scara robotics, the KLS 1000-20N delivers precise handling for automotive assembly, palletizing, and heavy electronics manufacturing, operating with a maximum payload capacity of 20kg and a reach of 1000mm. This system adheres to ISO 9283 performance standards, ensuring consistent repeatability and trajectory accuracy under continuous high-duty cycles.

Technical Specifications and Performance Metrics

The following specifications define the operational envelope of the KLS 1000-20N. These values are derived from manufacturer test data conducted under rated payload conditions.

Model: KLS 1000-20N

Maximum Payload: 20 kg

Horizontal Reach: 1000 mm

Vertical Stroke: 400 mm

Repeatability: +/- 0.02 mm

Joint 1 Rotation Range: +/- 150 degrees

Joint 2 Rotation Range: +/- 150 degrees

Joint 3 Stroke: 400 mm

Joint 4 Rotation Range: +/- 360 degrees

Protection Rating: IP54 (standard), IP65 (optional)

Controller Compatibility: F60 Series

Operational Characteristics and Industrial Integration

The KLS 1000-20N utilizes a rigid arm design to minimize deflection during rapid acceleration and deceleration phases. This structural integrity allows for a sustained cycle time reduction in high-throughput production lines, particularly when handling components that exceed the capabilities of standard-sized SCARA units.

How does the KLS 1000-20N maintain accuracy during high-speed operation? The robot employs an integrated high-resolution encoder system and optimized motor torque distribution to suppress vibrations, ensuring it maintains a repeatability of +/- 0.02 mm even at peak operational velocity.

For engineers seeking alternative configurations within the same high-payload series, the Kawasaki KLS 1000-10N offers a different payload-to-speed ratio, while the KLS 700 series provides a more compact footprint for tighter workspace constraints. Integration into existing automation cells requires standard 400V three-phase power and compatibility with the Kawasaki F-series controller architecture.

Selection and Application Guidance

The KLS 1000-20N is explicitly recommended for high-mass part transfer, large-scale automotive component picking, and heavy-duty logistics automation. Its design is less efficient in applications requiring extremely lightweight, micro-assembly tasks where a smaller, lower-inertia robot would yield higher energy efficiency.

Deployment in heavy-duty environments requires rigorous adherence to the manufacturer’s maintenance schedule, specifically regarding the lubrication of the harmonic drives every 5,000 operational hours. Beijing Zhongping Technology provides technical documentation and site assessment guidelines to ensure the installation environment meets the necessary ISO environmental standards for optimal robot longevity.
