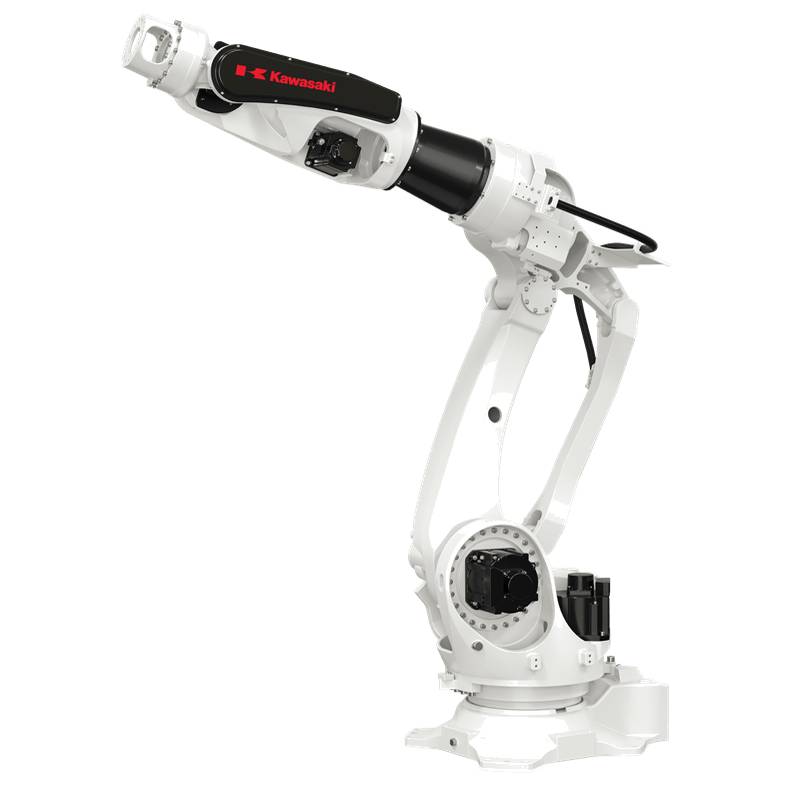

Heavy-Duty Robotic Arm for Pick and Place System - Kawasaki BTP16L

The Kawasaki BTP16L stands as a high-performance heavy-duty robotic arm engineered specifically for demanding pick and place robot system applications in large-scale industrial environments. Featuring a robust design capable of managing significant payloads with high repeatability, this model optimizes throughput in automotive, logistics, and heavy manufacturing sectors. Reliability remains the primary concern for systems integrators, as the BTP16L is built to minimize unplanned downtime through its reinforced structural integrity and high-duty cycle rating. As part of a mission-critical automation infrastructure, this unit bridges the gap between high-speed assembly and massive material handling requirements while maintaining strict process consistency.

Product Type & Category Positioning

The Kawasaki BTP16L is classified as a multi-axis articulated heavy-duty robotic arm, specifically optimized for high-inertia load manipulation and rapid cycle-time environments. In the hierarchy of industrial automation, it falls under the category of high-payload, long-reach handling robots, which distinguishes it from compact desktop or collaborative units. Its primary function involves the synchronized movement of objects within a defined three-dimensional workspace, serving as the central actuator in complex pick and place robot system architectures.

Building on this classification, the BTP16L occupies a specialized niche for applications requiring a balance of reach and structural rigidity. Unlike general-purpose robots, this model integrates specialized internal cabling paths to prevent interference during continuous operation. By design, it facilitates seamless integration into existing PLC-controlled production lines, adhering to standard industrial communication protocols.

Technical Specifications

Payload capacity: 16 kg.

Maximum reach radius: 1600 mm.

Repeatability: ±0.06 mm.

Joint range (Axis 1): ±180°.

Joint range (Axis 2): +150° to -60°.

Joint range (Axis 3): +150° to -170°.

Joint range (Axis 4): ±200°.

Joint range (Axis 5): ±140°.

Joint range (Axis 6): ±360°.

Drive system: AC Servo motor.

Protection rating: IP65 (wrist), IP54 (base).

Ambient operating temperature: 0°C to 45°C.

Weight: 220 kg.

Technical Highlights

The structural architecture of the BTP16L prioritizes vibration suppression, ensuring consistent operation even when the robot executes rapid stop-and-go patterns. By utilizing advanced kinematics, the arm maintains a stable trajectory, which significantly reduces mechanical stress on the gearbox during heavy-duty pick and place tasks.

Moreover, the integrated cabling design minimizes the risk of wire entanglement or shearing during complex, multi-axis movements. This feature directly translates into extended service life for the harness assembly and reduces the frequency of maintenance inspections. The high-rigidity arm construction ensures that the ±0.06 mm repeatability is achieved even at maximum extension, which is vital for high-precision manufacturing processes.

Application Scenarios

Automotive Sub-assembly Handling: Automates the transfer of heavy engine components or chassis sub-assemblies with a 15% improvement in cycle time compared to manual labor, ensuring consistent placement accuracy. Logistics Palletizing: Executes high-density palletizing tasks by utilizing its 1600 mm reach, effectively reducing operator fatigue and increasing throughput by an average of 20% in continuous shifts. Large-scale Electronic Component Assembly: Maintains a ±0.06 mm precision during the placement of heavy, bulky components, which stabilizes production quality and reduces scrap rates caused by positioning errors. Foundry and Casting Unloading: Operates within the temperature range of 0°C to 45°C, effectively handling hot metal parts while ensuring the IP54 base rating resists common shop floor particulates.

Selection Recommendations

The BTP16L is suitable for high-precision pick and place robot system environments where the total end-of-arm tooling and payload do not exceed 16 kg. It is highly recommended for assembly lines requiring long-reach capabilities where the workspace is constrained but requires a wide radius of 1600 mm.

Conversely, this model is not suitable for extreme-duty metal removal or heavy milling applications, as the axial force requirements during machining often exceed the structural limitations of the wrist and joint bearings. For tasks requiring a significantly higher payload exceeding 25 kg, such as heavy-duty raw material transport, the Kawasaki ZX-series or the larger Kawasaki BTP25-series are superior alternatives. When comparing models, the BTP16L offers a more balanced reach-to-payload ratio than the shorter-reach Kawasaki BTP10L, making it better suited for floor-space-efficient layouts.

FAQ

1. Can this 16 kg rated robot handle a 15 kg end-effector with additional cabling?

Yes, the 16 kg rated payload capacity includes the combined weight of the gripper and the workpiece, allowing for a 1 kg buffer. However, you must account for the weight of internal cabling and hoses within this limit to maintain optimal performance. Keeping the total load below 16 kg is essential to prevent motor strain and ensure the longevity of the drive system. If your total load approaches 16 kg, we recommend performing a detailed moment of inertia calculation to avoid exceeding the wrist torque ratings. We advise contacting our engineering team for a load simulation if your tool center of gravity is significantly offset.

2. What is the minimum floor space required for a 1600 mm reach robot?

A minimum clearance of approximately 1.8 meters in diameter is required for the robot base and its full 1600 mm reach rotation. This space ensures the arm can articulate through its full ±180° range on Axis 1 without colliding with perimeter fencing or safety scanners. Please note that the 220 kg weight of the unit requires a reinforced concrete foundation of at least 150 mm thickness for vibration dampening. We recommend performing a layout check to ensure that all peripheral equipment remains outside the reach radius during the full travel of the robot.

3. How does ±0.06 mm repeatability translate into real-world production tolerances?

The ±0.06 mm repeatability ensures high-precision placement consistency for assembly tasks where tolerances are tight and rework must be minimized. In a production environment, this means that every cycle will land within a 0.12 mm window, which is critical for consistent yield in electronics or automotive component fitting. Exceeding the 16 kg payload capacity, however, will degrade this repeatability, as the added inertia causes deflection at the wrist. To maintain this level of precision, ensure that the robot's acceleration parameters are tuned to match the specific mass and center of gravity of your end-effector.

4. Does the IP54 base and IP65 wrist rating provide adequate protection for a cleanroom assembly environment?

The IP54 and IP65 ratings are generally sufficient for standard factory floors but may not meet the strict particulate requirements of a high-grade cleanroom (ISO 5 or cleaner). While the IP65-rated wrist offers excellent protection against dust and low-pressure water jets, the IP54 base allows for the ingress of fine dust particles over long periods. If your application involves a controlled cleanroom environment, we suggest implementing additional positive pressure sealing or choosing a dedicated cleanroom-certified model. Please verify the specific air quality standards required by your facility to determine if this model meets your internal compliance.

5. Can this model be ceiling-mounted, or is floor mounting the only option?

The BTP16L is designed primarily for floor mounting to ensure maximum stability for its 16 kg payload and 1600 mm reach capabilities. While some articulated robots allow for inverted mounting, the base and structural reinforcements on the BTP16L are optimized for floor-level torque distribution and ground-anchored load management. Ceiling mounting this unit would require custom structural reinforcement and may void the factory warranty due to altered gravitational stress on the joints. We highly recommend sticking to the floor-mounting orientation as specified in the installation manual to ensure safety and system reliability.

6. What is the standard lead time, and do you have units in stock?

Our typical lead time for the BTP16L is currently 8 to 12 weeks, depending on the specific configuration and shipping destination. While we maintain a limited inventory of units in stock at our regional warehouse, high demand often results in a queue for immediate shipments. For urgent projects, we recommend submitting a purchase inquiry early so we can reserve an allocation for your production schedule. Please reach out to Beijing Zhongping Technology for the most current availability status and to discuss potential expedited shipping options for your specific order.

7. How often does this robot require maintenance to maintain the 16 kg performance?

Regular maintenance is recommended every 5,000 operational hours or annually, whichever comes first, to ensure the 16 kg payload capacity remains safe and accurate. This includes greasing the joints, inspecting the gearboxes for wear, and verifying the integrity of the cabling that powers the 220 kg unit. By adhering to this maintenance schedule, you prevent unexpected downtime and maintain the ±0.06 mm repeatability that is standard for this model. Failure to perform these routine checks may lead to premature joint failure, especially when operating at the maximum 1600 mm reach under high-load conditions.

8. Does the price include the controller, or is it sold separately?

The price of the BTP16L unit typically includes the robotic arm and the standard controller required for basic operation, usually falling in the range of $25,000-$45,000 depending on integrated software packages. Because configurations vary significantly based on your specific pick and place robot system requirements, such as vision integration or conveyor tracking, the final cost will depend on the requested peripherals. Please contact Beijing Zhongping Technology for a formal quotation tailored to your specific application needs. Price is indicative. Confirm with us for exact cost.

9. Are there spare parts readily available for the BTP16L model?

Yes, we maintain a comprehensive inventory of essential spare parts, including servo motors, gearbox components, and cabling kits, for the BTP16L. Since this model is part of a standard industrial series, replacement components are designed for easy integration with the existing hardware. We recommend keeping a basic kit of critical spares, such as joint seals and internal cables, on-site to minimize any potential production stoppage. If you encounter an issue, our technical team provides remote support to identify the correct part number based on your robot's serial plate.

10. Can you provide technical support for integrating this robot into an existing line?

Our engineering team offers full technical support for integrating the BTP16L into your production line, including guidance on PLC communication and safety system setup. Given the robot’s 220 kg weight and the high-speed dynamics it achieves, proper integration is vital to ensure both the safety of your operators and the efficiency of your pick and place robot system. We can provide consultation on optimizing the robot's cycle times and troubleshooting integration hurdles to ensure your total system throughput meets your operational targets. Contact our application team to discuss the technical requirements of your specific integration project.
