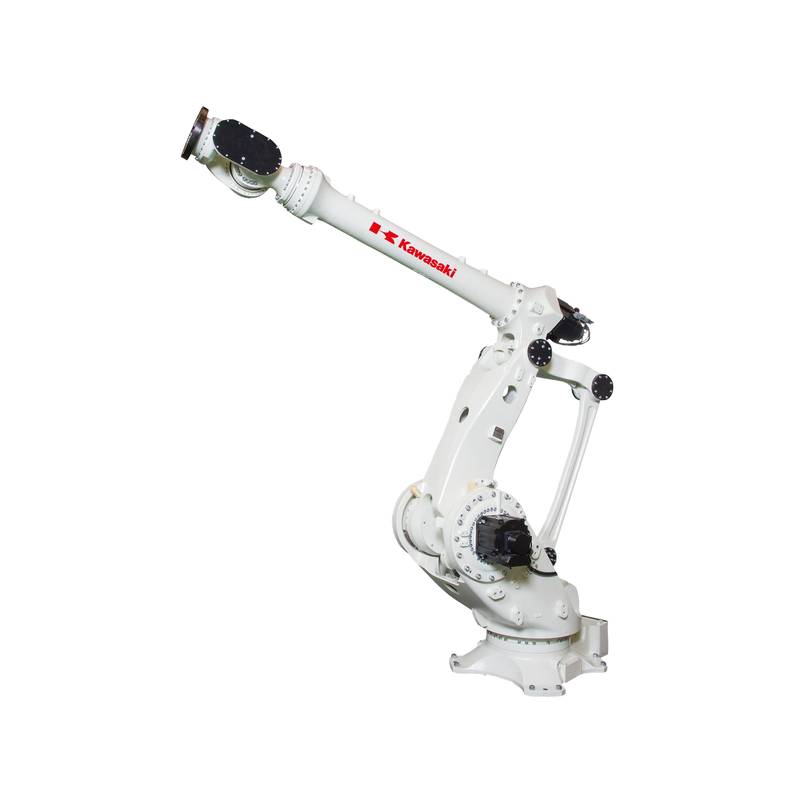

The Kawasaki Robot MXP41X is a high-rigidity articulated robot specifically engineered for heavy-duty industrial automation tasks requiring a high payload capacity. As a specialized heavy duty robot, this model achieves structural stability during complex machining operations, with a maximum payload of 410 kg and a maximum reach of 2,600 mm. Its architecture supports high-precision applications in automotive assembly lines, heavy casting material handling, and large-scale structural welding. Per the manufacturer datasheet, the MXP41X delivers a repeatability of ±0.06 mm, ensuring consistency in high-force environments while maintaining industrial safety standards compliant with ISO 10218-1.
Technical Specifications and Operational Parameters
The MXP41X operates on a 6-axis articulated configuration, optimized for torque-dense performance during high-rigidity machining. Each axis utilizes high-resolution absolute encoders to maintain positional accuracy under maximum load conditions.
Model: MXP41X
Payload Capacity: 410 kg
Maximum Reach: 2,600 mm
Repeatability: ±0.06 mm
Axis Configuration: 6-Axis
Drive System: AC Servo Motor
Protection Rating: IP65 (Standard) / IP67 (Wrist)
Controller Compatibility: E Series / F Series
Engineering Performance and Stability
The mechanical design of the MXP41X prioritizes vibration damping and structural rigidity, essential for CNC machining and material removal tasks. The rigid arm construction minimizes deflection when the robot executes high-torque movements at full extension.
How does the MXP41X maintain accuracy during high-load machining? The robot utilizes an advanced gravity compensation algorithm integrated into the controller, which actively adjusts torque output across all axes to counteract load-induced oscillations, ensuring precise tool path adherence even at a 410 kg load.
Integration within existing production cells is streamlined by the robot's compatibility with diverse industrial communication protocols. The MXP41X supports EtherNet/IP, PROFINET, and DeviceNet, allowing for seamless data exchange with PLC systems and CNC controllers. Users requiring similar performance in different form factors should consider the MXP series, specifically the MXP41X's counterparts such as the MXP41L for extended reach or the high-speed oriented variants within the Kawasaki heavy-duty lineup.
Industrial Application Suitability
This robot is engineered for environments where standard-duty robots fail due to structural fatigue or payload limitations.
Automotive Body Assembly: The MXP41X executes spot welding and heavy part positioning on vehicle chassis with high cycle reliability. Its high-rigidity structure prevents mechanical drift during prolonged heavy-duty operations.
Casting and Foundry Operations: In high-temperature or dusty environments, the optional IP67 wrist protection enables the robot to handle raw castings and perform deburring tasks without performance degradation.
Material Handling for Heavy Forging: The unit facilitates the transfer of large, high-mass components between forging presses, reducing manual labor risks and increasing line throughput.
When selecting this robot, engineers should verify the power supply requirements and the dynamic range of the workspace. This model is not suited for light-load, high-speed assembly tasks where a lower-payload robot like the RS series would offer better energy efficiency and cycle times.
FAQ: Technical and Commercial Guidance
1. What are the precise dimensions and weight of the MXP41X for floor loading calculations?
The MXP41X base measures 800 mm by 800 mm, and the total robot weight is approximately 2,200 kg. We provide detailed CAD files and foundation load-bearing requirements upon request to ensure your facility floor meets installation standards.
2. What is the typical lead time for an MXP41X unit?
We dispatch units from the factory based on current production scheduling, with lead times typically ranging from 12 to 20 weeks. Contact Beijing Zhongping Technology for a confirmed shipping window based on current inventory and backlog.
3. Is the controller included with the robot purchase?
Yes, we provide the compatible Kawasaki F Series controller as part of the standard procurement package. The controller comes pre-configured with necessary safety software and interface modules for your specific application.
4. How does the warranty policy function for international industrial orders?
We provide a standard 12-month manufacturer warranty covering mechanical and electrical components against defects. For site-specific service agreements or extended protection, contact Beijing Zhongping Technology for pricing.
5. Does the robot require specialized training for operators?
The MXP41X requires certified personnel for programming and maintenance due to its complex kinematics and high-torque capabilities. We offer specialized training modules for an additional fee to ensure your team operates the equipment safely and efficiently.
6. Are spare parts for the MXP41X readily available in stock?
We maintain a strategic inventory of critical components, including servo motors, gear units, and controller boards. We ship high-demand spare parts within 48 hours to minimize downtime for your production line.
7. How should I handle the customs and import documentation for this robot?
We provide all necessary certificates of origin and technical documentation to facilitate smooth customs clearance. You should consult with your local customs broker regarding specific tariffs or import duties applicable to industrial robots in your region.
8. Does Beijing Zhongping Technology offer site assessment services before installation?
Yes, we provide a free pre-delivery site assessment to evaluate space constraints, power availability, and safety zoning. This process ensures the robot is properly integrated into your existing facility layout.
9. Can the MXP41X be integrated with third-party CNC machinery?
The robot interfaces directly with most industrial CNC machines through standard I/O and fieldbus protocols. Our integration team provides technical support to map signals and optimize communication cycles between the robot and your specific machining equipment.
10. What is the estimated price range for the MXP41X?
Prices fluctuate due to exchange rates, tariffs, and factory adjustments. For an accurate quotation, contact Beijing Zhongping Technology directly to receive a formal proposal tailored to your application requirements.
