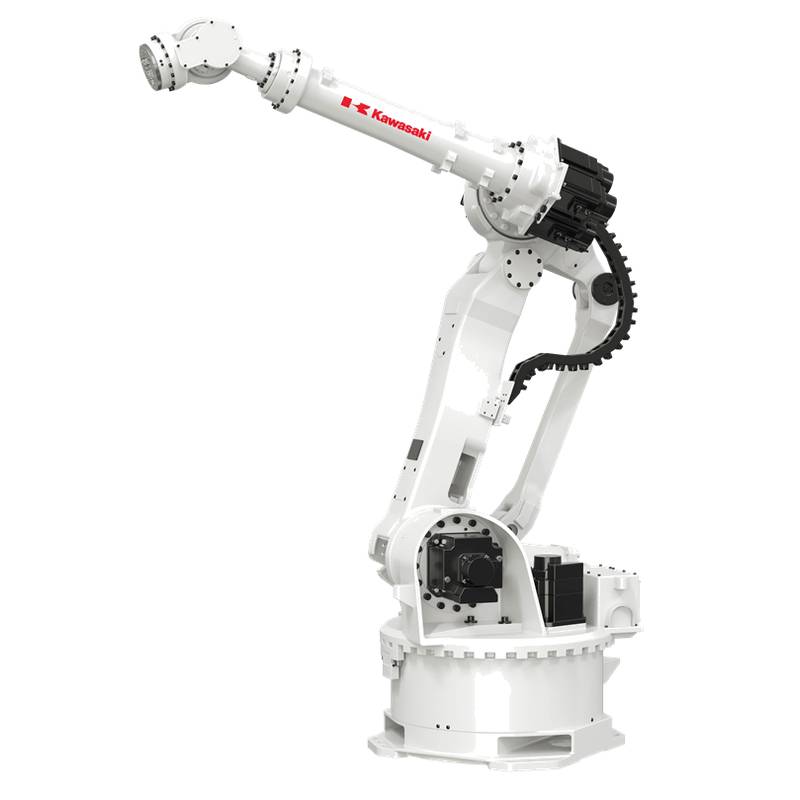

High-Torque Robot for Material Handling - Kawasaki BTP21L

The Kawasaki BTP21L is a specialized industrial robot engineered for high-duty cycle robot material handling applications requiring precise, high-torque robotics performance. This articulated arm robot integrates high-output motors and a reinforced structural chassis to manage heavy payloads while maintaining strict positioning repeatability in demanding environments. As production demands fluctuate, engineers typically require scheduled preventive maintenance every 3,000 operational hours to ensure sustained transmission reliability. By deploying this system, manufacturing facilities optimize floor space utilization and increase throughput in automated palletizing and machine-tending cells.

Product Type & Category Positioning

The Kawasaki BTP21L falls under the category of heavy-payload articulated industrial robots, specifically designed for tasks where constant, high-torque output is mandatory. This model belongs to the class of six-axis industrial manipulators, which are standard in automotive body shops, heavy component logistics, and casting industries.

Building on this classification, the BTP21L is positioned between entry-level assembly robots and ultra-heavy-lift palletizing robots. It serves industrial users who require a balance between reaching large work volumes and handling significant end-effector mass. The unit features an optimized gear reduction ratio that prioritizes force delivery over high-speed maneuverability.

Technical Specifications

Payload capacity: 210 KG

Maximum reach: 2700 MM

Repeatability: ±0.2 MM

Axis count: 6

Wrist torque axis 4: 1200 NM

Wrist torque axis 5: 1200 NM

Wrist torque axis 6: 600 NM

Protection rating: IP67

Mounting type: Floor

Weight: 1450 KG

Communication protocol: Ethernet/IP

Technical Highlights

The mechanical design of the BTP21L centers on high-rigidity components that facilitate stable motion even when operating at maximum rated payloads. By utilizing a reinforced harmonic and planetary gear drive system, the robot suppresses vibration during rapid acceleration and deceleration cycles.

Moreover, the unit utilizes a high-torque actuator configuration which provides superior wrist performance for complex material handling tasks. This design reduces the stress on internal components during heavy lifting, thereby extending the mean time between failures (MTBF). Additionally, the sealed structure ensures consistent operation in harsh environments where metallic dust or moisture might otherwise degrade performance.

Application Scenarios

Automotive Chassis Handling: Facilitates the movement of metal sub-frames with a cycle time reduction of 15% compared to previous generation units. The high wrist torque ensures stable orientation of heavy parts during the transfer process. Heavy-Duty Palletizing: Enables stable stacking of goods weighing up to 210 KG at a consistent 2700 MM reach. This reduces physical strain on human operators and provides a 24/7 autonomous workflow. Foundry and Casting Tending: Utilizes the IP67 protection rating to operate reliably in high-heat and debris-filled environments. The robust drive train minimizes downtime typically caused by abrasive environmental particulates.

Selection Recommendations

Suitable Application: Heavy material handling in automotive or logistics sectors where the load fluctuates between 150 KG and 210 KG and the environment requires IP67 ingress protection. The BTP21L excels when the cycle time requirements are moderate but load stability is critical. Unsuitable Application: High-precision electronics assembly or micro-packaging tasks. With a repeatability of ±0.2 MM, the BTP21L lacks the sub-millimeter precision required for delicate electronic component placement, which typically necessitates a repeatability of ±0.05 MM or better.

For projects requiring smaller footprints or lighter lifting requirements, we suggest comparing this model against the Kawasaki BTP160L. The BTP160L provides a more agile alternative for applications where the payload limit is strictly below 160 KG.

FAQ

1. Can this 210 KG rated robot handle a 200 KG gripper safely for long-term production?

Yes, the 210 KG rated payload is the total capacity, meaning a 200 KG gripper is permissible provided the workpiece weight remains within the remaining 10 KG margin. Operating at a total load of 210 KG maintains the rated ±0.2 MM repeatability and ensures the motors do not exceed thermal limits. If your total load consistently hits the 210 KG limit, we recommend implementing a gradual acceleration profile to preserve gear life. For consistent operation at this upper threshold, always verify that the center of gravity offset is calculated precisely within the simulation software.

2. What is the minimum floor space required for a 2700 MM reach robot?

A minimum operational diameter of approximately 5.4 meters is required to allow the robot to move freely throughout its full 2700 MM reach without obstruction. The 1450 KG mass of the base requires a reinforced concrete foundation at least 300 mm thick to maintain stability during high-torque movements. We recommend clearing a 6-meter radius to account for safety fencing and the peripheral space needed for maintenance access. Proper floor anchoring is essential to ensure that the robot does not experience base-plate deflection during maximum payload swings.

3. How does the ±0.2 MM repeatability translate into real-world production tolerances for palletizing?

The ±0.2 MM repeatability ensures that the robot returns to the same spatial coordinate with high reliability, minimizing stack misalignment even when the 210 KG payload is at full extension. This metric is critical because it prevents the cumulative error that causes pallet toppling during high-density stacking operations. When operating at the 2700 MM reach, the stiff mechanical structure ensures that the ±0.2 MM variance remains consistent throughout the entire working envelope. This level of precision is ideal for industrial palletizing, though it may not meet the demands of high-precision welding or intricate assembly.

4. Does the IP67 protection rating allow for direct washdown in a food processing environment?

Yes, the IP67 rating confirms that the robot is dust-tight and capable of withstanding immersion in water up to 1 meter for short durations, suitable for washdown areas. The 1450 KG structural design includes sealed joints that prevent fluid ingress during high-pressure cleaning cycles. However, you must ensure that all external cable connections are also rated to IP67 standards to maintain the integrity of the entire system. Please consult our maintenance manual for recommended cleaning agents that are compatible with the robot's exterior paint and gasket materials.

5. Can this model be ceiling-mounted, or is floor mounting the only option?

The BTP21L is engineered exclusively for floor mounting to ensure the 1450 KG weight is properly distributed and the high-torque axis movements are safely grounded. Attempting to ceiling-mount this unit would compromise the structural safety factor, particularly when moving the 210 KG maximum load. The drive motors are calibrated for vertical gravity loads, and altering the orientation would shift the center of gravity, leading to potential axis errors. For inverted applications, we recommend discussing a customized gantry or a different robot series designed for ceiling integration with our engineering team.

6. What is the standard lead time, and do you have units in stock?

Currently, our standard lead time for the BTP21L is 8 to 12 weeks, as these units are often built to order to accommodate specific interface requirements. We maintain a limited inventory of core models at our facility, but high demand for 210 KG payload robots frequently exhausts available stock. For urgent requirements, please contact us for current inventory status and potential expedited shipping options. We recommend placing your order at least three months in advance to avoid production delays in your facility.

7. Is the pricing for this unit competitive, and what is the current market range?

The current indicative price for the BTP21L ranges from $58,000 to $85,000 depending on the integrated controller options and software bundles. As a representative for Beijing Zhongping Technology, we strive to provide a balance between advanced performance and cost-effectiveness for our clients. Prices fluctuate with market conditions. Request a firm quote.

8. Does Beijing Zhongping Technology provide on-site integration support for the BTP21L?

Yes, our team provides comprehensive on-site integration support including calibration, I/O configuration, and safety programming to ensure the robot performs to your production standards. We verify the 210 KG load handling and the 2700 MM reach settings during the initial setup phase. Proper integration usually takes 3 to 5 days, depending on the complexity of your existing production line. Please contact us for a detailed service agreement and pricing for professional installation packages.

9. Are spare parts for the 1450 KG robot readily available for shipping?

Yes, we maintain a robust inventory of essential spare parts, including motor drives and gearboxes, specifically for the BTP21L series. Because the unit weighs 1450 KG, major structural components may require freight shipping, while electrical parts can be dispatched via standard logistics providers. We prioritize shipping critical items to minimize downtime for your 210 KG payload operations. Please provide your serial number when requesting parts to ensure complete compatibility with your specific build.

10. What is the return policy if the robot does not meet our load requirements?

Returns are accepted within 30 days of delivery, provided the robot remains in its original, unused condition with all 1450 KG of factory-standard components intact. If the robot's 210 KG load capacity or 2700 MM reach does not align with your technical application, we may facilitate an exchange for a more suitable model. Please note that return shipping costs for industrial robotics are significant and are the responsibility of the purchaser unless a manufacturing defect is present. Contact us to discuss your specific load requirements before finalizing the purchase to avoid unnecessary return logistics.
