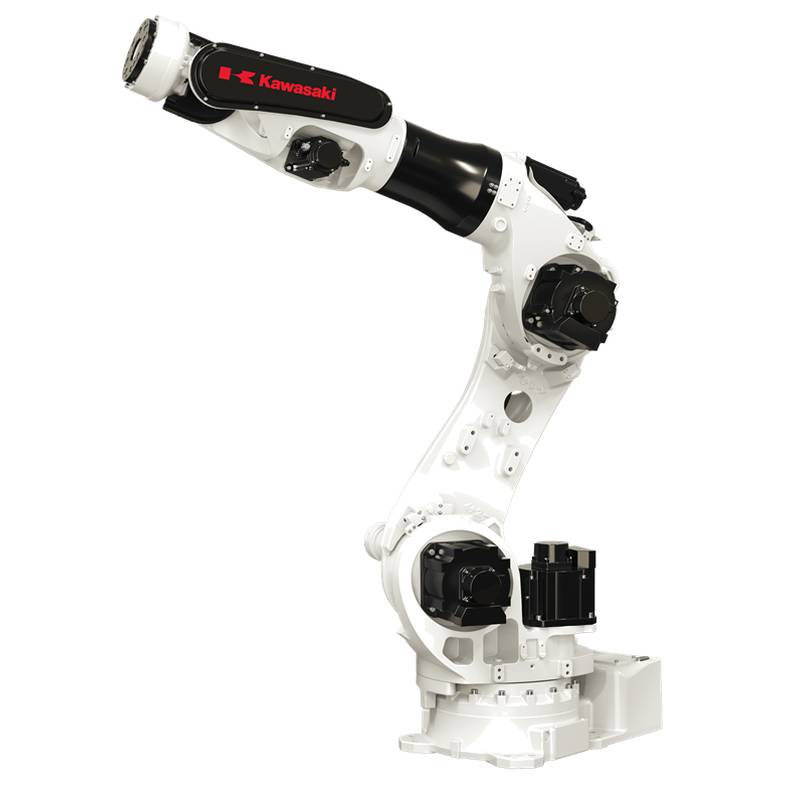

Kawasaki BX250L Industrial Robot for Automotive Spot Welding

The Kawasaki BX250L is a 6-axis articulated industrial robot engineered for high-performance automotive spot welding, featuring a 250 kg payload capacity and a 2,812 mm maximum reach. As a flagship model in the Kawasaki B series, this industrial robot integrates a hollow wrist design to house internal cables and hoses, significantly reducing maintenance downtime caused by cable interference. Its advanced motion control and high-output motors facilitate rapid, short-pitch movements essential for high-density automotive assembly lines. Frequent maintenance of the internal cable harness and periodic lubrication of the high-speed drive units are recommended to ensure long-term operational precision and factory throughput.

Product Type & Category Positioning

The Kawasaki BX250L belongs to the category of high-payload, 6-axis articulated robots specifically optimized for heavy-duty spot welding applications in the automotive sector. This model is defined by its ability to manage large-scale welding guns while maintaining a slim, high-rigidity arm structure that enables operation in confined, high-density production environments.

Building on this classification, the BX250L is positioned between the lighter BX100 series and the maximum-capacity BX300L within the Kawasaki B series lineup. It serves as a specialized tool for manufacturers requiring a balance between substantial load capacity and extended kinematic reach, distinguishing it from general-purpose handling robots that lack the dedicated hollow-wrist routing required for advanced welding integration.

Technical Specifications

Degree of freedom: 6 axes

Payload: 250 kg

Maximum reach: 2,812 mm

Position repeatability: ±0.07 mm

Mounting: Floor

Ambient temperature: 0 ~ 45 °C

Relative humidity: 35 ~ 85 %

Wrist degree of protection: IP67

Base axes degree of protection: IP54

Supported controllers: F02, E02

Power requirements: 7.5 kVA

Robot mass: 1,460 kg

Technical Highlights

The hollow wrist design is a foundational feature that improves cable longevity and reduces mechanical interference. By housing hoses and cables internally, the system minimizes the risk of cable snagging during high-speed, complex welding maneuvers.

High-output motors and a lightweight arm construction contribute to the robot's status as a high-speed performer. These components allow for rapid acceleration and deceleration, which are critical for meeting tight cycle times in automotive body shops.

Moreover, the advanced motion control technology embedded in the BX250L supports highly accurate trajectory execution. This precision ensures consistent weld quality across diverse vehicle chassis configurations, even at the limits of the 2,812 mm work envelope.

Application Scenarios Automotive Body Spot Welding: Executes precise, multi-point welding cycles on vehicle frames with high reliability, typically reducing cycle times by optimizing short-pitch movement paths. Heavy Material Handling: Manages large components weighing up to 250 kg during assembly processes, providing stable positioning and reducing the need for manual lifting equipment in high-volume lines. Machine Tending for Large Assemblies: Operates within automated cells to load and unload bulky parts from secondary machinery, ensuring constant production flow and minimizing wait times in the manufacturing loop.

Selection Recommendations Suitable Application: High-density automotive spot welding lines where the payload requirement is between 200 kg and 250 kg and the work envelope requires a reach of at least 2,500 mm. Not Suitable Application: Clean-room or pharmaceutical packaging environments (the BX250L is not designed for sterile compliance; its base axes are rated IP54, which does not protect against the rigorous washdown processes or particulate standards required in those sectors). Model Comparison: For applications requiring a greater reach beyond 2,812 mm, consider the Kawasaki BX200X, which offers a 3,412 mm reach but with a lower 200 kg payload capacity.

FAQ

1. Why choose the 250 kg capacity BX250L over the 200 kg BX200L if speed is the priority?

The BX250L should be selected if your welding gun and dressing package exceed the 200 kg limit, as operating a robot at its absolute payload capacity reduces acceleration and may trigger thermal protection; the BX250L provides the necessary margin for faster cycle times with heavier tooling.

2. What is the minimum cell size required for this 2,812 mm reach model?

While the maximum reach is 2,812 mm, the hollow-wrist and slim arm design allow for a compact footprint; however, you must account for the swing radius of the base (approx. 1,460 kg weight) and ensure a safety clearance of at least 3,000 mm from the robot base to the nearest obstruction to avoid collision during full-extension movements.

3. Can this IP54-rated base model operate in an environment with high metal dust?

No, the IP54 base rating implies protection against splashing water and limited dust ingress, but it is not sufficient for high-density metal dust or metallic powder environments, which can lead to motor and bearing degradation; external shielding or positive pressure enclosures are required for such conditions.

4. How does the ±0.07 mm repeatability directly affect production yield in spot welding?

Consistent repeatability of ±0.07 mm ensures that every weld point is placed with sub-millimeter precision, which directly reduces rework rates caused by misaligned spot welds and improves the structural integrity of the car body assembly.

5. What are the typical lead times for spare parts like the internal cable harness?

Lead times for standard B series components vary by region, but critical wear items like the internal cable harness are typically held in stock at our regional hubs in the US, Europe, and China, with standard shipping available within 5-10 business days.

6. Is the F02 controller compatible with legacy Kawasaki systems?

The F02 controller is part of the modern generation of Kawasaki controllers and supports backward compatibility with many legacy programs via the AS language; however, a formal compatibility audit by a systems integrator is recommended for existing production lines.

7. What is the expected maintenance interval for the JT3 axis drive?

The JT3 axis, which handles the vertical load, should be inspected every 3,000 operational hours or once per year, whichever comes first, to ensure grease integrity and motor brake functionality.

8. Does the price include on-site installation and calibration?

The standard product price covers the hardware and controller; on-site installation, end-effector integration, and path optimization are distinct service packages that can be quoted separately based on your facility's layout and application complexity.

9. Can the BX250L be mounted in an inverted or wall configuration?

No, the BX250L is strictly designed for floor mounting; for inverted or wall-mounted requirements, the BT series, such as the BT200L, is the appropriate alternative designed for shelf or unconventional mounting geometries.

10. What is the standard warranty period for this unit?

The standard industrial warranty for the BX250L is 12 months from the date of commissioning or 18 months from shipment, whichever occurs first, covering defects in material and workmanship under normal operating conditions.
