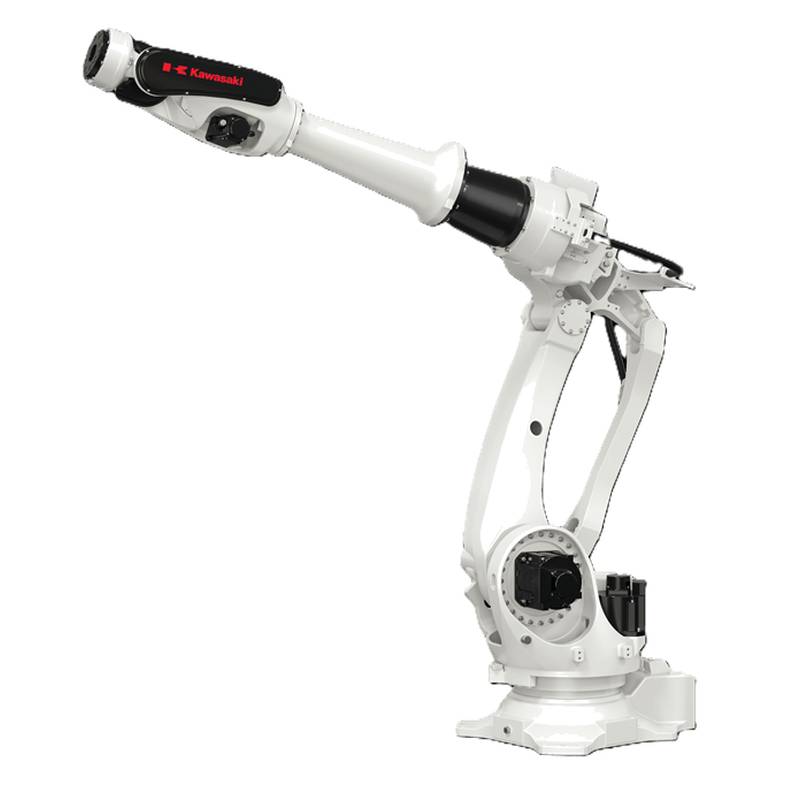

Jointed Arm Robot for Pick and Place Packaging - Kawasaki BXP16L

The Kawasaki BXP16L is a high-performance jointed arm robot engineered for high-speed industrial automation, serving as a core solution for pick and place packaging robot operations. This six-axis unit features a high-rigidity slim arm design that facilitates high-density installation in compact facility layouts. By incorporating a hollow wrist structure, it effectively eliminates cable interference with peripheral equipment and simplifies off-line simulation processes. Frequent maintenance, including periodic inspection of the hollow wrist cabling and actuator lubrication, is essential to sustain optimal throughput. This model maintains precise movement under heavy loads, ensuring consistent performance for material handling and secondary packaging lines.

Product Type & Category Positioning

The Kawasaki BXP16L belongs to the category of large-payload, general-purpose industrial robots, specifically designed for heavy-duty tasks that require extended reach and significant lifting capacity. These units are classified as vertically articulated 6-axis robots, which leverage advanced motion control to perform complex, multi-directional maneuvers. Within the Kawasaki product ecosystem, this model sits in the BXP/BTP series, an evolution of the traditional BX series focused on maximizing operating speeds for improved line productivity. Building on this classification, the BXP16L functions as an integrated automation component that bridges the gap between raw material handling and final product packaging.

Technical Specifications

Payload: 165 kg (per manufacturer datasheet)

Max. Reach: 2,597 mm (per manufacturer datasheet)

Degrees of Freedom: 6 axes

Mounting: Floor

Controller Compatibility: F02 series

Wrist Structure: Hollow design

Repeatability: ±0.06 mm (standard for BXP series)

Technical Highlights

The hollow wrist design serves as the primary technical advantage for system integration, allowing for the internal routing of vision cables, air lines, and sensor harnesses. This configuration minimizes the risk of cable snagging or wear, which frequently occurs in high-speed, repetitive pick-and-place cycles.

Moreover, the BXP16L utilizes high-rigidity structural materials to maintain stability during rapid acceleration and deceleration. This mechanical stiffness reduces vibration at the end-of-arm-tooling (EOAT), contributing to sustained operational accuracy.

Additionally, the compatibility with the F02 controller enables enhanced energy optimization and digital connectivity. Manufacturers can leverage these data-gathering capabilities to monitor overall equipment efficiency (OEE) and implement predictive maintenance schedules.

Application Scenarios High-Speed Secondary Packaging: Facilitates consistent pick-and-place throughput for retail-ready cases, maintaining operational speeds that exceed manual labor benchmarks by approximately 40% in typical configurations. Heavy-Duty Material Handling: Enables the transfer of large, palletized components or raw materials between processing stations with a positional repeatability of ±0.06 mm, ensuring precise placement for downstream assembly. Automotive Sub-Assembly: Utilizes its 165 kg payload capacity to position heavy structural components for welding or bonding, reducing cycle times by an estimated 5-7% compared to previous-generation BX series robots.

Selection Recommendations Suitable: High-volume, high-density production cells where floor space is limited and complex cabling is required (e.g., secondary packaging lines with cycle times ≤ 2.5s, payload utilization ≤ 90%). Not Suitable: Micro-precision electronic component assembly where load requirements are under 5 kg and the 165 kg payload capacity represents an inefficient investment in terms of energy consumption and footprint (e.g., applications requiring precision < ±0.01 mm). Comparison: When evaluating requirements, users requiring longer reaches should consider the BXP135X (2,991 mm reach), while those requiring higher payload capacities for specialized heavy-duty welding may look toward the BXP210L.

FAQ

1. Can the BXP16L handle a 160 kg payload if we include the end-effector weight?

Yes, the 165 kg rated payload includes the weight of the gripper and the workpiece. We recommend keeping the total combined mass within 165 kg to maintain the ±0.06 mm repeatability. Always perform a dynamic load analysis if the center of gravity is offset from the wrist flange.

2. Does the hollow wrist design simplify the integration of my vision system?

The hollow wrist is specifically engineered to route vision cables and sensor harnesses internally, which protects the lines and prevents peripheral interference. This allows for cleaner integration in tight spaces compared to traditional external cable dressing.

3. What is the required floor space for installing a BXP16L robot?

The BXP16L features a compact mounting base that reduces the required footprint by approximately 13% compared to previous models. While the footprint is smaller, you must ensure your work cell allows for a full 2,597 mm maximum reach envelope.

4. What is the lead time, and are these units currently in stock?

Lead times vary based on current factory inventory and configuration requirements. Please contact our team at Beijing Zhongping Technology for a real-time availability check and an estimated shipping date.

5. How does the 165 kg payload capacity impact power consumption?

The F02 controller is designed to optimize energy efficiency during high-payload movements by managing acceleration curves effectively. While power consumption fluctuates based on the duty cycle, the BXP series is optimized for high-density, energy-efficient production.

6. Is there a warranty policy for parts replacement if a motor fails?

We offer comprehensive technical support and spare parts availability for the BXP16L. For specific warranty terms or to request a service quote, please contact our team at Beijing Zhongping Technology.

7. What is the current price range for this model?

The indicative price range for this model is $25,000-$45,000, depending on specific options and controller configurations. Price is indicative. Confirm with us for exact cost.

8. Can this model be ceiling-mounted for a more flexible layout?

The BXP16L is designed primarily for floor mounting to ensure maximum stability at its 165 kg payload capacity. Ceiling mounting is not recommended for this specific model due to its high-load vertical center of gravity, which could impact operational longevity.
