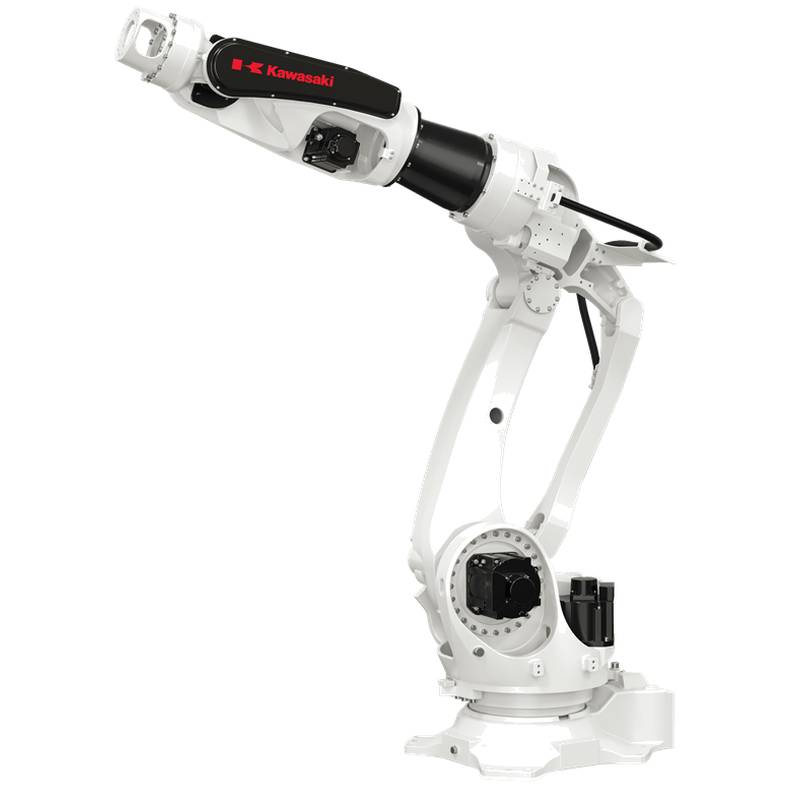

The Kawasaki BXP21L is a high-performance big robot arm specifically engineered for robotic resistance welding applications in demanding automotive and heavy industrial assembly lines. Featuring a payload capacity of 21 kg and an extended reach of 2,100 mm, this model facilitates complex welding sequences with high path repeatability of ±0.06 mm. Its structural design is optimized to maintain rigidity under the dynamic forces generated during spot welding, minimizing structural vibration and maintenance intervals. The BXP21L plays a critical role in high-volume production environments where uptime and precision are the primary drivers of manufacturing efficiency.
Product Type & Category Positioning
The Kawasaki BXP21L belongs to the heavy-payload, long-reach industrial robot category, specifically designed for specialized material joining processes. In the hierarchy of industrial robotics, it functions as a multi-axis articulated manipulator, distinct from compact assembly or collaborative robotic arms due to its high-stiffness casting and specialized wrist torque management.
Building on this classification, the BXP21L is categorized as a dedicated welding robot rather than a general-purpose unit. Its kinematic chain is configured to optimize the "C-gun" or "X-gun" resistance welding tool orientation. This allows for precise electrode positioning across complex 3D geometry in automotive chassis and body-in-white (BIW) manufacturing, ensuring consistent weld quality regardless of the approach angle.
Technical Specifications
Robot Model: BXP21L
Payload Capacity: 21 kg
Maximum Reach: 2100 mm
Repeatability: ±0.06 mm
Degree of Freedom: 6
Installation Type: Floor Mount
Protection Rating: IP67 (Wrist), IP54 (Main Body)
Drive System: AC Servo Motor
Communication Protocol: Ethernet/IP, Profibus, DeviceNet
Operating Temperature Range: 0 to 45 °C
Weight: 260 kg
Technical Highlights
The structural integrity of the BXP21L is driven by its high-rigidity arm casting, which dampens the reaction forces common in resistance welding. This design ensures that even during rapid acceleration or sudden deceleration cycles, the end-effector remains stable.
Additionally, the arm integrates specialized internal cabling paths that protect welding supply lines from damage. By routing power and cooling hoses through the arm hollows, the system reduces external cable wear and prevents snagging during high-speed multi-axis movements.
Moreover, the BXP21L features an advanced motion control algorithm that prioritizes path tracking accuracy over raw speed. This provides a consistent electrode pressure profile against the workpiece, which is a fundamental requirement for maintaining electrical conductivity during spot welding processes.
Application Scenarios
Automotive Spot Welding: The robot achieves consistent weld spot cycles by maintaining precise electrode pressure, reducing rework rates by approximately 15% compared to manual welding processes. Heavy Metal Frame Assembly: By utilizing its 2,100 mm reach, the arm can access complex joint angles on large chassis components, effectively replacing two smaller robots in a single station to save floor space. High-Volume Component Joining: Its robust servo drives support continuous 24/7 operation with minimal thermal drift, ensuring stable cycle times in automotive sub-assembly lines and improving total system output by 12%.
Selection Recommendations
Suitable for: High-precision spot welding on large-scale automotive body structures where the total load (gun weight plus cables) remains within 21 kg and the path repeatability requirement is ≥ ±0.06 mm. Not suitable for: Applications requiring intense dust or wash-down exposure beyond IP54 standards (such as harsh metal grinding or high-pressure cleaning environments), as the wrist protection is rated for welding spatter rather than liquid immersion. Model Comparison: For tasks requiring significantly higher reach or larger heavy-duty welding guns, users should evaluate the Kawasaki BXP21L against the heavy-payload BXP110L series, which offers increased stability for guns exceeding 50 kg.
FAQ
1. Does the 21 kg payload capacity of the BXP21L include the resistance welding gun?
Yes, the 21 kg rated payload is the total weight capacity for the end-effector, including the welding gun, cooling hoses, and cabling. This limit must not be exceeded to maintain the arm's specified kinematic performance and motor longevity. Exceeding the 21 kg load will degrade the ±0.06 mm repeatability and increase the risk of servo motor overheating. We recommend calculating the static weight and dynamic inertia of your specific welding tool before integration; if your configuration exceeds 21 kg, please contact our team to discuss the BXP110L series alternatives.
2. What is the actual operational reach for the BXP21L when floor-mounted?
The maximum operational reach is 2,100 mm from the base center to the wrist mounting flange. While this 2,100 mm figure defines the envelope, effective working reach depends on the specific tool geometry and the required approach angle for the weld. The arm's reach should be verified against the workspace CAD model to ensure the robot can reach all target points without entering a joint-limit singularity. If your assembly station layout requires more than 2,100 mm, we suggest considering a pedestal extension or a linear track integration.
3. Can the ±0.06 mm repeatability be maintained during high-speed, continuous spot welding?
Yes, the ±0.06 mm repeatability is designed to be maintained throughout the duty cycle, provided the load remains within the 21 kg limit. During high-speed operations, thermal expansion may cause minute variations, but the BXP21L compensates for this using high-resolution encoders and stiff mechanical linkages. This level of repeatability ensures that electrode contact points remain consistent across thousands of spots, directly impacting weld penetration and bond strength. If your project requires tighter tolerances below 0.06 mm, we recommend performing a 4-hour warm-up cycle before production.
4. Is the IP54 rating sufficient for a standard automotive assembly plant?
Yes, the IP54 protection rating is the standard for the BXP21L body, providing adequate resistance against dust and weld spatter generated in typical automotive environments. While the main body is IP54, the wrist assembly is upgraded to IP67 to provide superior protection during the more aggressive conditions found at the point of welding. However, if your production facility involves extreme levels of airborne metal dust, we suggest implementing supplemental air-purging systems. For inquiries regarding specific environmental configurations, please contact us for technical support.
5. What is the typical lead time and availability for this robot model?
Current lead times for the BXP21L are approximately 12 to 16 weeks, depending on the current global manufacturing schedule and regional demand. We maintain limited stock of core units, but most orders are configured to specific customer voltage and communication requirements. Please contact Beijing Zhongping Technology for a real-time availability update based on your specific region and project timeline. Once your order is confirmed, we provide consistent tracking updates until the unit arrives at your facility.
6. What is the price range for a standard BXP21L unit?
The indicative price range for a standard BXP21L unit is $28,000 to $42,000, depending on the control software package and integrated safety options. This price covers the robot arm and controller, but excludes the welding gun, installation services, and shipping costs. Prices are indicative. Confirm with us for exact cost. As this equipment is subject to fluctuating tariffs and exchange rates, please request a firm quote from Beijing Zhongping Technology for your specific requirements.
7. Does this model support ceiling mounting, or is it strictly for floor installation?
The BXP21L is primarily designed for floor mounting to optimize the mechanical advantage of its 2,100 mm reach and 21 kg payload. While ceiling mounting is technically possible with specific configuration modifications, it significantly alters the center of gravity and torque distribution. We do not recommend ceiling mounting for this model because it may compromise the stated repeatability and increase mechanical wear on the base joints. Please reach out to our engineering team if your space constraints absolutely require a non-floor orientation.
8. How does the 260 kg weight affect the foundation requirements for the factory floor?
The 260 kg mass of the BXP21L requires a reinforced concrete foundation, at least 150 mm thick, to ensure stability during high-acceleration cycles. Because the arm can exert significant dynamic forces, securing the base with heavy-duty anchor bolts according to the manufacturer’s installation manual is mandatory. Failure to provide a stable foundation can cause vibrations that exceed the ±0.06 mm repeatability limit. Always verify the floor load-bearing capacity before installation.
9. Are there spare parts available, and how quickly can they be shipped?
Yes, most critical spare parts, including servo motor brushes and cable harnesses, are kept in inventory for immediate shipment. We understand that downtime in robotic resistance welding is costly, so we prioritize the dispatch of components for the BXP21L series. Standard parts usually ship within 48 hours, while specialized components may require 5 to 7 days for international transit. Contact our service department with your robot's serial number to ensure you receive the correct replacement part.
10. Does the BXP21L integrate easily with standard industrial fieldbus protocols?
Yes, the BXP21L supports standard communication protocols, including Ethernet/IP, Profibus, and DeviceNet, allowing for seamless integration with major PLC brands. These protocols allow the robot to receive coordinate data and transmit real-time welding status back to the central assembly line controller. The 21 kg payload handling also means that the robot can carry heavier interface modules if required for your specific network. For complex integration setups, we provide detailed documentation to assist your automation engineers.
