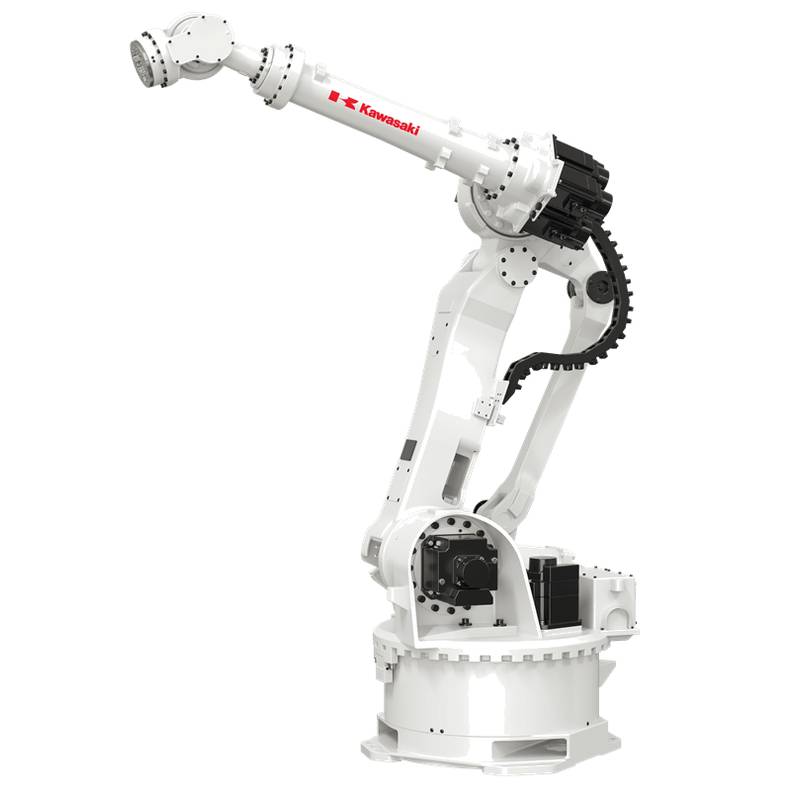

The Kawasaki Robot ZX130L is a high-performance six axis robot engineered for precision robotic spot welding in extended-reach automotive body assembly and heavy metal fabrication environments. This industrial manipulator features a 130 kg payload capacity and a maximum reach of 2,651 mm, adhering to ISO 9283 standards for path accuracy and repeatability in high-cycle production lines. Integrated for complex joining processes, the ZX130L ensures rigid mechanical stability and precise motion control, directly supporting high-speed spot welding, material handling, and structural assembly applications.
Technical Specifications and Performance Parameters
The following specifications define the operational envelope and mechanical capabilities of the ZX130L system based on manufacturer performance data.
Model: ZX130L
Axis Count: 6
Payload Capacity: 130 kg
Maximum Horizontal Reach: 2,651 mm
Repeatability: ±0.06 mm
Weight: 1,350 kg
Protection Rating: IP67 (Wrist), IP65 (Main Body)
Drive System: AC Servo Motor
Industrial Application and Operational Efficiency
The Kawasaki ZX130L optimizes metal fabrication through its extended kinematic range, allowing for deep access into vehicle chassis frames and large-scale metal structures. By utilizing advanced motion interpolation, the robot reduces cycle times during spot welding sequences while maintaining consistent weld quality across high-volume production batches.
Engineers often ask: "Does the extended reach of the ZX130L compromise structural rigidity during high-speed welding?" The rigid cast aluminum and steel construction maintains a ±0.06 mm repeatability even at full extension, ensuring weld electrode placement remains exact despite inertial forces.
In automotive body assembly, this unit operates effectively alongside the ZX165L and ZX200L models to create a synchronized welding cell. These units are suitable for intensive 24/7 production schedules where downtime minimization is critical. Conversely, the ZX130L is not recommended for cleanroom environments or precision electronics assembly due to its heavy-duty lubrication system and focus on rugged fabrication tasks.
Maintenance and System Integration
Long-term operational value is derived from the modular design of the ZX130L, which facilitates rapid component replacement and systematic preventative maintenance. Beijing Zhongping Technology provides integrated support to ensure the robotic controller and arm communicate effectively with existing plant PLC networks. Regular lubrication and inspection of the secondary axis gearboxes remain essential to maintain the unit's rated 130 kg payload capacity over its operational lifespan.
Frequently Asked Questions
1. What is the standard lead time for a new Kawasaki ZX130L unit?
We dispatch units from our primary inventory within 4 to 6 weeks of confirmed purchase order receipt. Please contact Beijing Zhongping Technology to verify current stock levels and global shipping schedules for your specific facility location.
2. How much does the ZX130L system cost?
The pricing for the ZX130L typically ranges from $42,000 to $55,000 USD depending on configuration and control options. Prices fluctuate due to exchange rates, tariffs, and factory adjustments; for an accurate quotation, contact Beijing Zhongping Technology directly.
3. Does the ZX130L include a warranty?
We provide a standard 12-month manufacturer warranty covering all mechanical and electronic components against defects. Extended service agreements and onsite maintenance support are available for an additional fee.
4. What is the required power supply for this six axis robot?
The system requires a 3-phase AC 400V input with a capacity of 15 kVA to ensure stable performance. We recommend verifying your facility's electrical infrastructure before installation to ensure compatibility with local voltage standards.
5. Are spare parts for the ZX130L readily available?
We stock a comprehensive range of essential spare parts, including servo motors, drive belts, and harmonic gear sets. Beijing Zhongping Technology ensures rapid fulfillment of critical components to minimize production downtime.
6. Can the ZX130L be integrated with third-party welding power sources?
The robot controller supports standard industrial communication protocols, including Ethernet/IP and Profinet, for seamless integration with major welding power sources. We provide technical documentation to assist your engineering team with the interface configuration.
7. What are the weight and dimensions for shipping purposes?
The robot arm weighs 1,350 kg and requires a reinforced floor space of at least 800 mm x 800 mm for the base mounting. We provide detailed crating dimensions and lifting point diagrams upon confirmation of order.
8. Do you offer onsite installation and commissioning services?
We provide professional installation, site commissioning, and operator training services to ensure the ZX130L reaches optimal performance quickly. Contact our support team to schedule a technical visit and site assessment for an additional fee.
9. What is your return policy for robotic equipment?
We do not accept returns on heavy industrial machinery once the unit has been unsealed and commissioned. We encourage clients to utilize our pre-purchase consultation services to ensure the ZX130L meets all application requirements before shipment.
10. Does this model support remote diagnostics?
The controller enables remote status monitoring and diagnostic logging to facilitate quick troubleshooting by your maintenance team. Beijing Zhongping Technology provides technical support access to these logs to assist in identifying performance anomalies.
