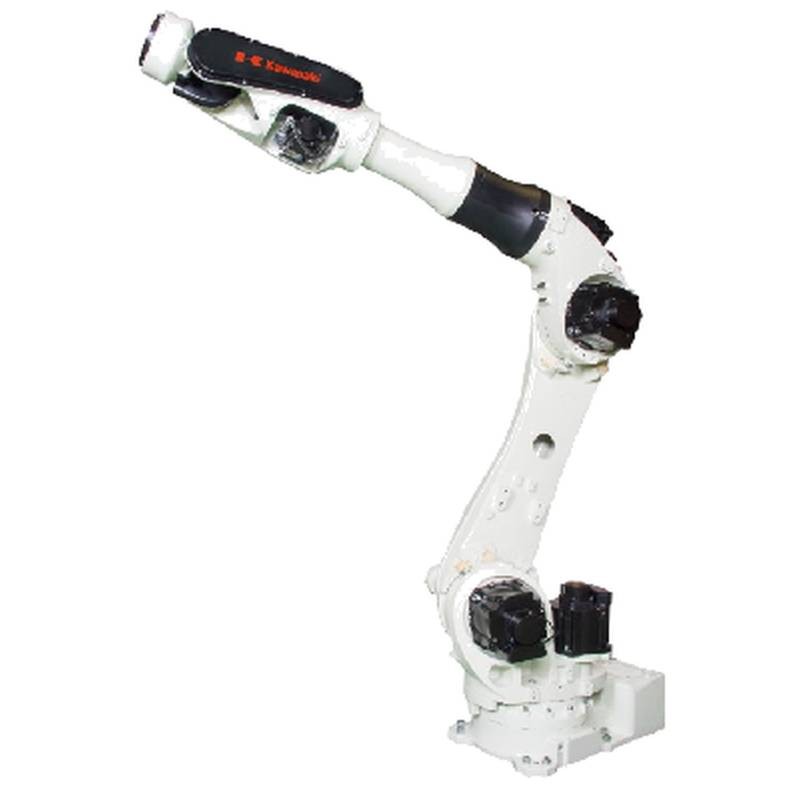

Kawasaki BX200X Industrial Robotic Arm for Spot Welding

The Kawasaki BX200X is a 6-axis articulated industrial robotic arm purpose-built for high-speed robotic spot welding in automotive body-in-white and heavy fabrication applications.With a 200 kg maximum payload,an extended 3,412 mm horizontal reach,and positional repeatability of±0.07 mm(ISO 9283),the BX200X delivers the reach,rigidity,and high-speed short-pitch motion performance required for large-panel welding operations.This unit is supplied in New in Original Packaging(Factory Sealed)condition,integrated with the E02 Universal Controller and configured for floor-mount installation.

Overview&Primary Technical Specifications

Brand&Series:Kawasaki B Series–High-Speed Body Shop Robots

Model Part Number(MPN):BX200X-C/BX200X-F(controller variants)

Core Category:6-Axis Articulated Industrial Robotic Arm

Product Condition:New in Original Packaging(Factory Sealed)

Degrees of Freedom:6 axes(option for 7 axes available)

Max.Payload:200 kg

Max.Horizontal Reach:3,412 mm–the longest reach in the B series line

Vertical Reach:4,734 mm

Positional Repeatability:±0.07 mm(wrist flange surface,conforms to ISO 9283)

Motion Range:Arm Rotation(JT1)±180°;Arm Out-in(JT2)+76°/−60°;Arm Up-down(JT3)+90°/−110°;Wrist Swivel(JT4)±210°;Wrist Bend(JT5)±125°;Wrist Twist(JT6)±210°

Max.Axis Speed:JT1 125°/s;JT2 102°/s;JT3 85°/s;JT4 105°/s;JT5 120°/s;JT6 200°/s

Allowable Wrist Moment:JT4/JT5=1,334 N•m;JT6=588 N•m

Allowable Moment of Inertia:JT4/JT5=199.8 kg•m²;JT6=154.9 kg•m²

Mass(Robot Arm):1,450 kg

Mounting:Floor installation only

Ambient Operating Temperature:0°C to 45°C

Relative Humidity:35%to 85%(non-condensing)

Degree of Protection:Wrist:IP67 equivalent;Base axis:IP54 equivalent

Controller:E02 Universal Controller/7.5 kVA

Color:Munsell 10GY9/1 equivalent

Primary Applications:Robotic spot welding,material handling,material removal,dispensing,sealant application,large-part manipulation

Key Features&Engineering Performance

Extended 3,412 mm Reach–815 mm Advantage Over Standard 200 kg Models:The BX200X delivers a horizontal reach of 3,412 mm–an 815 mm increase over the BX200L(2,597 mm).This extended reach enables this industrial robotic arm to access weld points across large body panels,truck cabs,and railcar assemblies without requiring additional external axes or repositioners,significantly reducing system complexity and floor-space footprint.

±0.07 mm Ultra-High Repeatability for Flawless Weld Quality:With repeatability of±0.07 mm–far exceeding the typical±0.2–0.3 mm industry standard–the BX200X ensures electrode alignment consistency across every weld cycle.This precision minimizes weld expulsion,reduces electrode dressing frequency,and maintains consistent nugget formation even during high-speed short-pitch movements,making this spot weld robot a champion sprinter in high-volume body shop production.

Hollow Wrist with Integrated Dress Package:The BX200X features a hollow wrist and hollow reduction units for the upper arm,allowing internal routing of cables,hoses,and cooling lines from the base to the tool mounting plate.This integrated dress package eliminates exposed harness interference with adjacent robots or peripheral devices,reduces digital engineering time,and improves teach-pendant programming efficiency.

High-Speed Short-Pitch Motion with Heavy-Duty Motors:Advanced motion control technology and heavy-duty motors enable the BX200X to excel at high-speed short-pitch movements–the characteristic motion pattern of spot welding.Automatic calibration optimizes acceleration and deceleration of servo welding gun speeds,delivering significant cycle-time reduction and maximum production throughput.

Space-Saving Design with Slim Arm Profile:Despite its 1,450 kg mass and 200 kg payload capacity,the BX200X features a compact footprint and narrow arm body.Combined with internal cable routing,this enables installation in high-density body shop configurations where multiple robots operate in close proximity without impeding performance.

Model Code Decoding&Selection Criteria for the BX200X

The Kawasaki BX200X nomenclature decodes as follows:“BX”designates the B series platform–a family developed specifically for spot welding applications using Kawasaki's proven advanced technology.The numeric“200”indicates a maximum payload capacity of 200 kg at the wrist faceplate.The suffix“X”denotes the extended-reach variant within the 200 kg payload class,distinguishing it from the BX200L(2,597 mm reach).The“-C”or“-F”suffix in the full MPN refers to controller cable configuration variants.

Essential selection criteria for a long-reach spot weld robot:

Work Envelope vs.Part Geometry:With 3,412 mm horizontal reach and 4,734 mm vertical reach,the BX200X is suitable for large assemblies such as automotive body sides,roof panels,floor pans,and heavy truck cabs.Verify that all target weld points fall within the robot's working envelope without singularities.The BX200X also offers minimal dead space,providing greater flexibility across the work envelope.

Weld Gun Weight+Electrode Force+Moment of Inertia:The total mass of the welding gun,transformer,cables,and tooling must remain within 200 kg.Additionally,verify that the combined end-effector mass×center-of-gravity offset falls within the allowable wrist moment limits(1,334 N·m at JT4/JT5)and moment of inertia(199.8 kg·m²).For heavy,long-reach guns,moment of inertia is often the limiting factor–exceeding these values will degrade acceleration and settling time.

Cycle Time vs.Speed Capabilities:Maximum axis speed on JT6 reaches 200°/s,supporting rapid gun positioning between weld points.For high-density spot patterns(60+spots per assembly),balance path acceleration with settling time using the E02 controller's trajectory smoothing features.

Controller and Fieldbus Compatibility:The E02 Universal Controller supports EtherNet/IP,Profinet,DeviceNet,and CC-Link.For multi-robot synchronized welding cells,ensure the selected fieldbus option provides sufficient bandwidth for real-time interlock signaling(typical cycle times≤4 ms).The E02 controller also features a color TFT LCD touchscreen,USB and Ethernet connectivity,and AS-language programming.

Environmental and Protection Requirements:The wrist offers IP67-equivalent protection–essential for body shop environments with welding spatter,coolant mist,and metal dust.The base axis provides IP54-equivalent protection.For applications with extreme weld spatter exposure,the optional JT6 seal protection flange is recommended.

Hollow Wrist Integrated Dress Package–Engineering Advantage in Body Shop Deployment

The Challenge of Exposed Harnesses:Conventionally dressed robots with externally routed cable harnesses present significant operational drawbacks.Exposed cables and hoses create interference risks with adjacent robots or peripheral devices during in-field teaching and playback execution.External dressing also increases the risk of cable wear,coolant hose fatigue,and electrical shorts–particularly in high-cycle spot welding environments where robots execute hundreds of short-pitch movements per hour.

The BX200X Solution–Internal Routing Through Hollow Structure:The BX200X eliminates these problems through a sophisticated integrated dress package.The robot's upper arm and wrist are manufactured using hollow reduction units,creating a continuous internal conduit from the base to the tool mounting plate.This enables the cable harness for spot welding–including power cables,weld timer signals,cooling water lines,and pneumatic hoses–to be internally routed between base and wrist.

Operational Benefits:

Reduced Digital Engineering Time:Internal routing eliminates the need for complex external cable-dressing simulations,accelerating offline programming and virtual commissioning.

Enhanced Teach-Pendant Efficiency:Without protruding harnesses,in-field teaching becomes faster and safer–operators can manually guide the robot through weld paths without cable snagging.

Minimized Interference in High-Density Cells:Internal dressing enables closer robot-to-robot spacing,supporting installation of a large number of B series robots within confined body shop spaces.

Extended Component Durability:Internal routing protects cables and hoses from weld spatter,mechanical abrasion,and environmental contamination,increasing service life and reducing unplanned downtime.

The hollow-wrist design is particularly critical for the BX200X's extended 3,412 mm reach–longer arms impose greater cable stress during wrist articulation.Kawasaki's internal dressing architecture mitigates this stress,ensuring reliable operation across millions of cycles.

Technical&Business FAQ

1.What is the typical price range for a Kawasaki BX200X robotic spot welder?

For a New in Original Packaging(Factory Sealed)BX200X complete with E02 controller,teach pendant,and standard 7-meter cable set,pricing typically ranges from$85,000 to$120,000 USD.The final cost depends on:(1)controller variant(C or F cable configuration);(2)fieldbus option board selection(EtherNet/IP,Profinet,DeviceNet,or CC-Link);(3)software option packages(conveyor tracking,multi-robot coordination,vision guidance interface);(4)cable extension length;(5)optional JT6 seal protection flange for extreme spatter environments.End-of-arm tooling(servo weld gun,transformer,electrode dresser)and safety fencing are quoted separately.Brand-new units with 14-month warranty are available through authorized distributors.

2.What is the current availability and shipping lead time for the BX200X?

Inventory status varies by region and order volume.For North American and European distribution hubs,factory-sealed BX200X units are frequently available from regional stocking programs with a 2-to 4-week shipping lead time for standard configurations.Custom configurations(special fieldbus options,extended cables,or option harness packages)typically require 6–12 weeks from order confirmation to factory shipment.Expedited air-freight options are available but incur additional logistics costs.Some distributors maintain ready-to-ship inventory with lead times as short as 2–3 days–confirm current stock levels and wave-slot availability at the time of quotation.

3.What warranty coverage is provided with the BX200X?

The BX200X includes a standard 14-month manufacturer's warranty from the date of shipment,covering defects in materials and workmanship for the robot arm,controller,teach pendant,and cable set.Extended warranty plans(up to 36 months)are available as an optional procurement item.Technical support includes:(1)telephone and email support during local business hours;(2)remote diagnostic assistance via the E02 controller's Ethernet port;(3)on-site commissioning support(travel and accommodation quoted separately for non-local installations).A comprehensive spares package(encoder batteries,wrist seals,and an FRL service kit)is recommended for stocking to minimize unplanned downtime.

4.What are the key differences between the BX200X and the BX200L?

The BX200X and BX200L share identical payload capacity(200 kg),wrist torque ratings(1,334 N·m at JT4/JT5),and hollow-wrist design.The critical difference is reach:the BX200X offers 3,412 mm horizontal reach–an 815 mm increase over the BX200L's 2,597 mm.This extended reach makes the BX200X suitable for large-panel welding applications where the BX200L would require additional external axes or repositioners.Both models are champion sprinters for high-speed short-pitch movements.Importantly,the BX200X configuration is largely based on the BX200L and BX300L–meaning existing B series spare parts are cross-compatible.

5.Can the BX200X replace an existing spot welding robot in my production line?

Yes.The BX200X is specifically designed for easy replacement of inefficient existing robots.Its mounting interface(floor mounting only)and controller architecture(E02 Universal Controller)are standardized within the B series line,minimizing line retrofit complexity.The internal cable routing eliminates the need for external harness reconfiguration,and the AS-language programming environment is consistent across Kawasaki's B and Z series robots.However,verify that your existing foundation bolts and base plate meet the BX200X's 1,450 kg mass and dynamic load requirements before installation.

6.What diagnostic procedures should I follow for spot weld quality deviations?

Weld quality inconsistencies in spot weld robot applications typically originate from TCP drift,electrode wear,gun misalignment,or robot repeatability degradation.Recommended diagnostic workflow:(1)Run a TCP check cycle against a fixed reference point–deviations exceeding±0.07 mm indicate mechanical,mastering,or thermal expansion issues.(2)Verify wrist moment and inertia remain within allowable limits(1,334 N·m and 199.8 kg·m²)–overload conditions cause deflection and poor repeatability.(3)Check encoder battery voltage and absolute position retention.(4)Inspect the internal coolant lines for leaks or restrictions that may cause gun overheating.(5)Use the E02 controller's diagnostic logs to review servo error histories,path interpolation anomalies,and acceleration/deceleration profiles.For persistent issues,perform a full re-mastering procedure per the instruction manual and recalibrate the weld gun TCP.

7.What is the recommended preventive maintenance schedule for the BX200X?

In high-duty spot welding operations(2+shifts per day,5+days per week),Kawasaki recommends:grease replacement every 6,000 operating hours or annually(whichever comes first);encoder battery replacement every 2 years;wrist seal inspection every 3 months–the IP67-equivalent wrist protection extends seal life but thermal cycling still accelerates wear;cooling water line inspection weekly for leaks,flow rate,and contamination;mounting bolt torque verification quarterly(refer to the Installation and Connection Manual for specified torque values);cable harness inspection semi-annually for wear at flex points(the hollow-wrist design reduces but does not eliminate cable stress).Maintain a spare parts inventory including encoder batteries,wrist seals,and FRL unit service kit.The robot's acoustic signature can serve as a diagnostic indicator–a sudden increase in noise may signal bearing wear or lubrication degradation.

8.What shipping and packaging standards apply to the BX200X for export orders?

The BX200X is packaged in a heavy-duty wooden crate with internal anti-vibration padding,moisture barrier,and desiccant packs.Crate dimensions are approximately 2.5 m×1.8 m×2.4 m(L×W×H),with a gross shipping weight of approximately 1,800 kg including the controller,teach pendant,and cable set.Shipping terms are typically FOB(Nagoya factory)or EXW(regional warehouse),with Incoterms negotiable.For overseas shipments,the packaging complies with ISPM 15 heat-treatment standards for wooden materials.Insured marine or air freight is strongly recommended to cover transit damage.All export documentation(commercial invoice,packing list,certificate of origin,and country-specific customs declarations)is provided upon shipment.

9.What fieldbus and communication options are available for the BX200X?

The E02 controller supporting the BX200X offers multiple fieldbus options:EtherNet/IP,Profinet,DeviceNet,and CC-Link.The controller also includes standard connectivity:USB port for program transfer and data logging,Ethernet(100BASE-TX)for network integration and remote diagnostics,and RS-232C for serial communication.The teach pendant features an optimized key arrangement based on extensive operator hand-motion studies,with a color TFT LCD touchscreen interface.Programming is supported through Kawasaki's AS language(point-to-point,linear,and circular interpolation)or Klogic software.For multi-robot synchronized welding cells,ensure the selected fieldbus option provides sufficient bandwidth for real-time interlock signaling.

10.What are the power requirements and energy consumption of the BX200X?

The BX200X requires a 7.5 kVA power supply(200V AC,50/60 Hz).Actual power consumption depends on the motion profile,payload,acceleration settings,and weld gun duty cycle.For a typical body shop spot welding application(60 spots per assembly,30 assemblies per hour),average power consumption ranges from 4.5 to 6.5 kW during active operation,with peak demand during simultaneous multi-axis acceleration.Standby power consumption is significantly lower.The E02 controller features indirect cooling with a fully digital servo system for optimal energy efficiency.A dedicated 7.5 kVA circuit breaker and appropriately sized cabling are required per local electrical codes.Consult the Installation and Connection Manual for specific wire gauge recommendations based on cable length.
